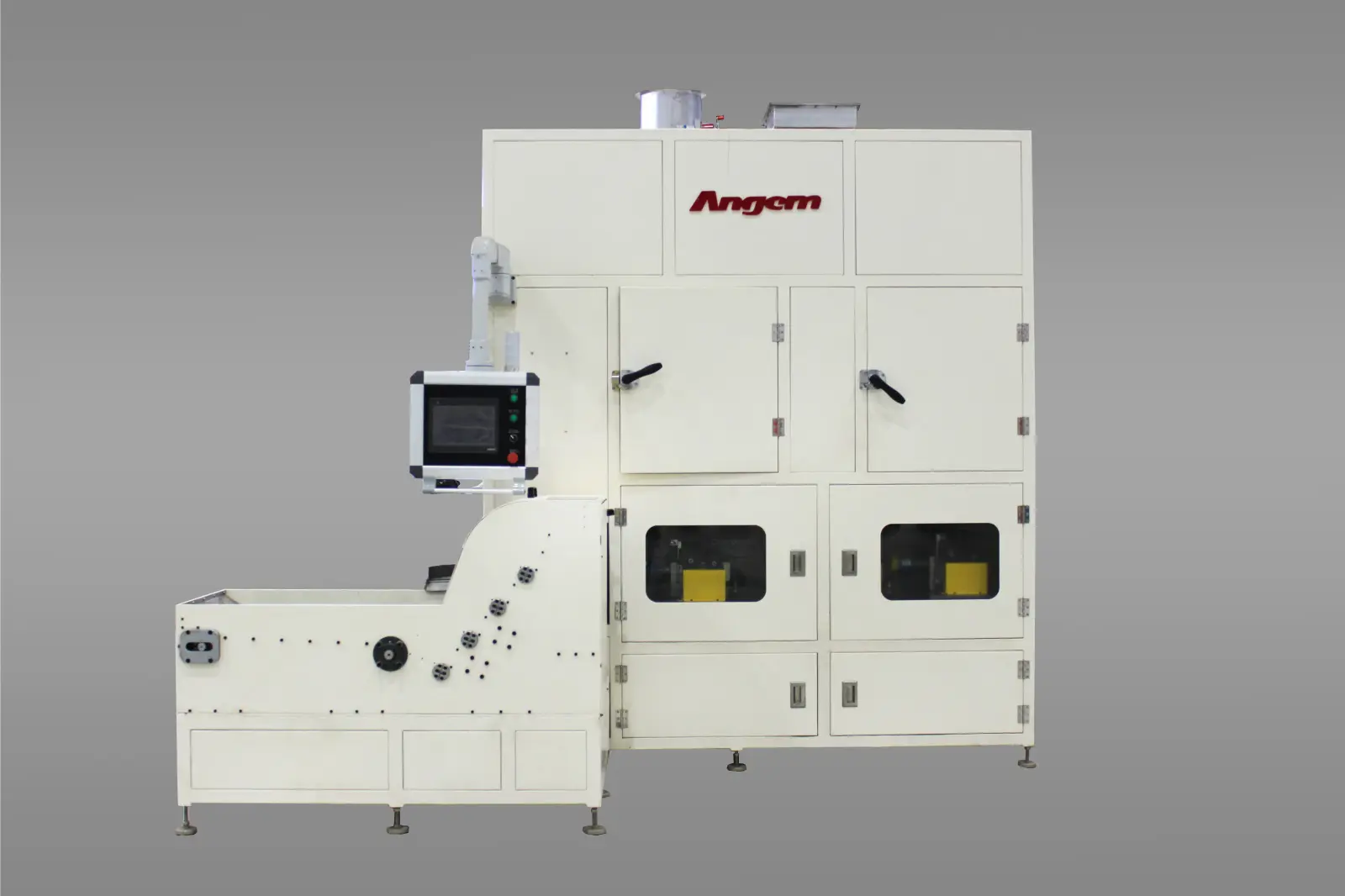

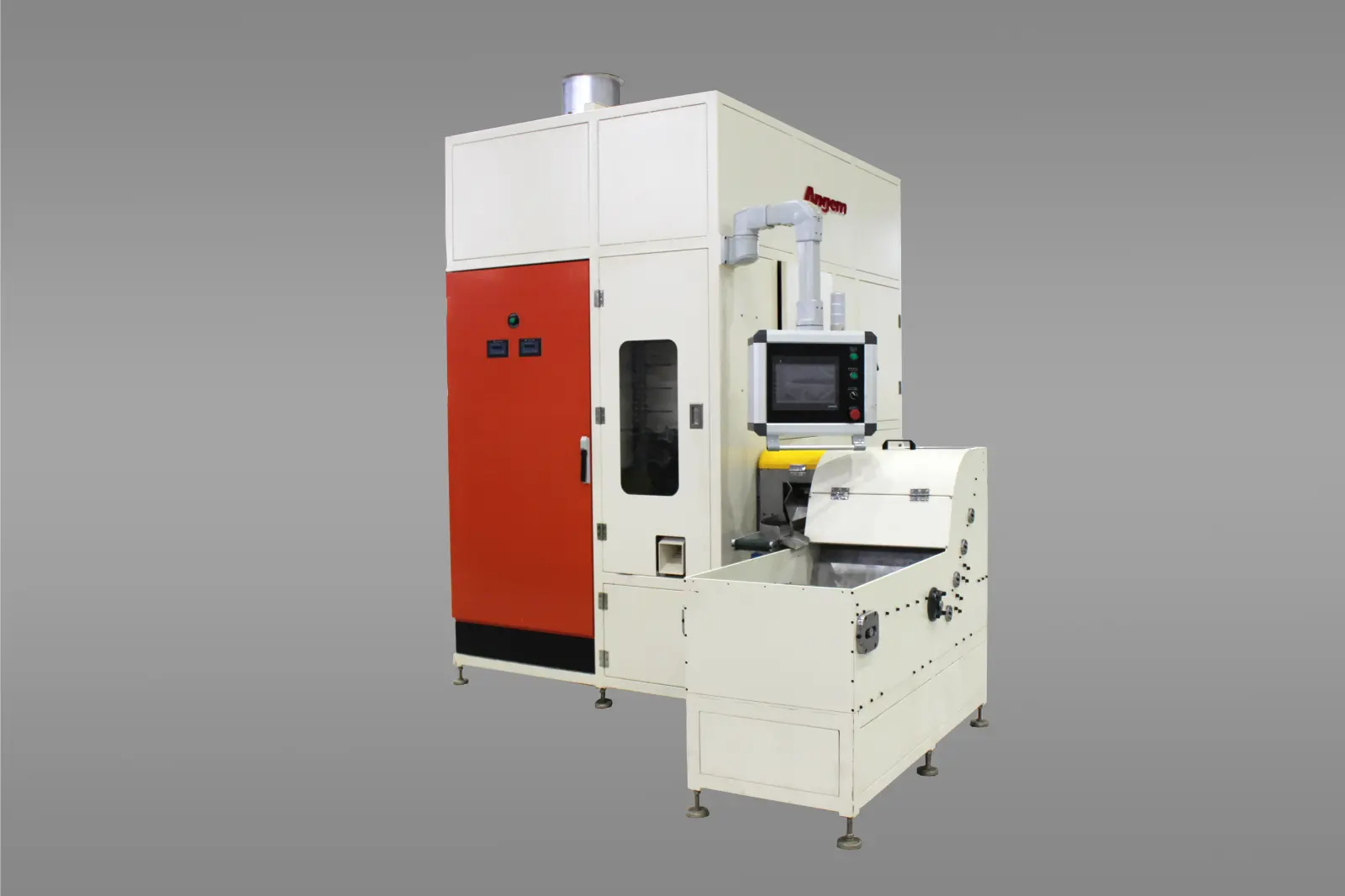

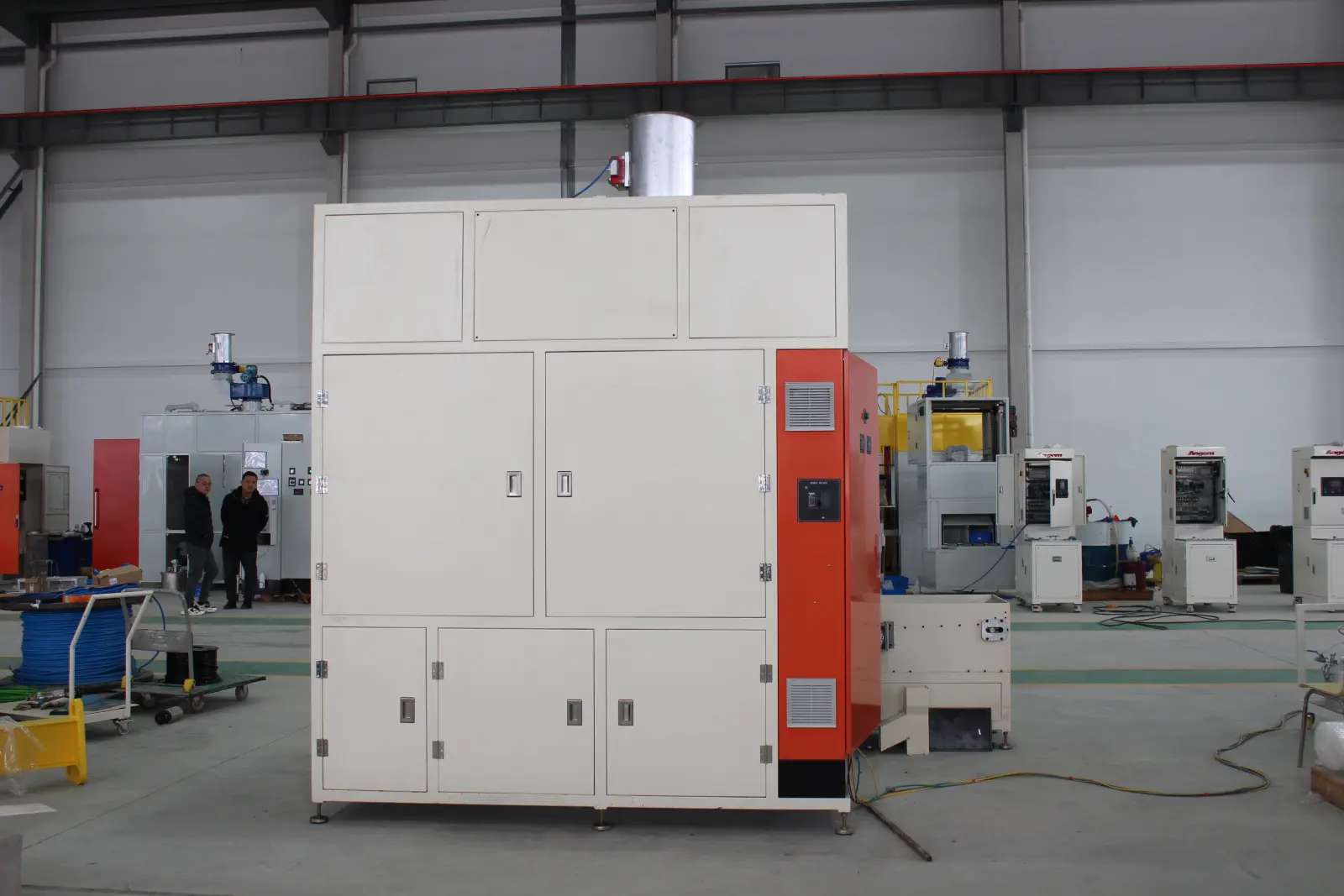

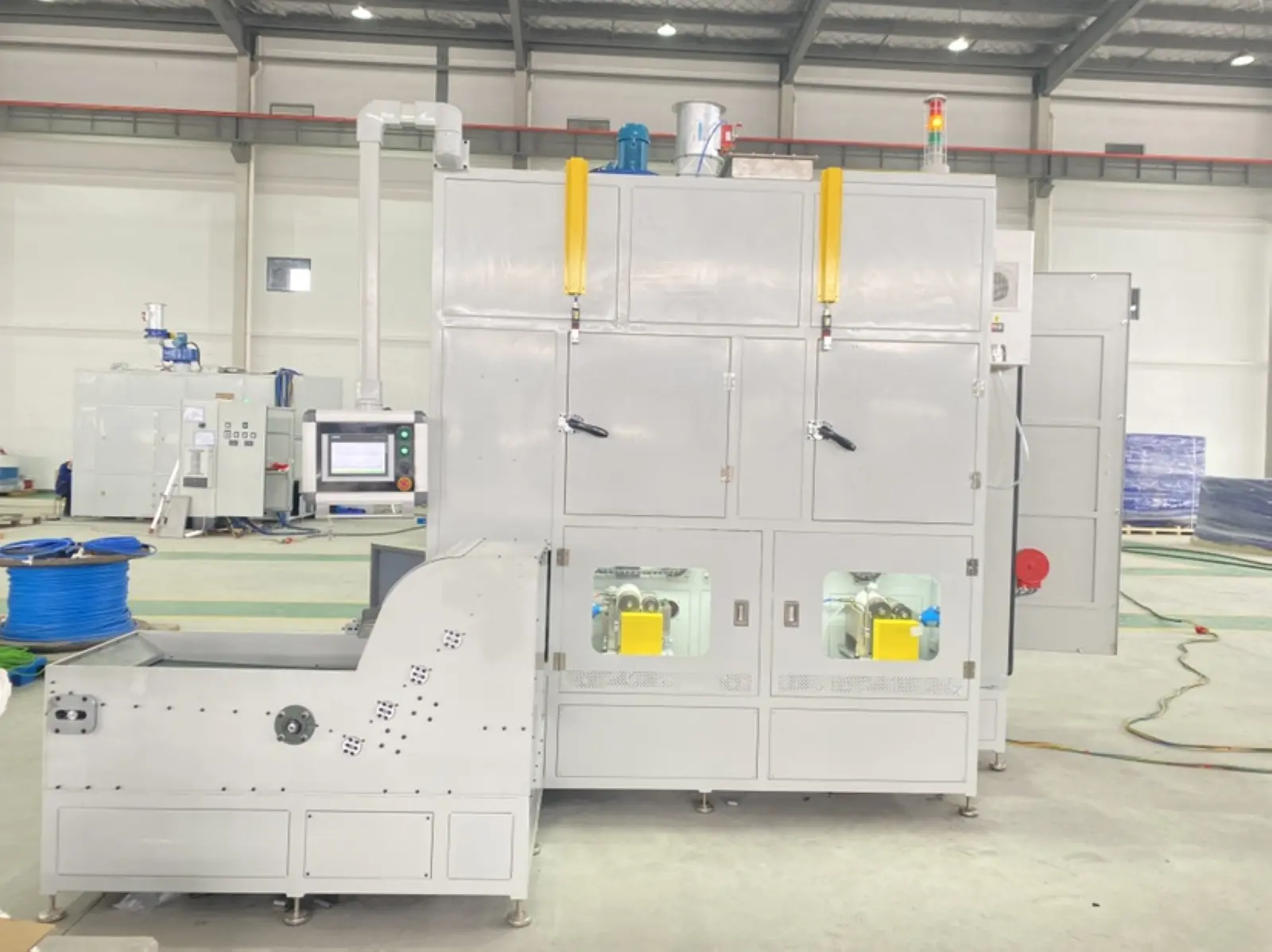

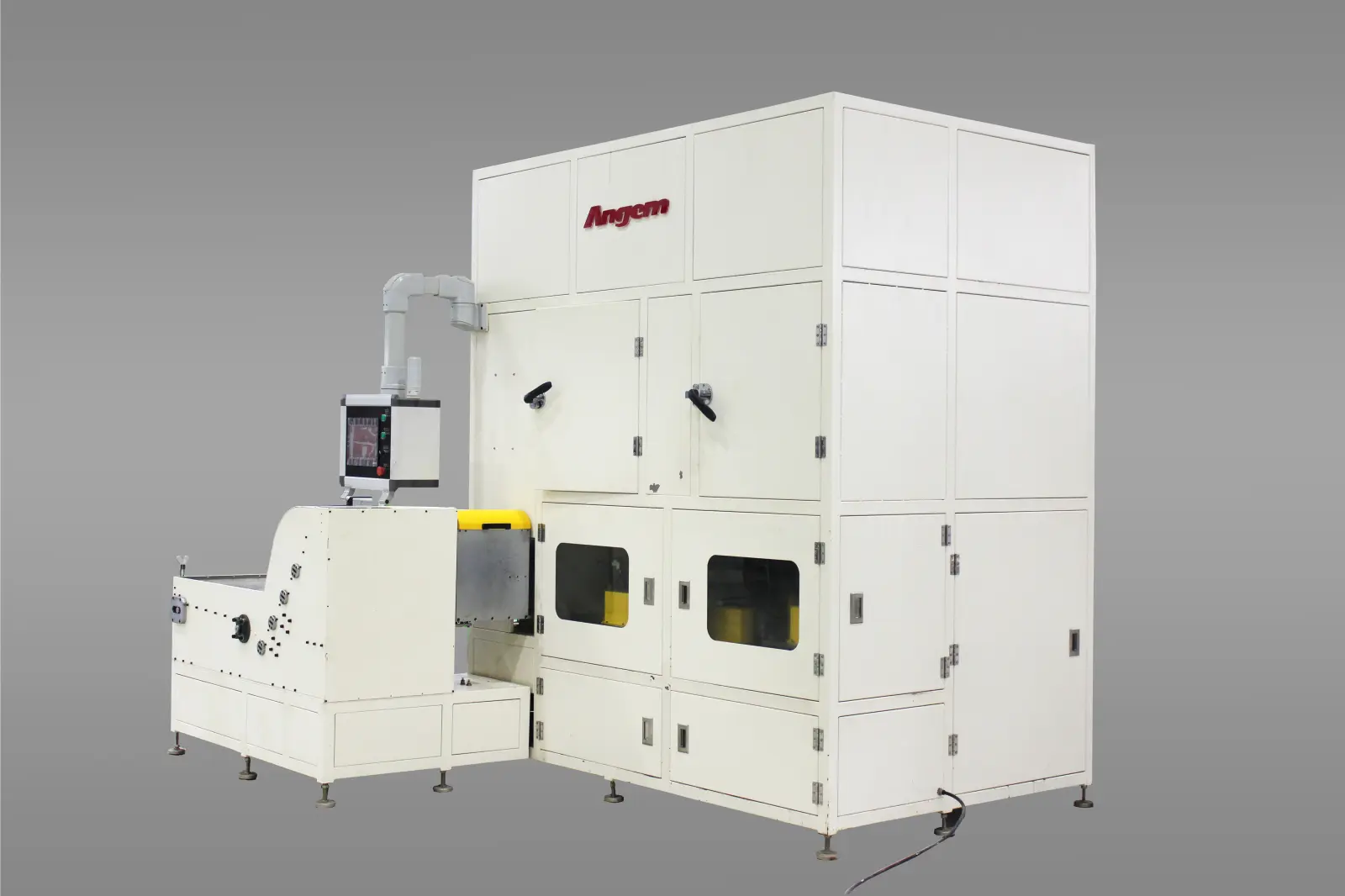

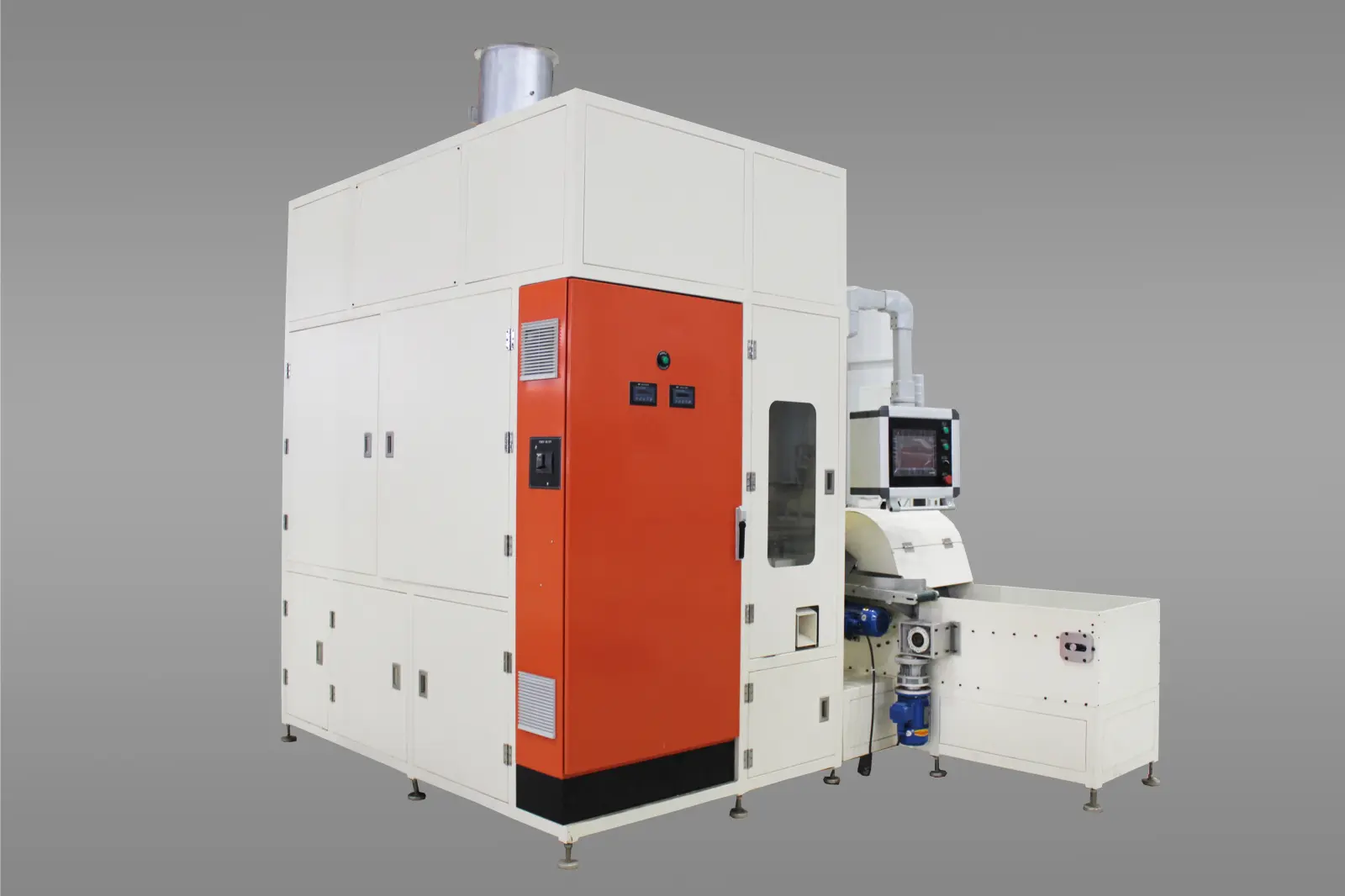

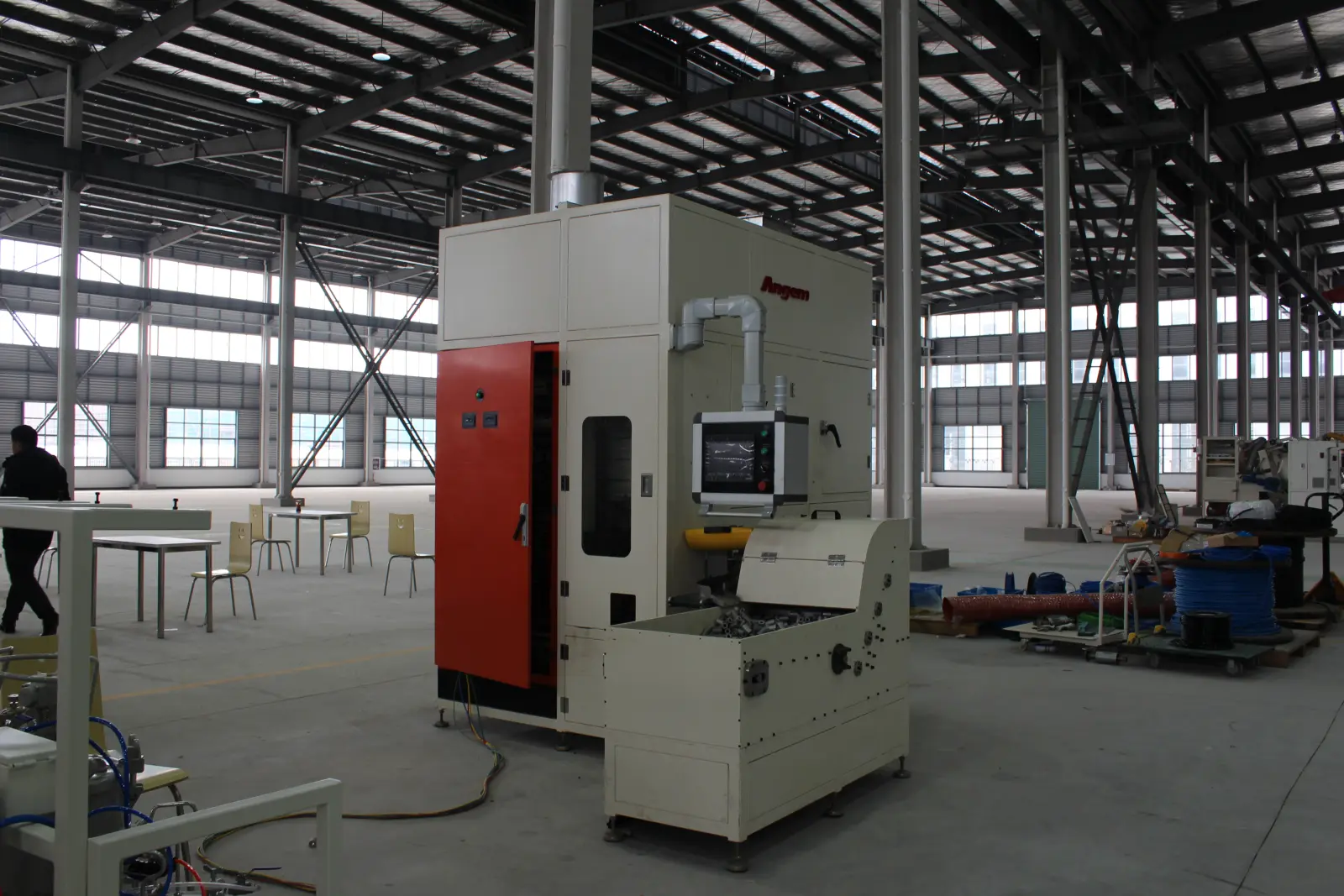

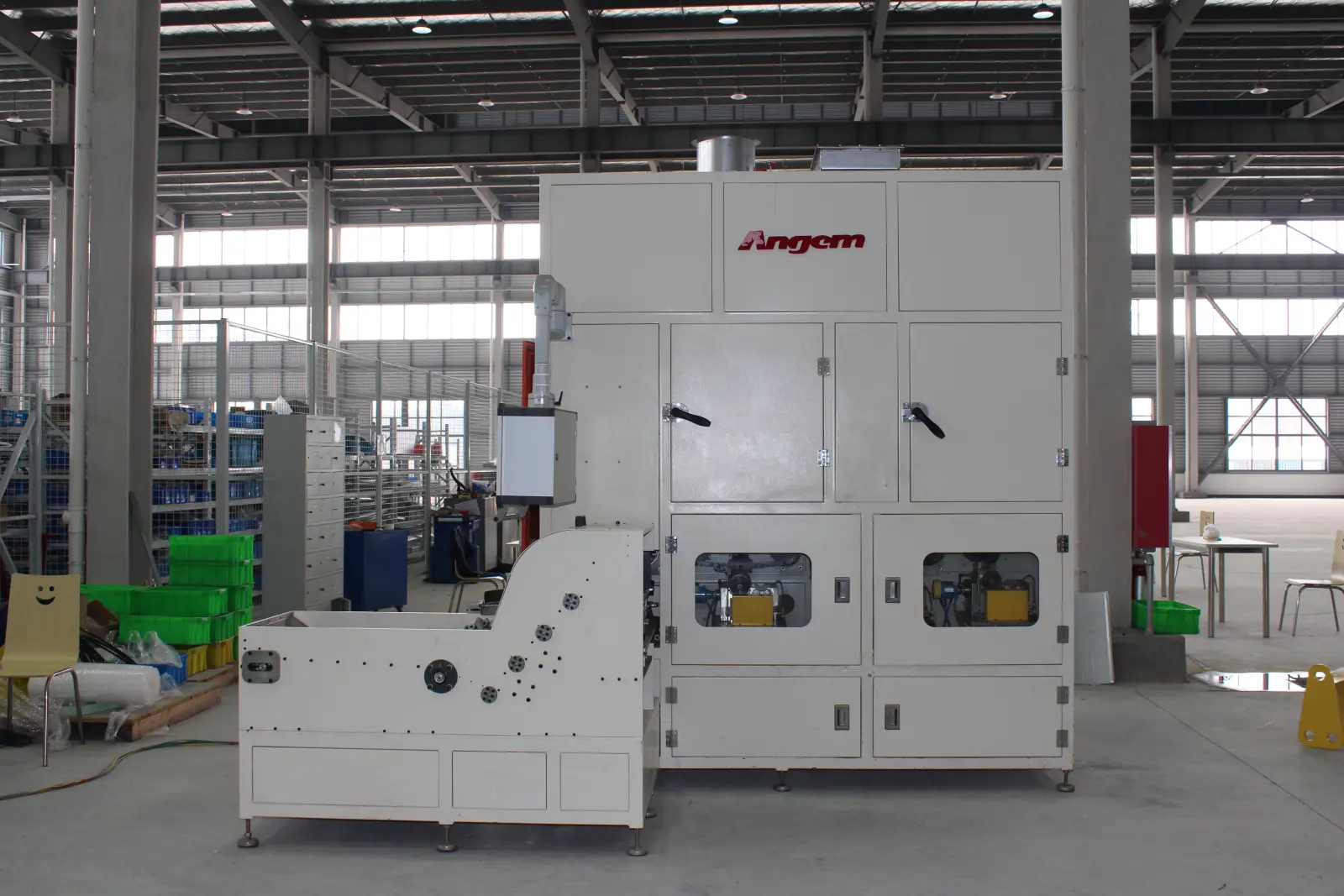

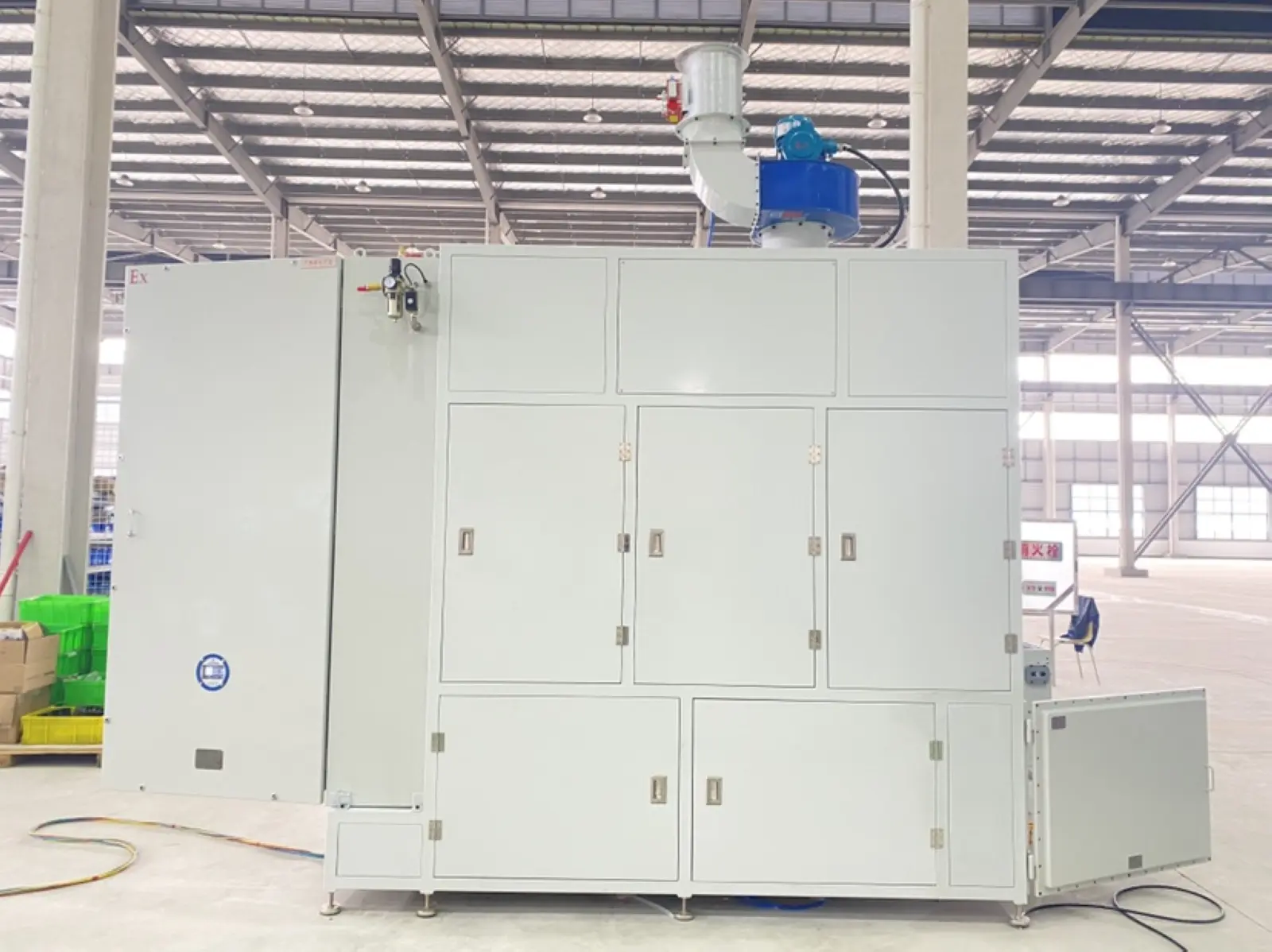

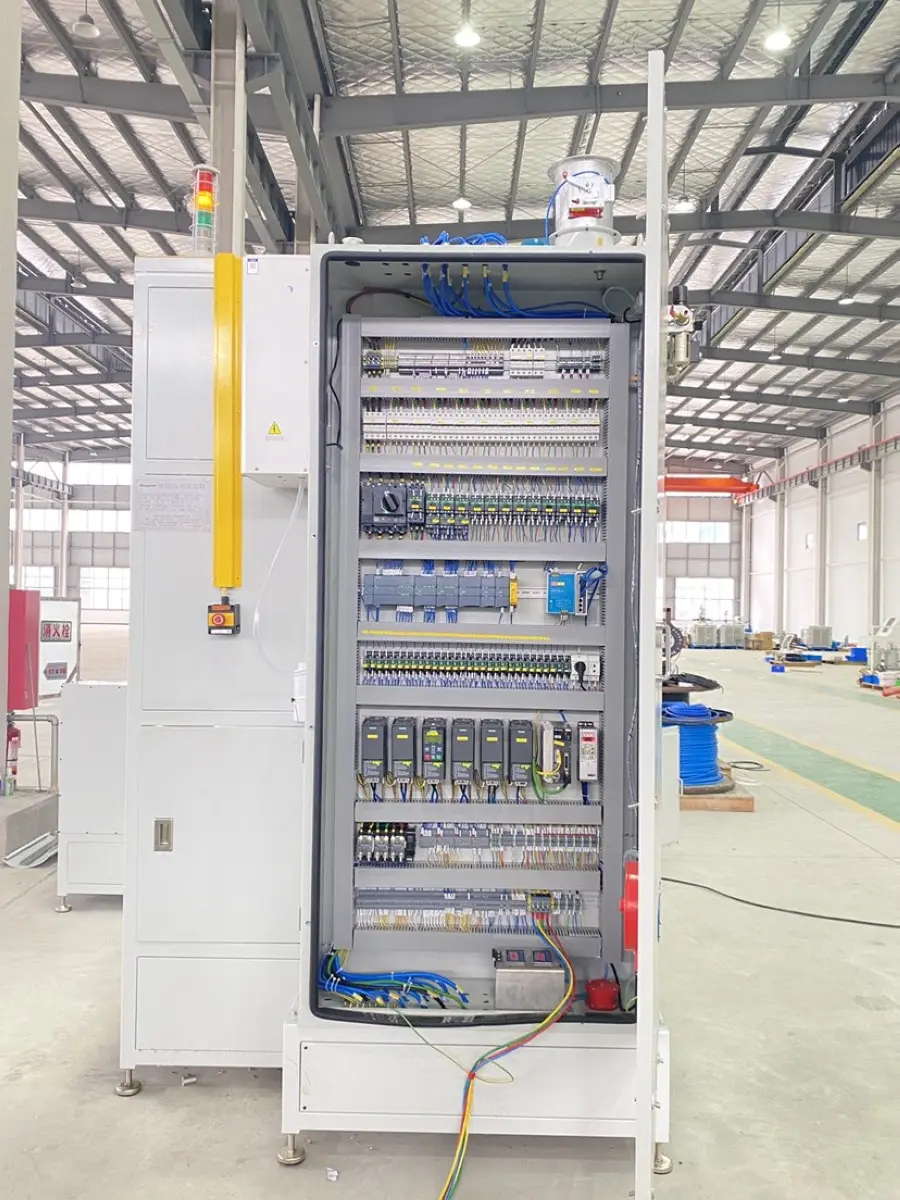

Automatic Outer Diameter Roller Coating Machine GLB150-DY3M – ANGEM

The GLB150-DY3M Automatic Outer Diameter Roller Coating Machine is a high-performance coating system developed by ANGEM for the adhesive coating of rubber-to-metal bonded components.

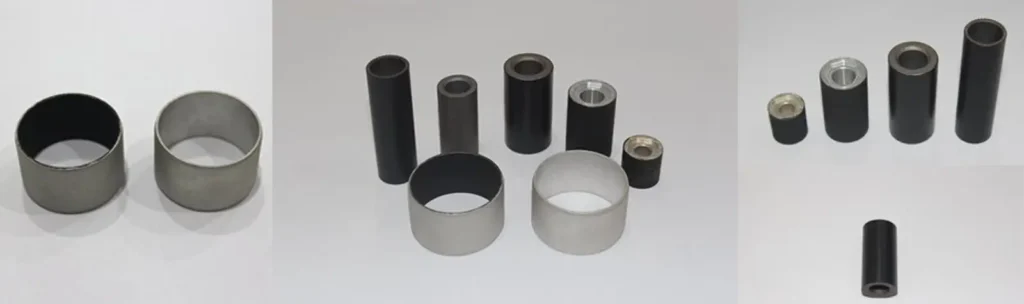

The machine is specifically designed for applying primer and topcoat adhesives to the outer cylindrical surfaces of:

Suspension Bushings
Shock Absorber Bushings
Engine Mount Components
Rubber Supports
Other Rubber-to-Metal Bonded Parts

Using a precision roller coating process, the machine delivers uniform adhesive coverage, high coating consistency, and stable production performance.

DESCRIPTION

Precision Adhesive Application

The roller coating process ensures:

Uniform coating thickness
High adhesive utilization
Reduced material waste
Improved bonding consistency

making it ideal for rubber-to-metal bonding applications.

Enclosed Environmental Design

The fully enclosed coating structure helps:

Reduce VOC emissions
Improve workplace safety
Minimize environmental contamination
Maintain a clean production environment

Designed for Mass Production

The GLB150-DY3M is suitable for large-scale manufacturing with excellent stability, repeatability, and production efficiency.

PRODUCT PARAMETERS

PRODUCT PROPERTIES	Specification
Production Cycle Time	2–3 sec (adjustable, automatically controlled)
Production Capacity	L (length) × n (quantity) ≤ 100 mm; Output: 14,400 × n pcs per 8-hour shift
Coating Time	1.5–3 sec (adjustable, automatically controlled)
Coating Thickness	Primer thickness: 10–15 μm; Total dry film thickness: 16–38 μm
Drying Temperature	Outer diameter: 15–50 mm; Inner diameter: 10–30 mm; Length: 30–100 mm
Air Pressure	0.6 MPa
Voltage	380V ±10%, 50Hz
Machine Dimensions (L×W×H)	Approx. 3300 × 2500 × 3080 mm

FEATURES

Fully Automated Coating Process

The system integrates:

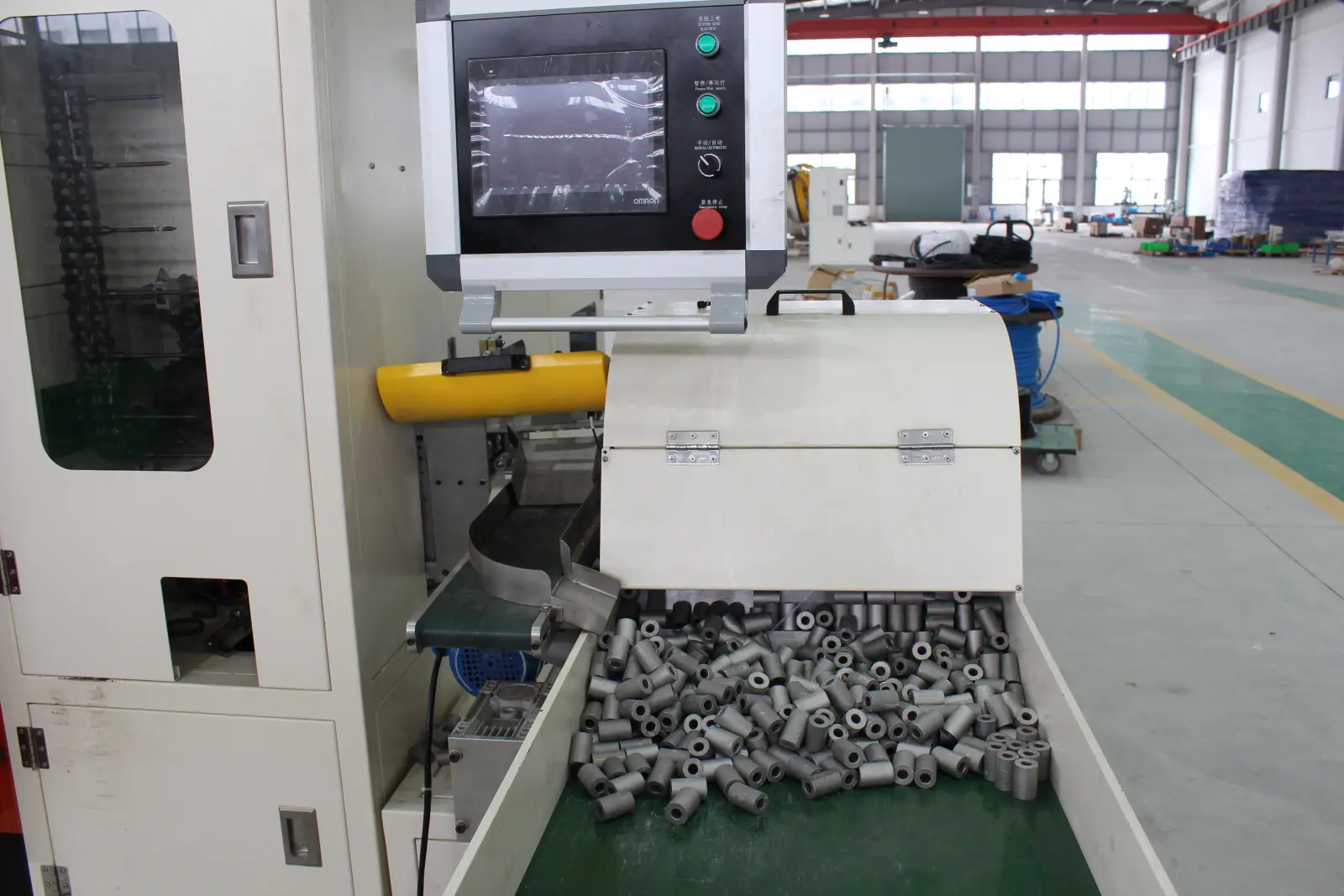

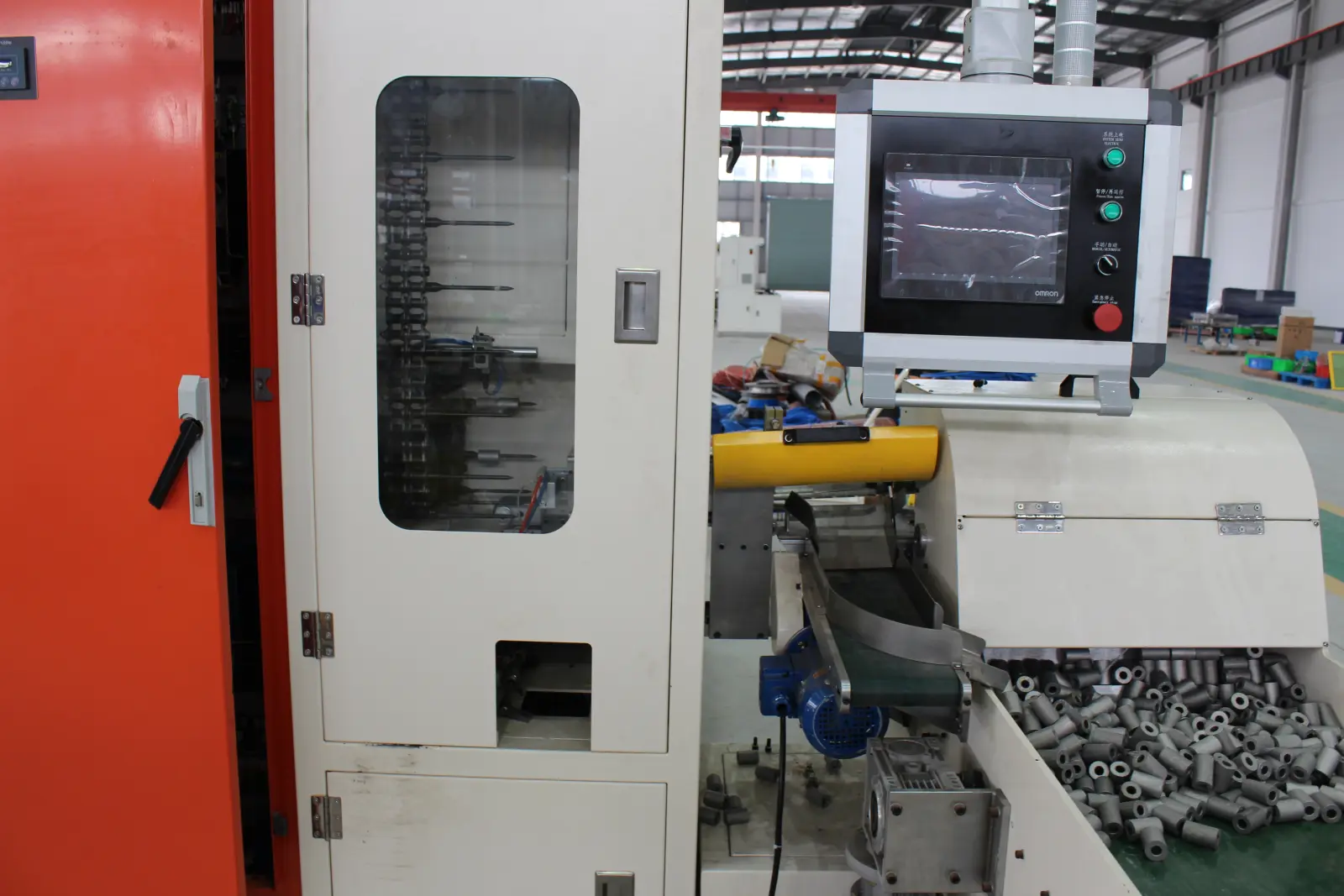

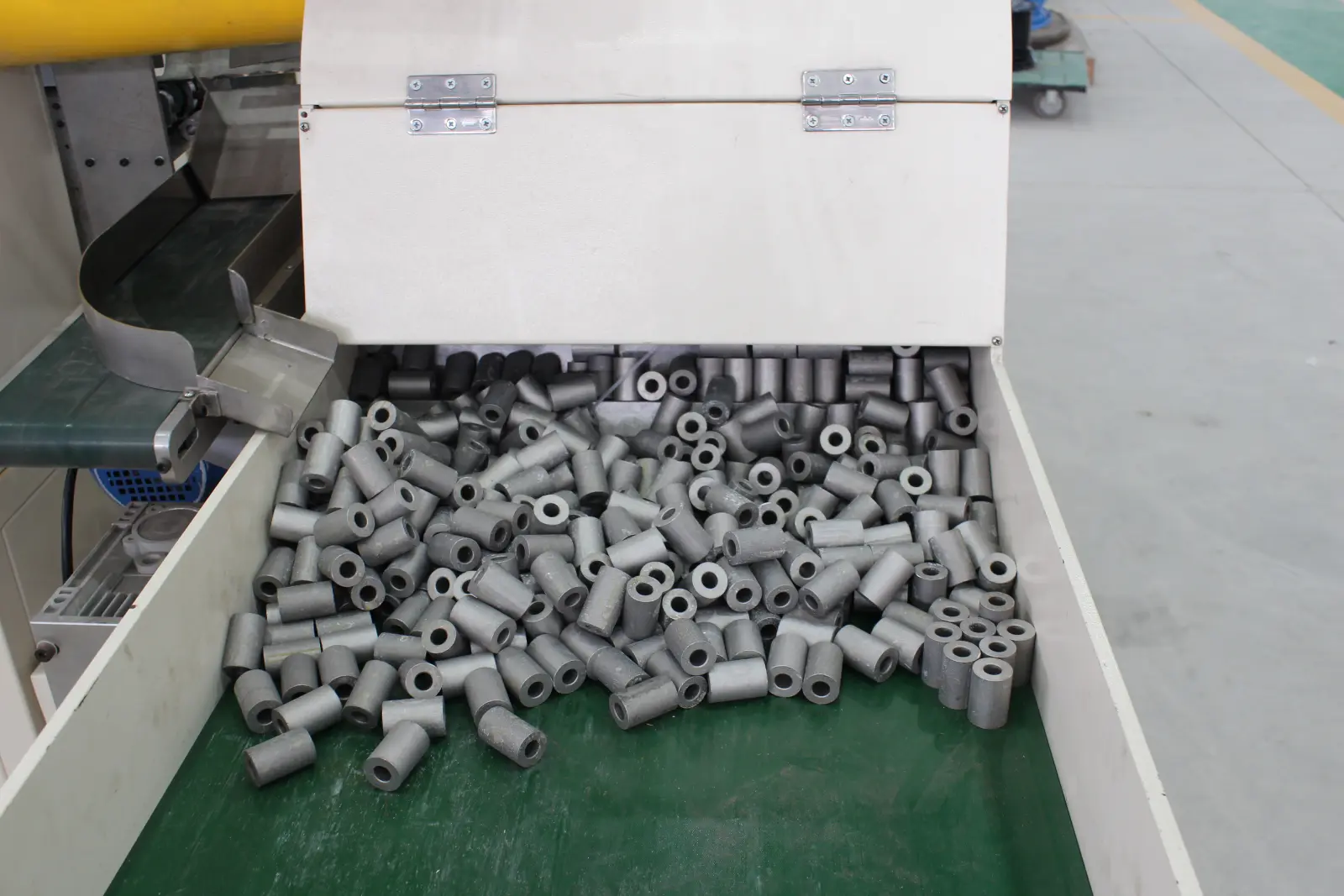

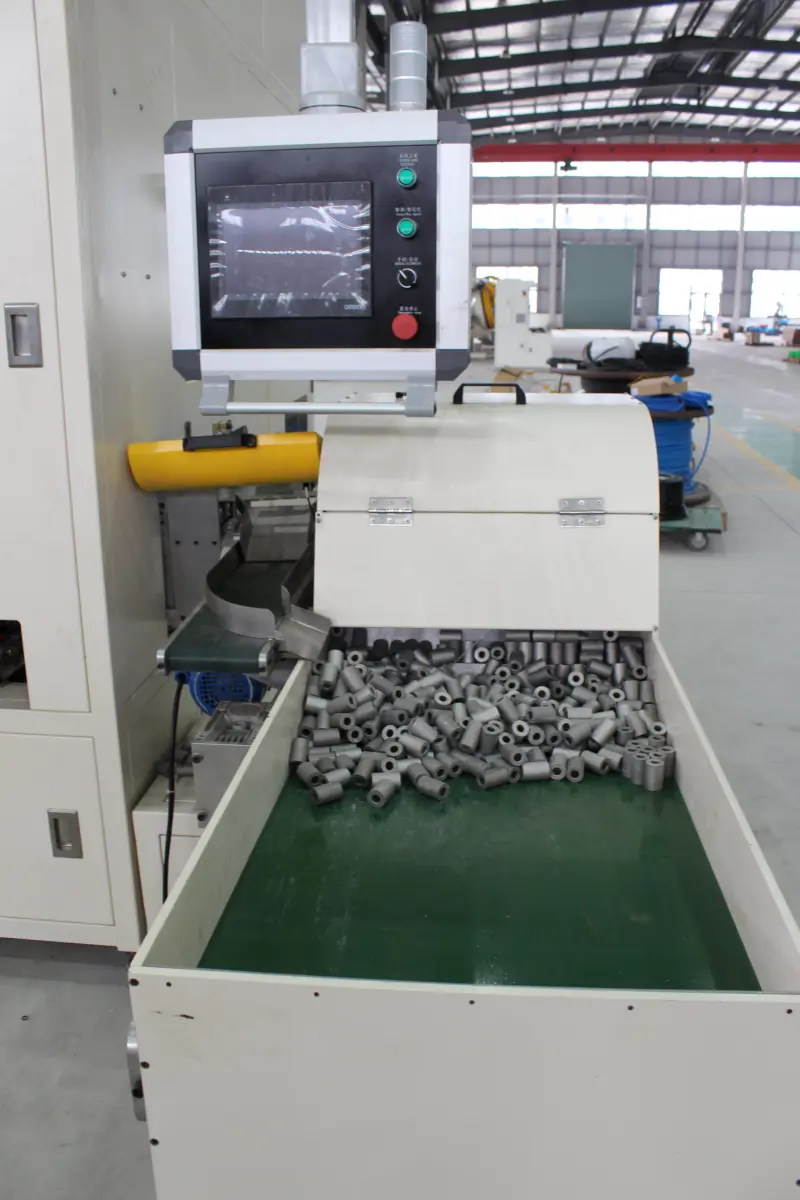

Automatic Loading

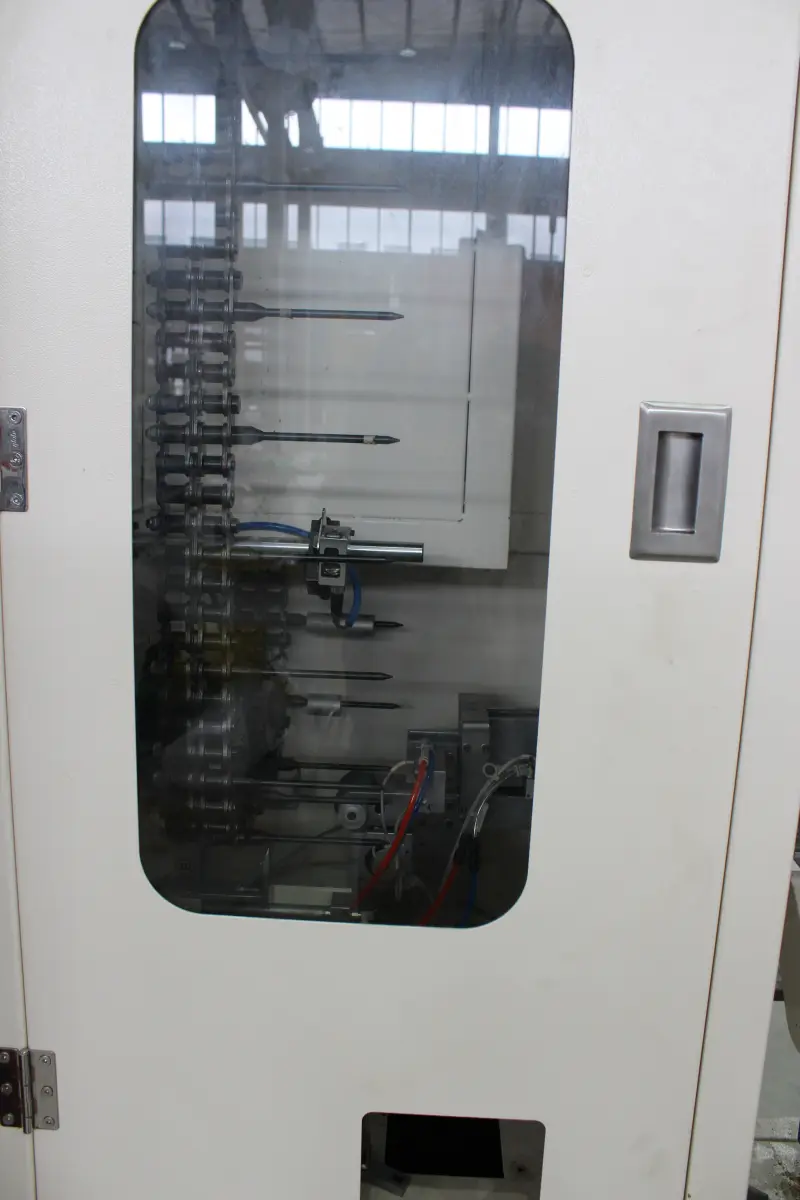

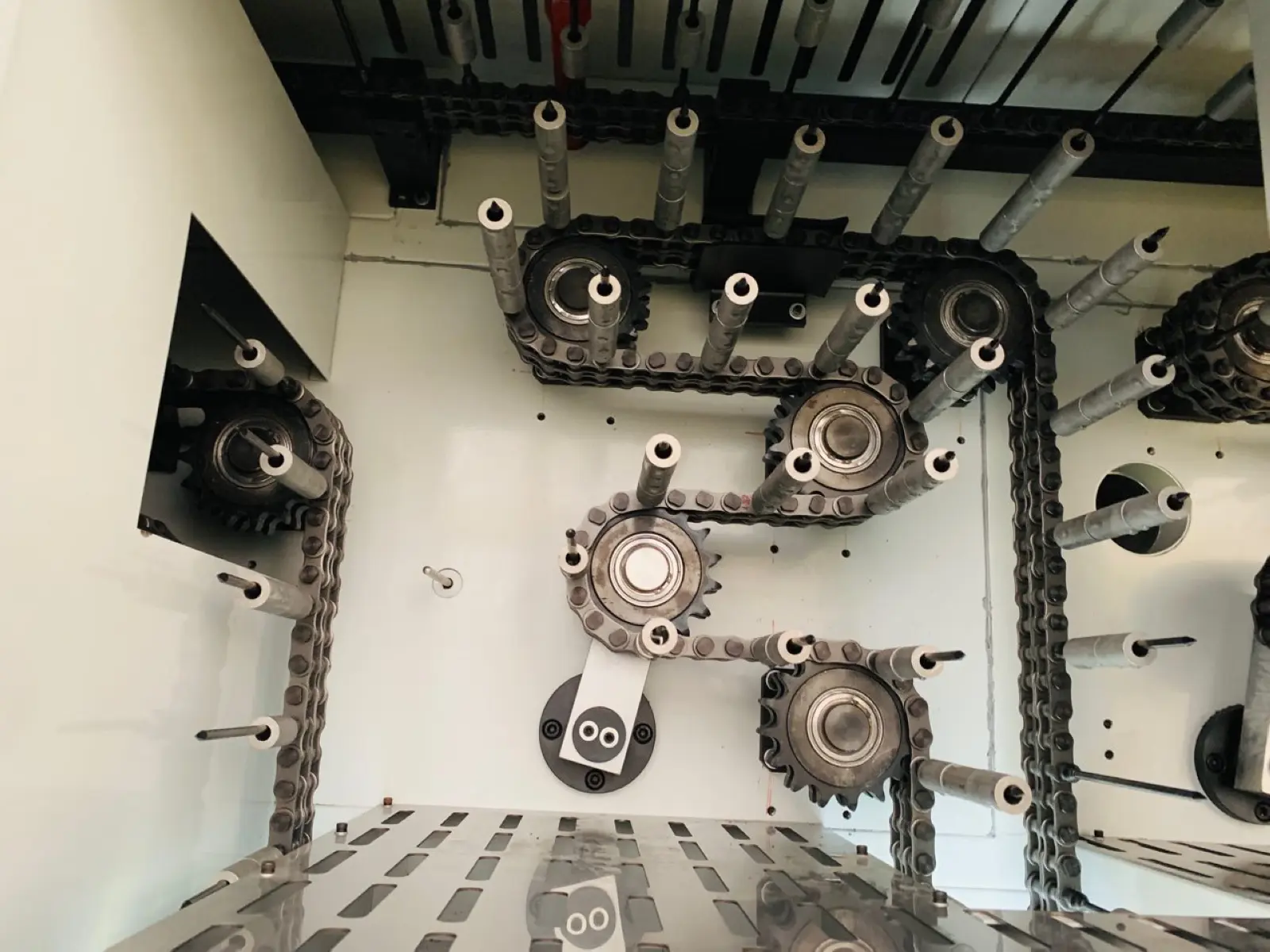

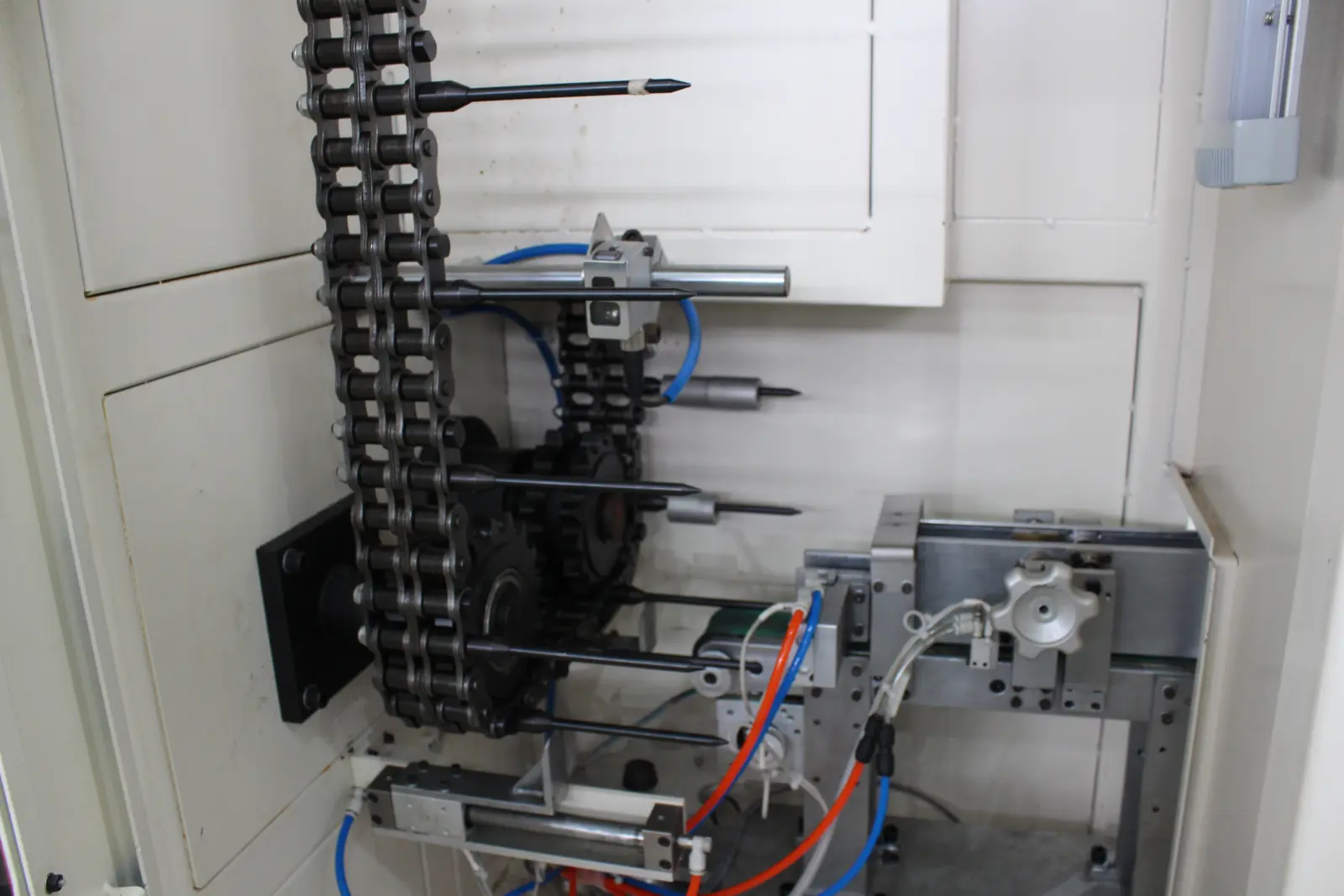

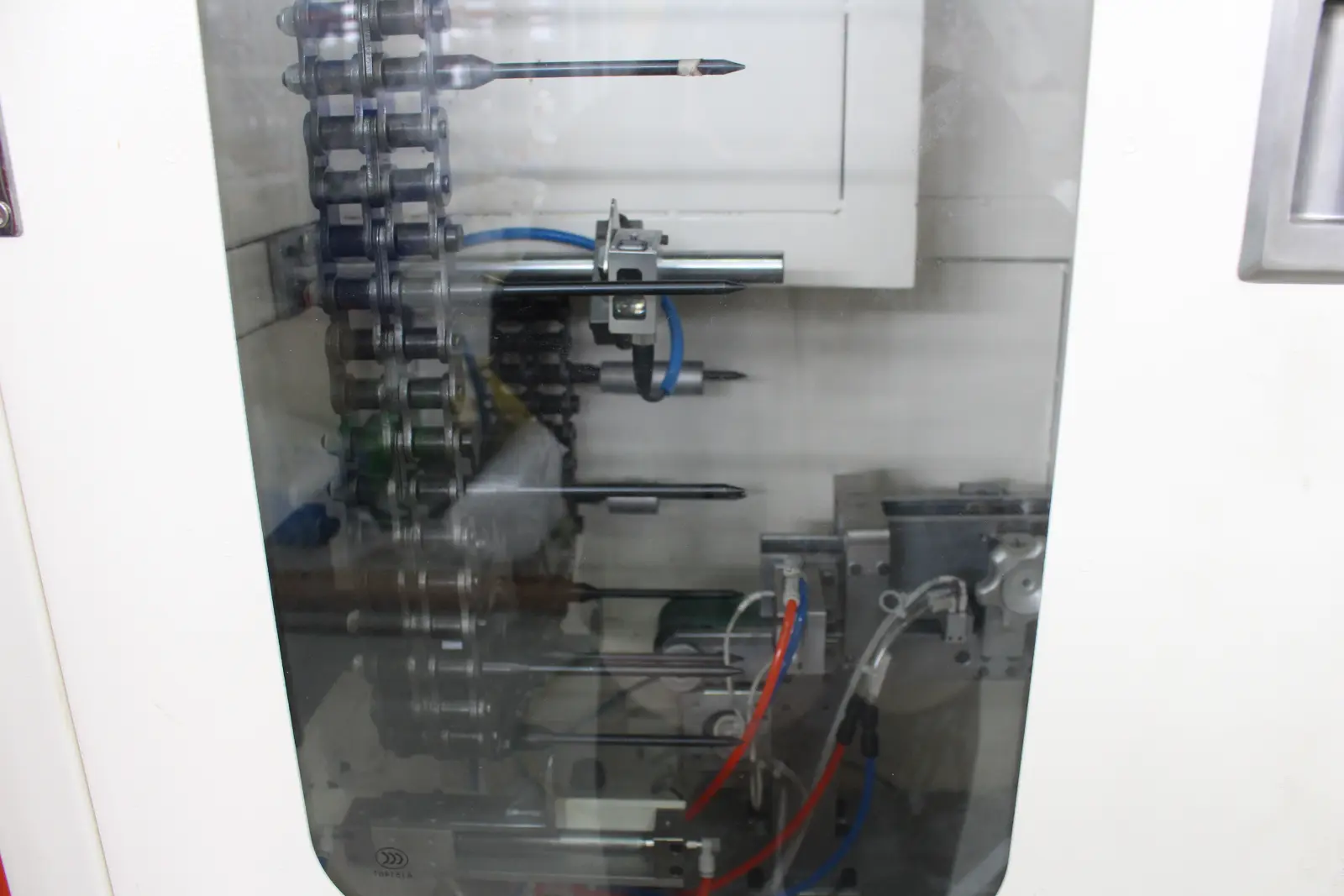

Chain Conveyor Transport

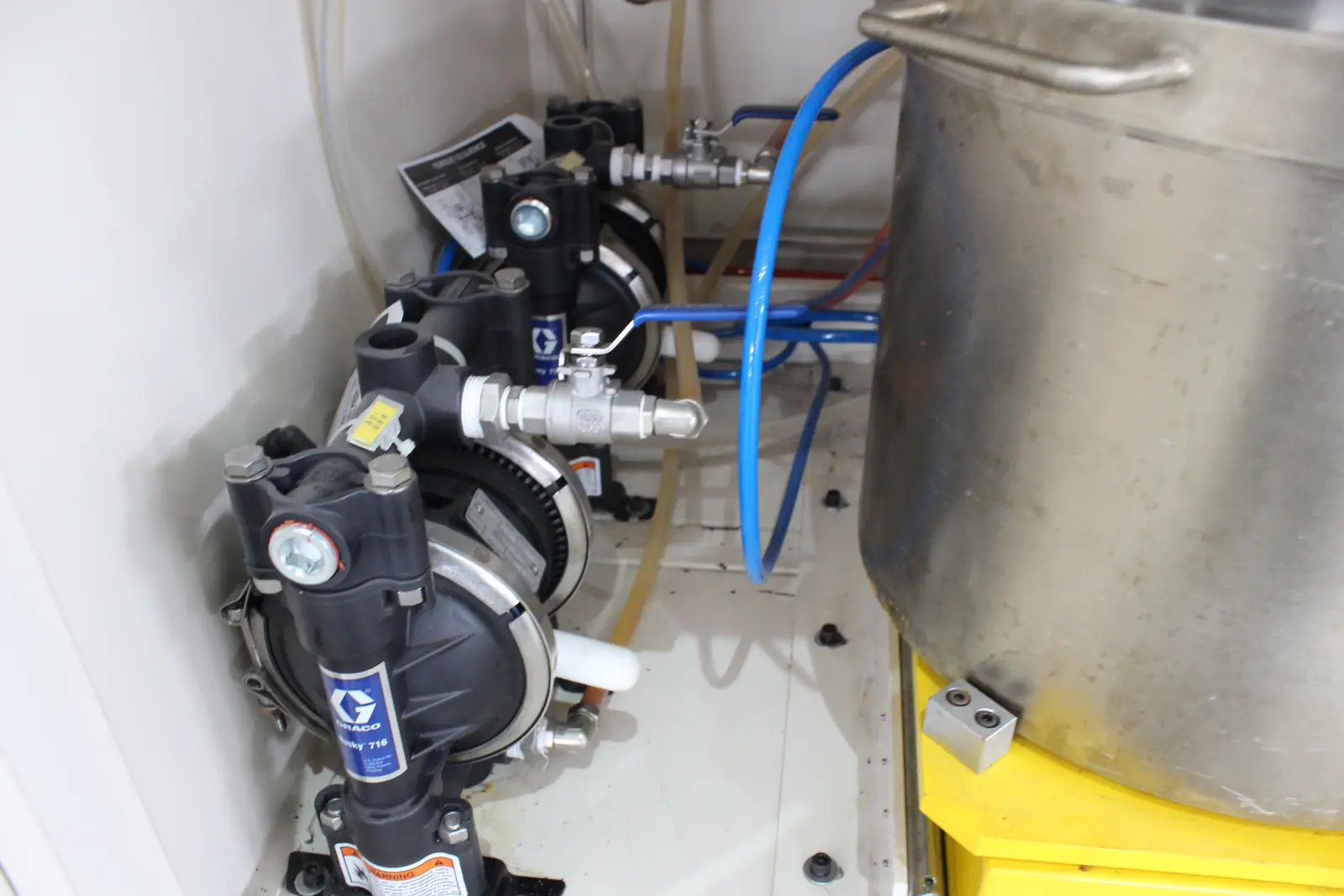

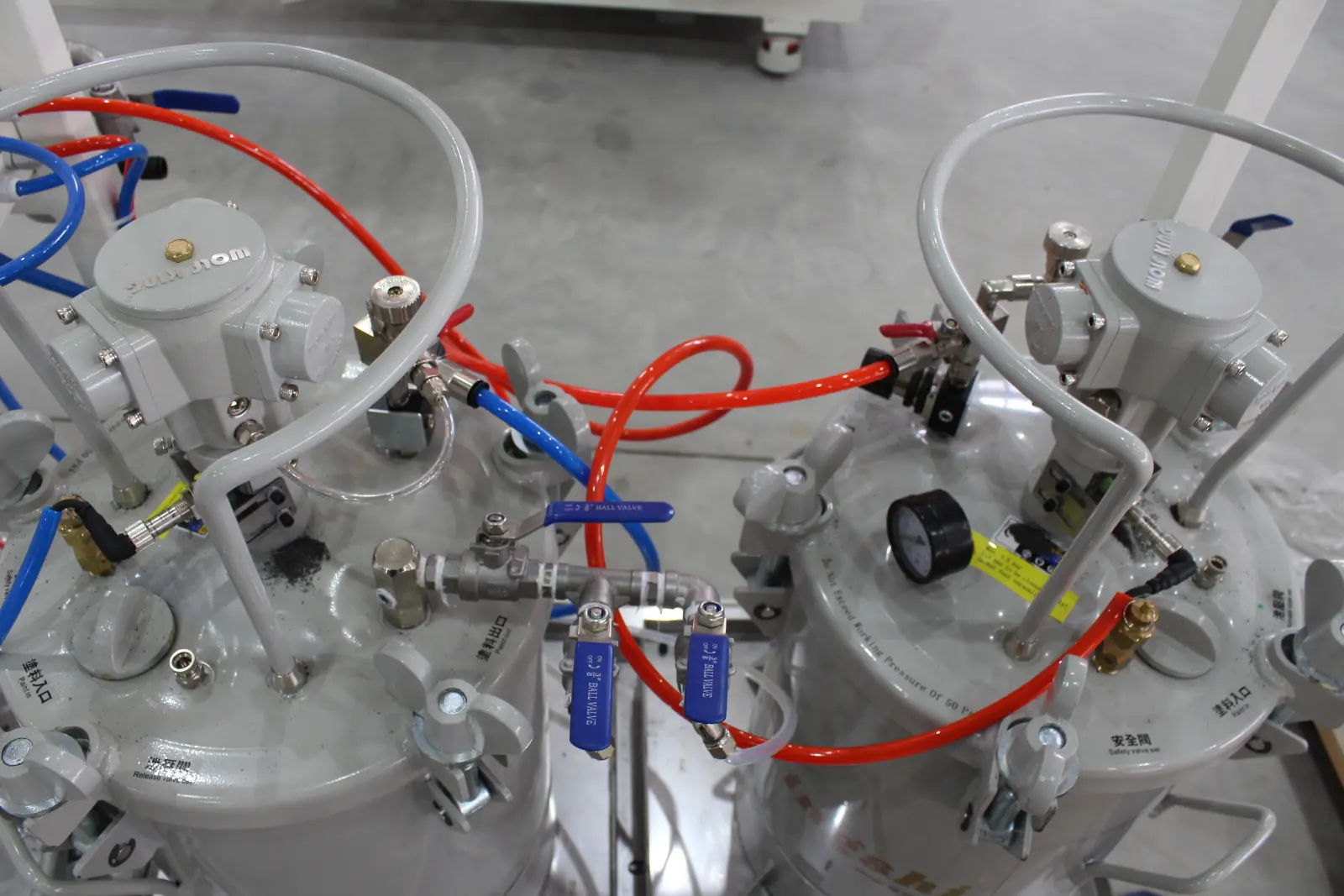

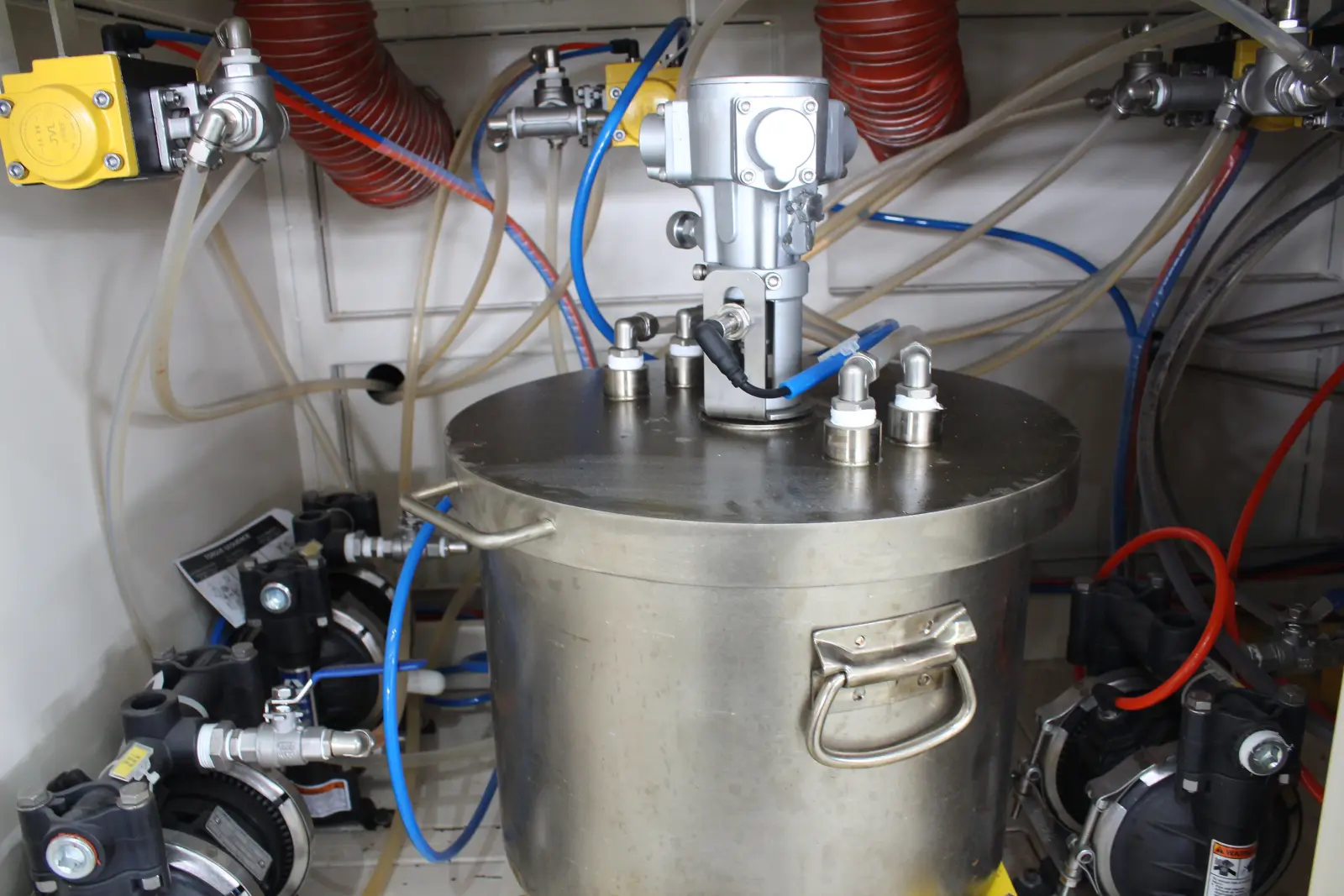

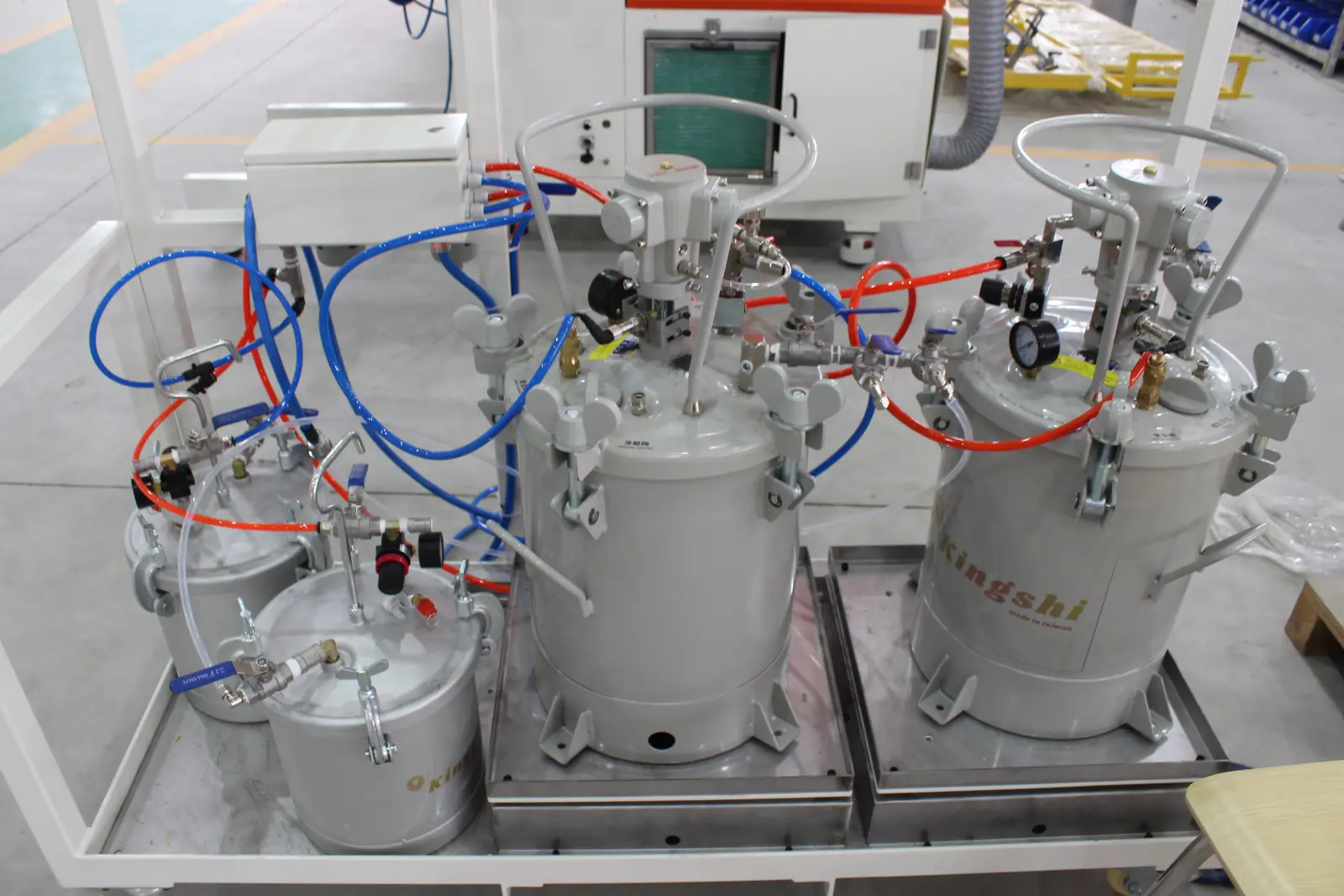

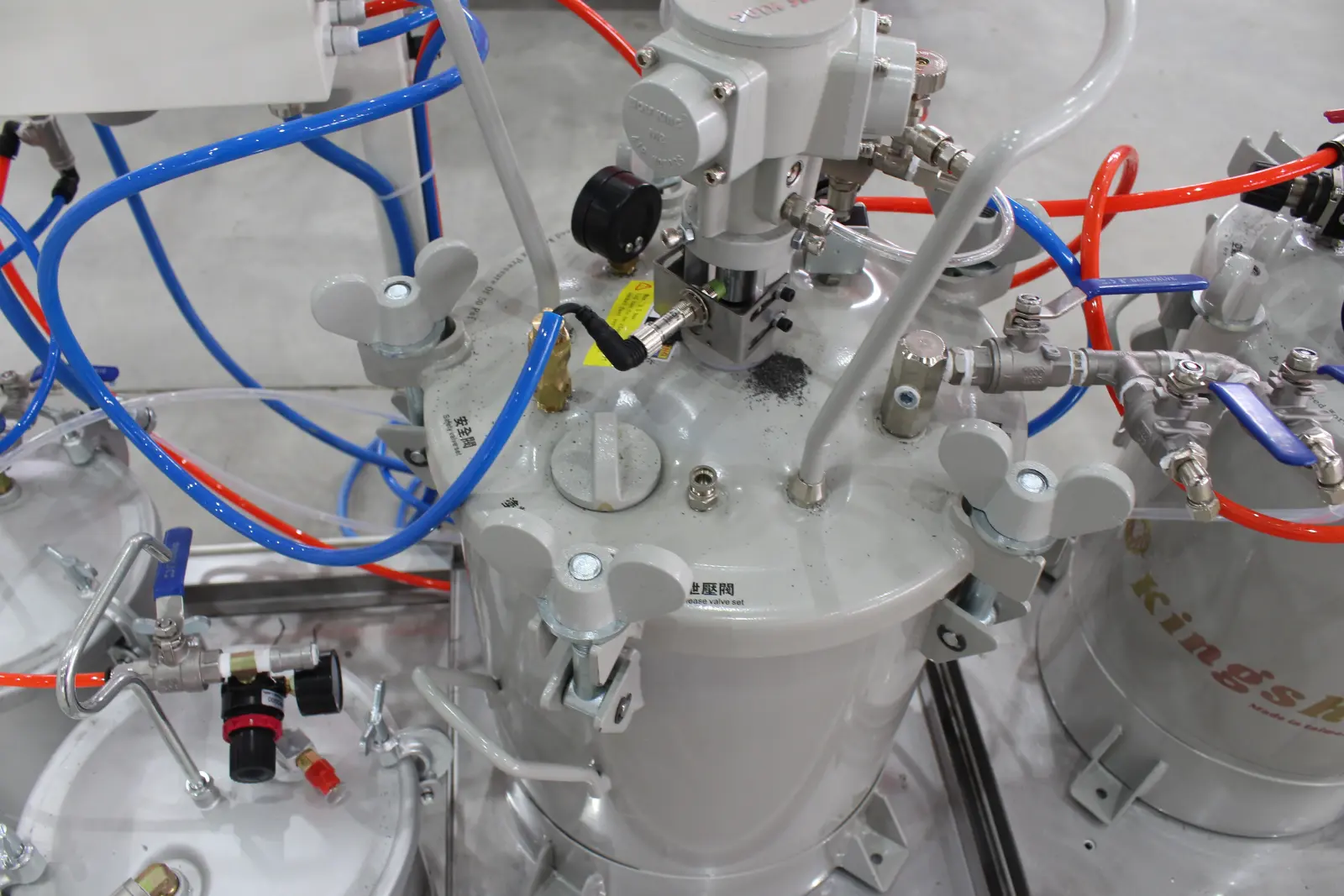

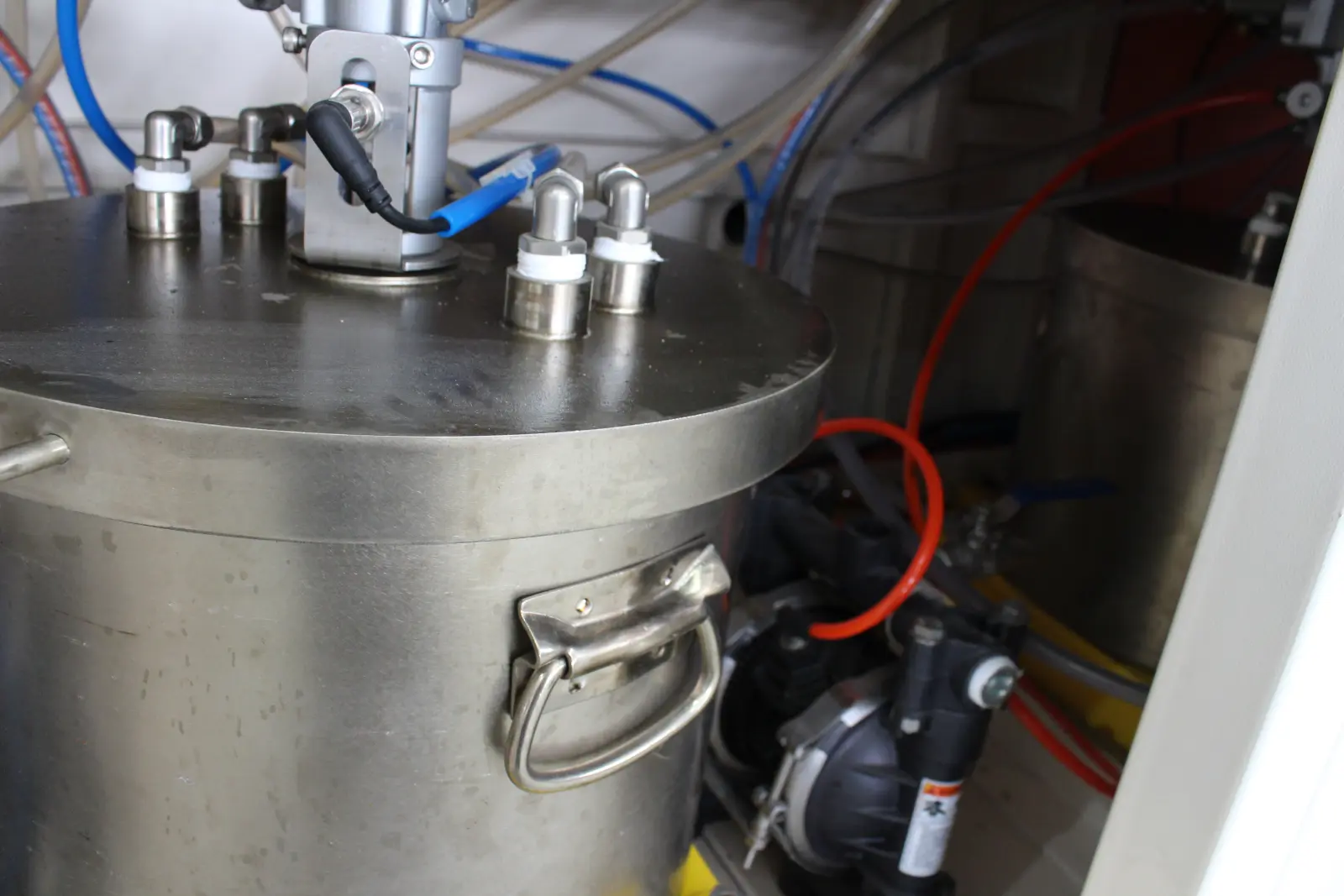

Adhesive Supply System

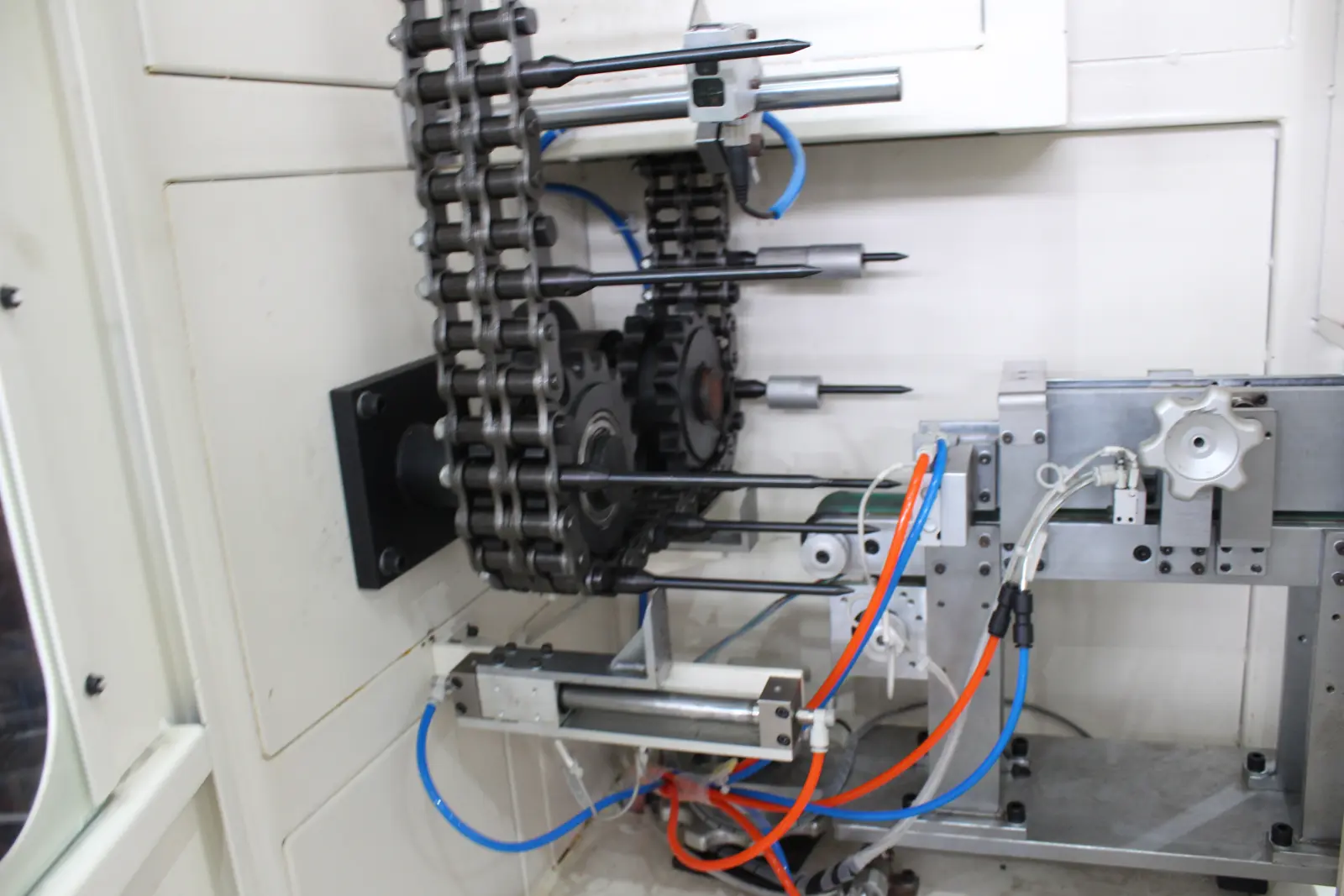

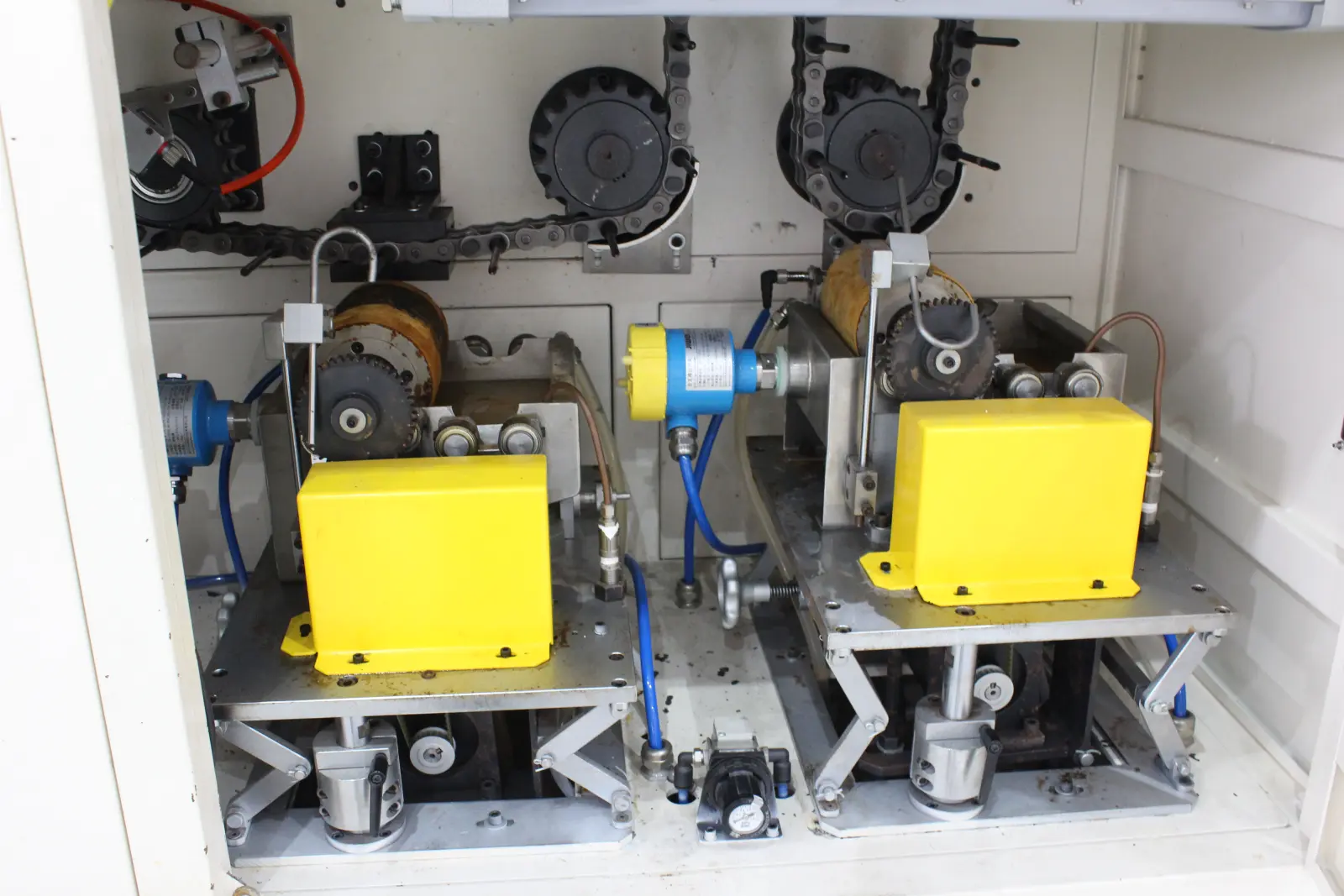

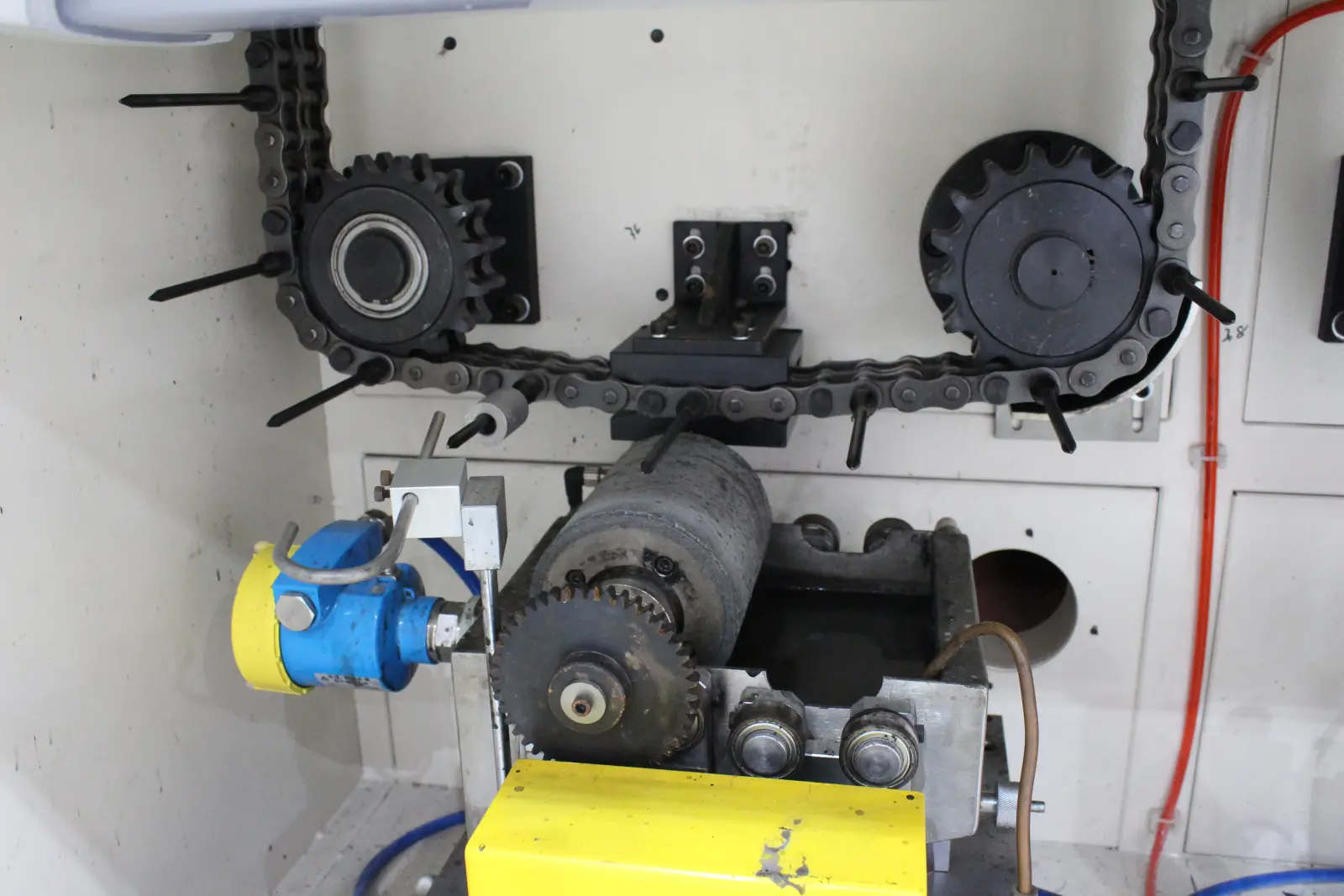

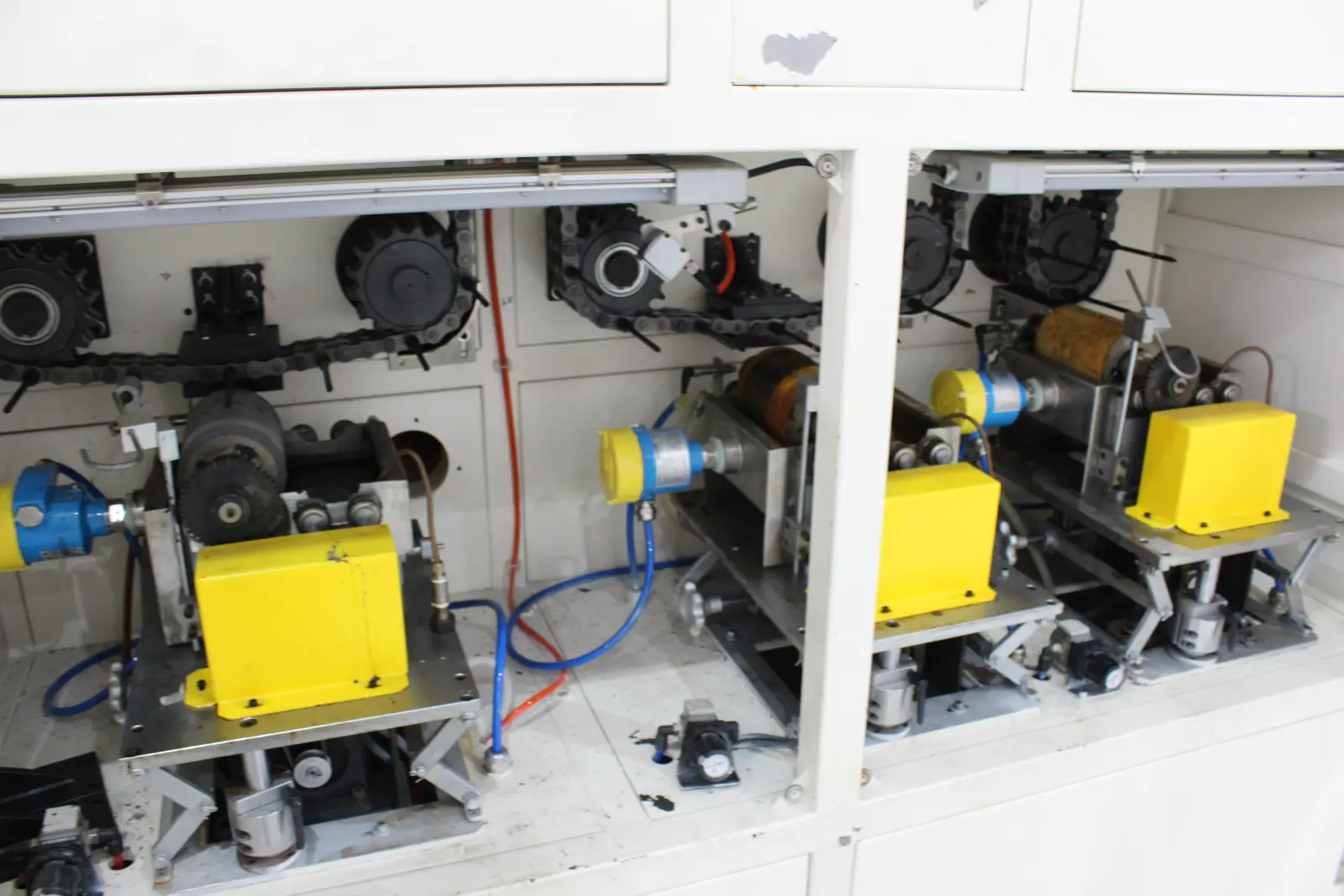

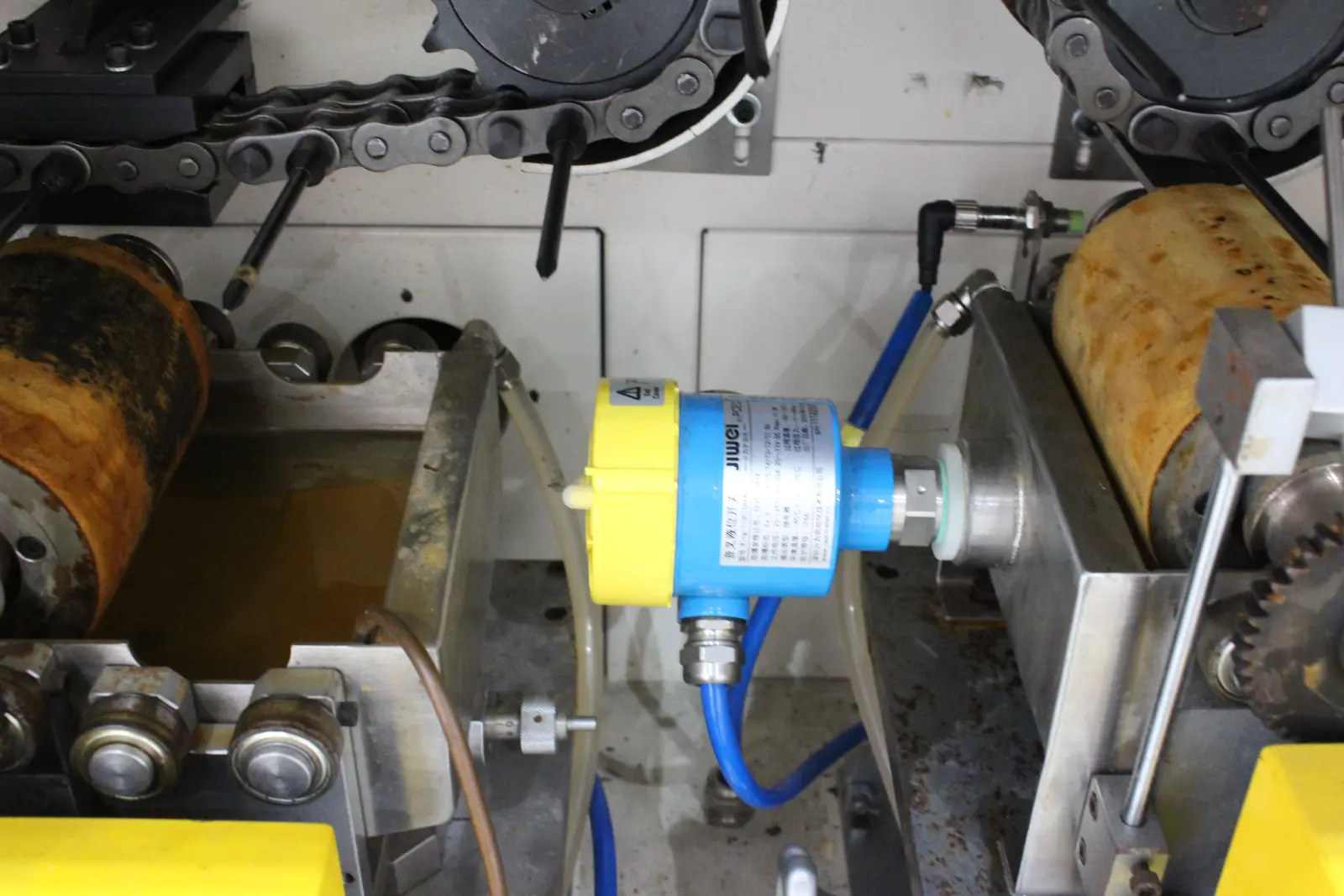

Roller Coating Station
Drying System
Automatic Unloading
Weighing Inspection
Color Detection
Exhaust Air Treatment
Explosion-Proof Configuration

for continuous and highly efficient production.

APPLICATION FIELD

Typical Applications of Roller Coating Machines

ANGEM roller coating machines are designed for the precise and uniform application of primers, bonding adhesives and functional liquid coatings on cylindrical metal components. They are widely used for preparing metal sleeves and inserts before rubber molding and vulcanization, especially in the automotive vibration-control and rubber-to-metal bonding industries.

Inner Bore Adhesive Coating

Inner bore roller coating machines apply a controlled layer of adhesive to the internal cylindrical surface of metal sleeves and bushings. Typical applications include inner sleeves for rubber bushings, suspension components, shock absorber bushings and other rubber-to-metal bonded parts.

Outer Diameter Adhesive Coating

Outer diameter roller coating machines are used to apply adhesive evenly to the external cylindrical surface of metal sleeves, tubes and inserts. They are suitable for outer sleeves, engine mount components, suspension bushings, vibration-control parts and other cylindrical metal components requiring consistent adhesive coverage.

Customized Roller Coating Solutions

The coating system can be customized according to the workpiece dimensions, inner or outer coating area, adhesive type, required film thickness, production capacity and loading method. ANGEM can provide manual, semi-automatic and fully automatic roller coating solutions for different production requirements.
