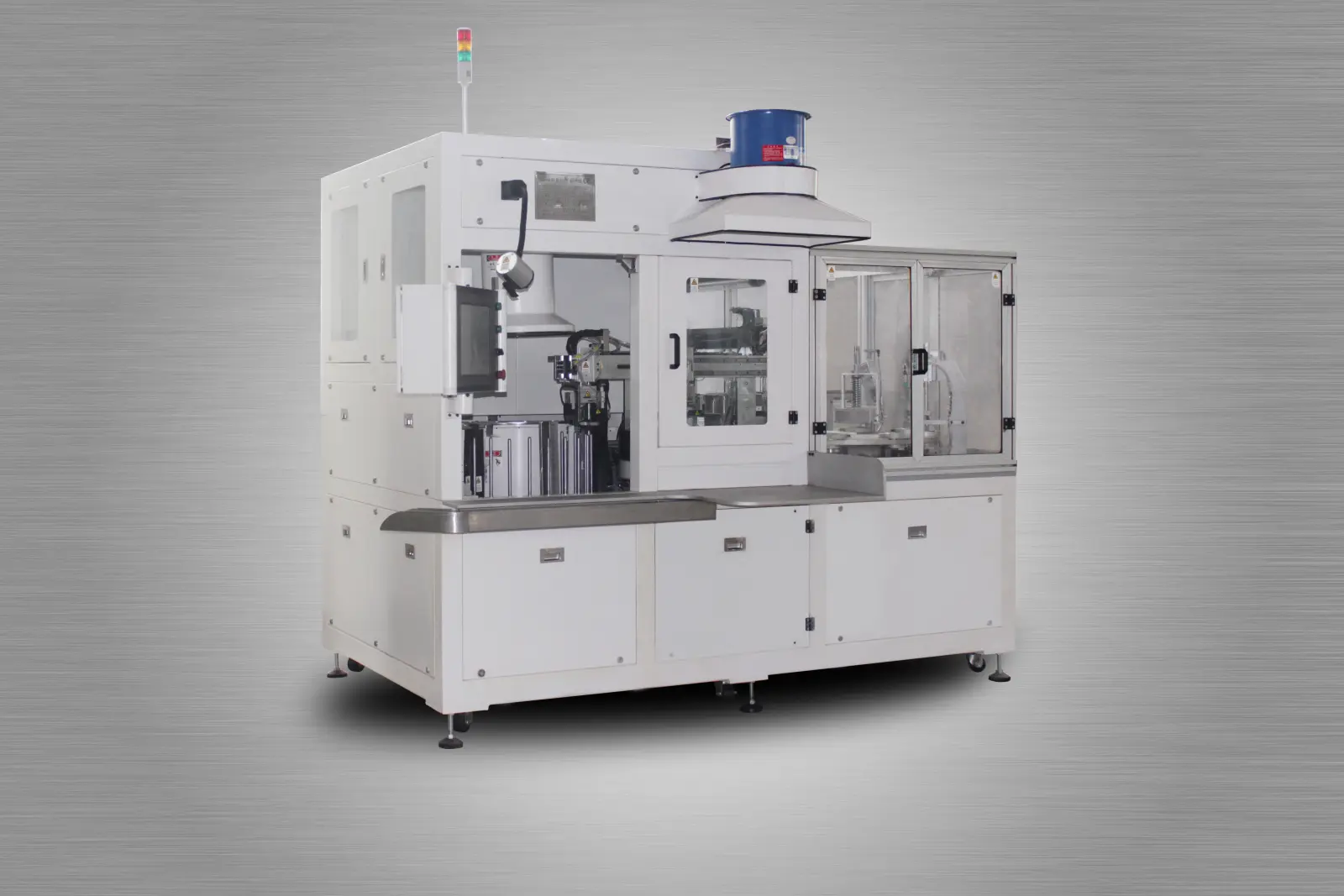

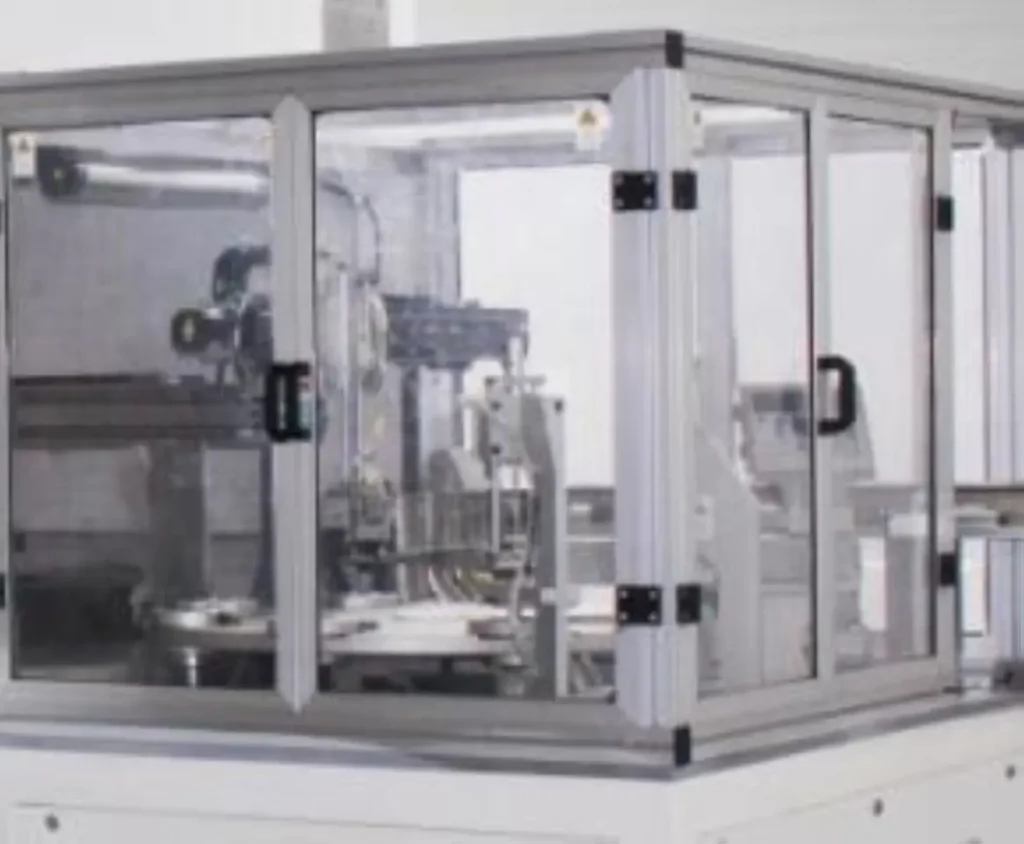

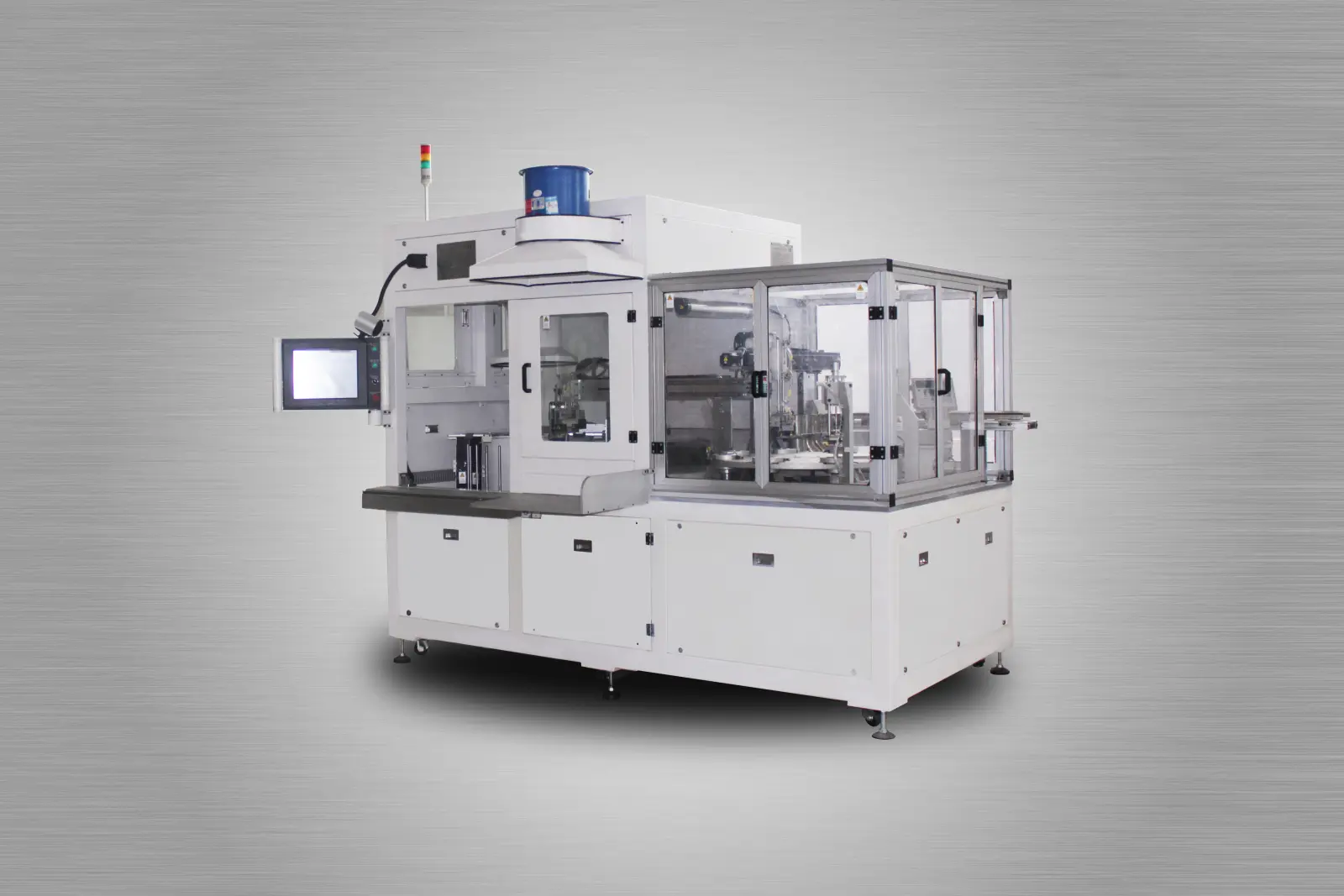

Automatic Bushing Sizing and Inspection Machine AJL.ZSJ63A – ANGEM

The trimming platform provides operators with a convenient working area for removing excess rubber from molded components.

The highly automated system requires only the tooling rod to be replaced when changing products. A manual knob-operated quick-change mechanism simplifies setup and reduces changeover time.

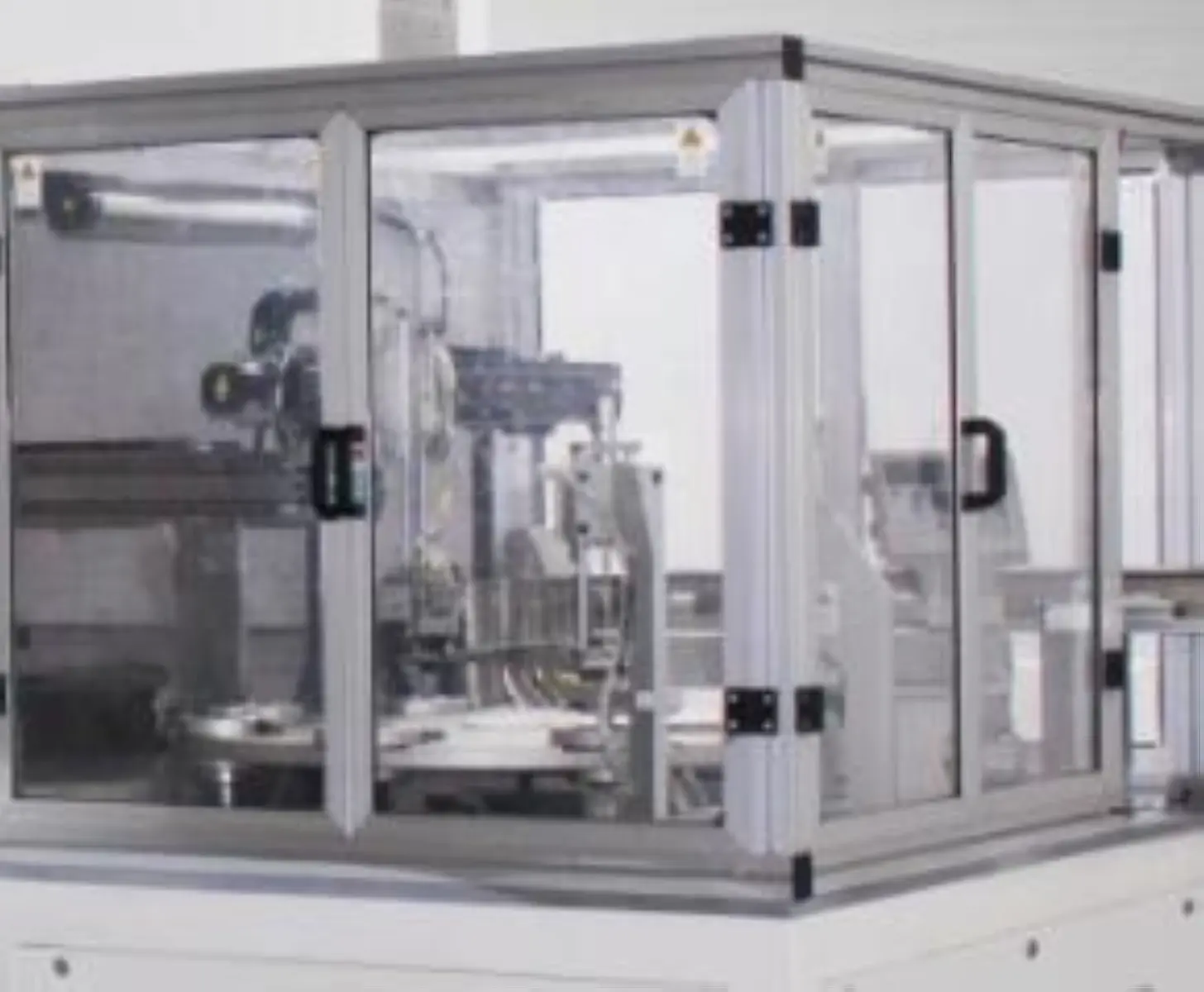

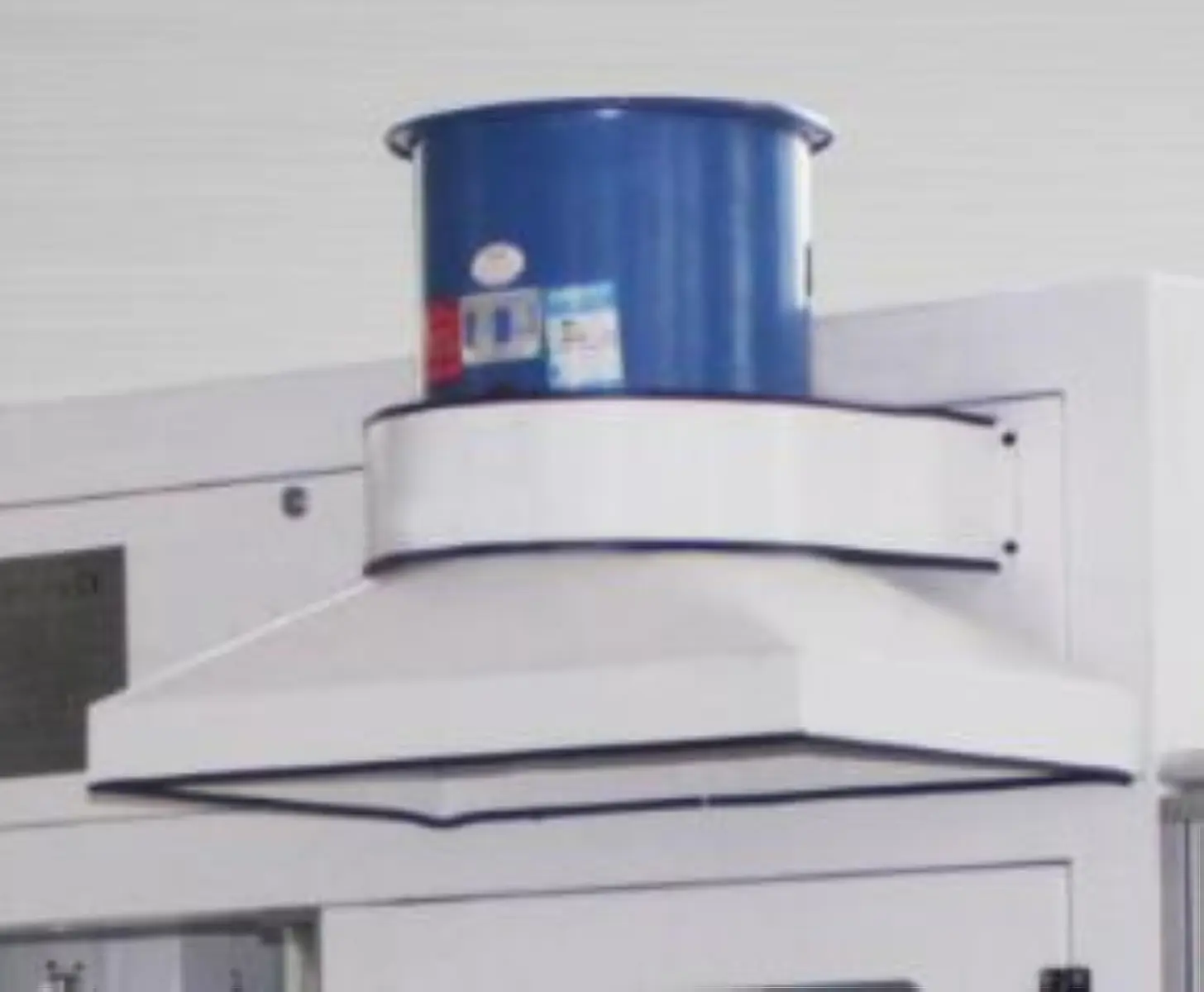

The enclosed air chamber is equipped with an extraction fan that continuously removes fumes and exhaust gases from inside the machine.

The robotic handling and gripper system reduces manual contact with the sizing station, improving operator safety and minimizing the risks associated with conventional press operation.

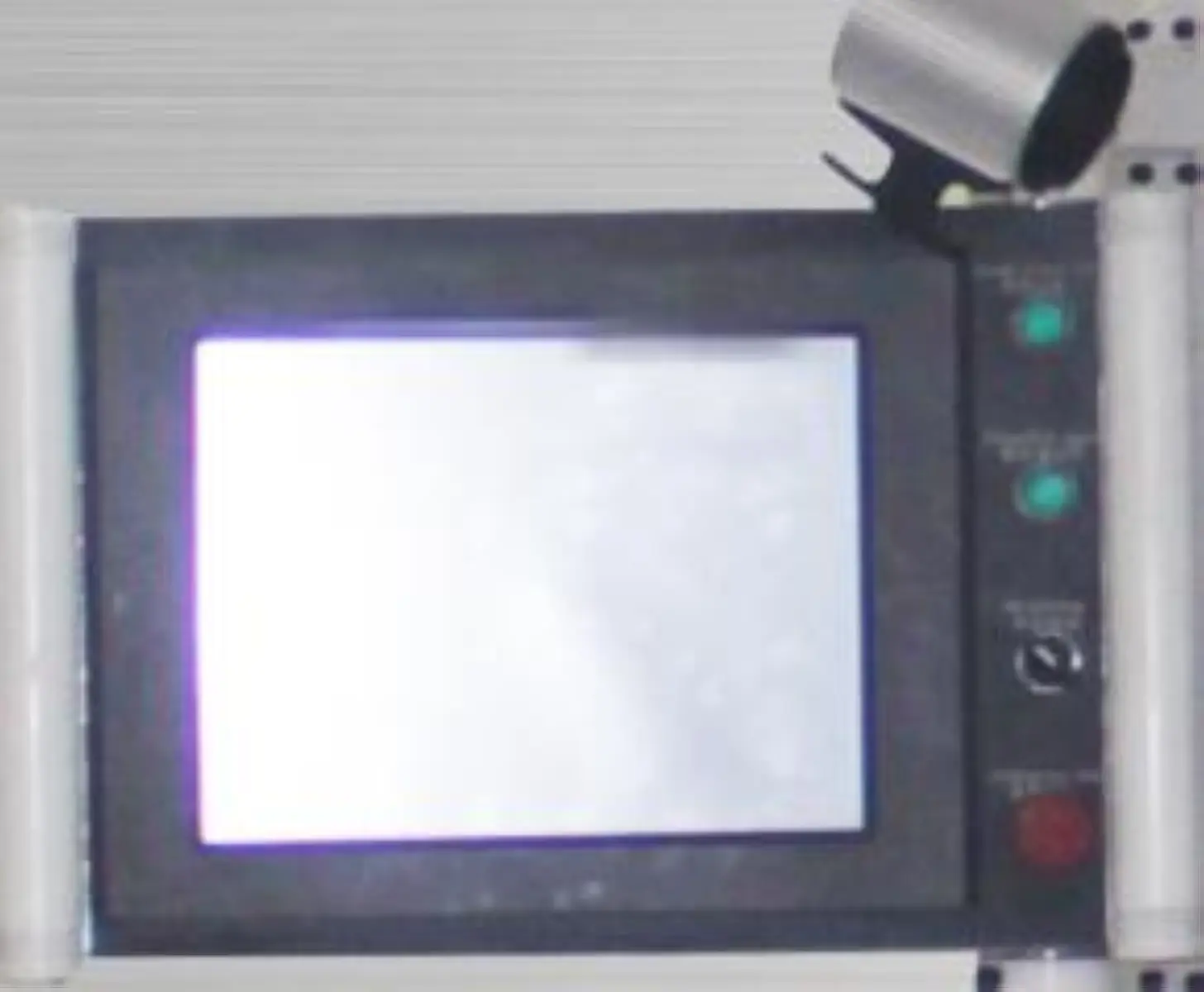

The machine uses a programmable PLC control system. Operating parameters such as cycle time, temperature and inspection settings can be configured according to different workpiece requirements.

The main sizing die is equipped with an automatic lubrication system, helping reduce wear and extend its service life.

The control system can store up to 30 process recipes, allowing operators to save, retrieve and quickly switch between different product settings.

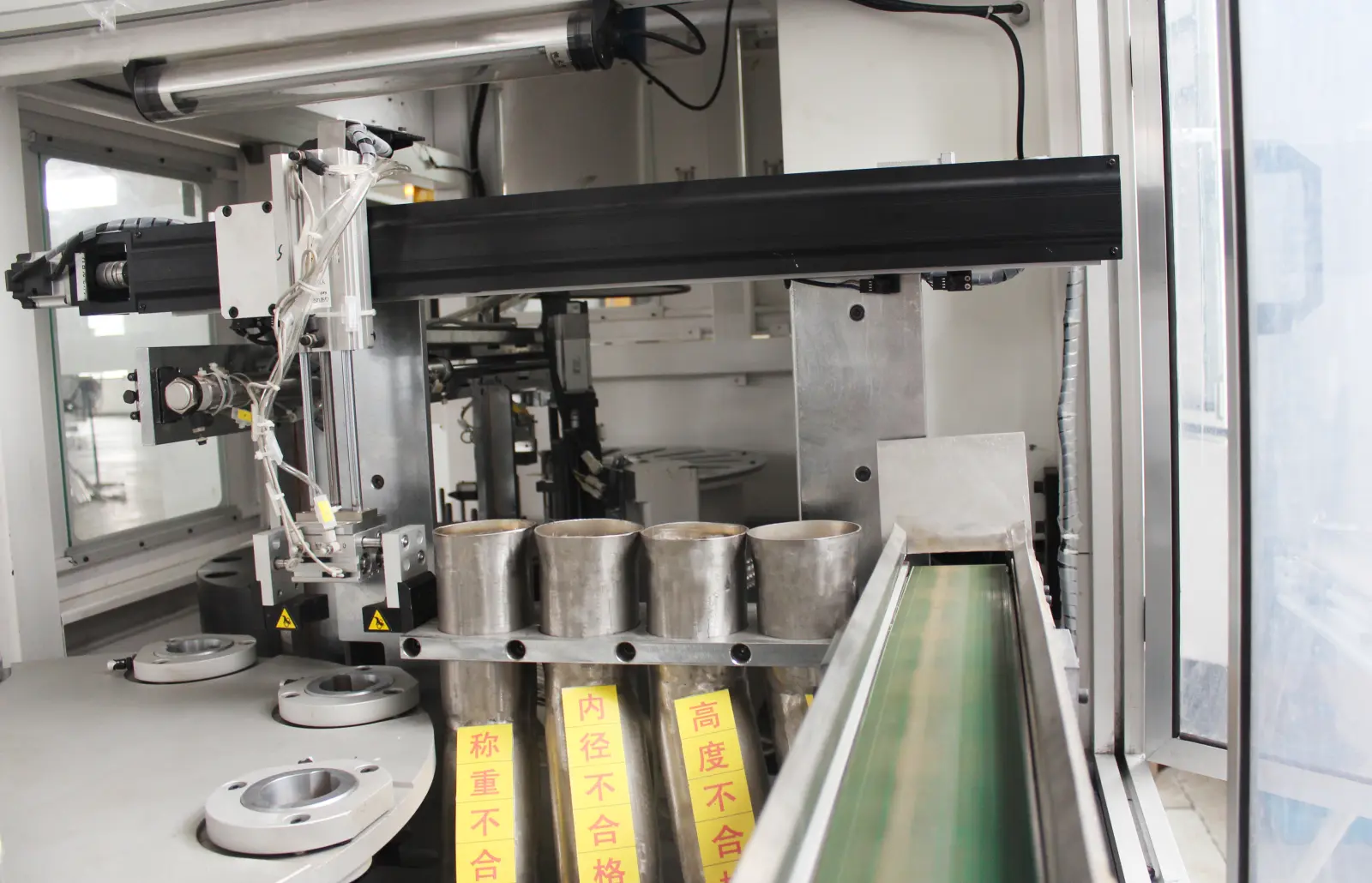

The integrated inspection system automatically identifies nonconforming parts and records real-time NG product data for production and quality analysis.

A reserved station is provided for future color-marking integration, making subsequent equipment upgrades easier.
