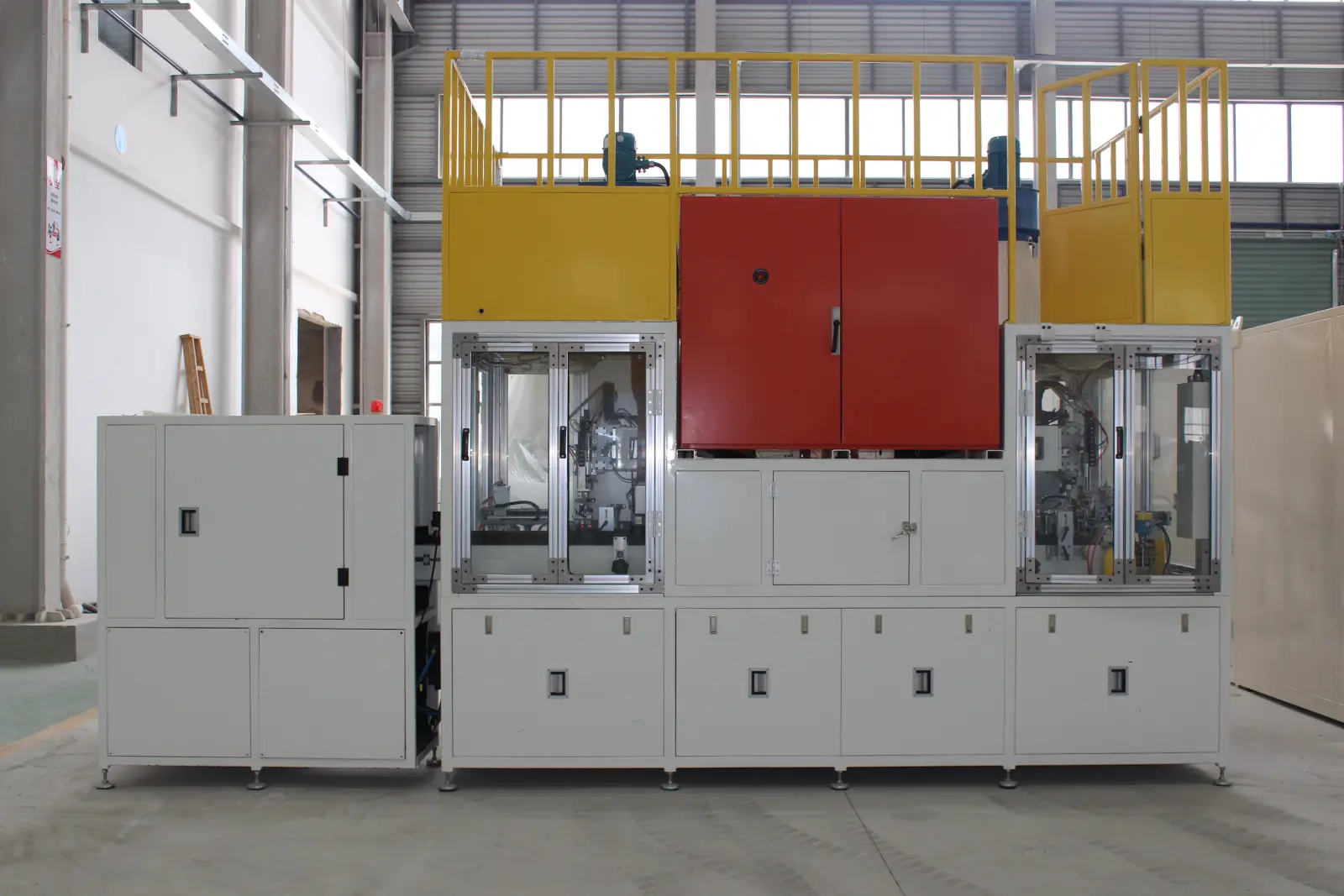

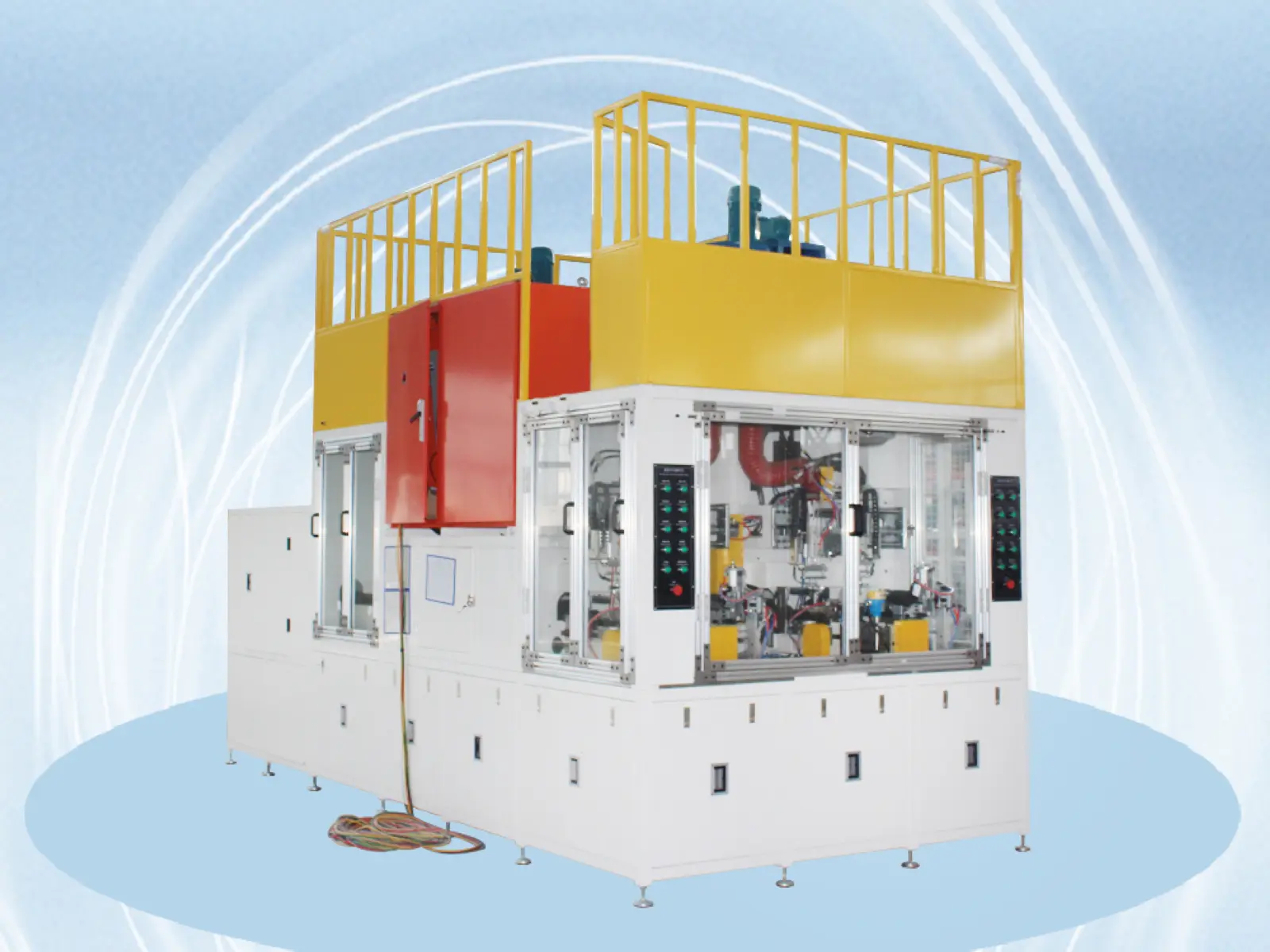

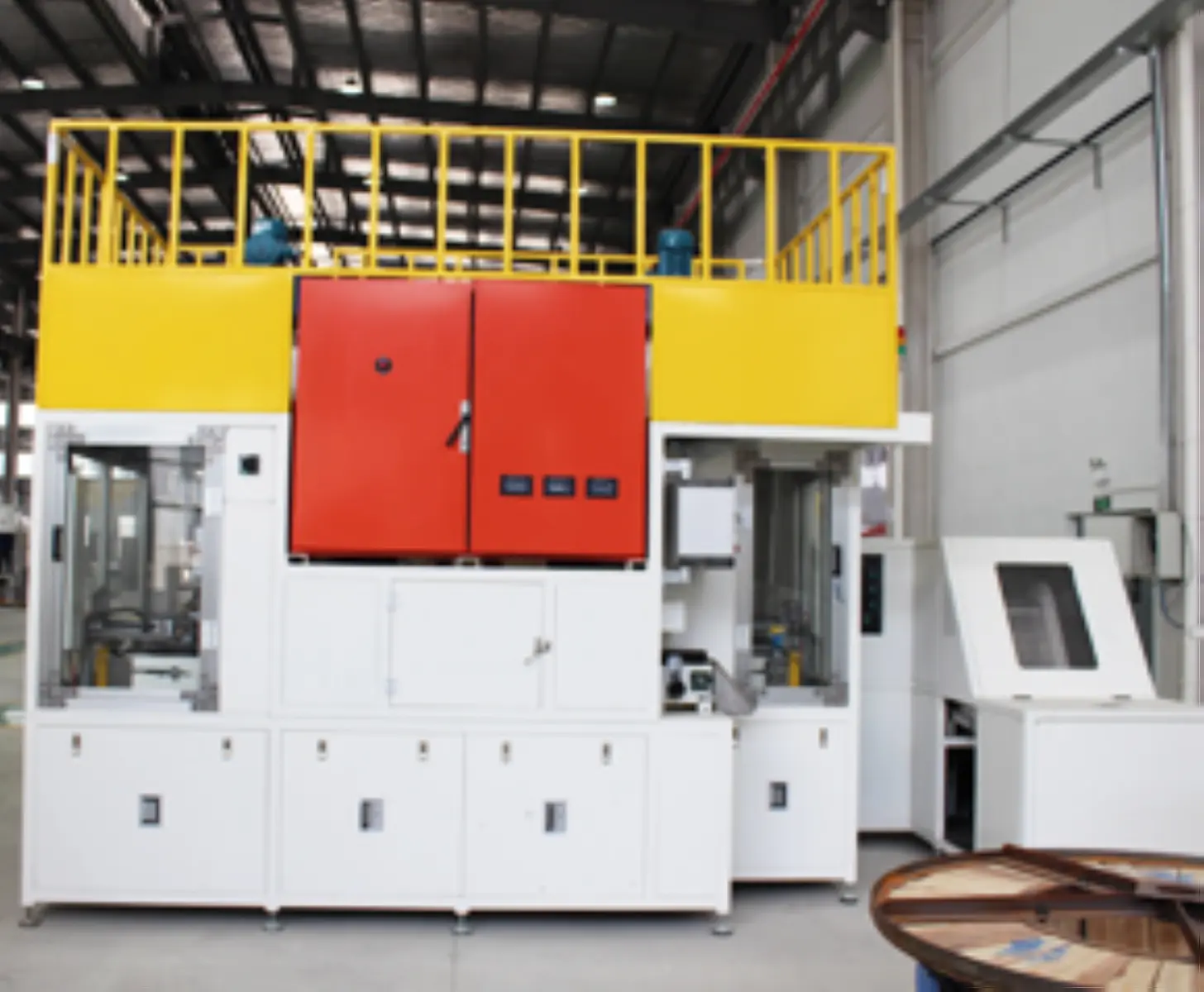

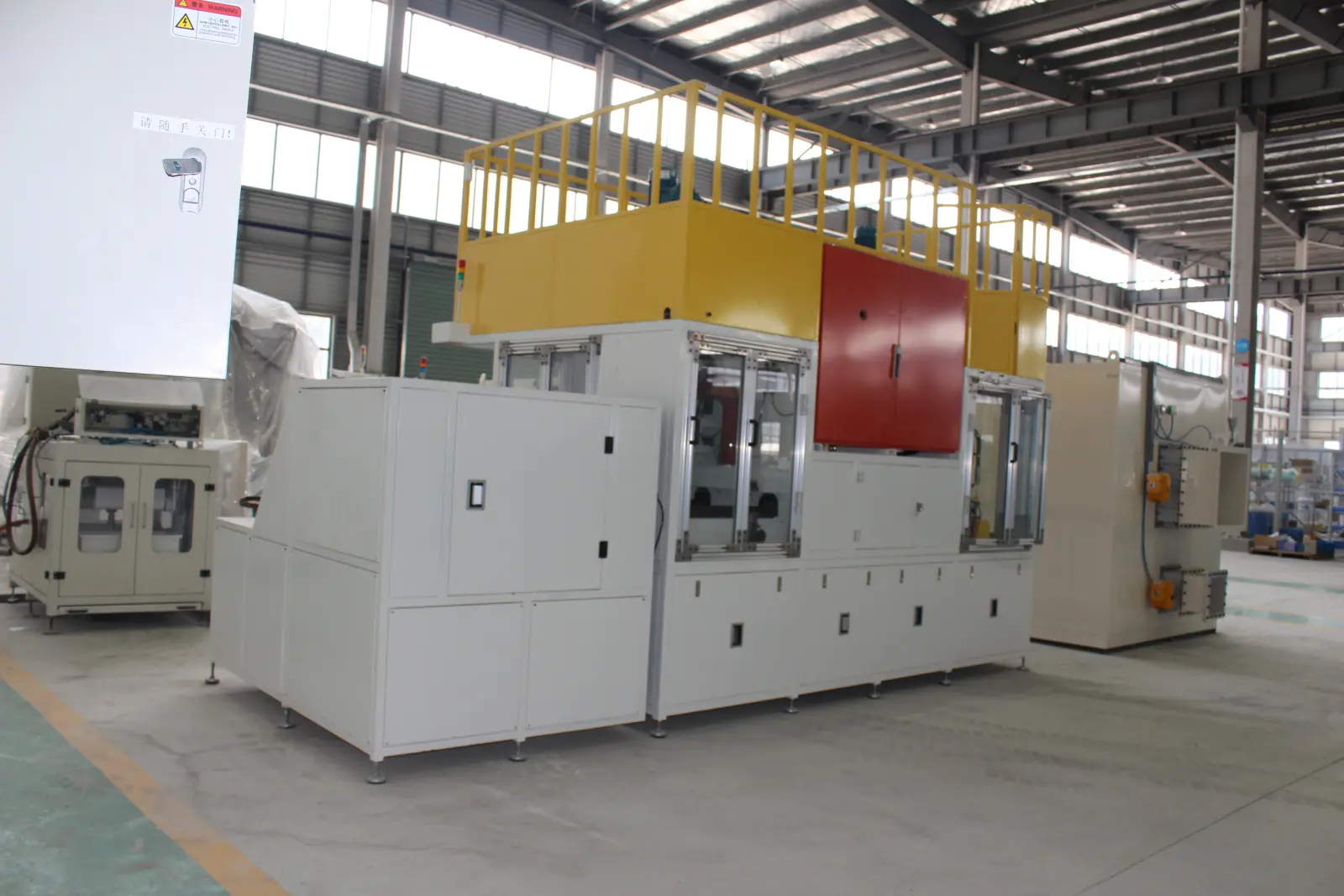

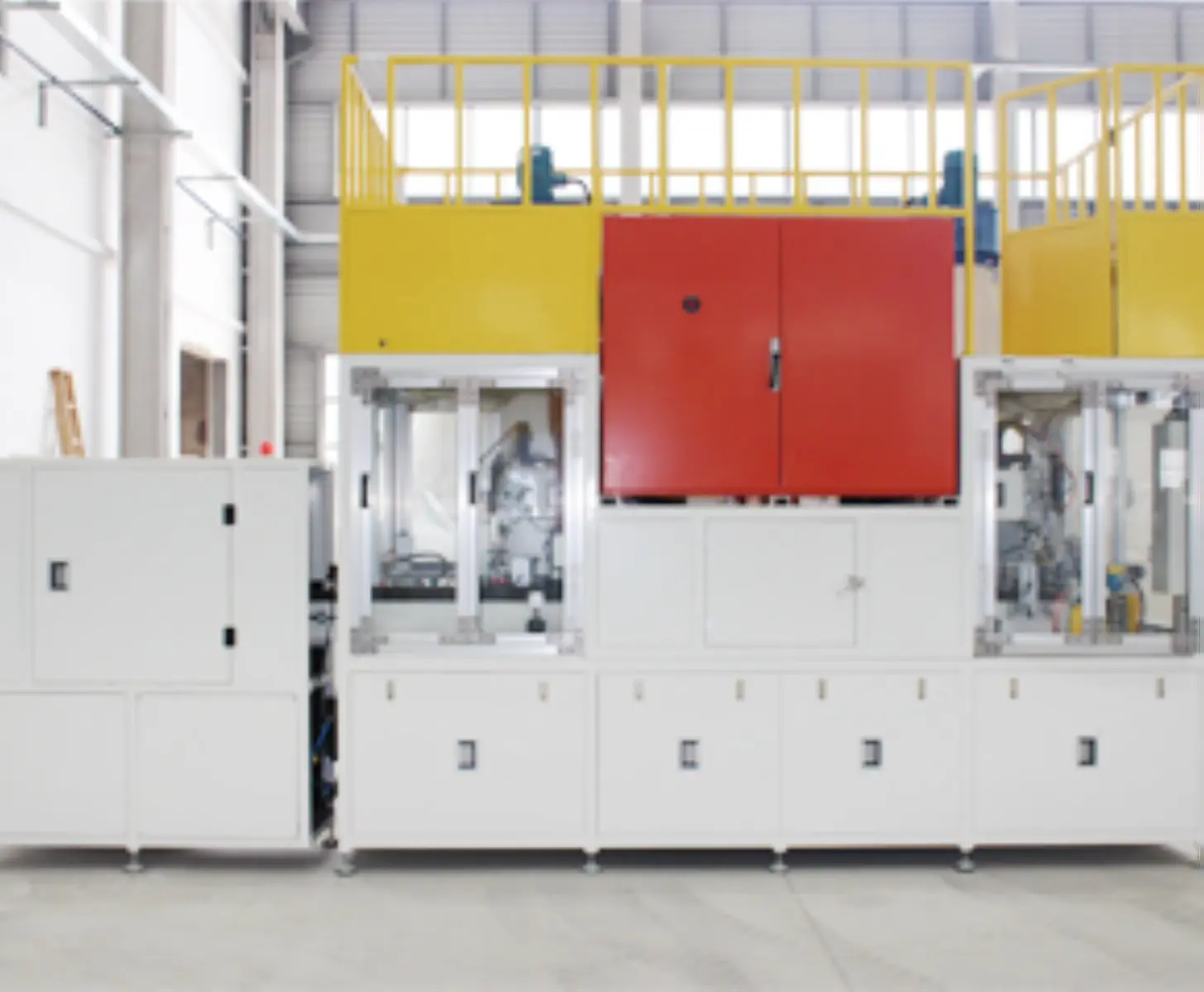

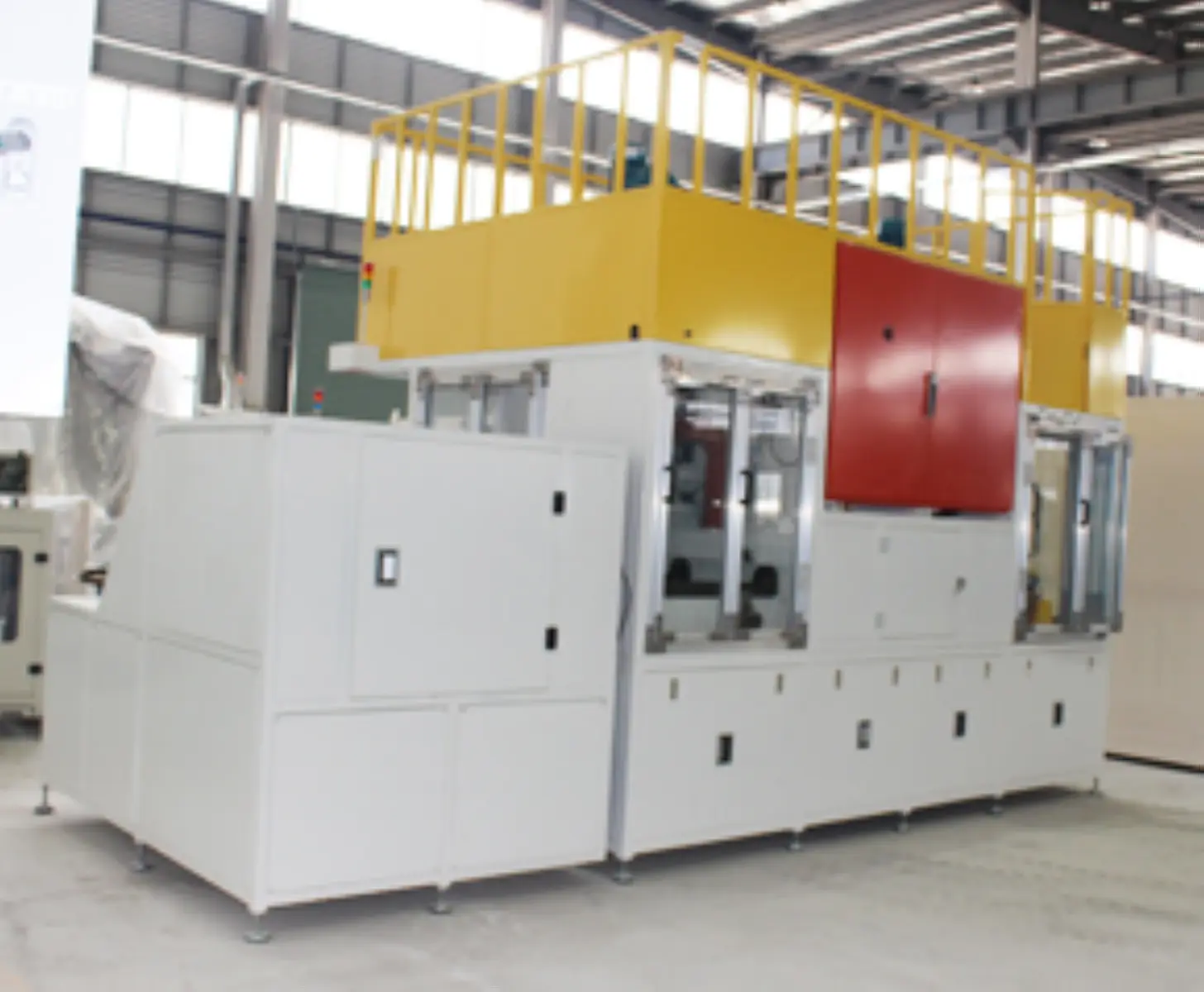

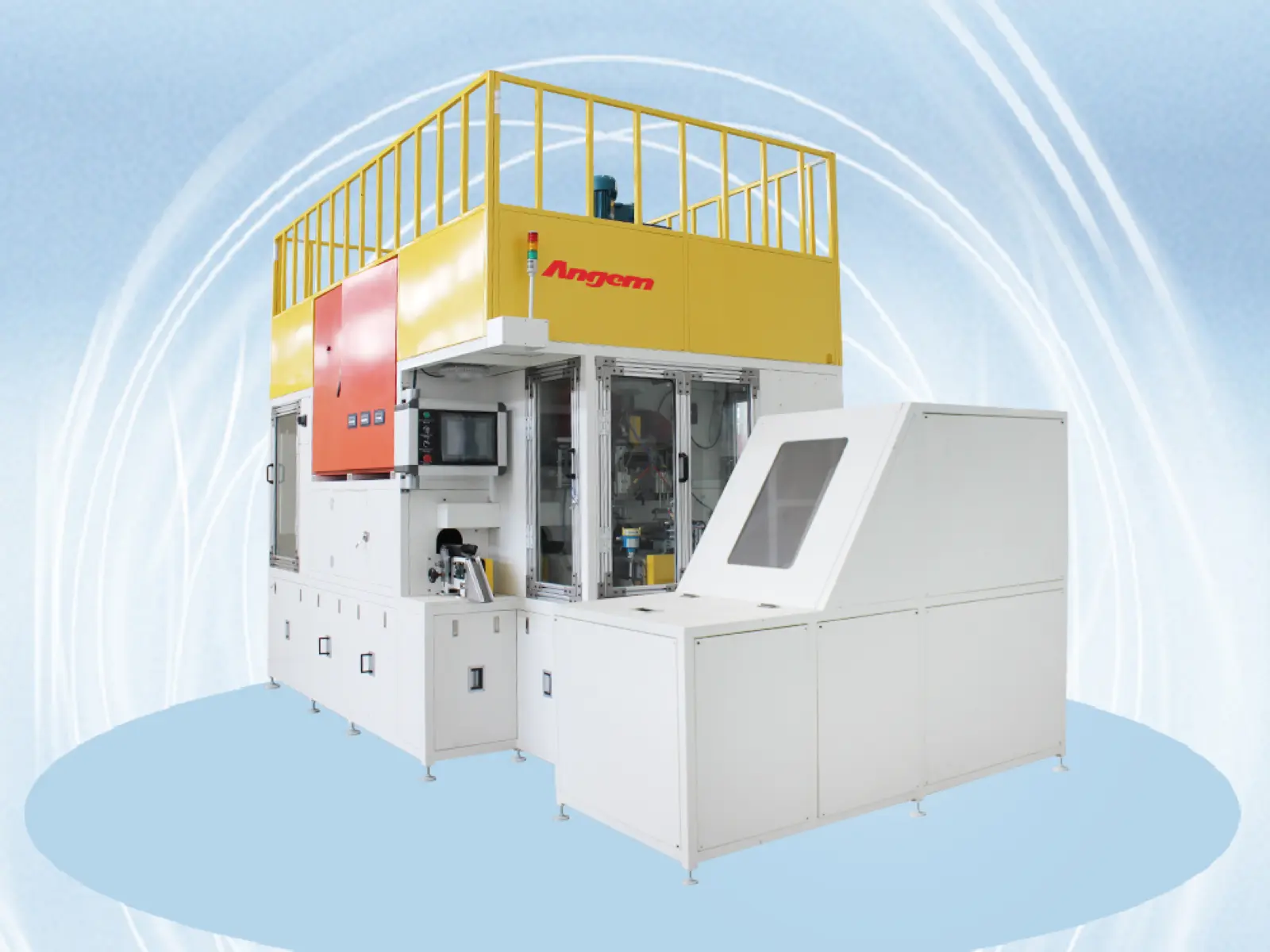

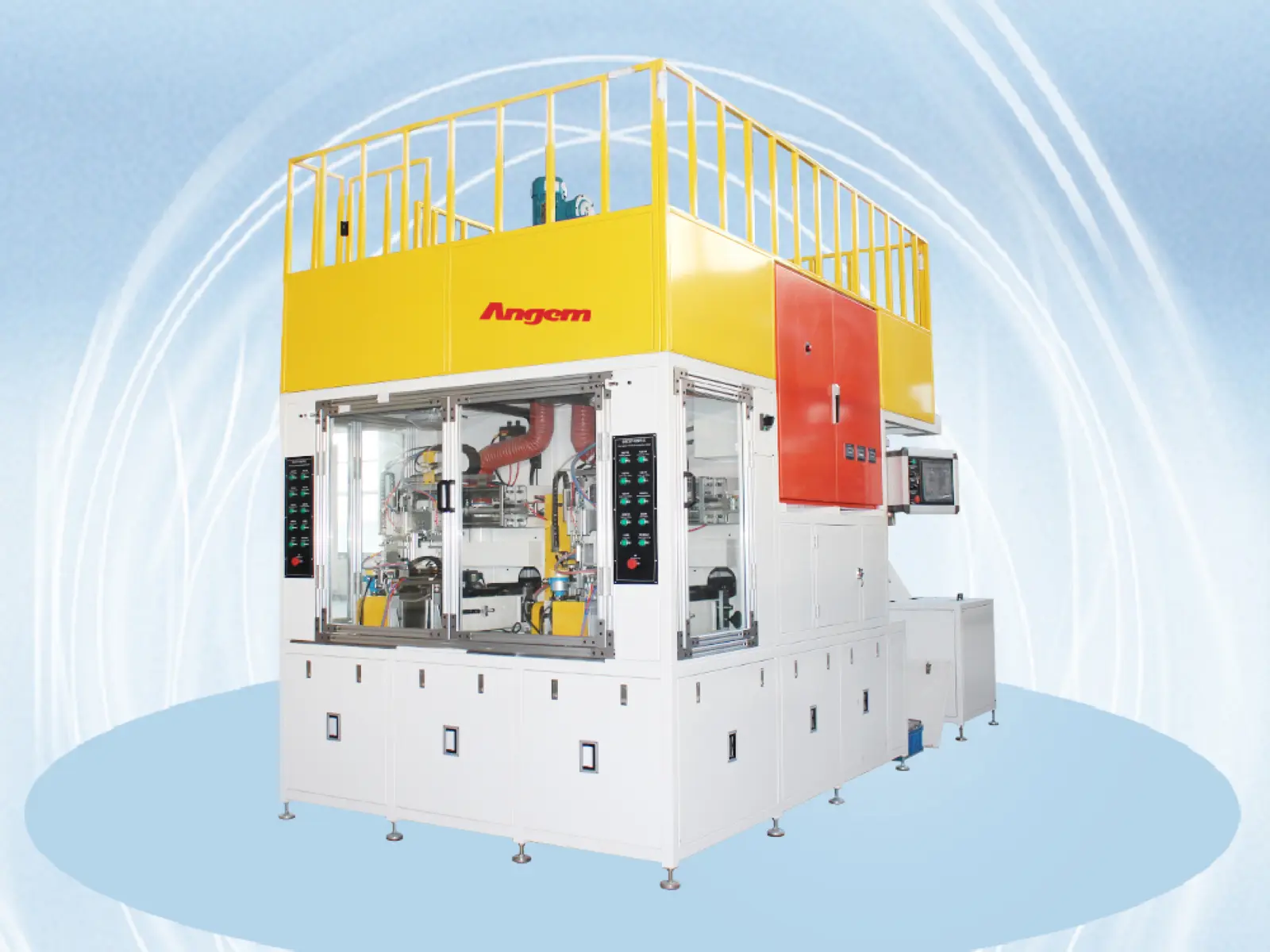

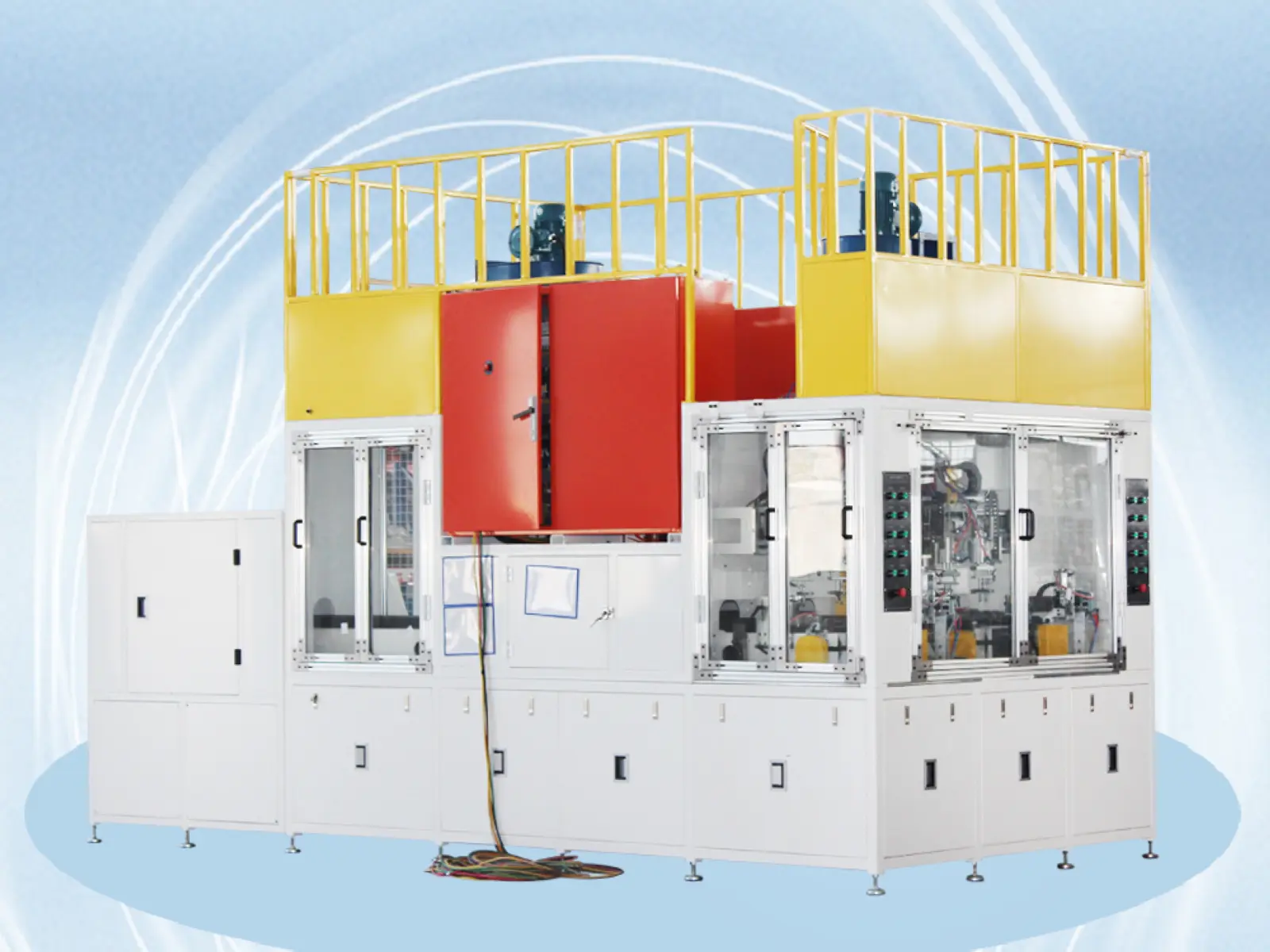

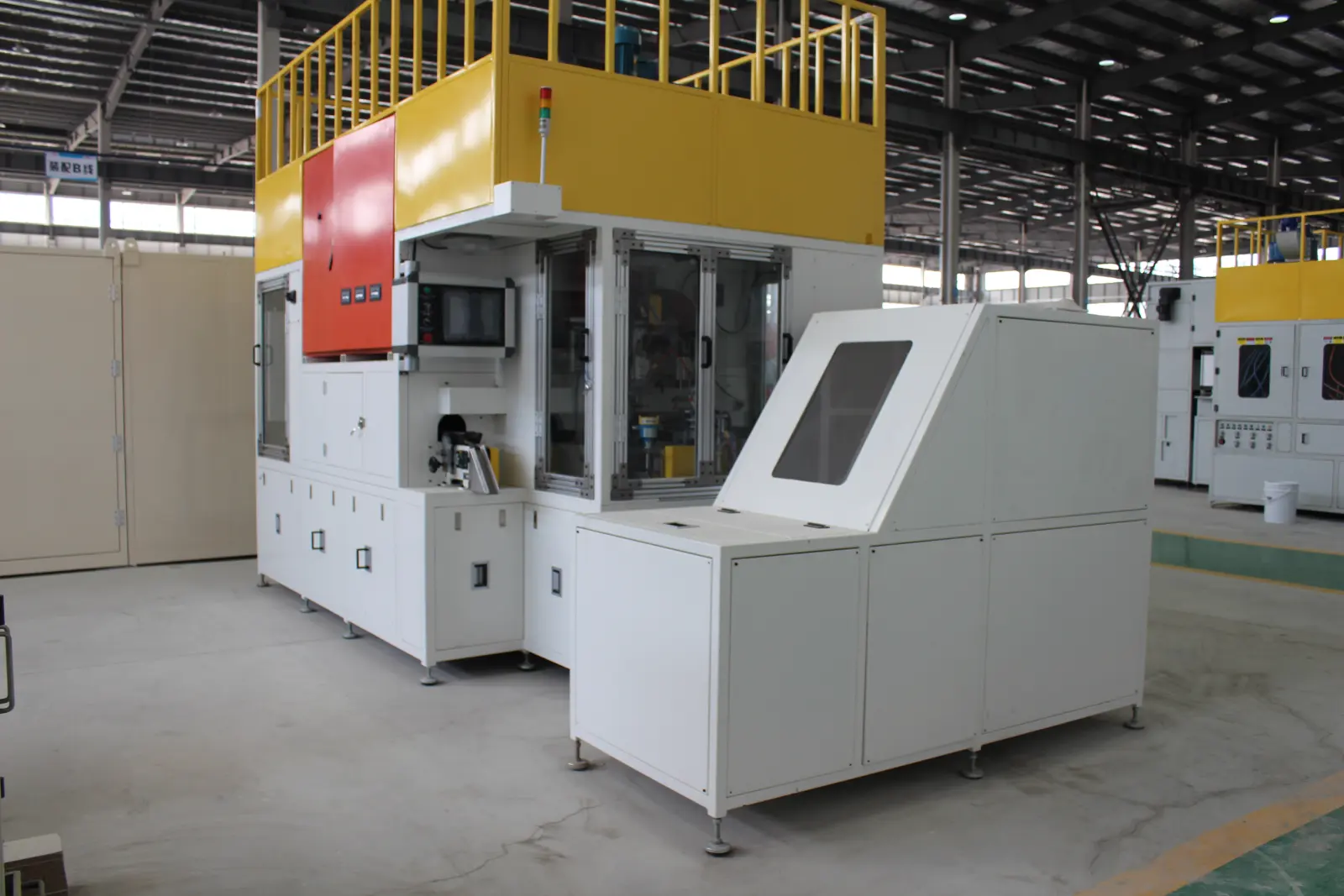

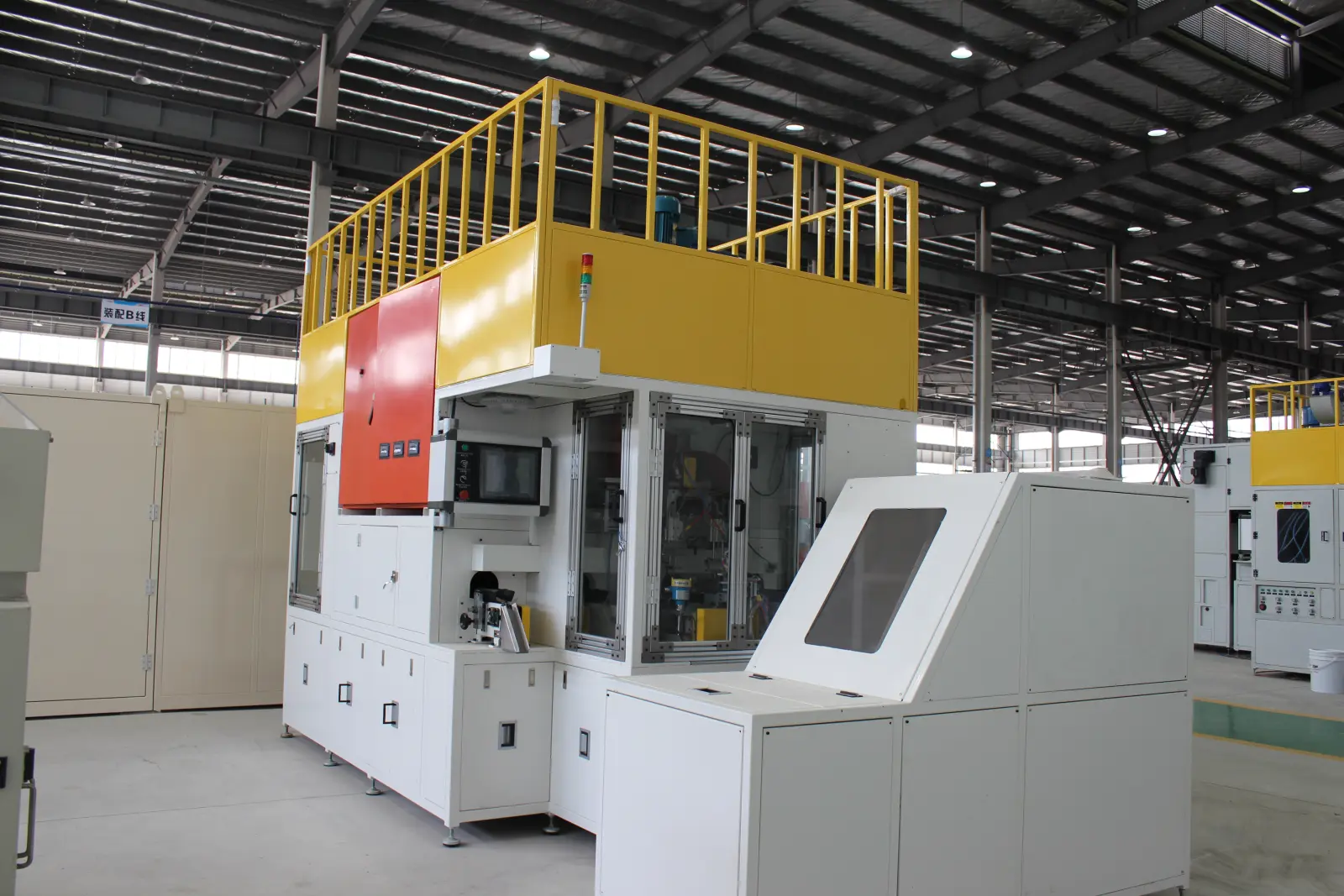

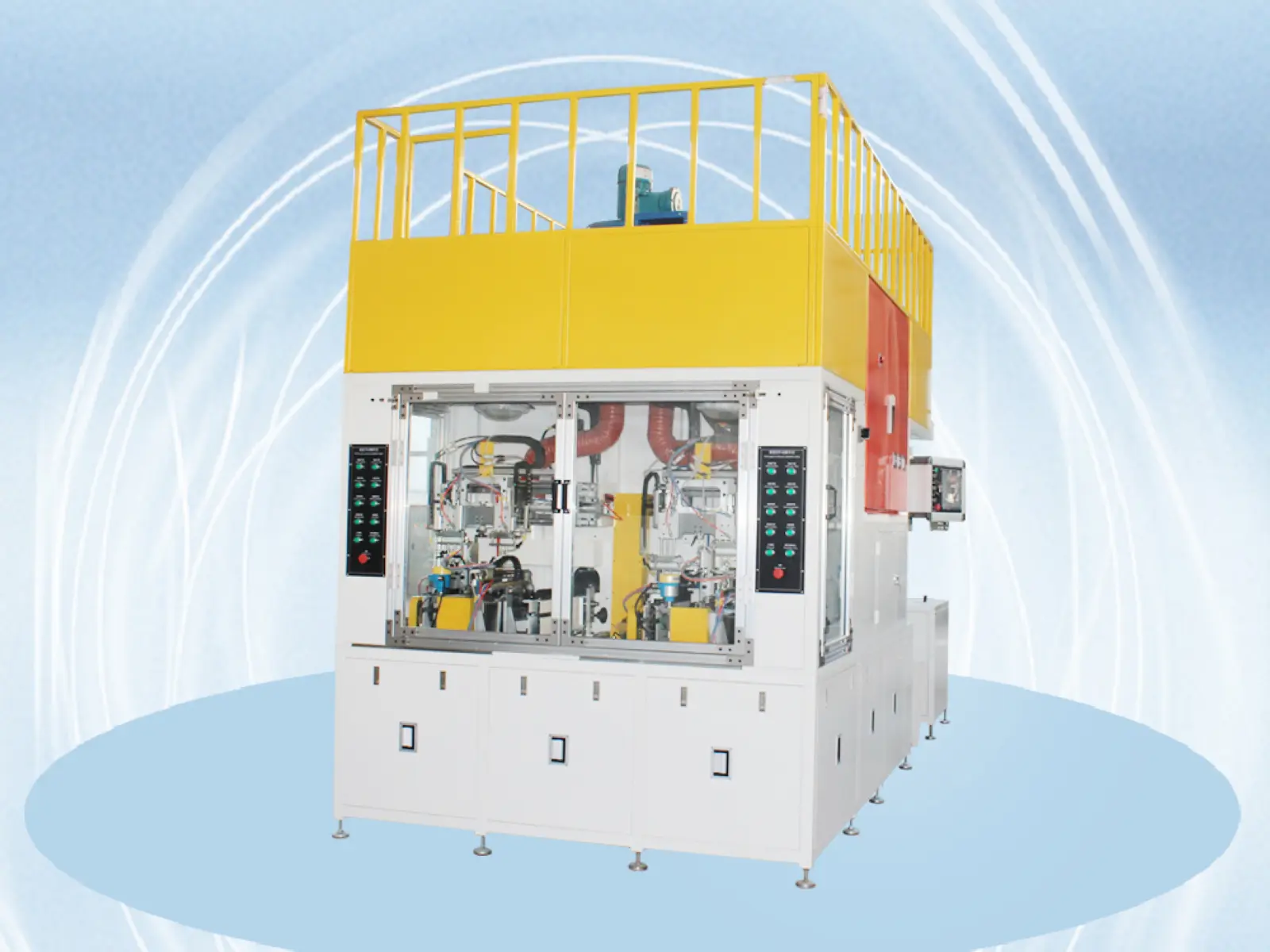

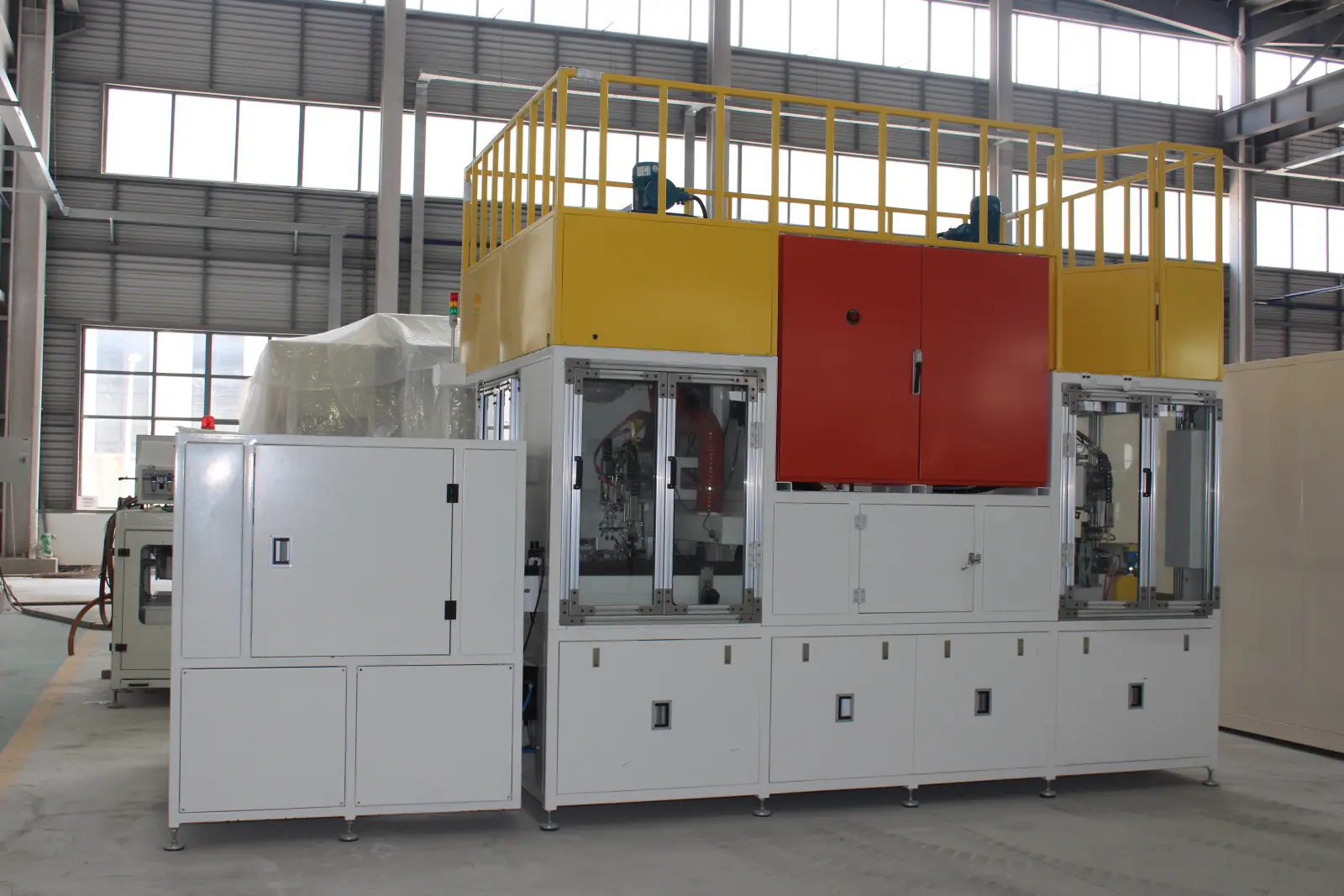

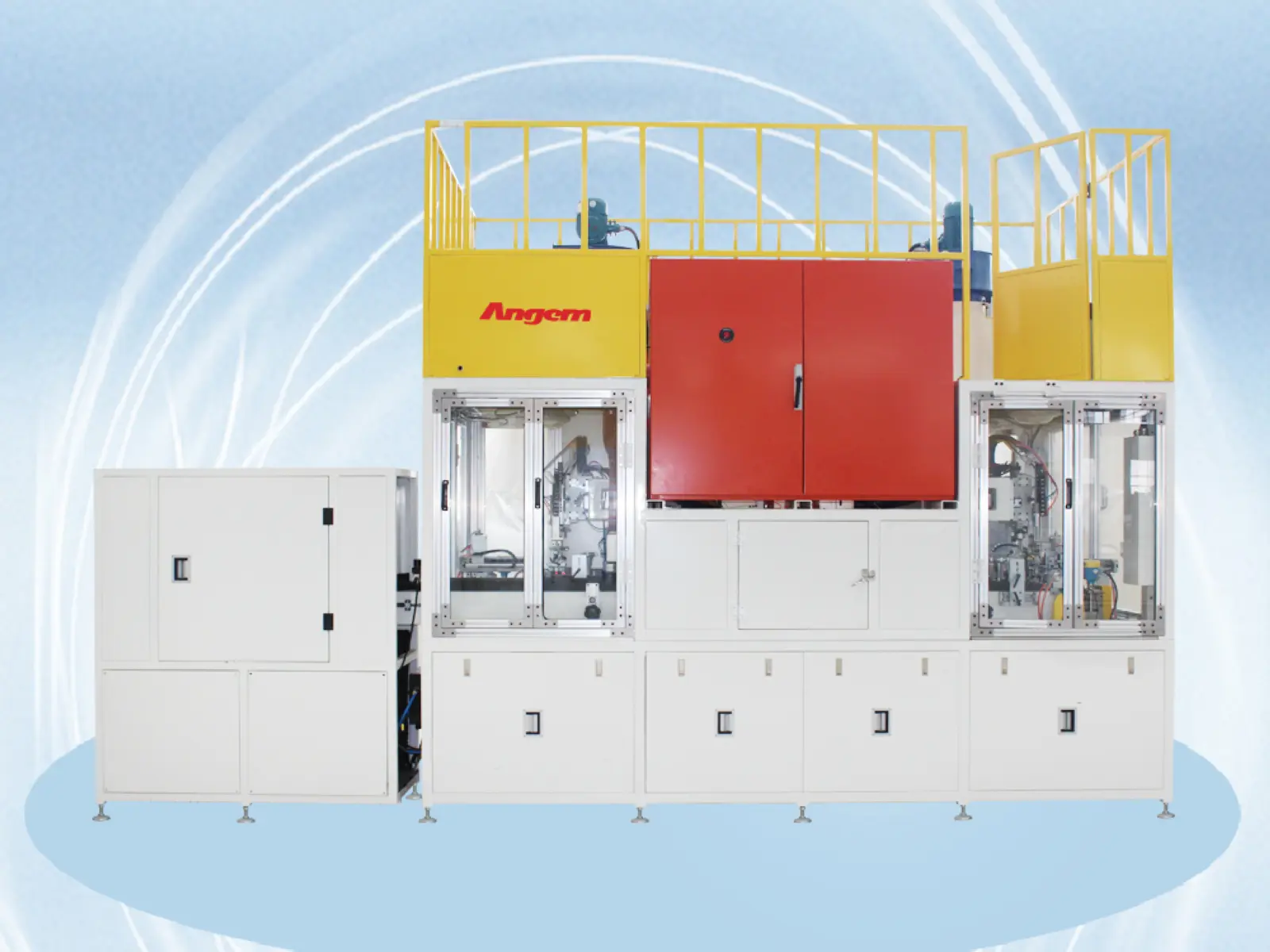

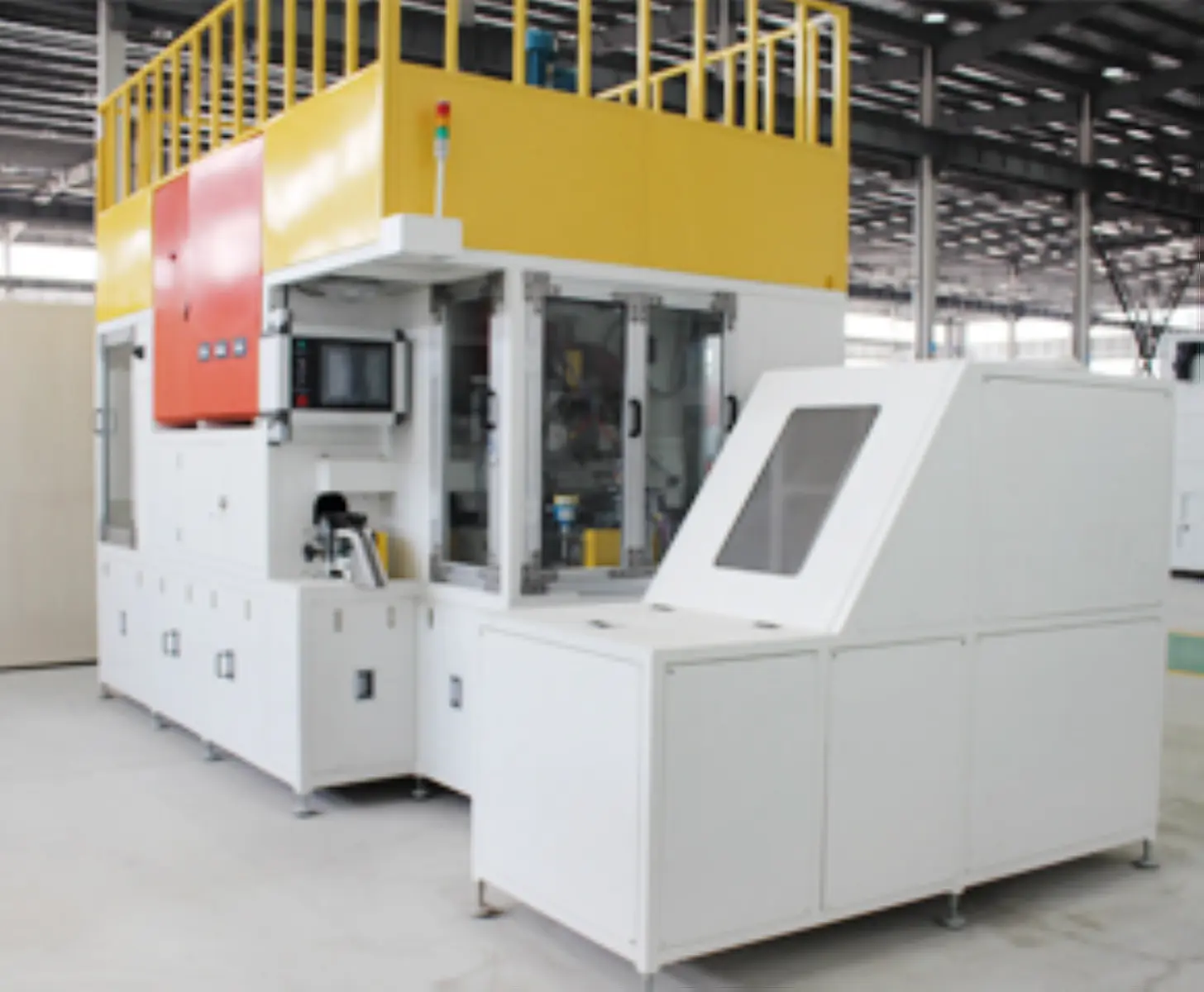

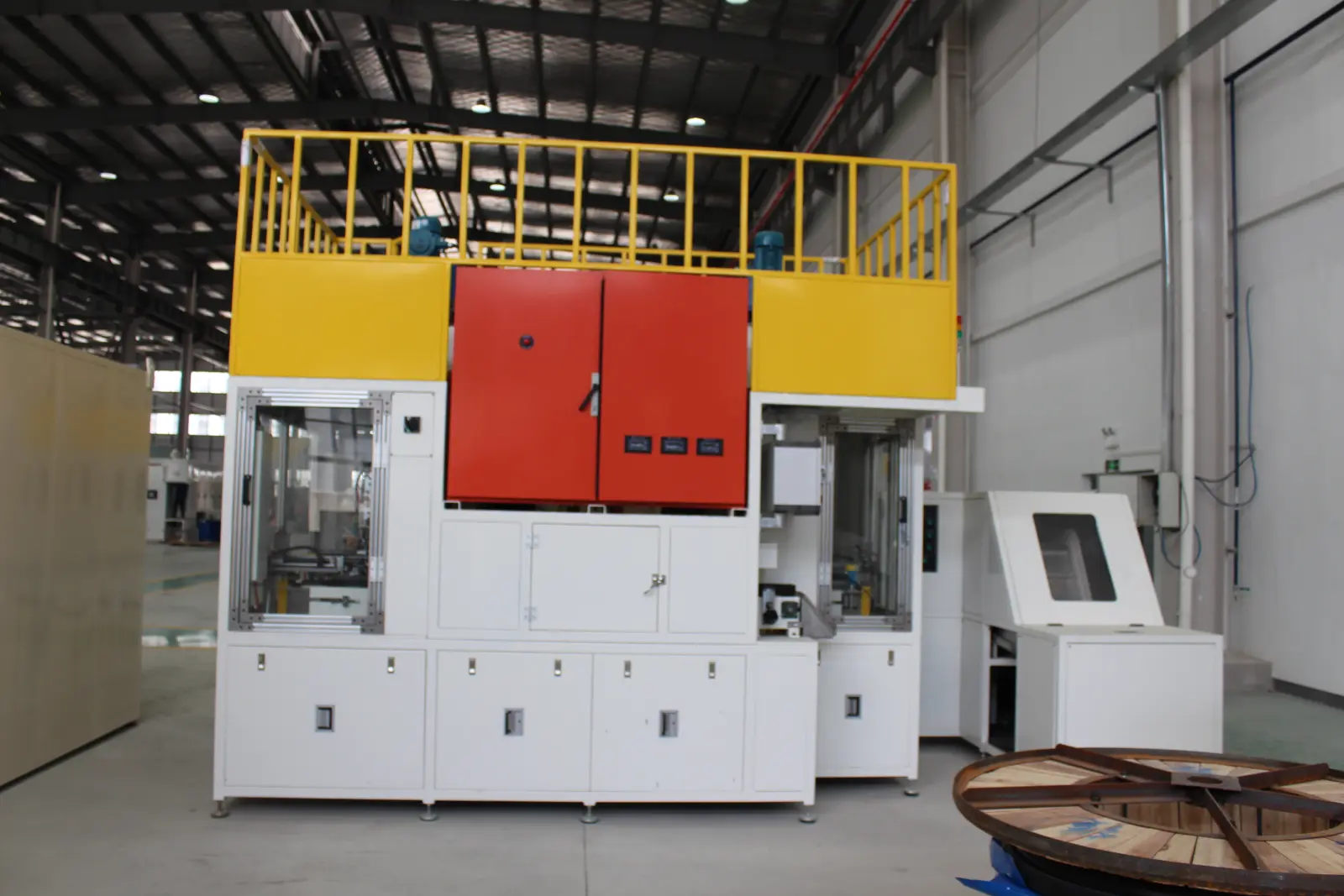

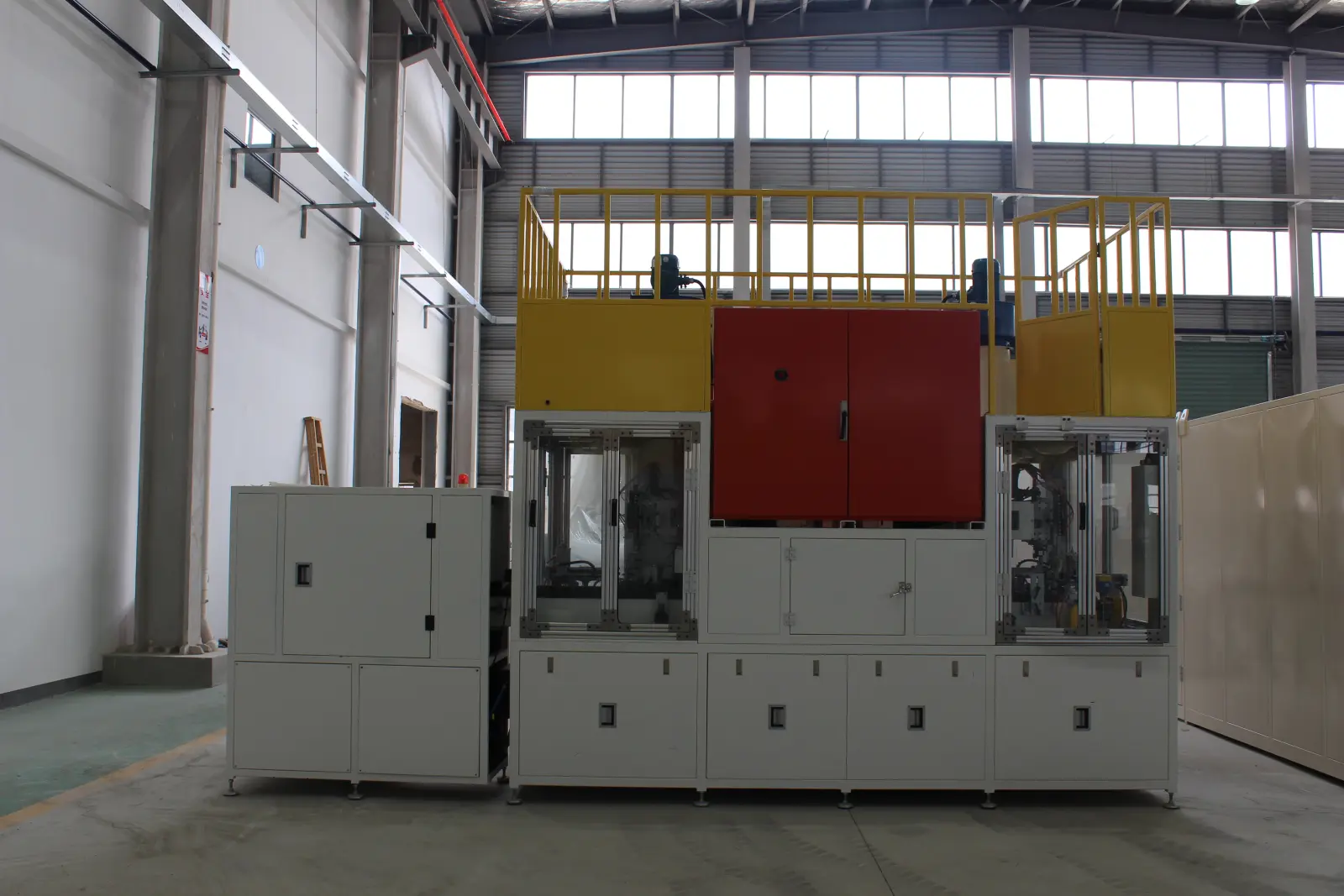

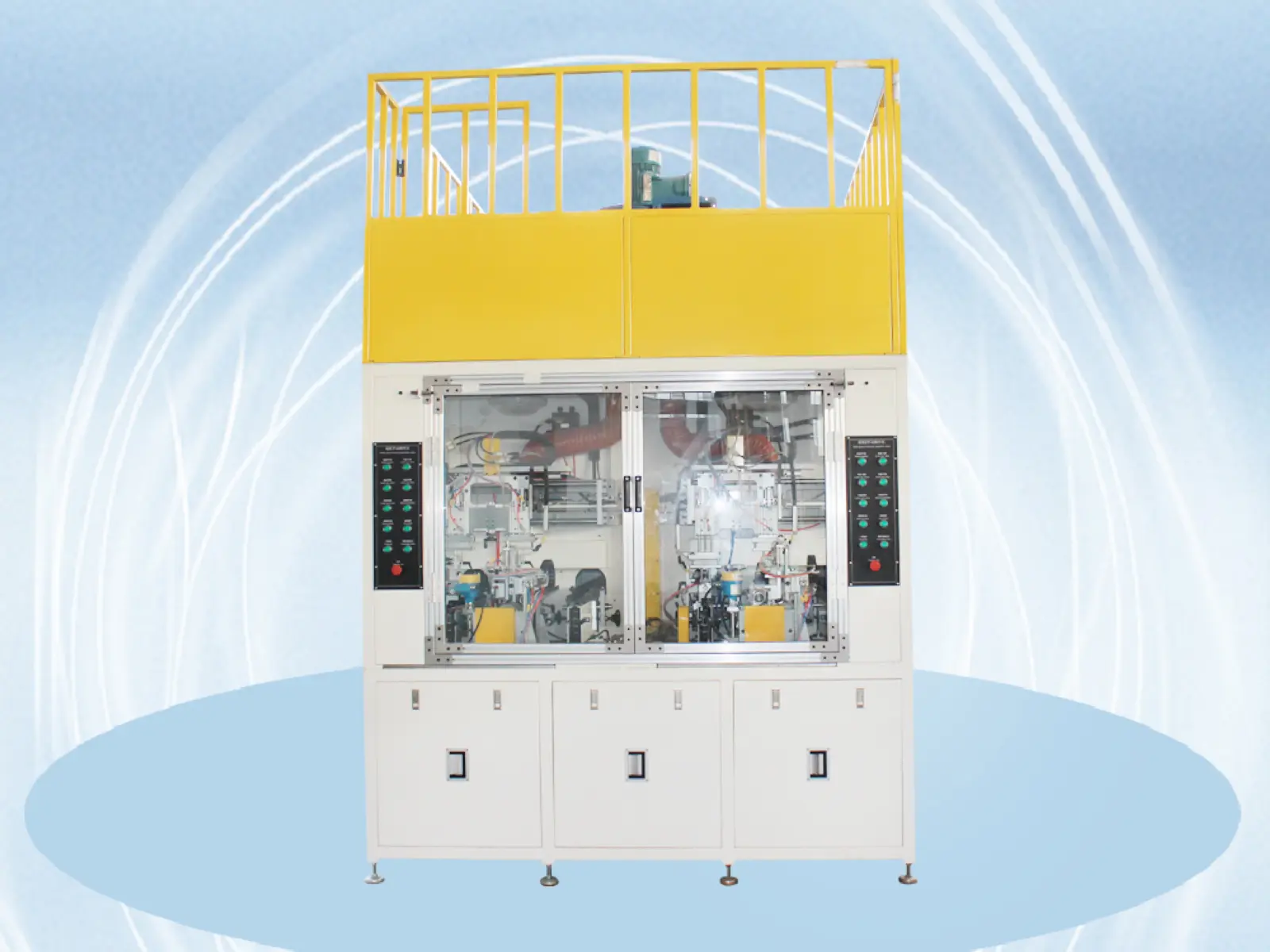

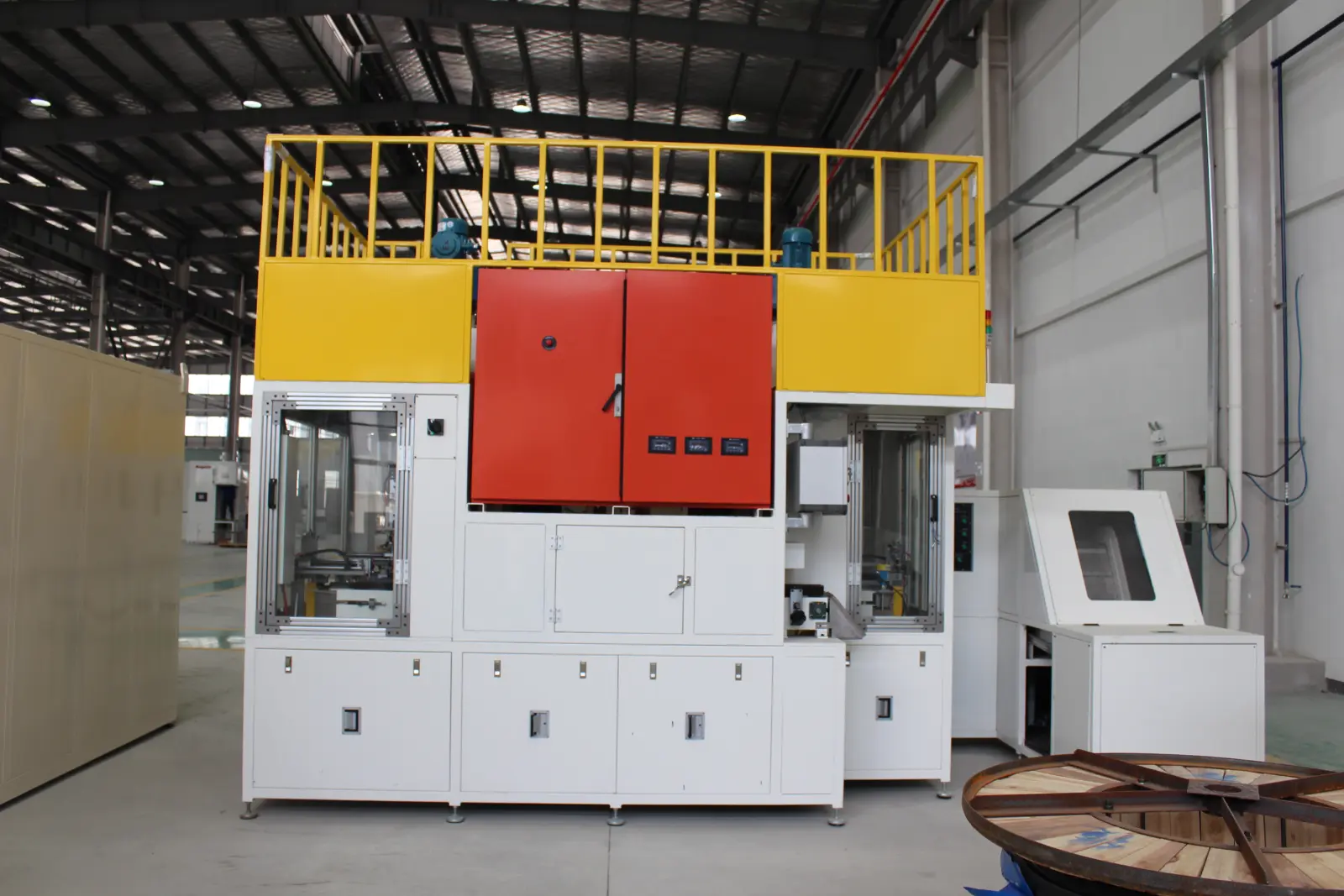

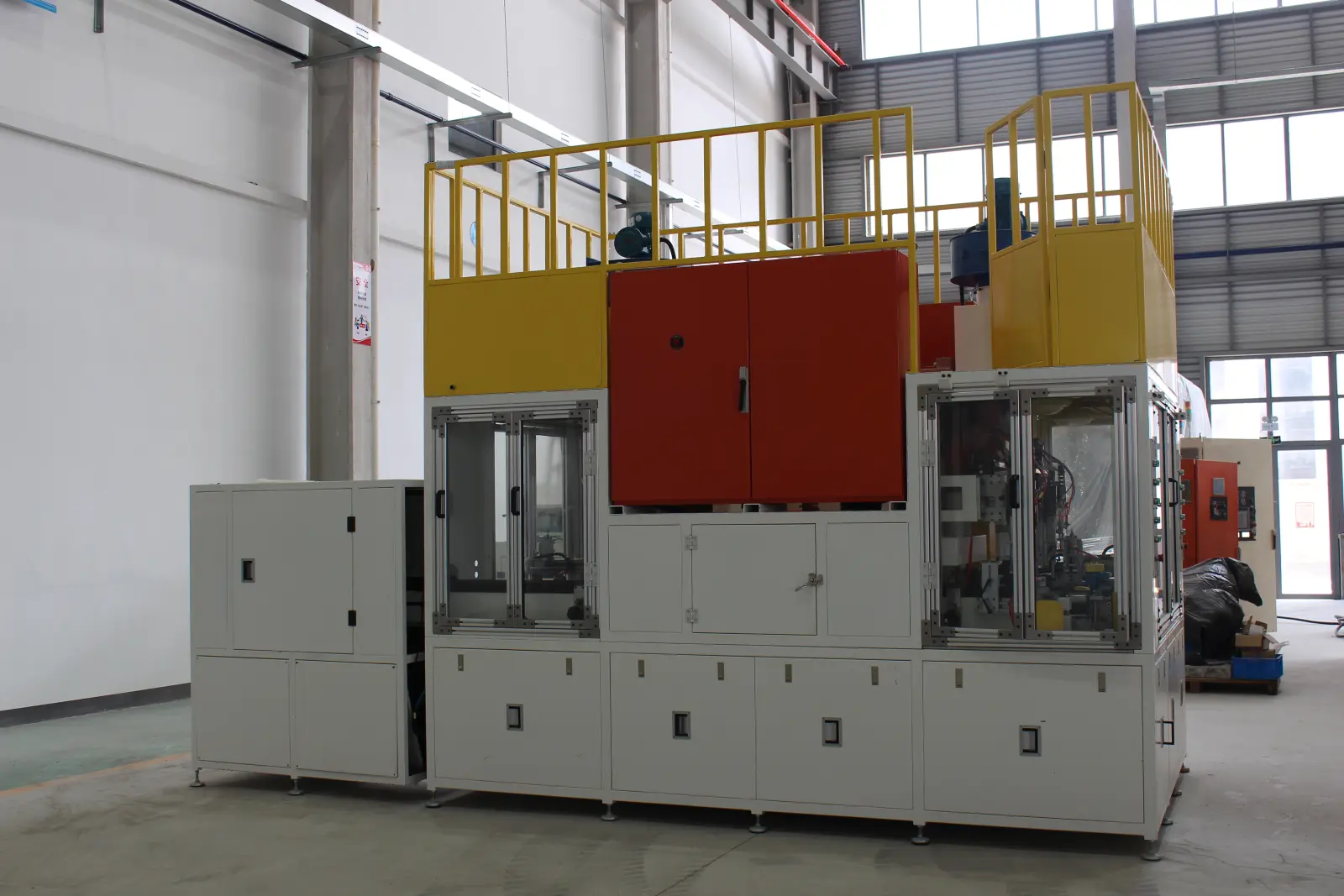

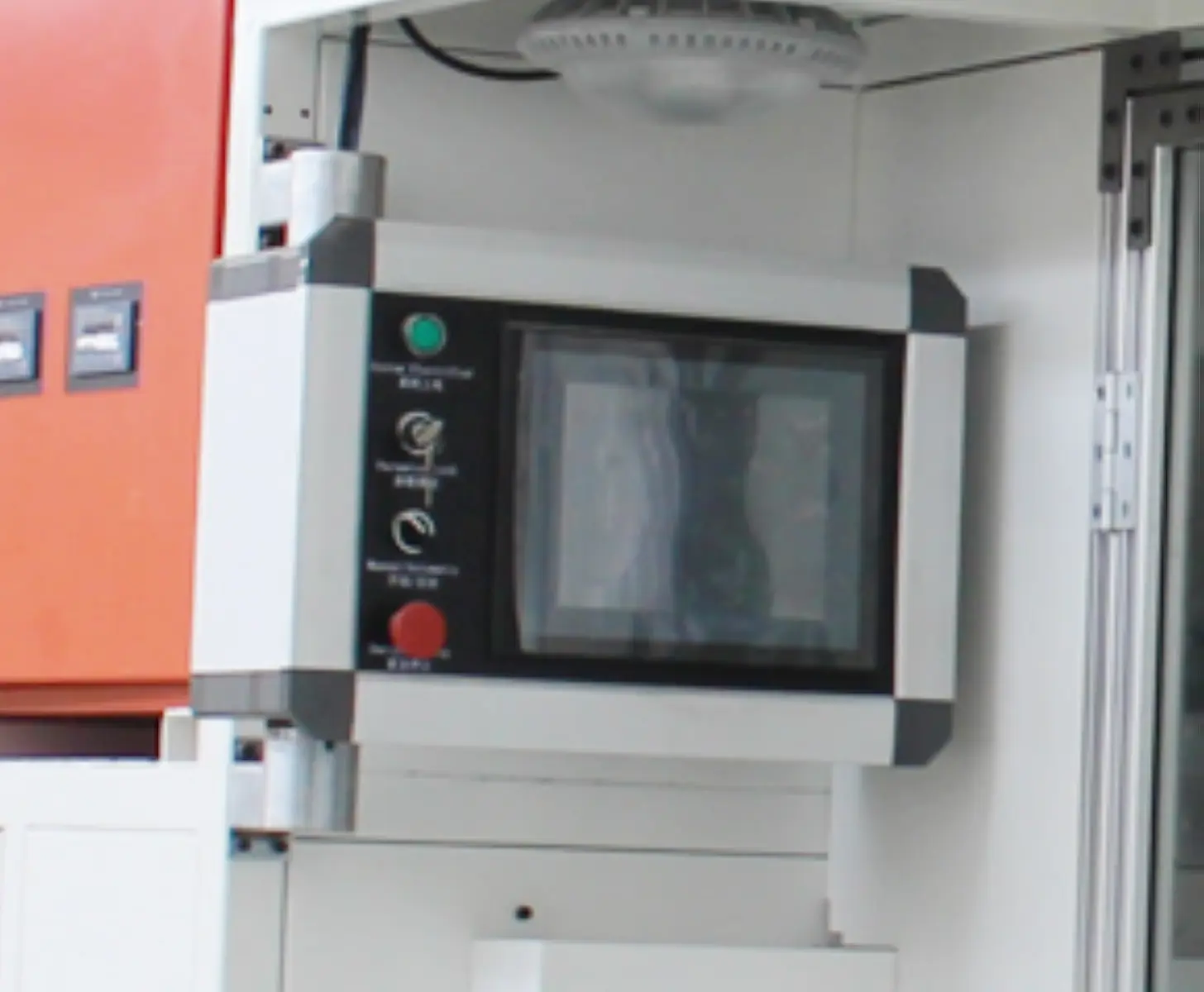

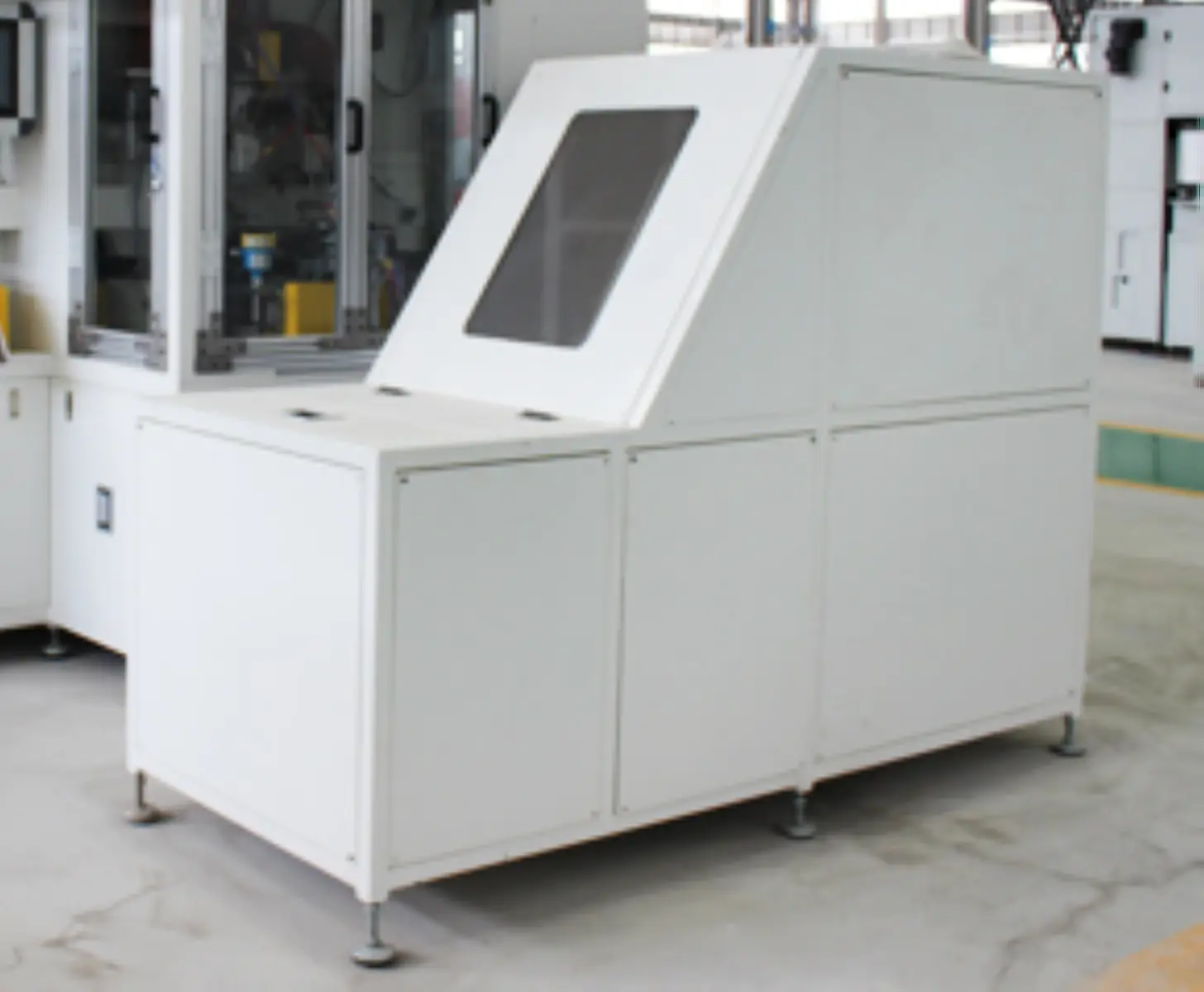

Automatic Inner Bore Coating Machine GNL100-D3M | Angem

The AJL.ZG100 Inner Bore Automatic Adhesive Coating Machine is an independently developed solution by Angem Precision Machinery Co., Ltd. (Suzhou), featuring fully proprietary intellectual property. It is specifically engineered for applying adhesive coatings to the inner bore surfaces of automotive damping components and metal-rubber composite part frameworks.

DESCRIPTION

By fundamentally redesigning both the working principle and mechanical structure, this system eliminates the common drawbacks of traditional spray coating equipment — including missed coverage, overspray, and excessive adhesive waste.

The machine integrates a fully automated workflow covering automatic loading, adhesive application, drying, and automatic unloading, delivering a seamless end-to-end production process. Its core performance metrics meet advanced industry standards, making it the ideal solution for inner-wall adhesive coating of automotive damping parts and metal-rubber skeletal components.

Key Highlights

Proprietary inner bore rolling-coat technology — no missed spray, no overspray
Full automation: load → coat → dry → unload, minimal operator intervention
Eliminates adhesive waste, reducing material costs

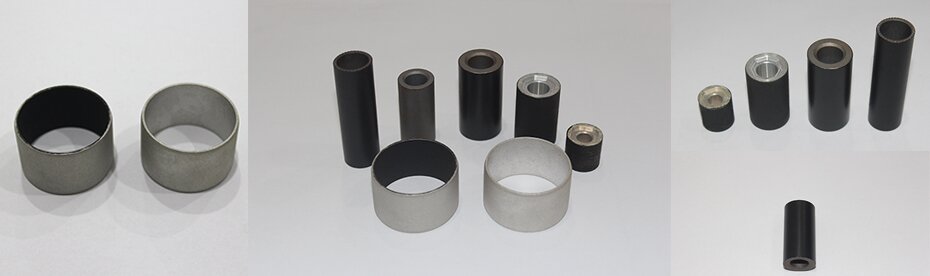

Purpose-built for automotive damping parts and metal-rubber framework components
Meets advanced industry benchmarks for coating uniformity and consistency

PRODUCT PARAMETERS

PRODUCT PROPERTIES	Specification
Cycle Time	6–8 sec, 1–2 parts per cycle (adjustable, automatically controlled)
Coating Time	2–4 sec (adjustable, automatically controlled)
Coating Thickness	Primer: 5–10 μm; Topcoat: 15–20 μm
Adhesive Viscosity	Primer: 50–65 s; Topcoat: 65–75 s (Zahn Cup #2, reference value)
Drying & Preheating Temperature	Ambient to 100°C (adjustable, automatically controlled)
Workpiece Rotation Speed	0–240 rpm/min (adjustable)
Vibration Feeding Speed	0–100 mm/s (adjustable, automatically controlled)
Applicable Workpiece Size Range	Inner diameter ≥ 30 mm; outer diameter ≤ 100 mm; applicable when height/outer diameter ratio ≥ 0.6
Air Pressure	0.6 MPa (alarm below 0.4 MPa)
Voltage	380V ±10%, 50Hz
Heating Method	Electric heating
Heating Power	3.3 kW × 3
Total Motor Power	Approx. 6.5 kW
Machine Dimensions (L×W×H)	Approx. 4750 × 2500 × 3200 mm
