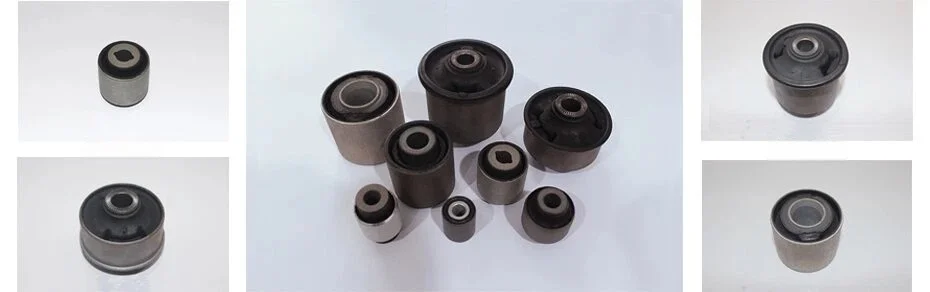

Skip to content The ANGEM AJL.SJ63 Automatic Bushing Sizing Machine is independently designed and manufactured by Suzhou Angem Precision Machinery Co., Ltd. It is specifically developed for the post-molding outside diameter sizing and dimensional calibration of automotive anti-vibration bushings.
The machine accurately reduces and controls the finished outside diameter of rubber-to-metal bonded bushings, helping improve dimensional consistency, production efficiency and operational safety. Its key technical performance meets or exceeds that of comparable international equipment.
The AJL.SJ63 has been granted a Chinese Utility Model Patent: Patent No.: ZL 2016 2 0955340.4
| Product Attribute | Technical Specification |
|---|---|
| Cycle Time | 3–6 s, adjustable with automatic control |
| Diameter Sizing Range | 10–100 mm, adjustable |
| Nominal Force | 630 kN |
| Power Supply | 380 V ±10%, 50 Hz |
| Total Motor Power | 5.5 kW |
| Machine Dimensions | L1200 × W580 × H1900 mm |

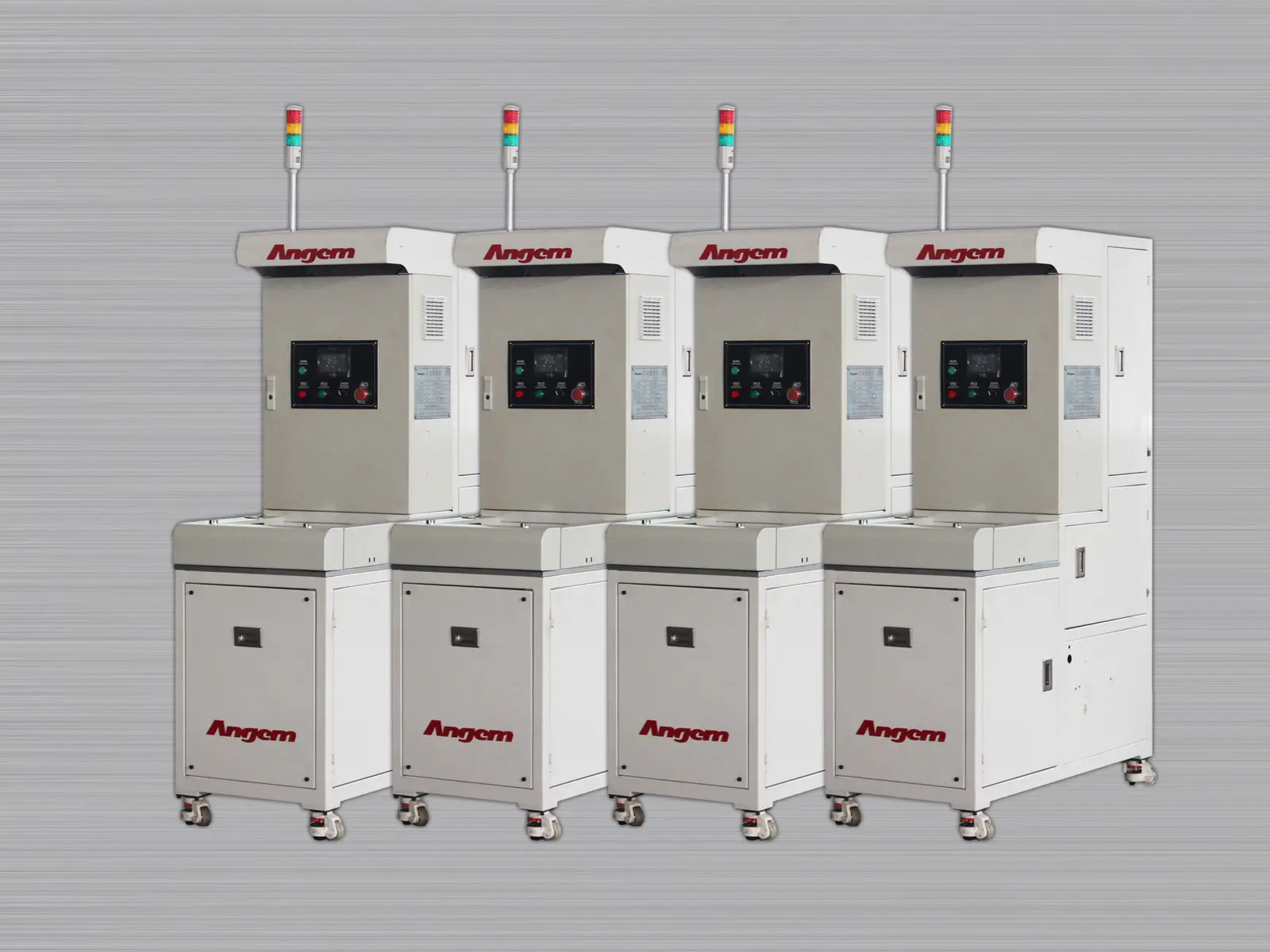

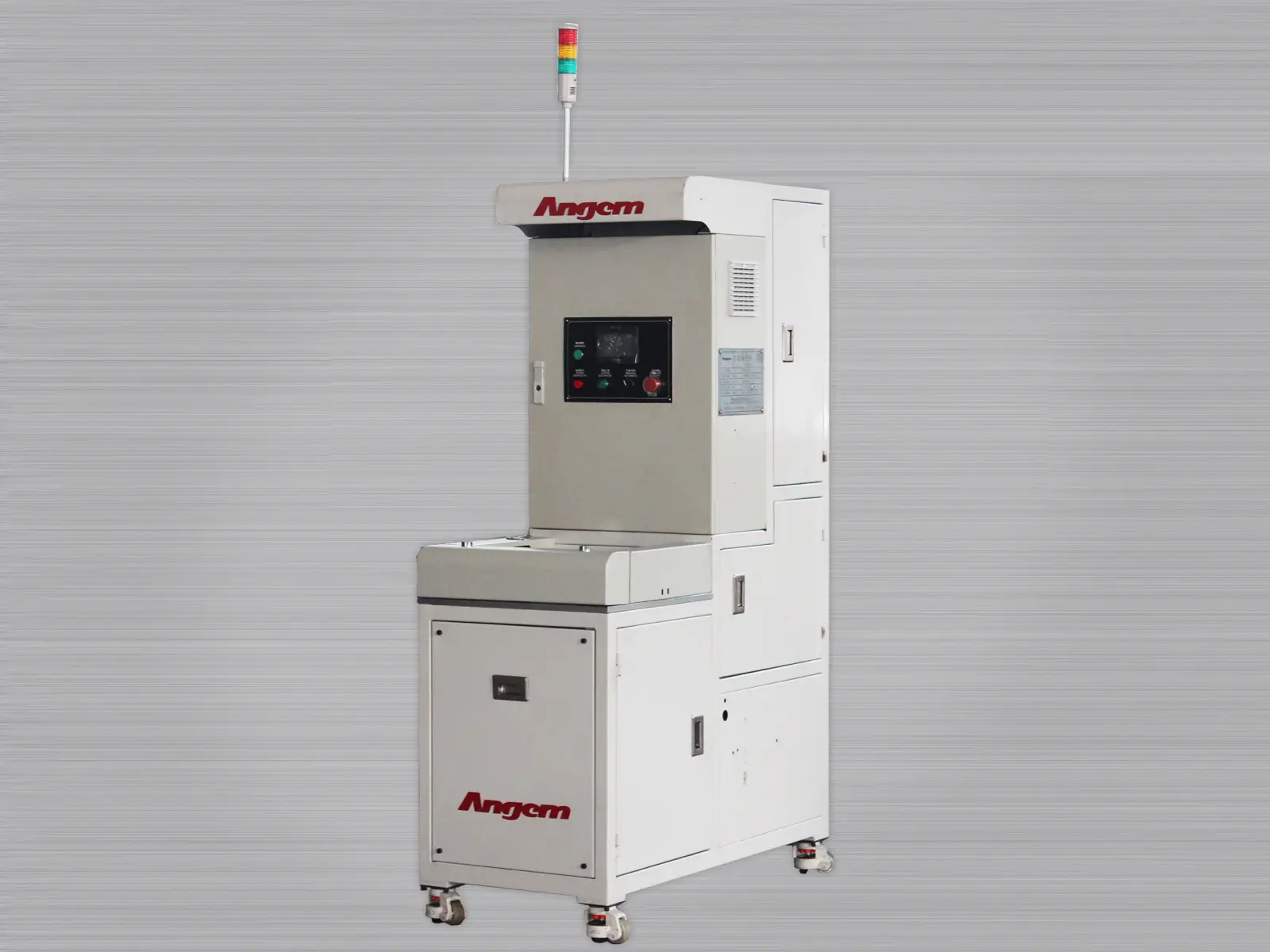

Features a newly developed structure with a refined, compact and professional appearance.
The automatic ejection mechanism improves operational safety, reduces the risks associated with conventional press operation, and facilitates integration into automated production lines.
The inverted punch design makes it easier to remove dust and foreign particles from the working chamber, simplifying cleaning and routine maintenance.

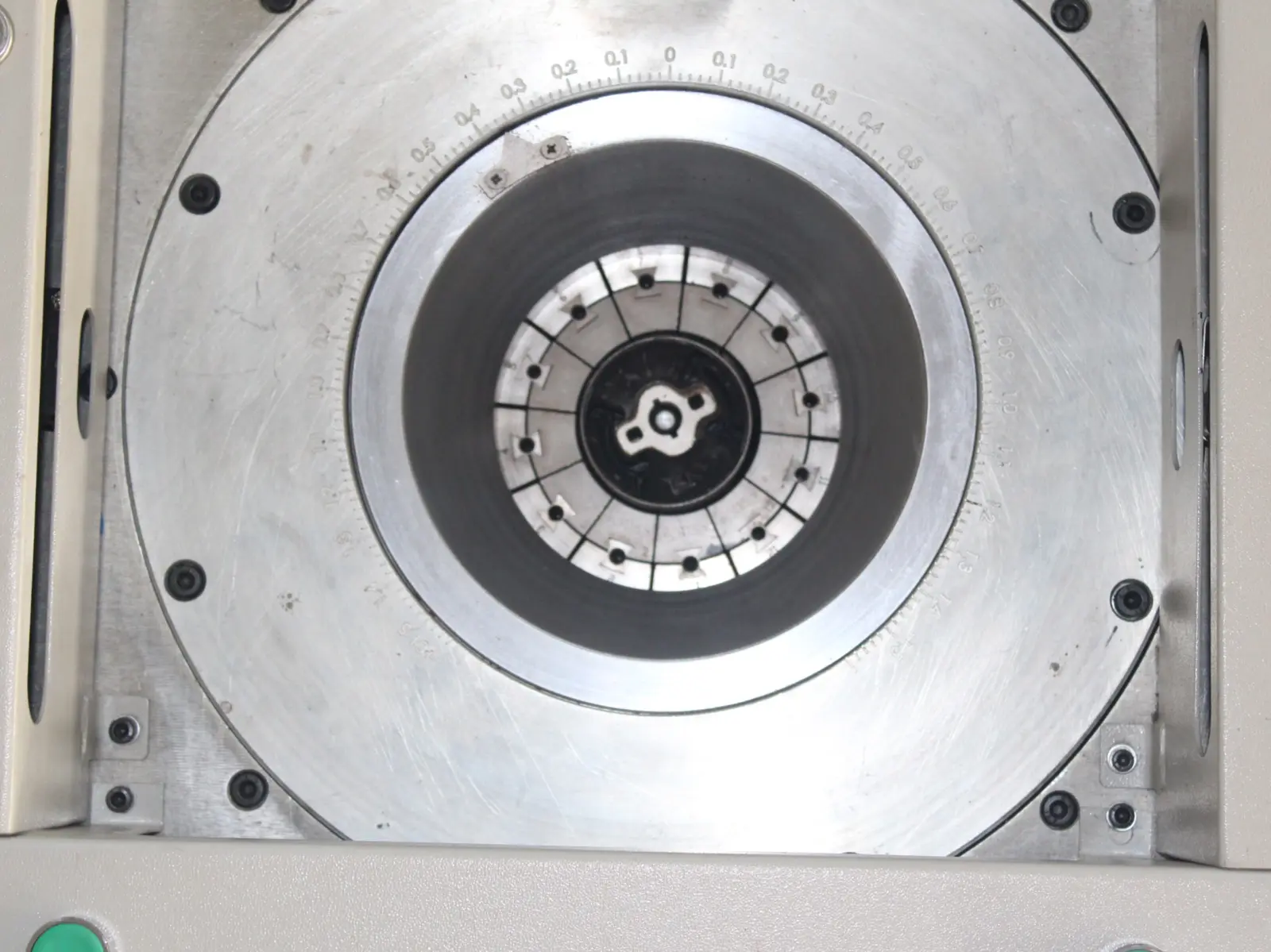

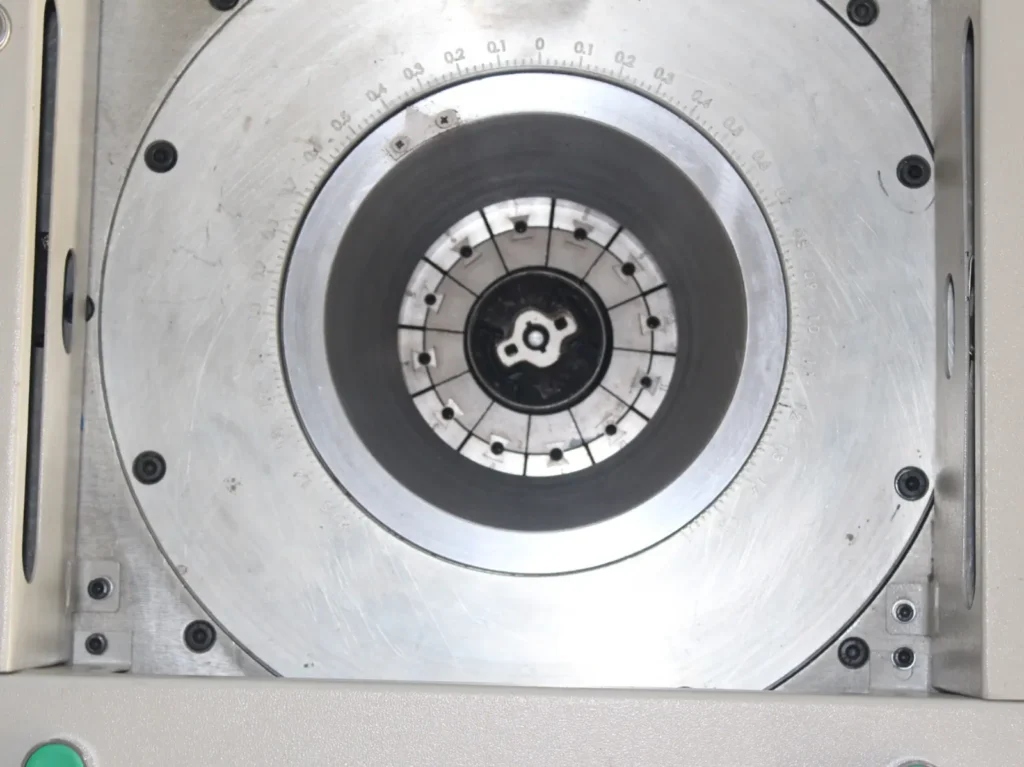

The diameter-sizing adjustment mechanism is positioned at the top of the machine, allowing operators to make settings and adjustments easily.
The machine is CE certified and designed to comply with applicable European safety requirements.
