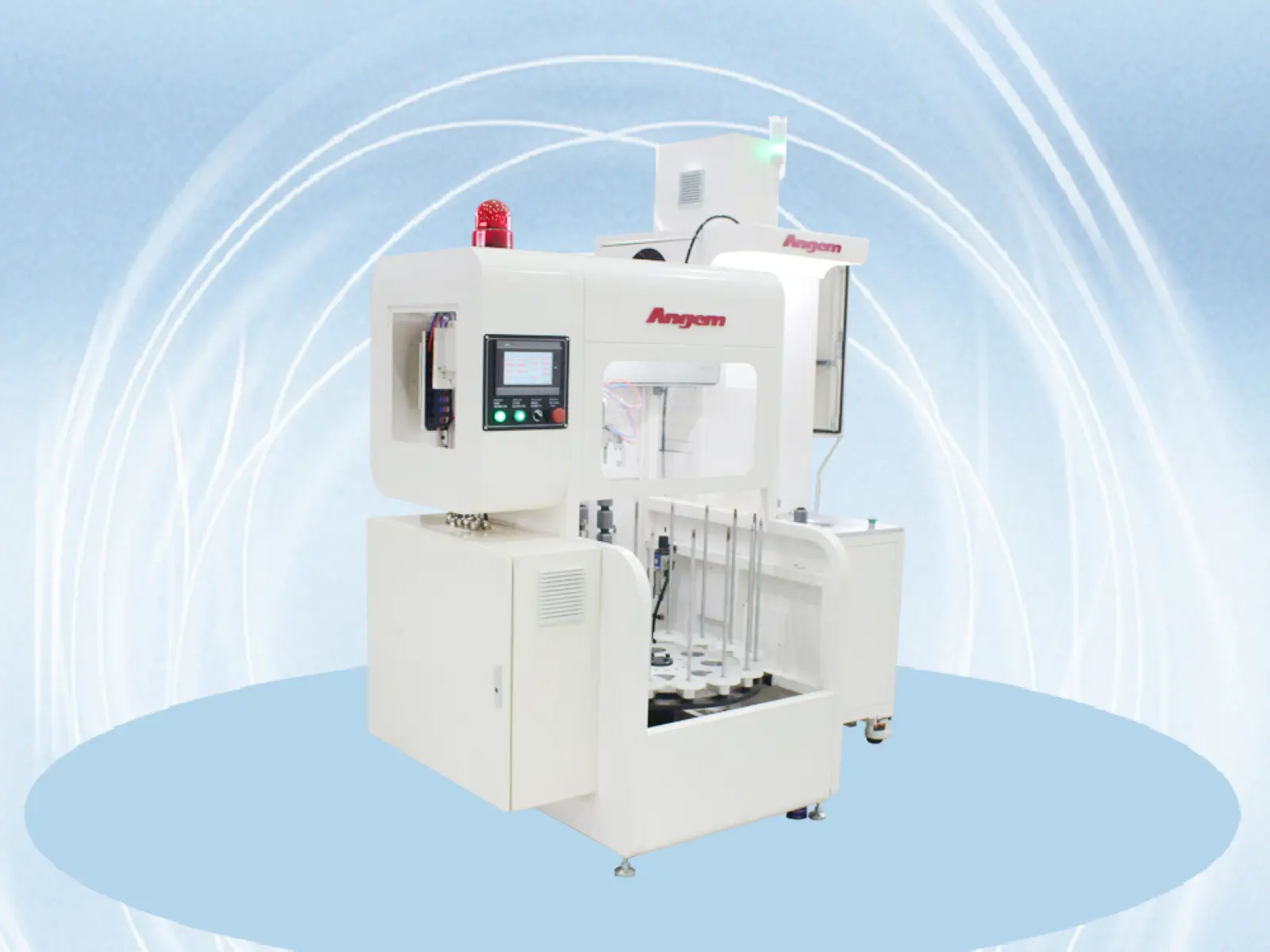

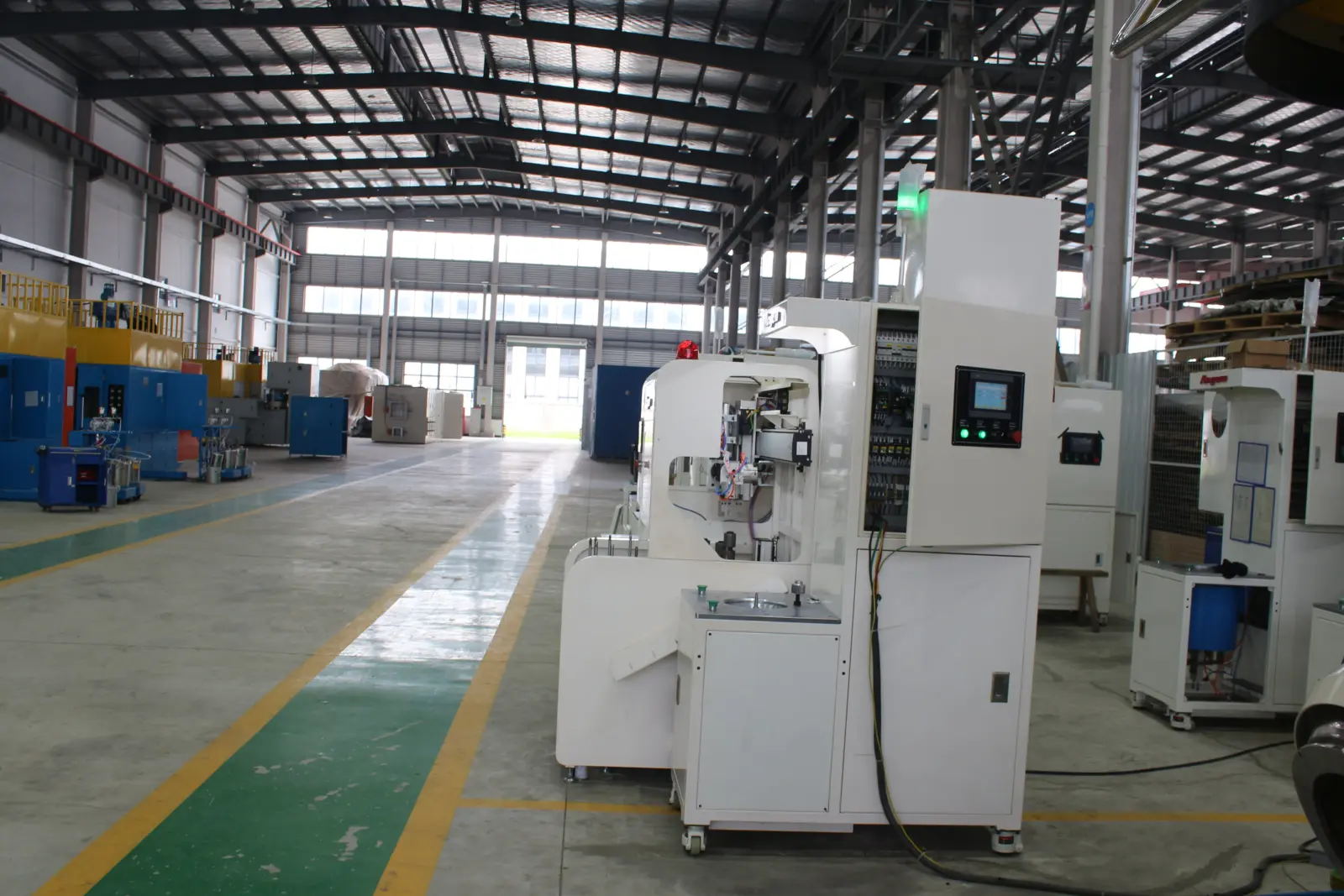

Bushing Swaging Machine YS63X100-1M44 | Angem Automatic Damper Bushing Swaging System

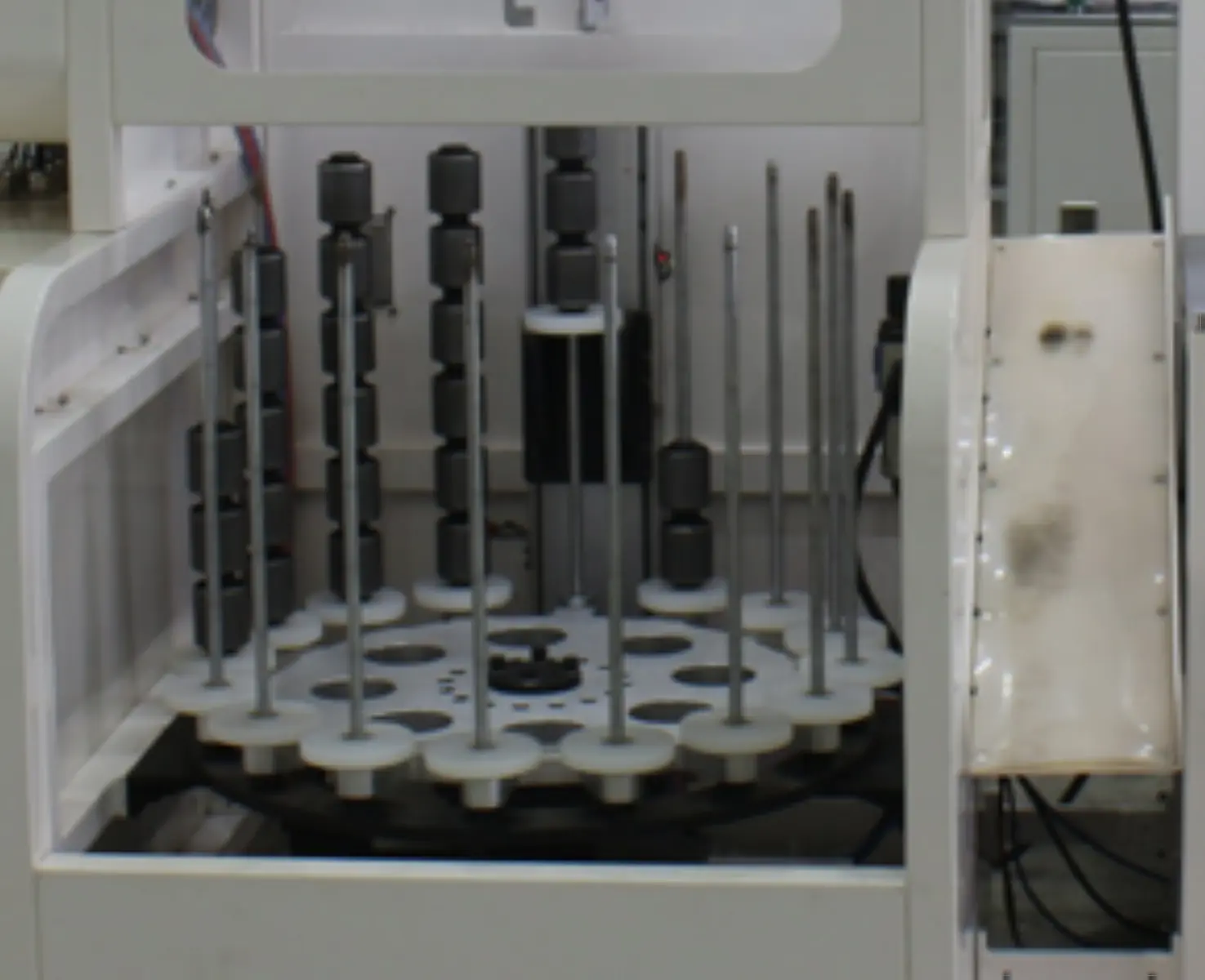

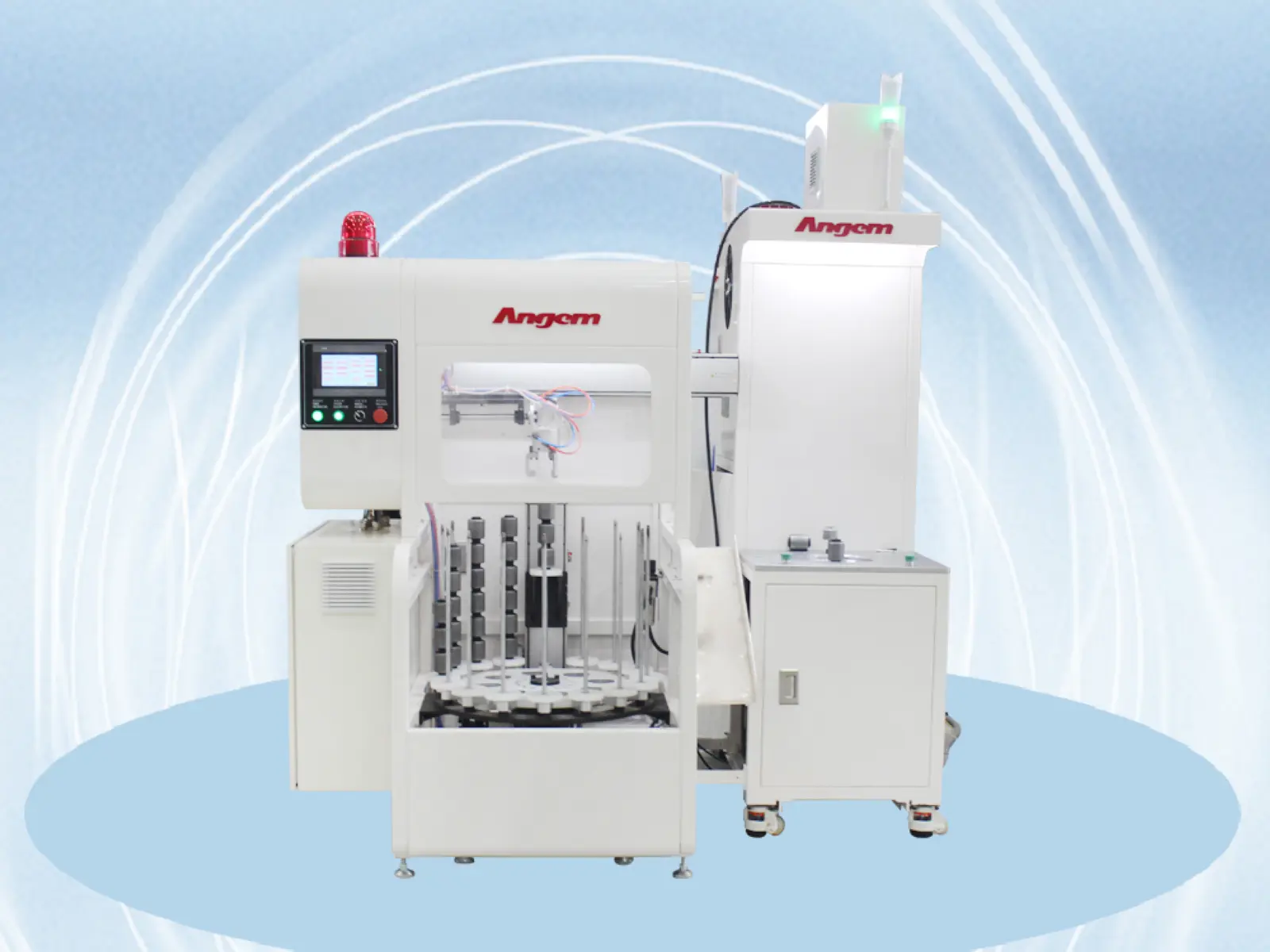

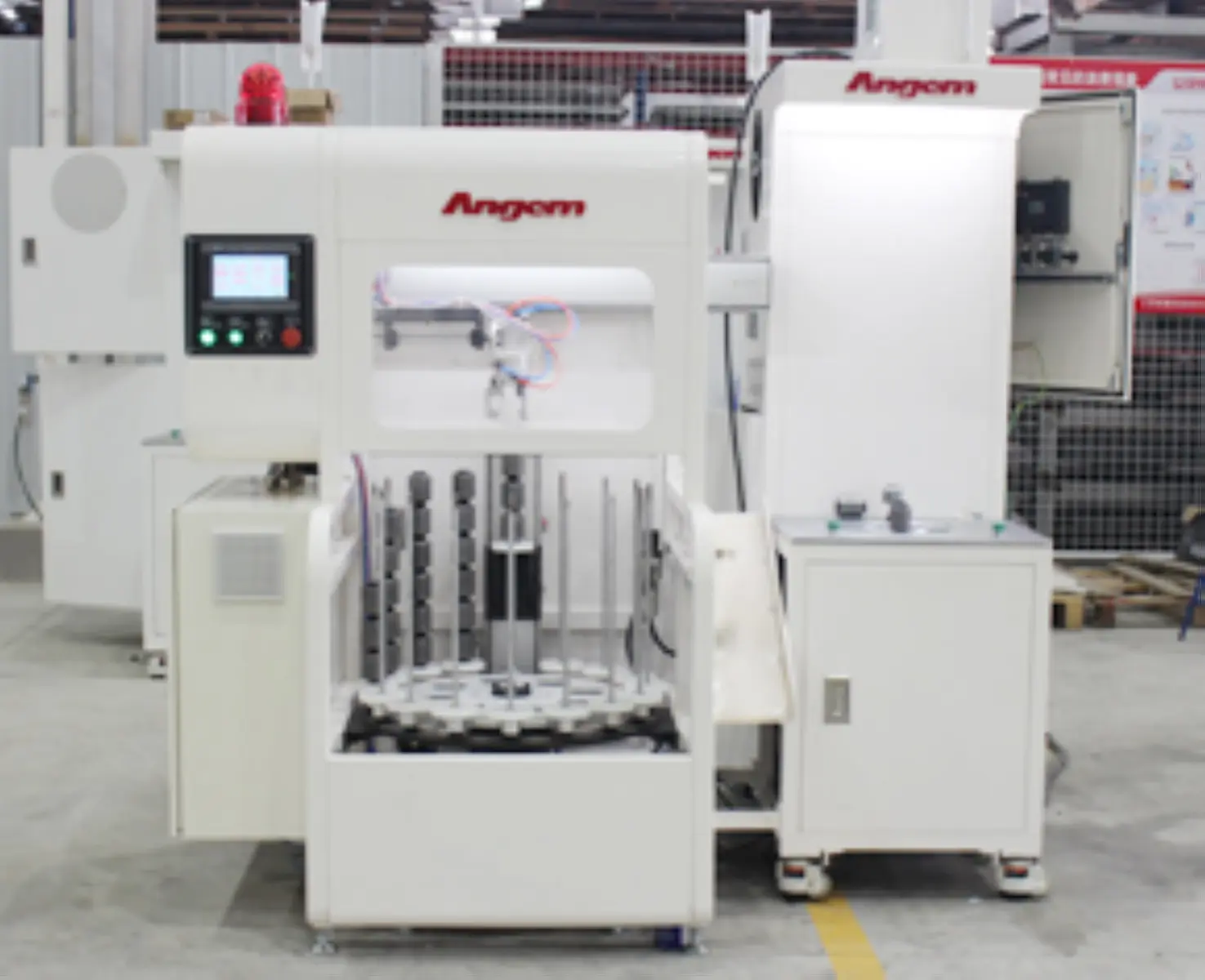

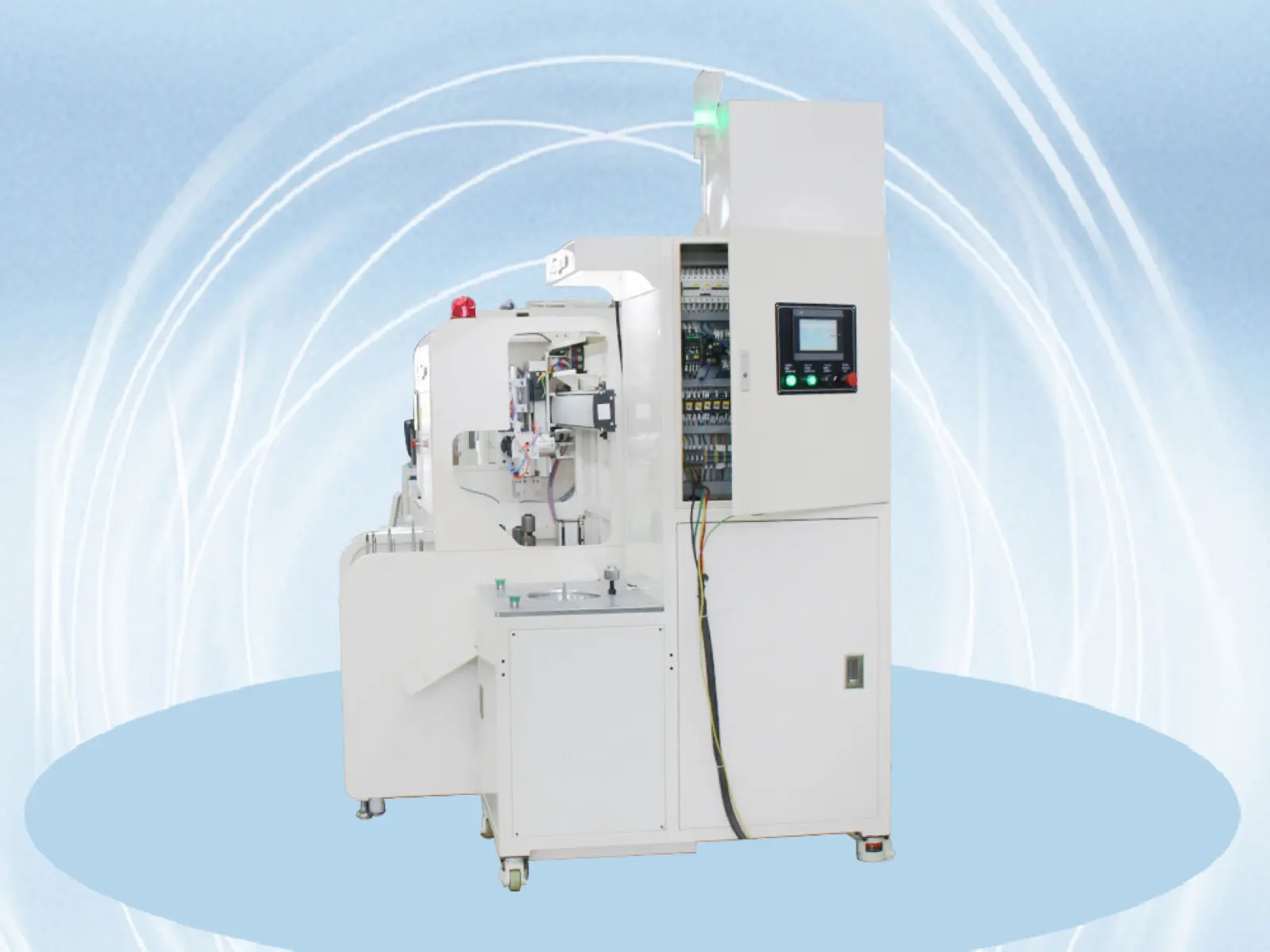

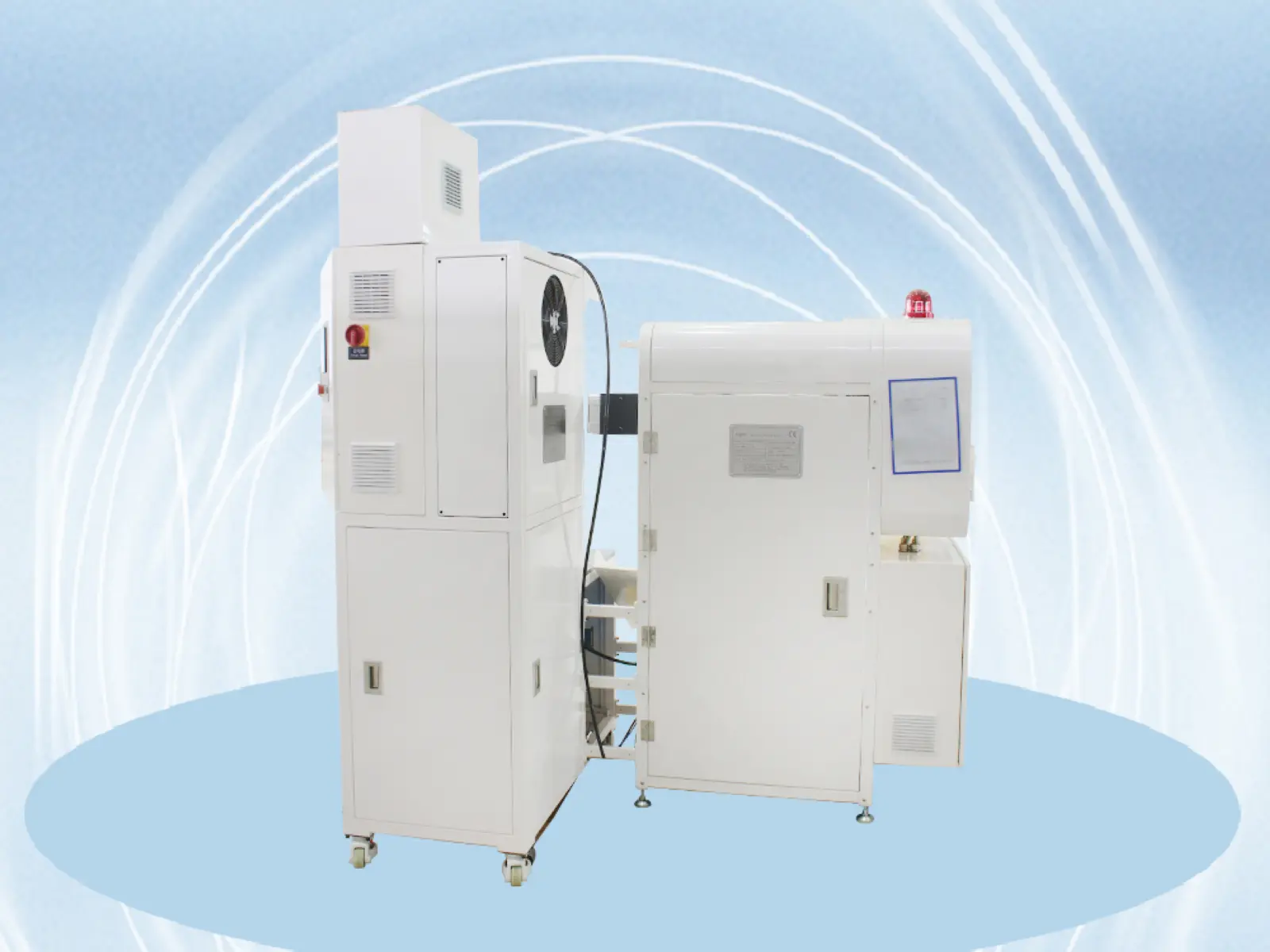

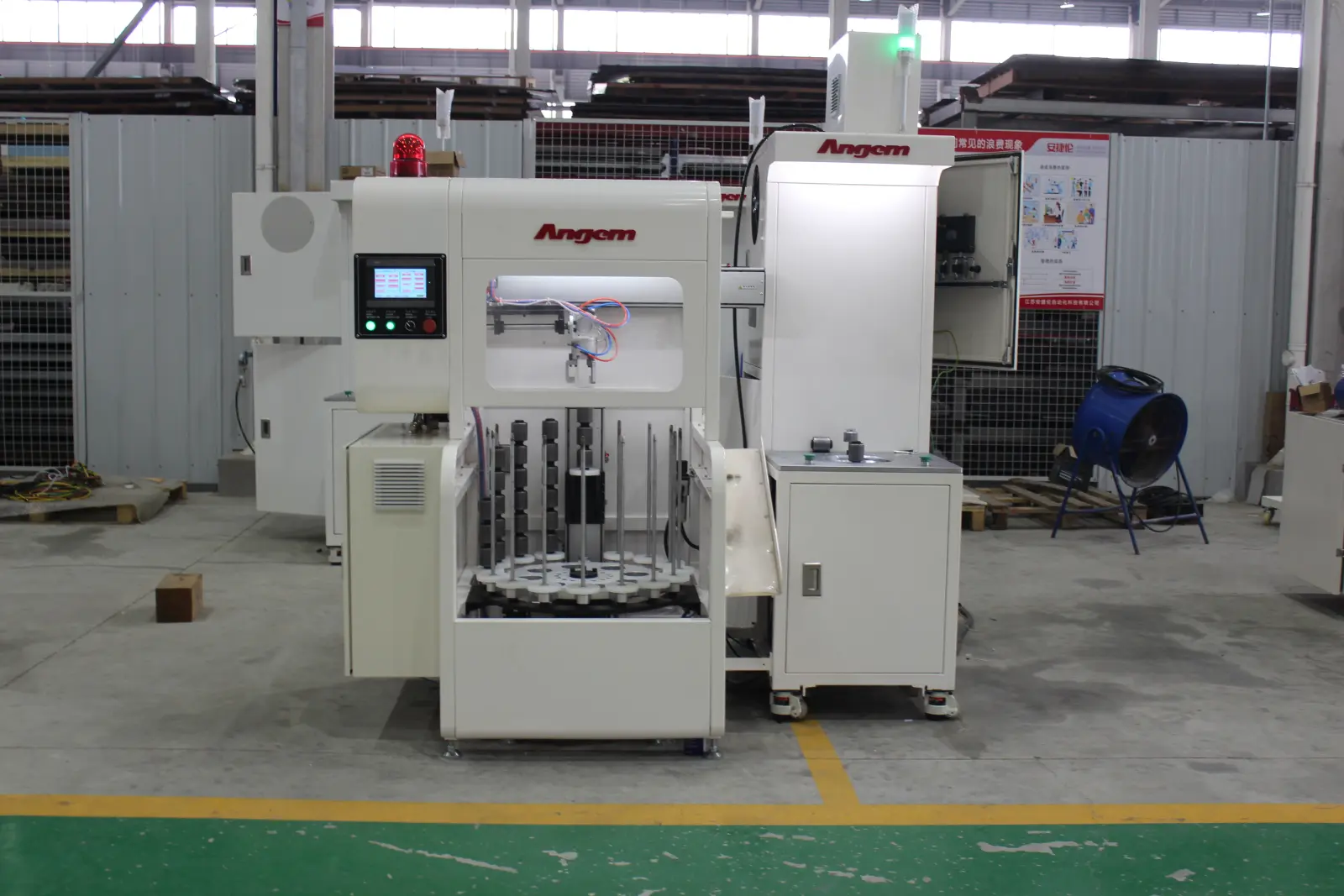

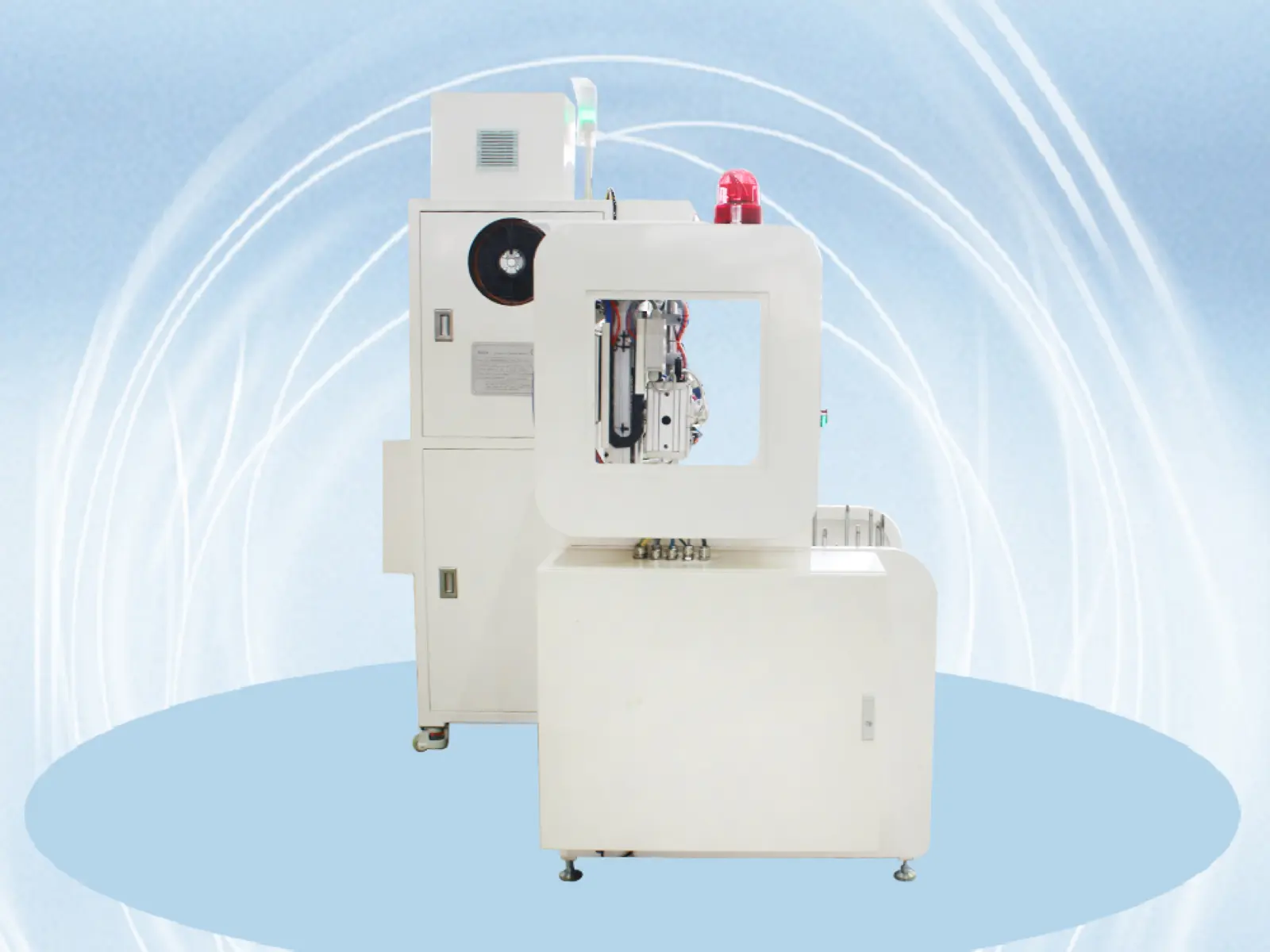

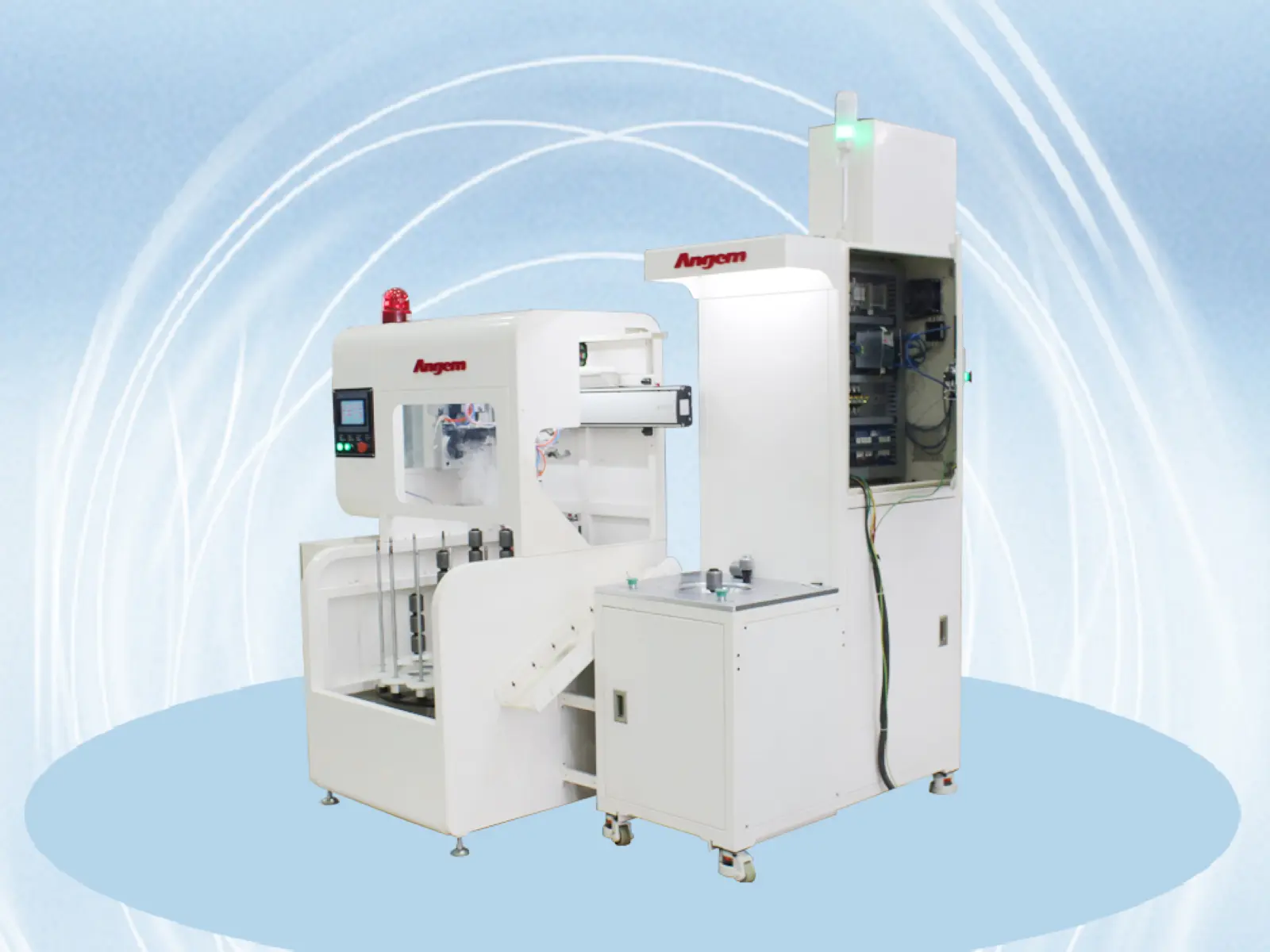

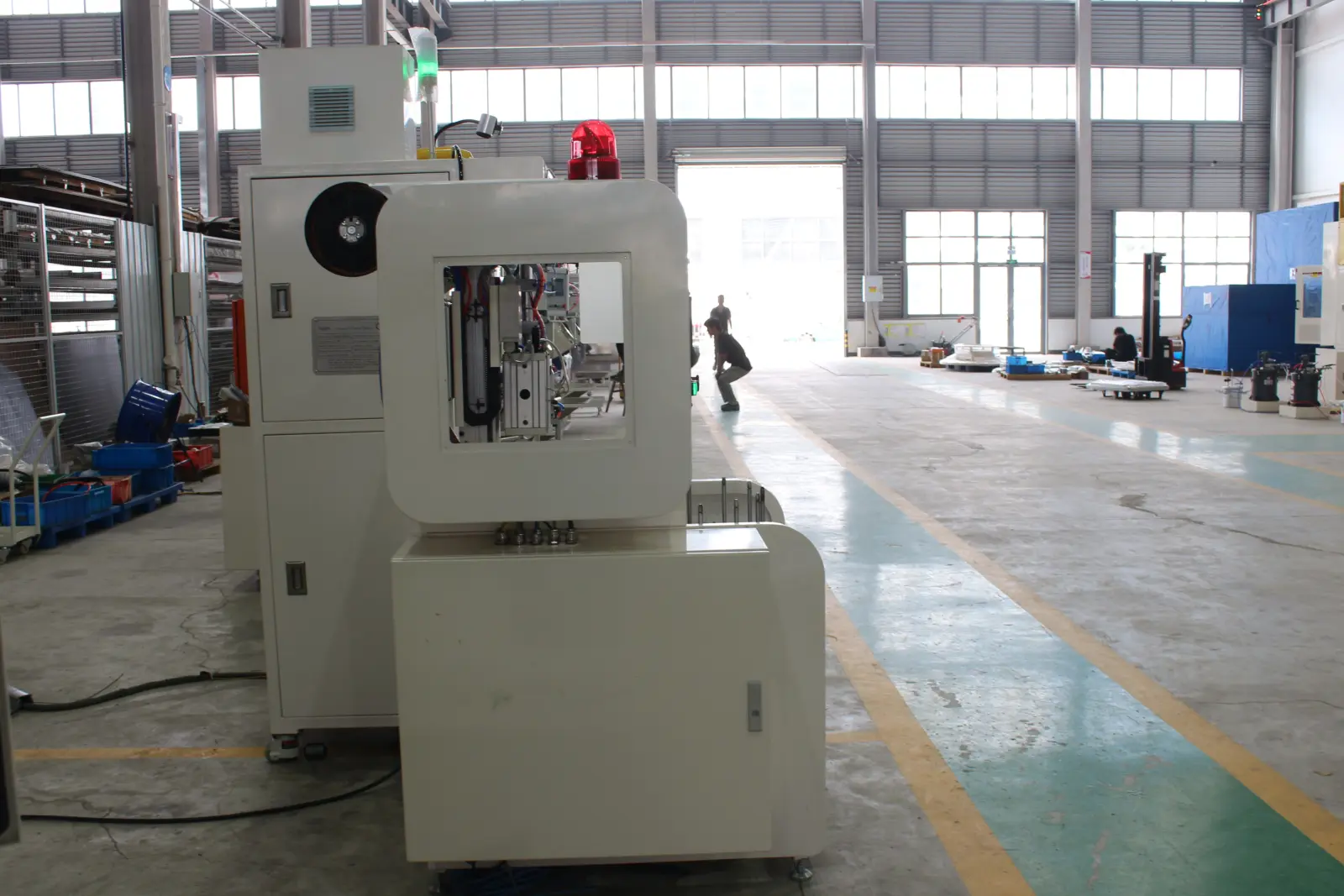

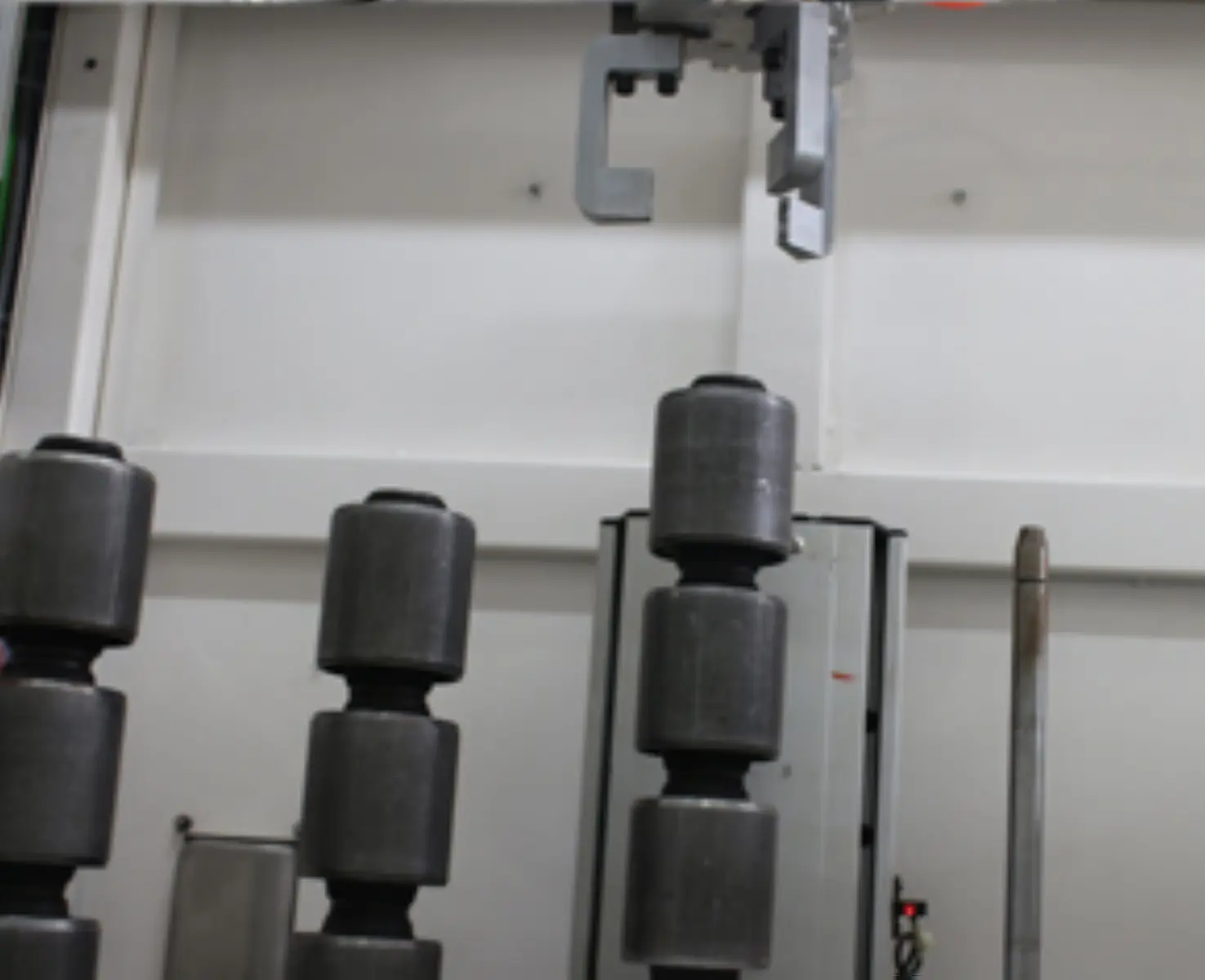

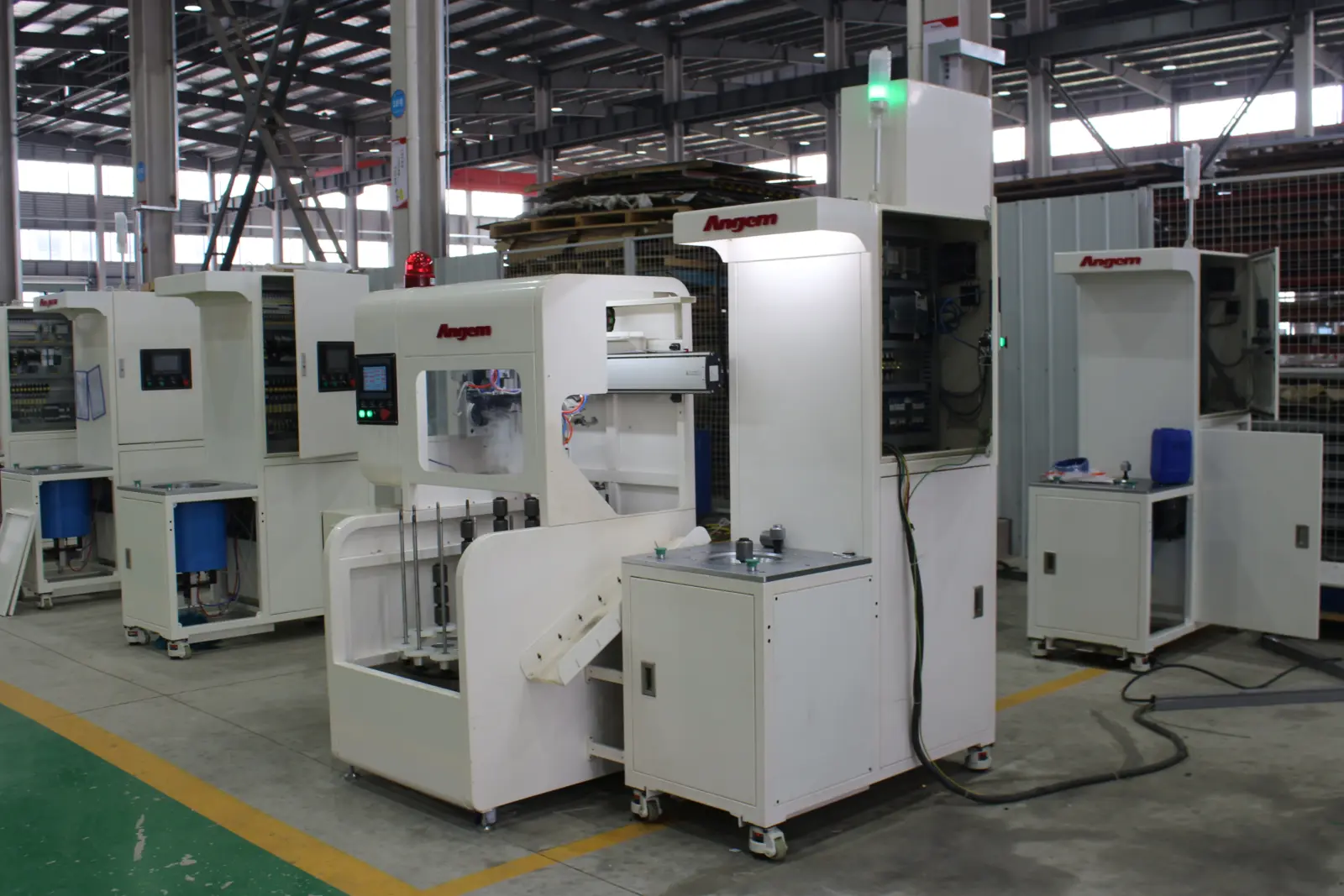

The YS63X100-1M44 is a fully automated bushing swaging system, combining the YS63X100-1M44 Automatic Swaging Machine with the SZ16×100-Q3 Automatic Feeder. Designed and manufactured by Angem Precision Machinery Co., Ltd. (Suzhou) to meet specific customer requirements, this system is purpose-built for the post-processing of shock absorber bushings — covering outer diameter swaging, dimensional sizing, and OD/height inspection.

DESCRIPTION

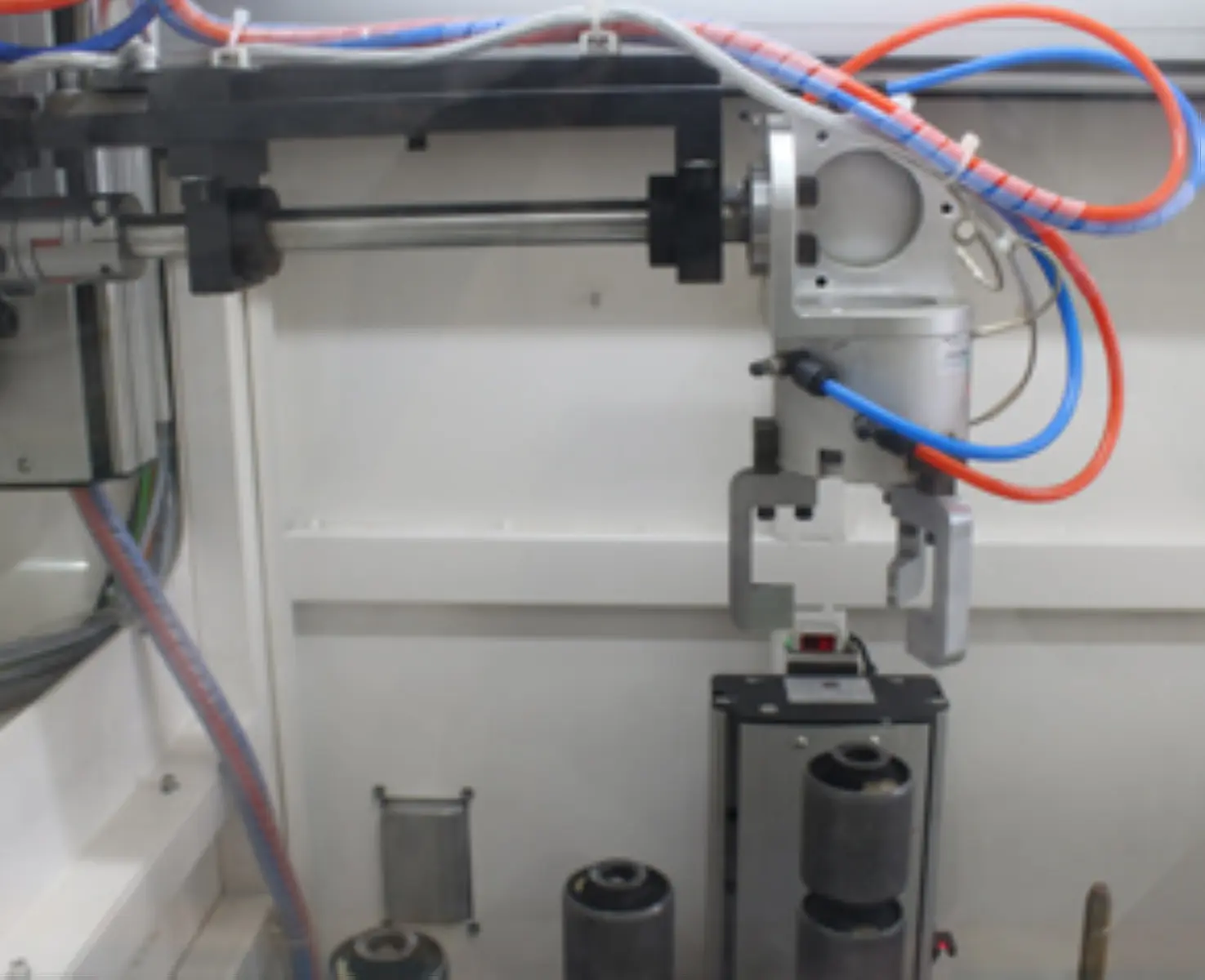

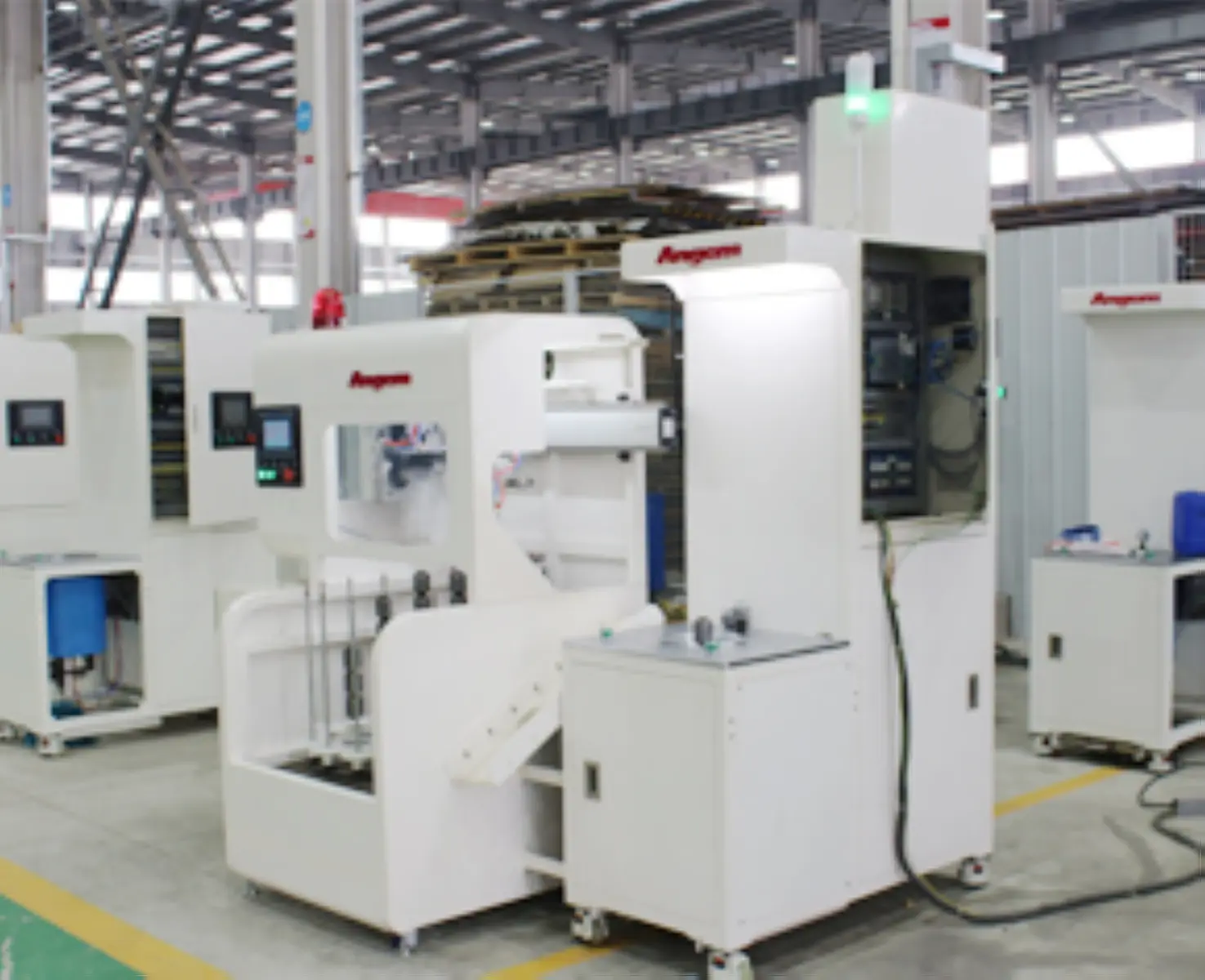

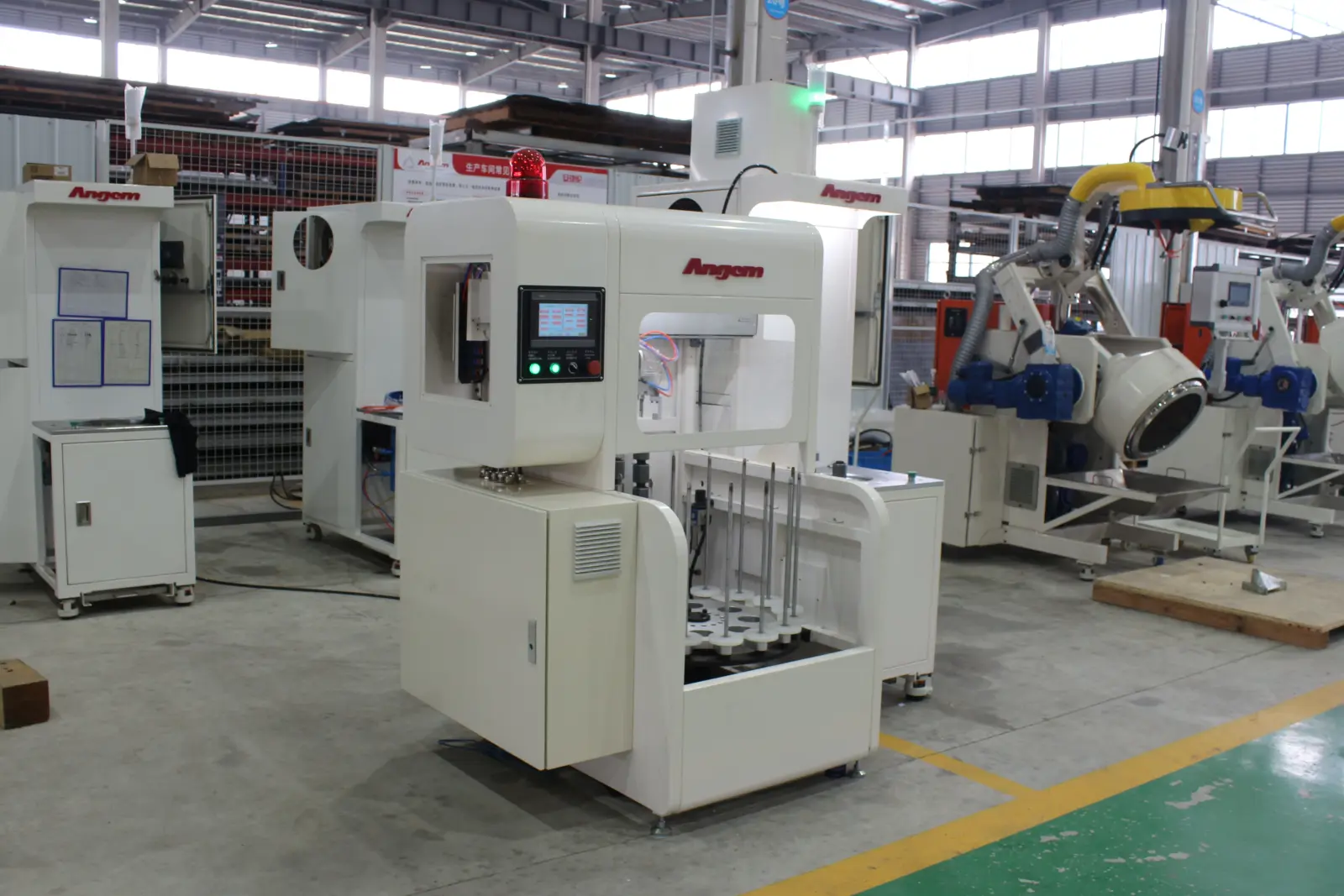

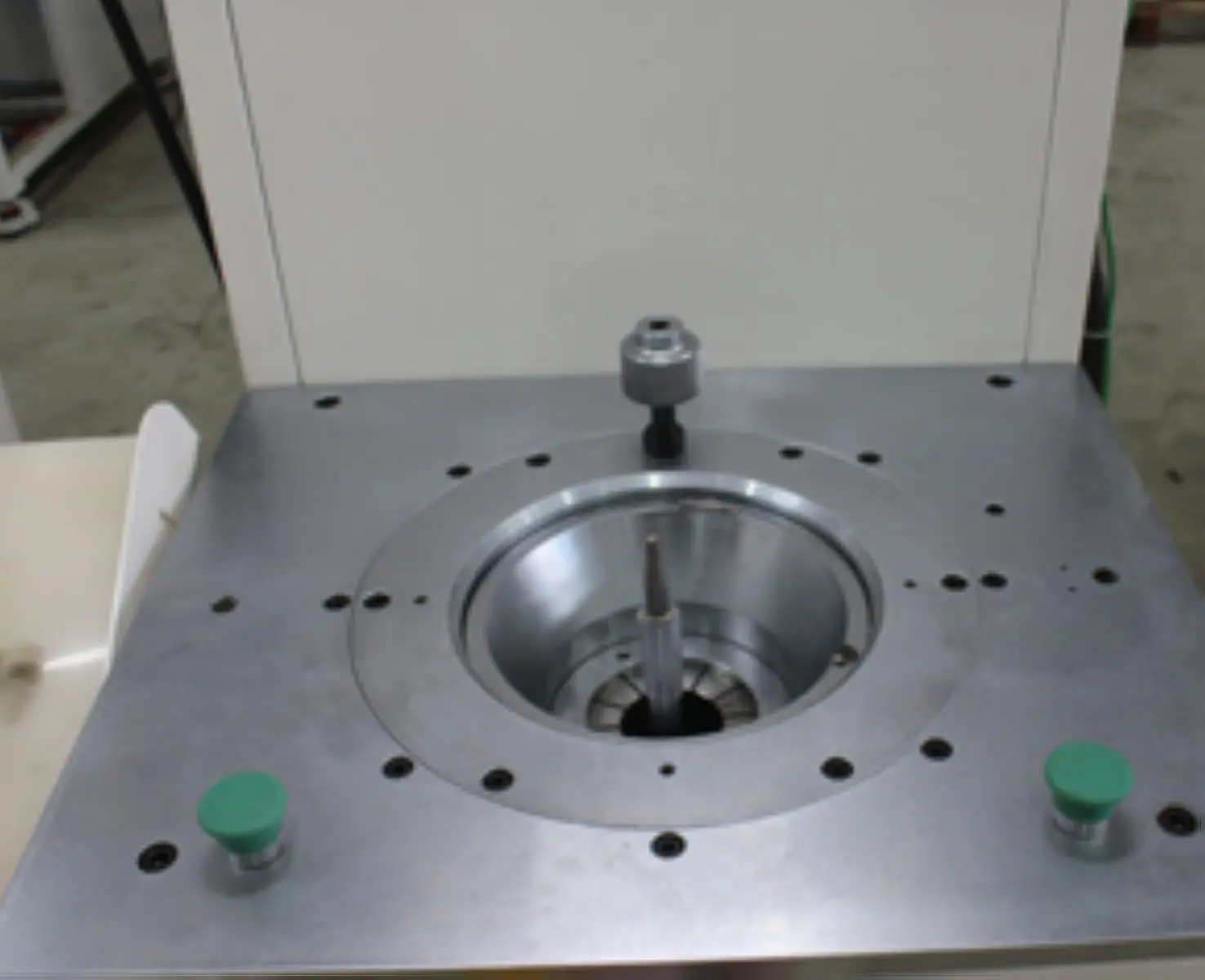

The machine delivers a seamless end-to-end automated workflow: automatic loading → swaging → dimensional inspection → automatic unloading, all controlled via a PLC system with a touchscreen interface supporting both Chinese and English.

The integrated inspection module covers three key parameters: outer diameter, height, and de-bonding detection, ensuring consistent quality output with minimal operator intervention.

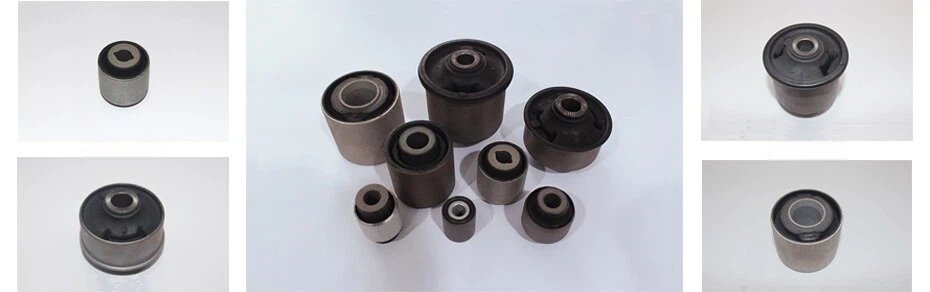

Suitable for bushings with an outer diameter and height both within 100 mm, this system is an ideal solution for high-volume shock absorber bushing production lines.

Key Highlights

Full automation: load → swage → inspect → unload, minimal manual intervention
Triple inspection: OD, height & de-bonding detection in a single pass

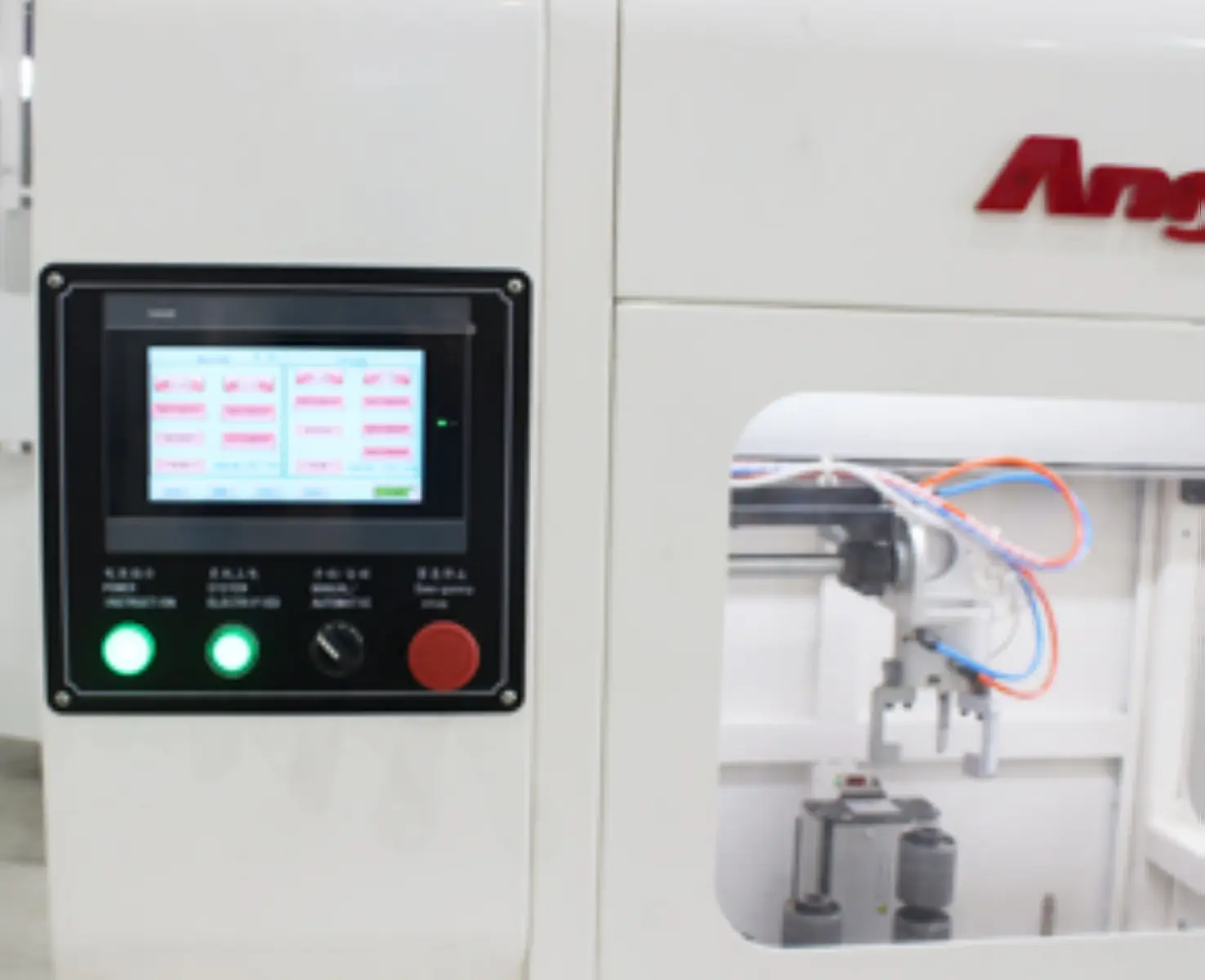

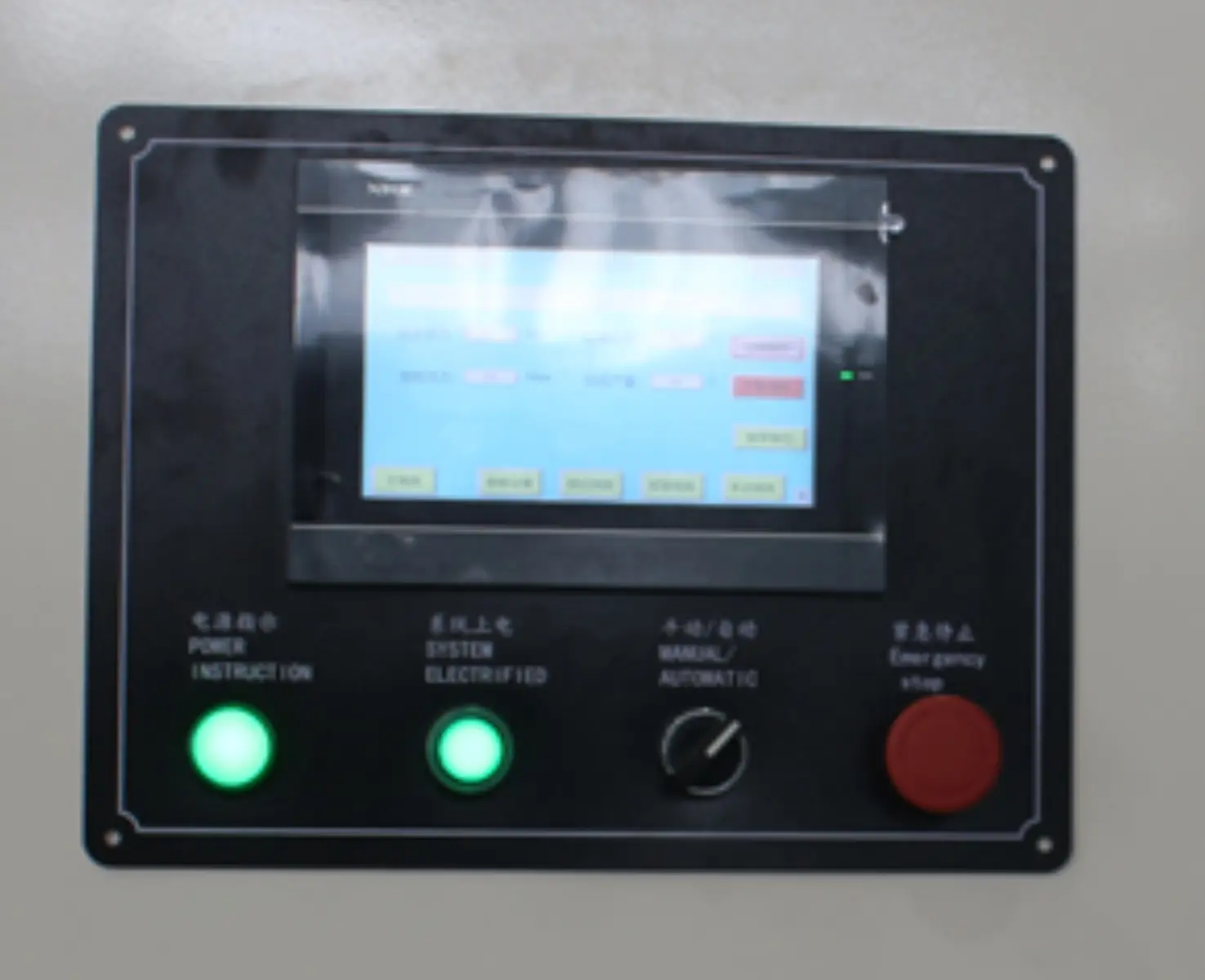

Bilingual PLC touchscreen (Chinese / English)
Handles bushings up to Ø100 mm OD × 100 mm height
High throughput, high automation, safe operation

PRODUCT PARAMETERS

Product Attribute	Technical Specification
Cycle Time	3–5 s
Max. Workpiece Size	OD ≤ 100 mm / Height ≤ 100 mm

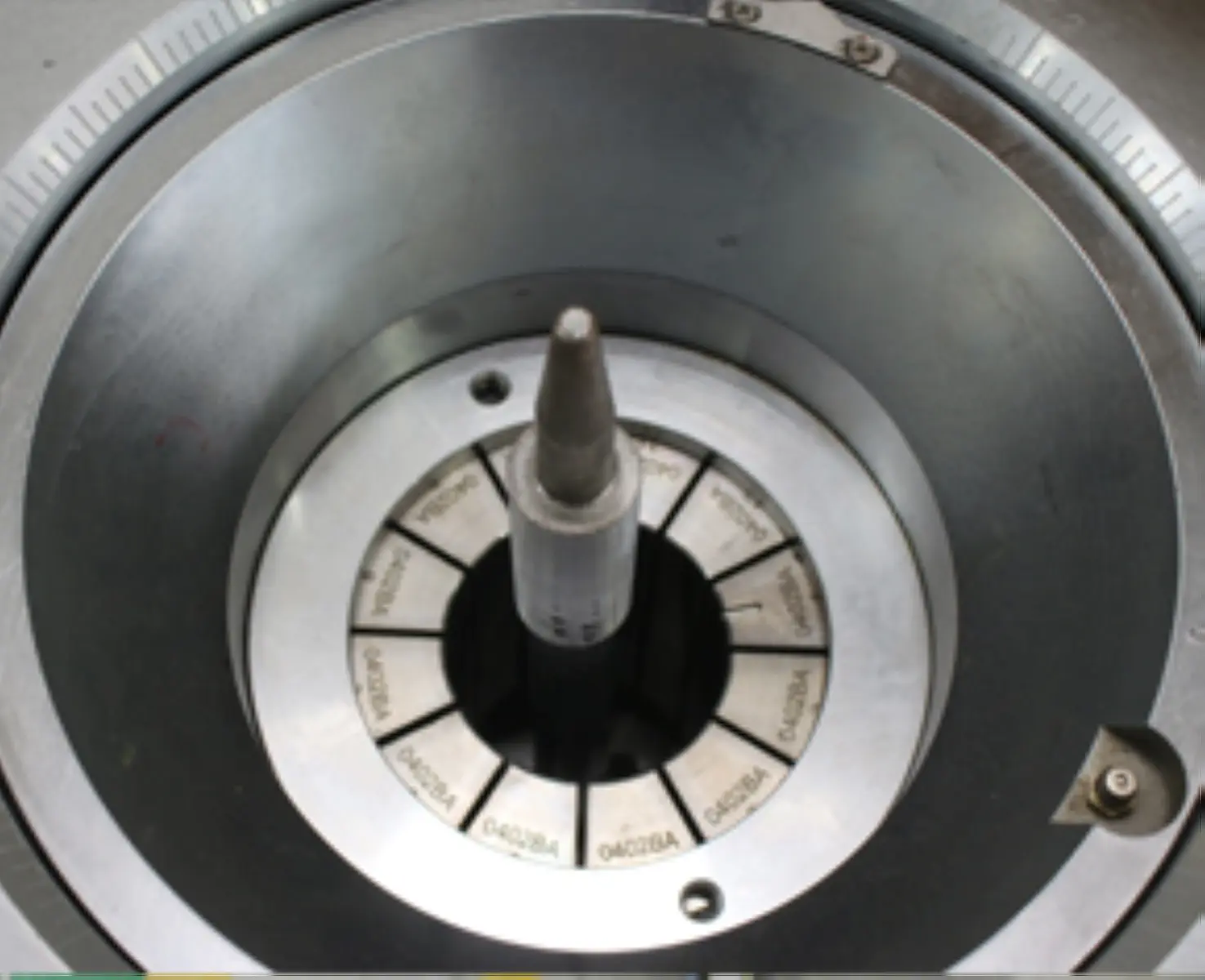

Swaging Force	630 kN
Swaging Accuracy	±0.03 mm (Ref. part: pre-swage Ø31 × 100 mm, wall thickness 1.5 mm → post-swage Ø30 +0.03 mm)
OD Inspection Accuracy	±0.03 mm
Height Inspection Accuracy	±0.03 mm
Air Supply Pressure	0.6 MPa (alarm below 0.4 MPa)
Power Supply	380V ±10%, 50 Hz

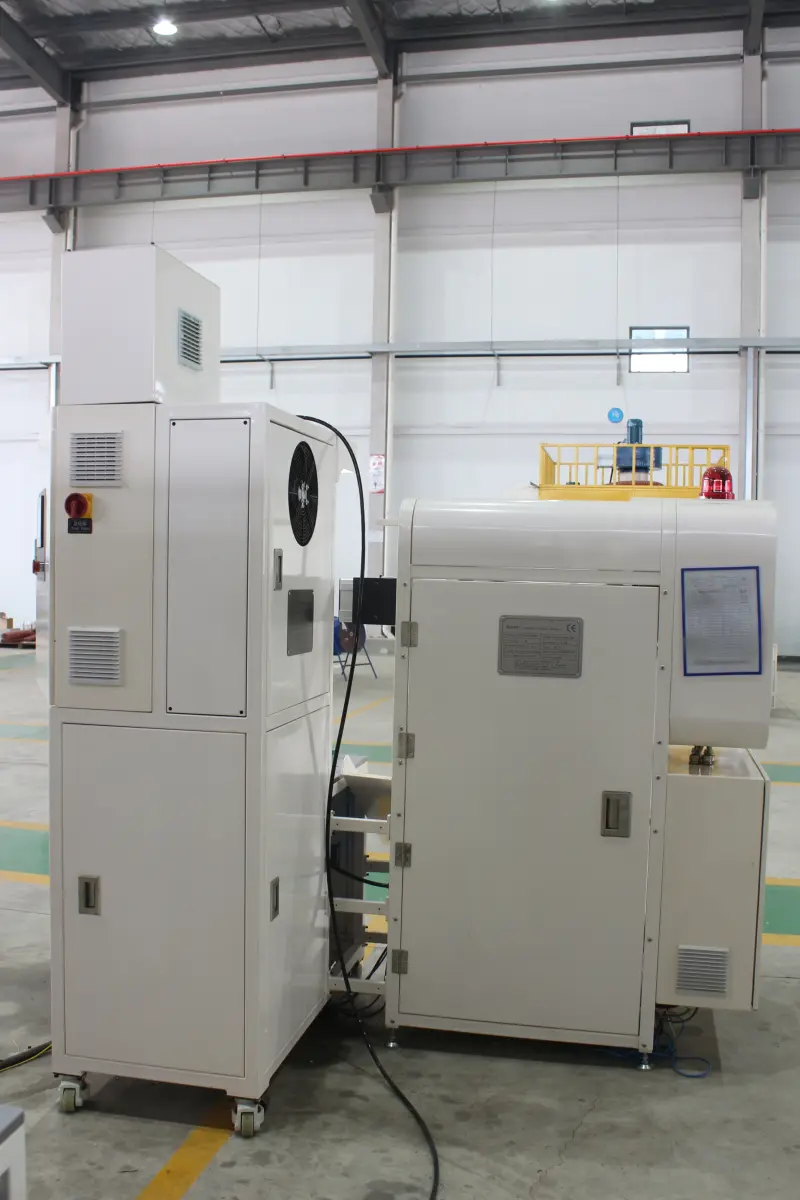

Total Motor Power	Auto loading/unloading unit: 4 kW / Swaging unit: 5.5 kW
Operating Schedule	3 shifts, 24 hrs continuous
Machine Dimensions (approx.)	Auto loading/unloading unit: L 1090 × W 1440 × H 1800 mm / Swaging unit: L 1200 × W 580 × H 1900 mm
Ambient Temperature	−10°C to +40°C
Relative Humidity	Max. daily average: 90% RH
