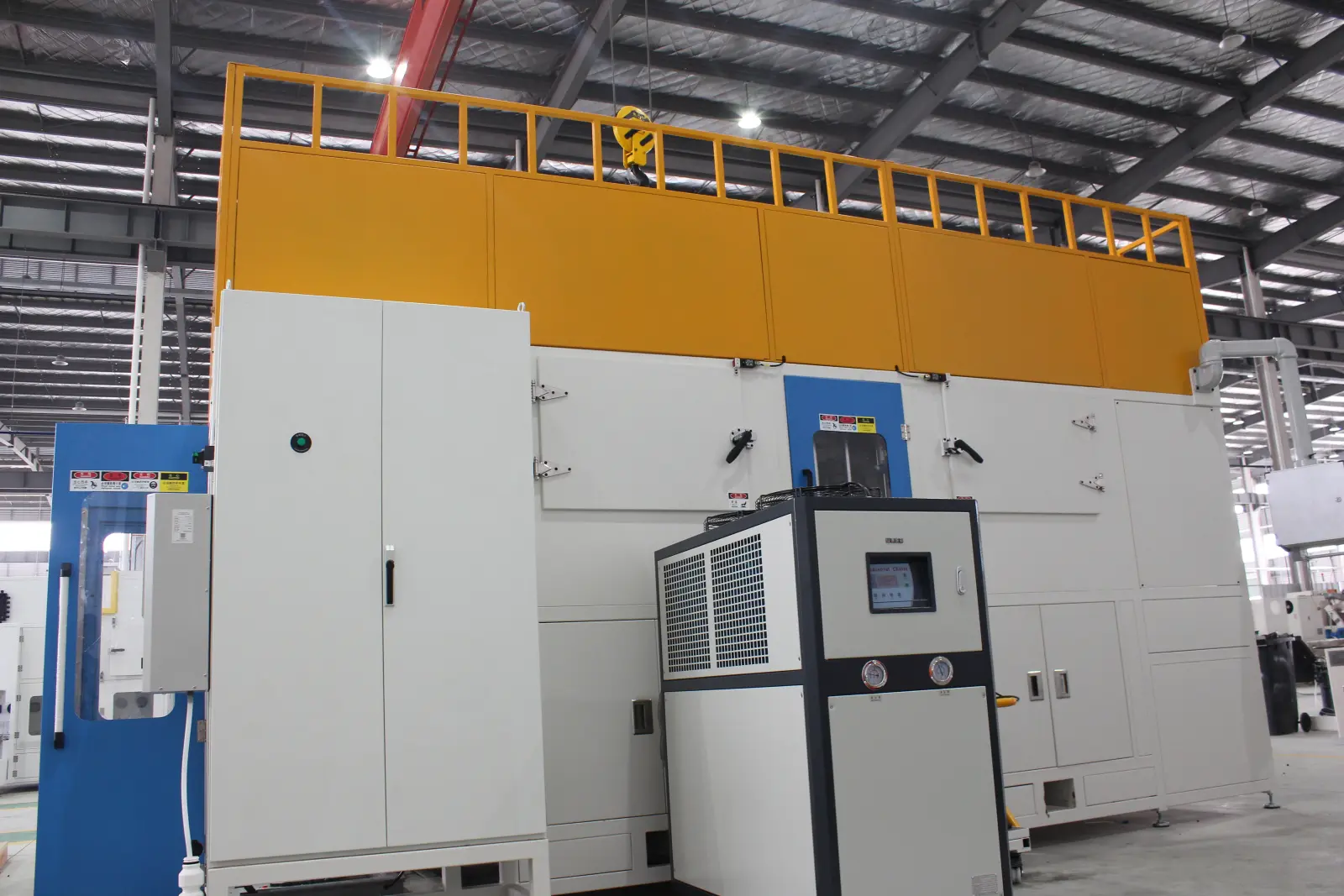

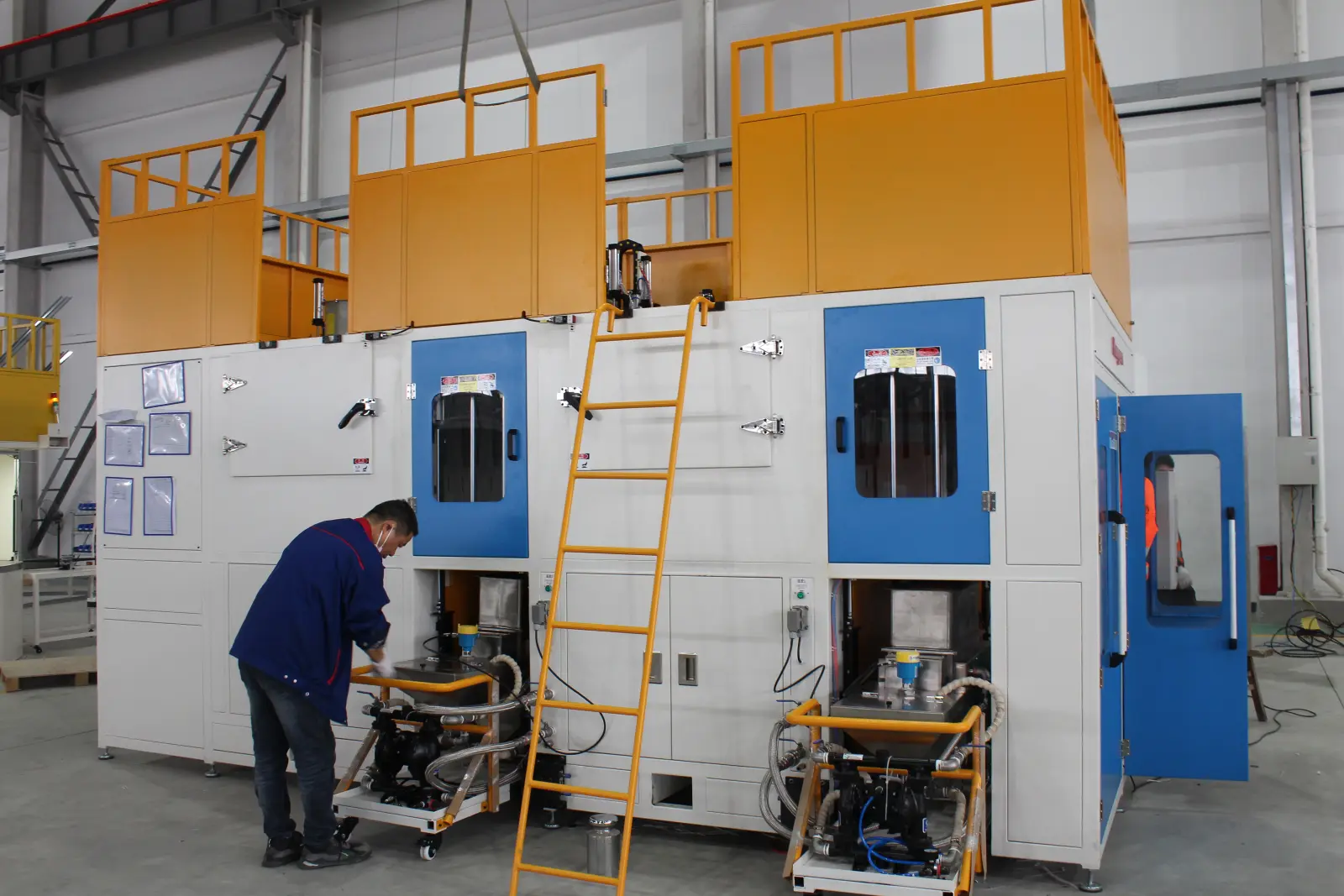

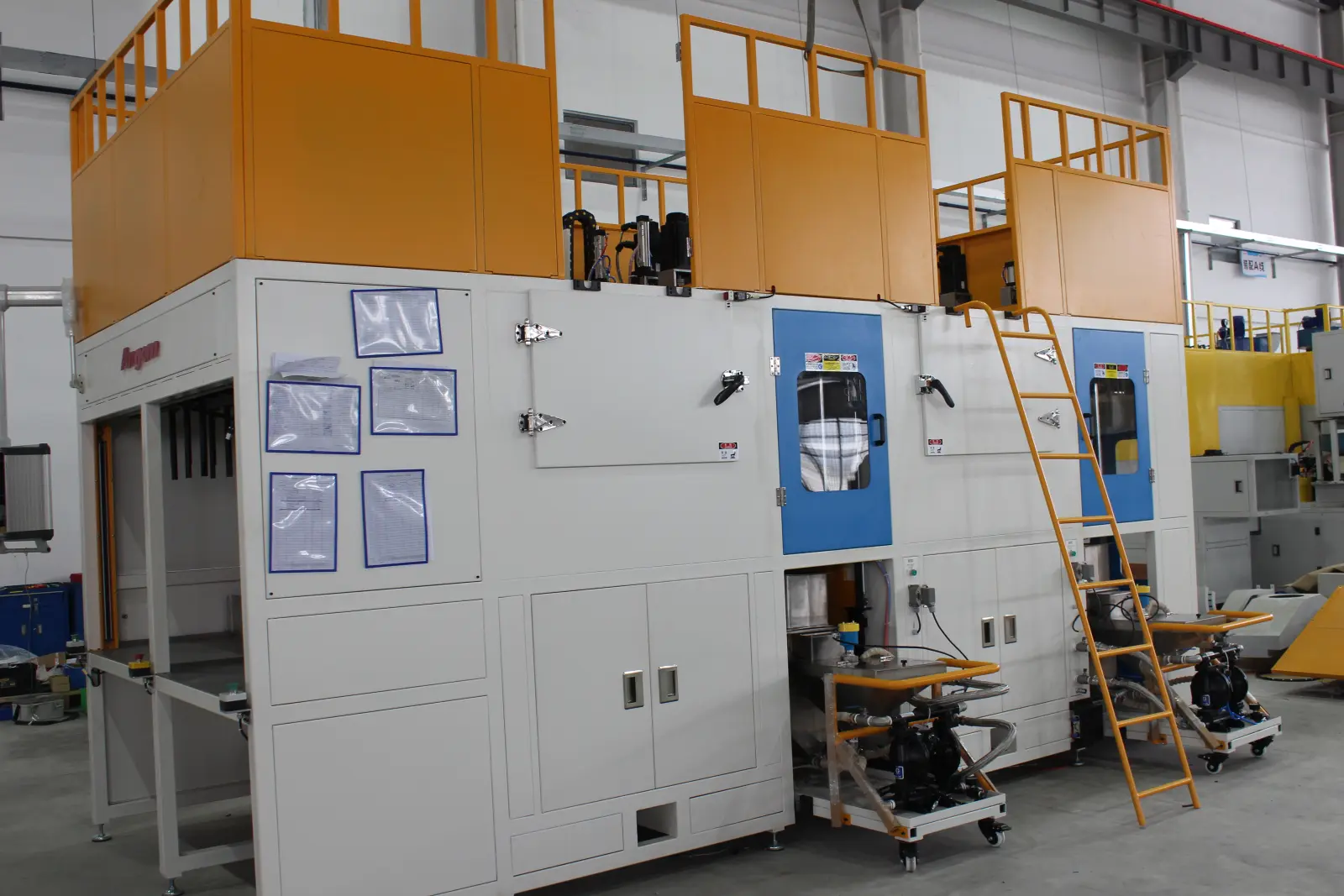

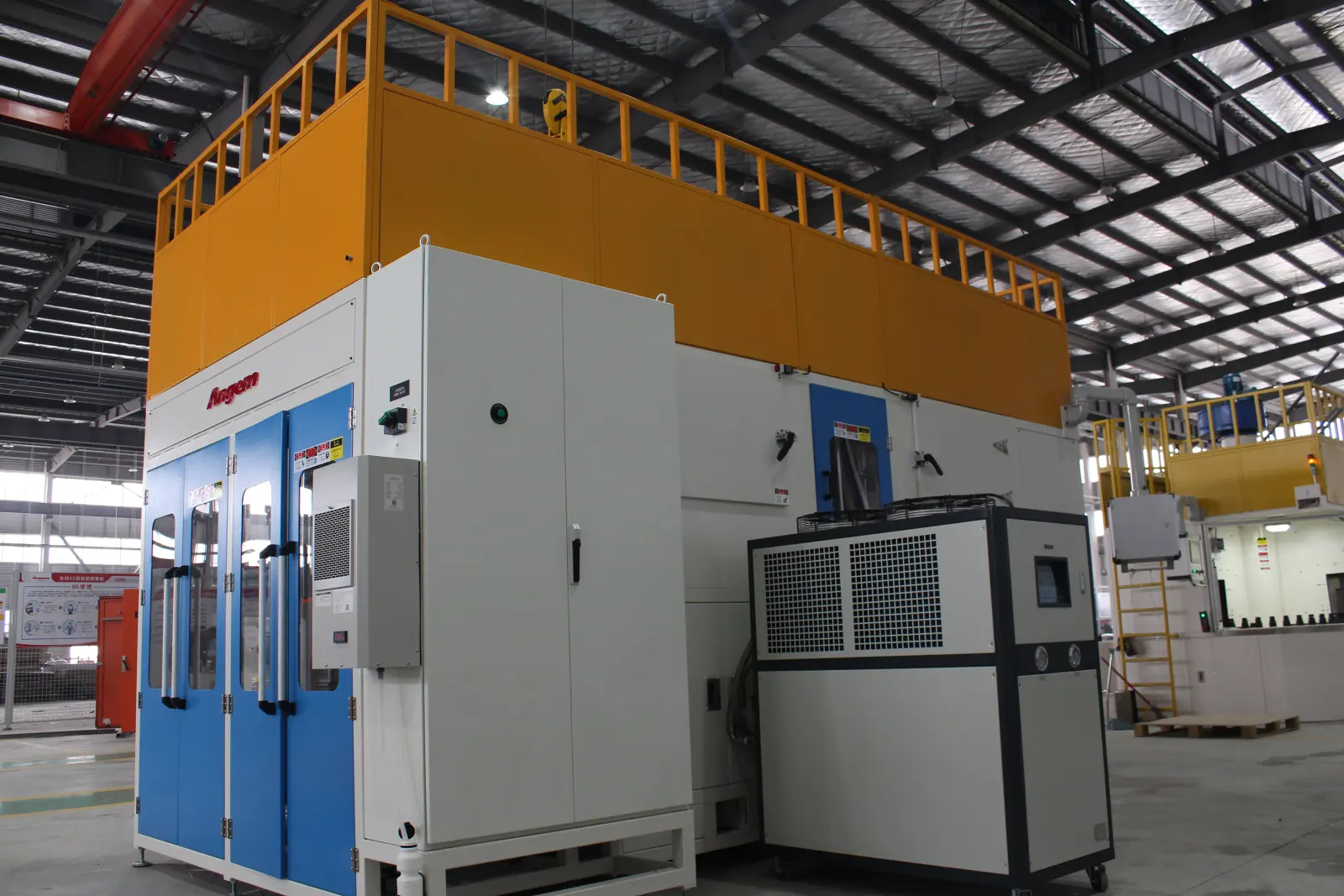

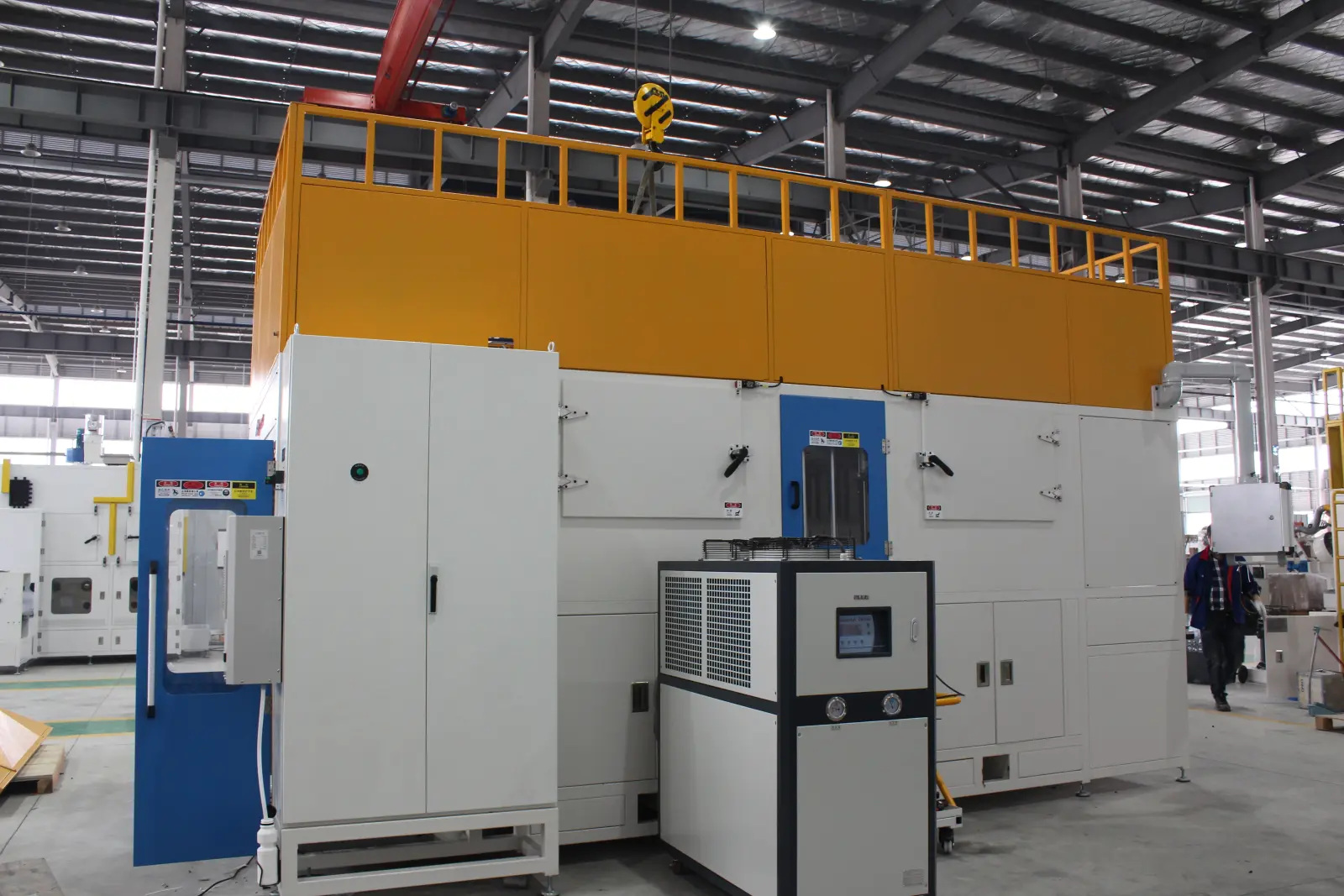

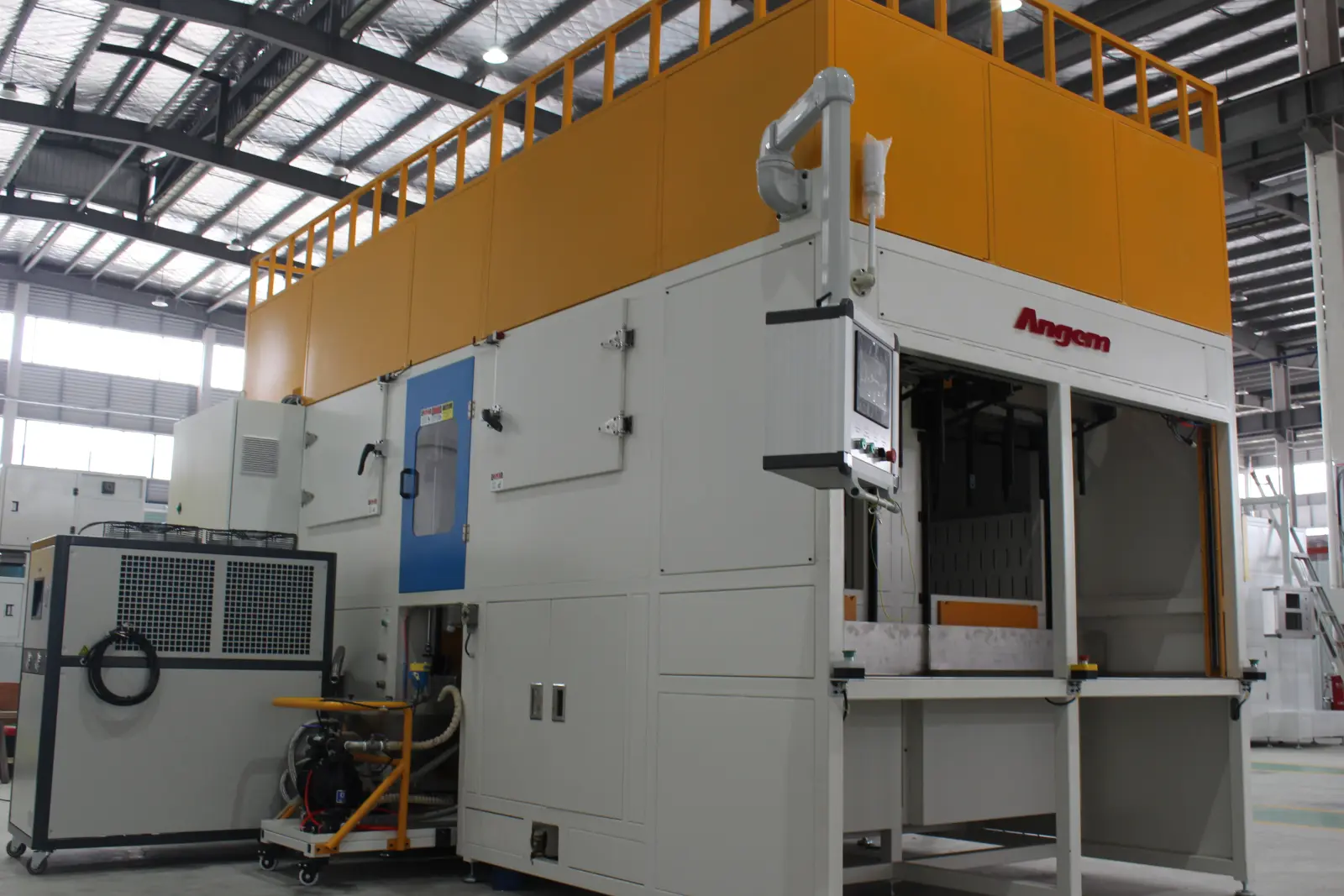

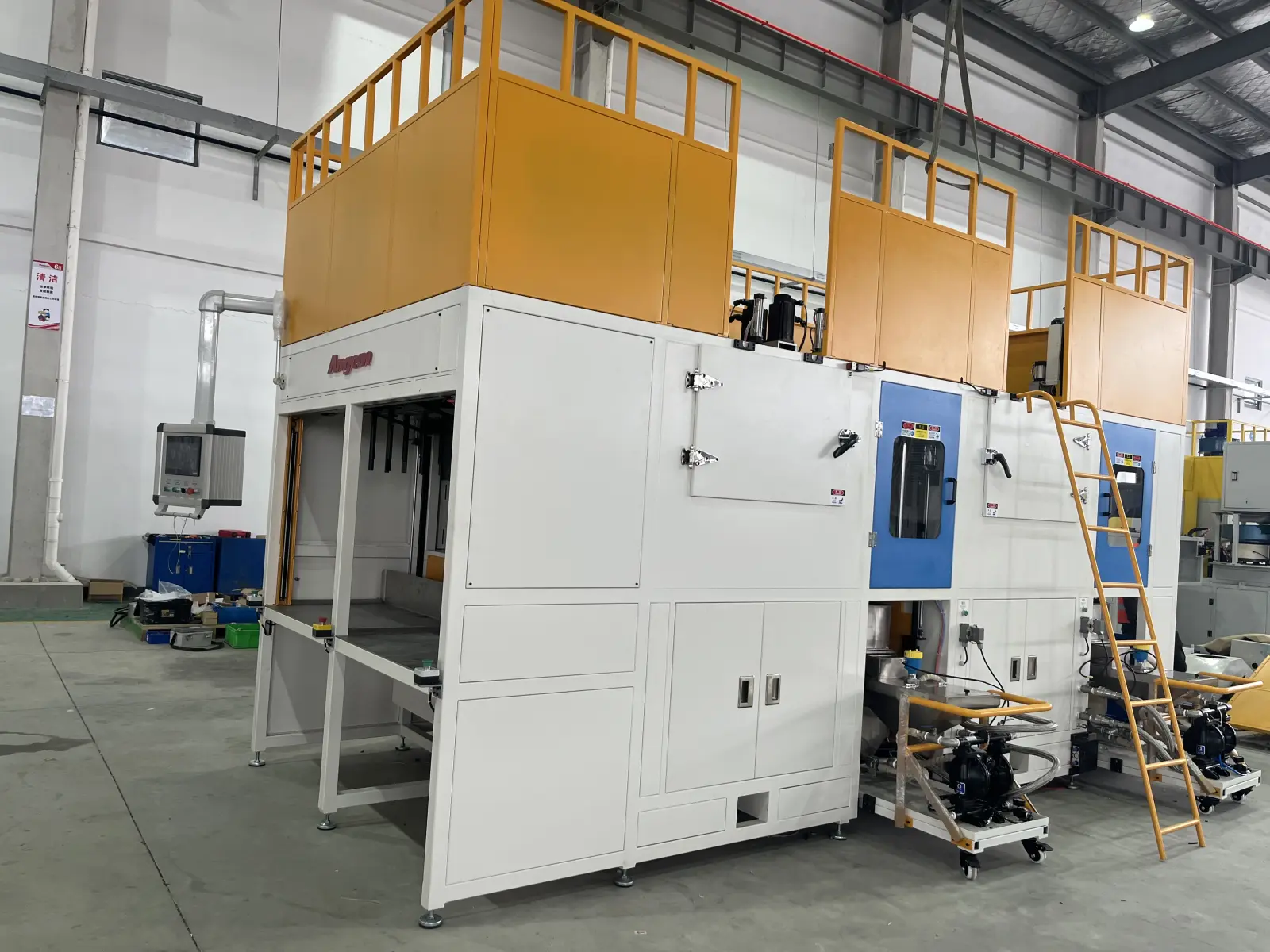

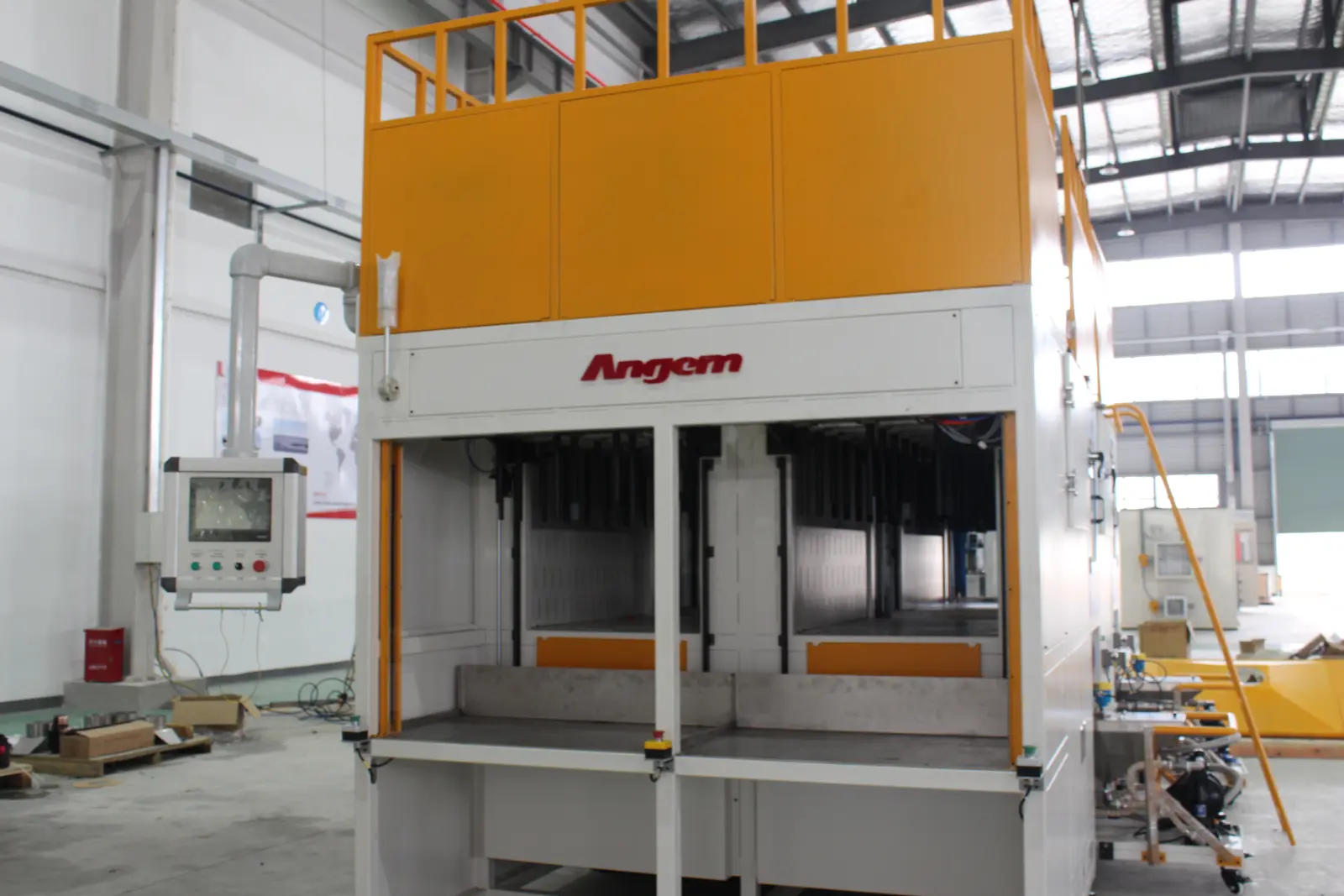

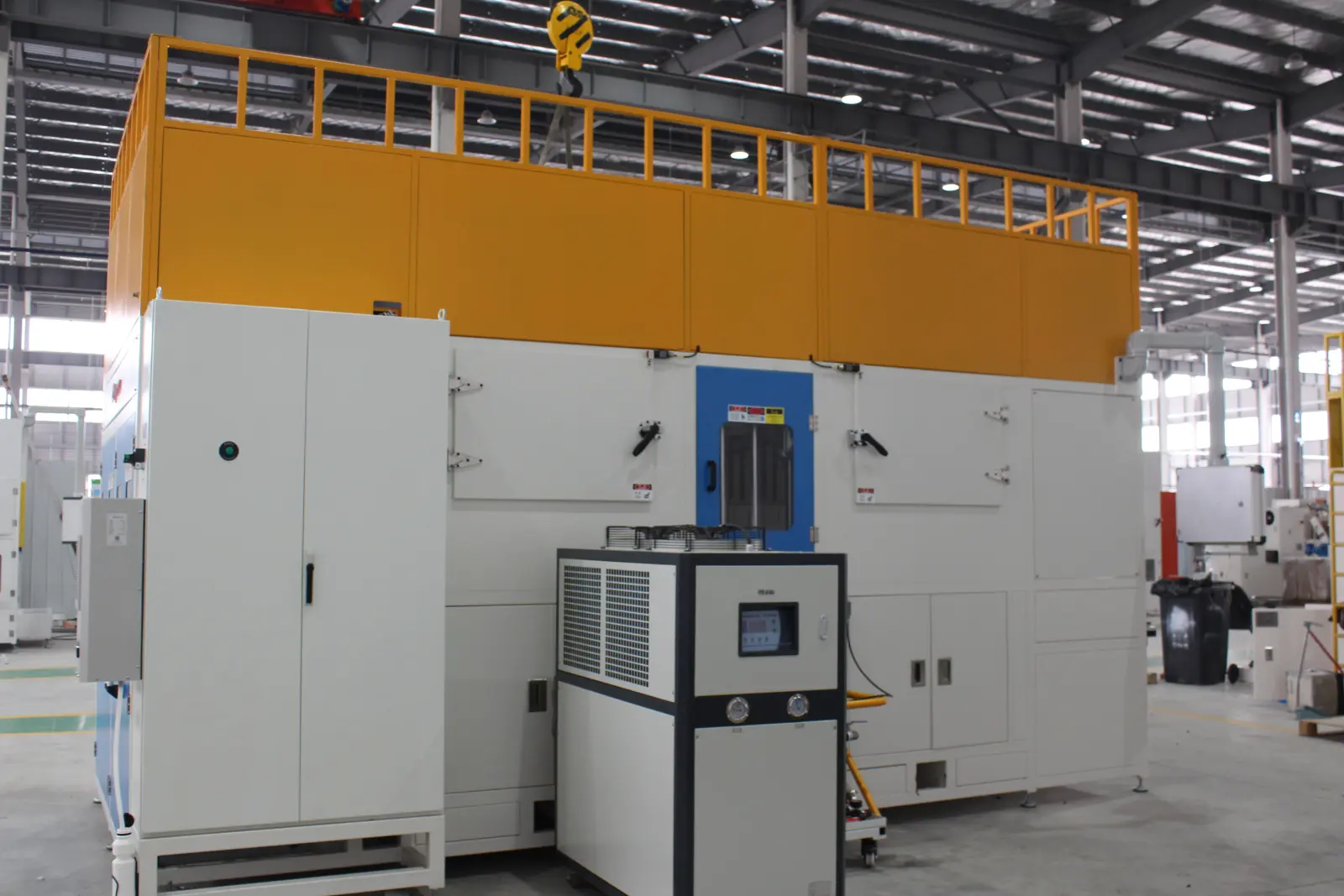

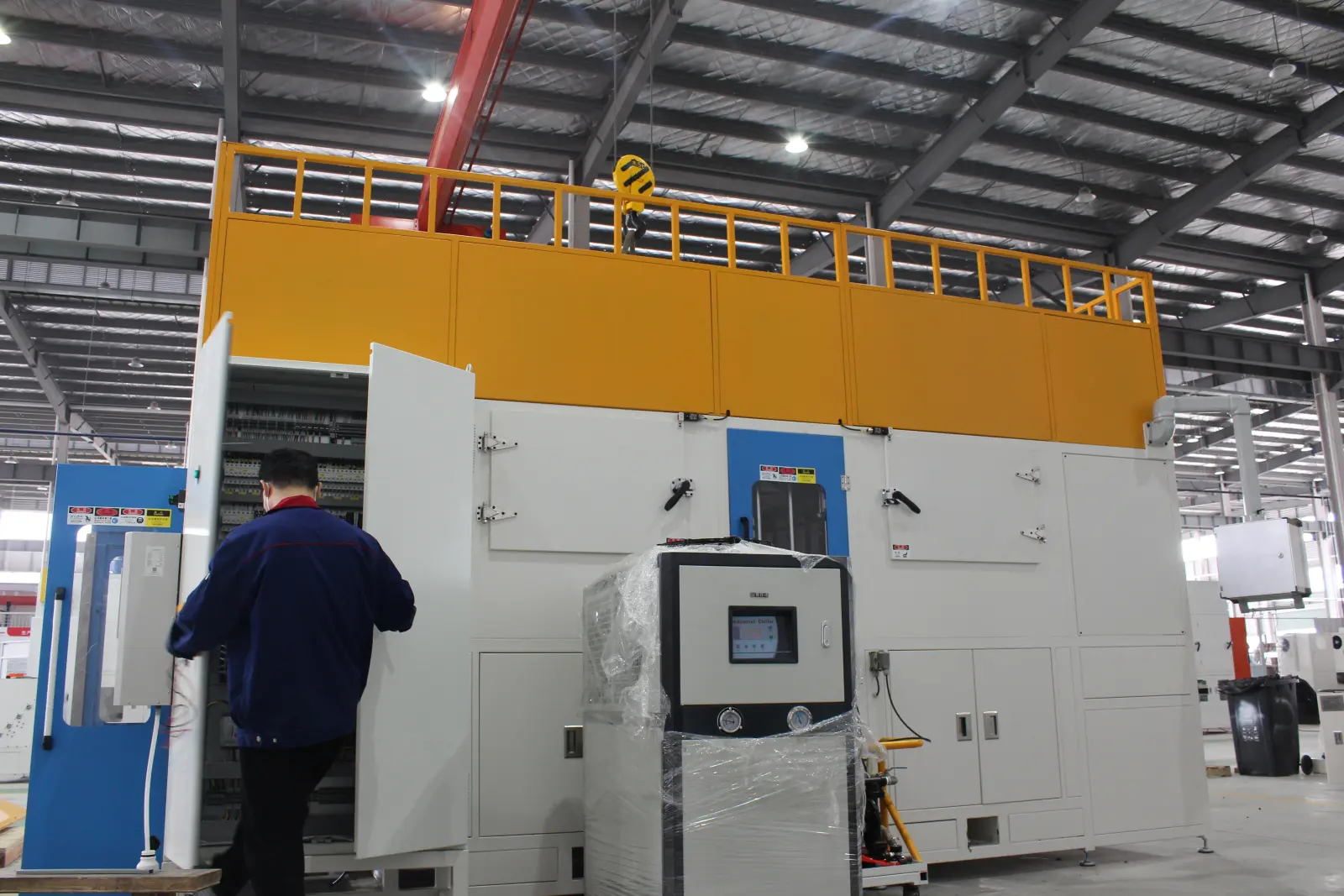

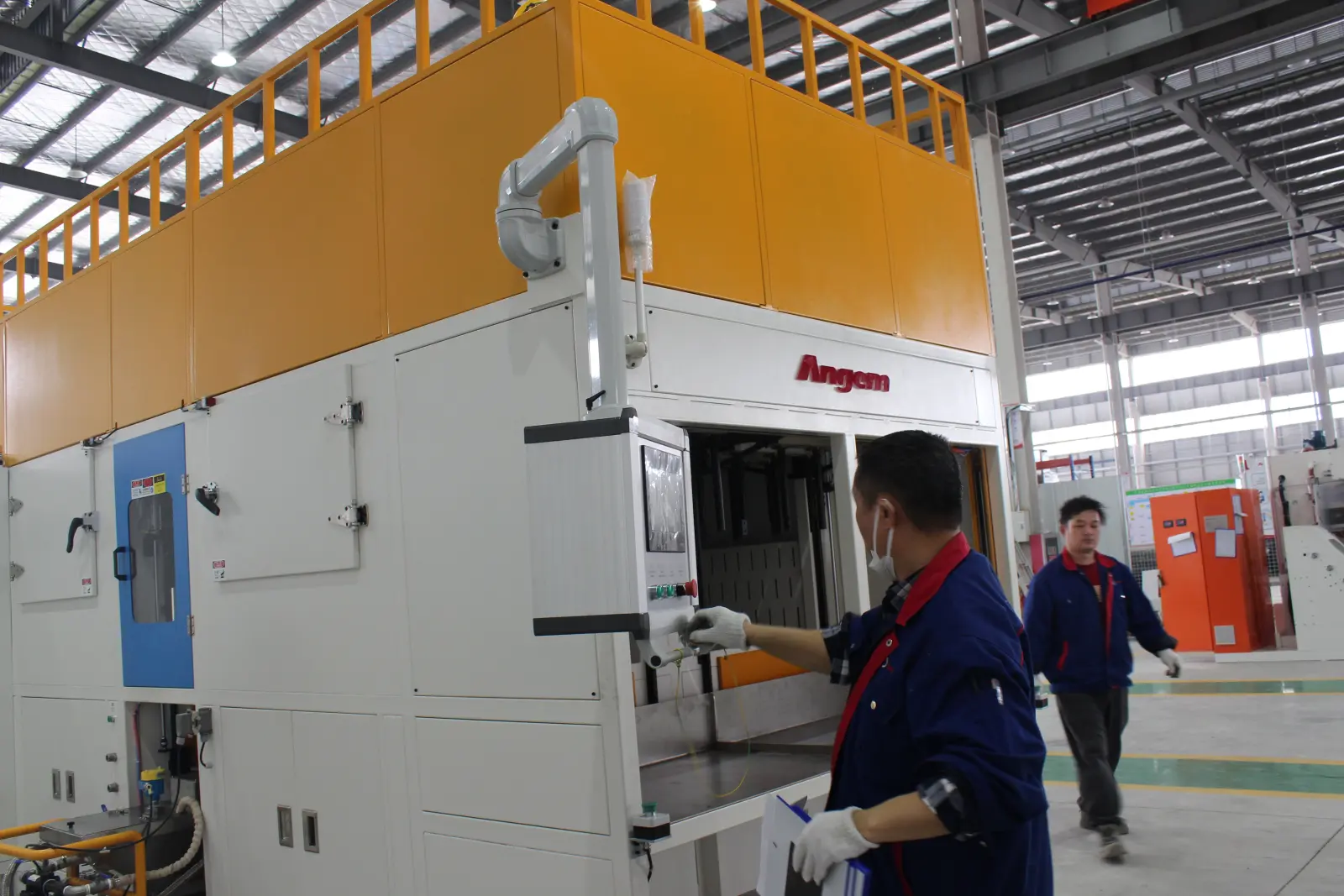

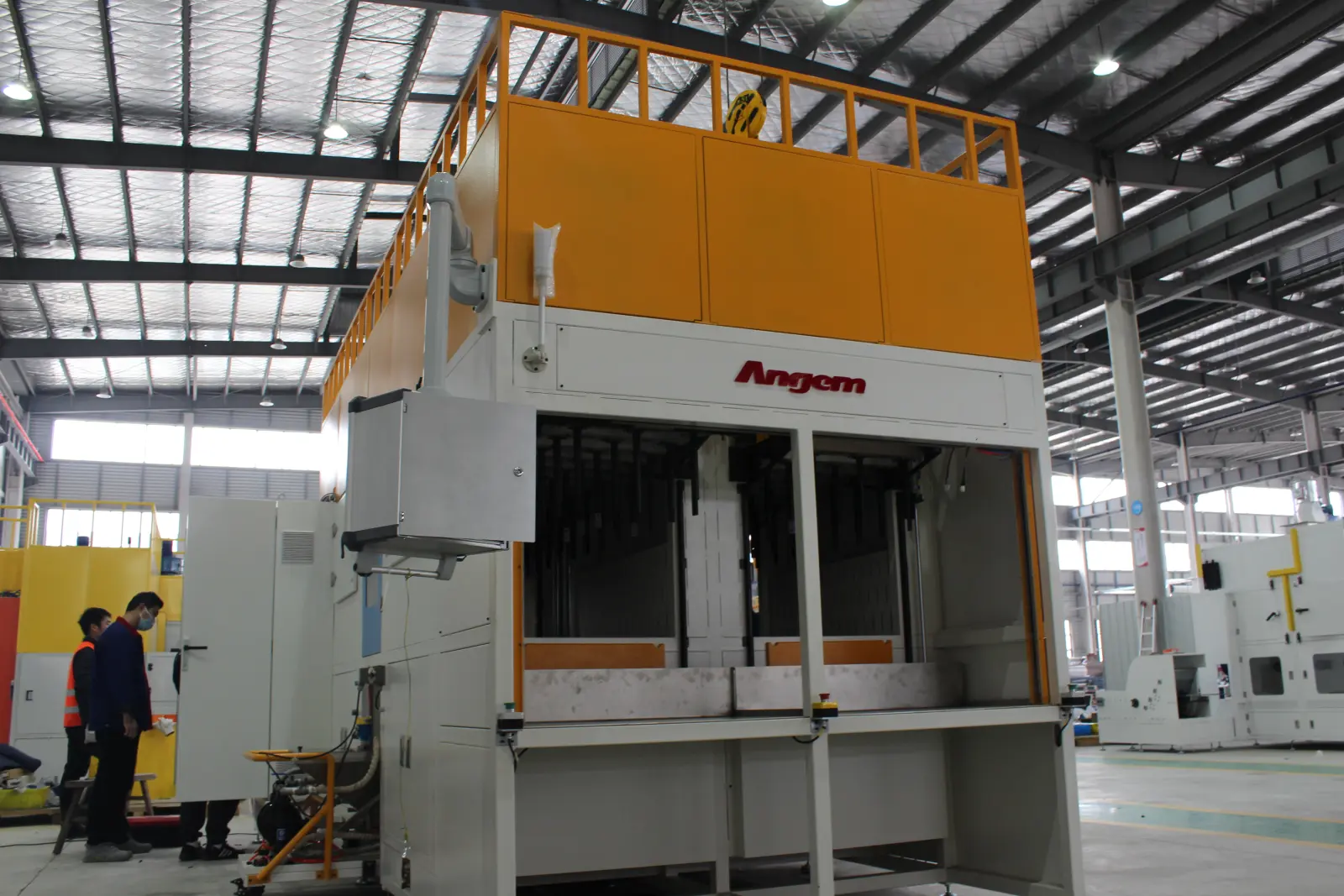

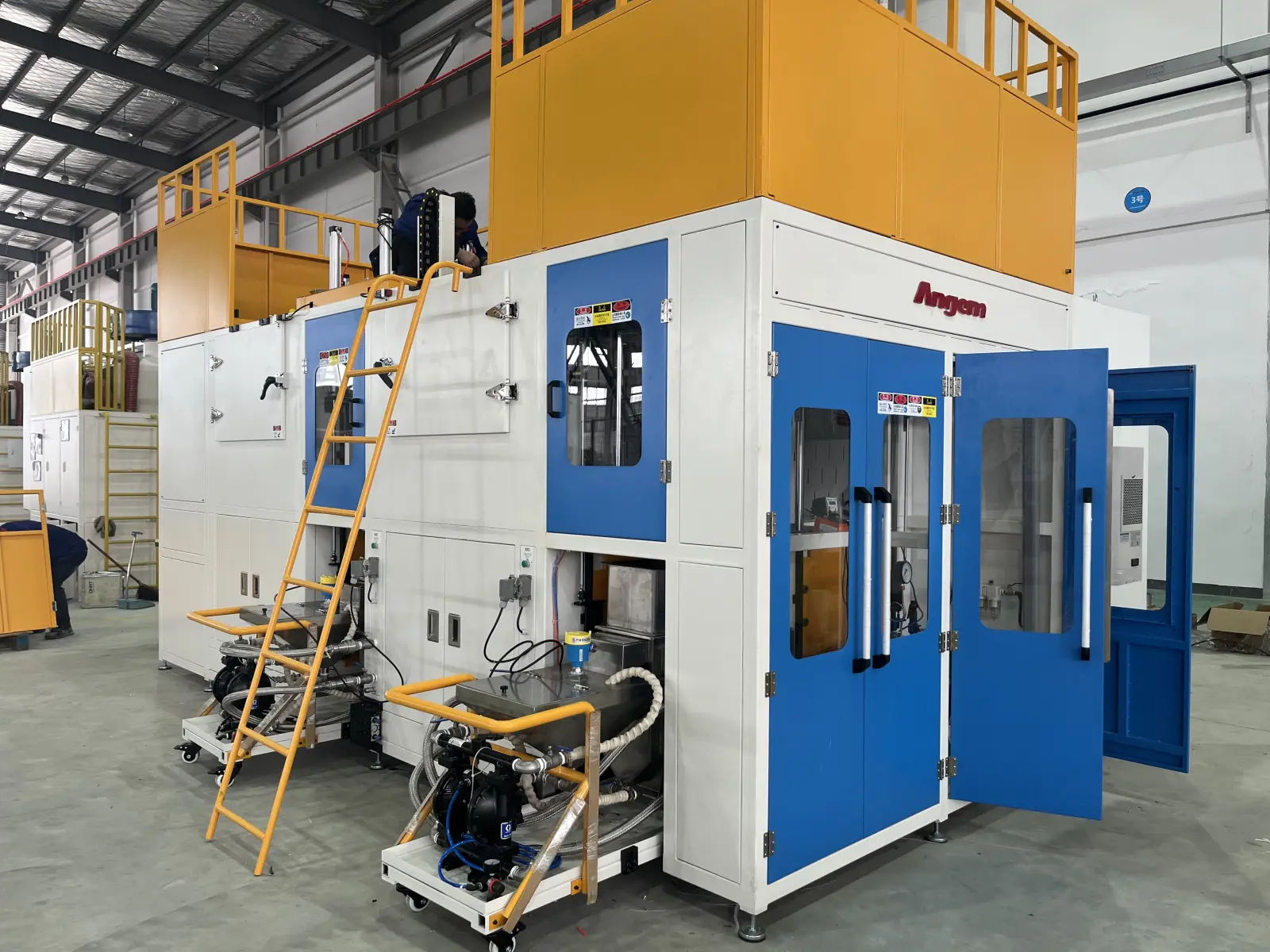

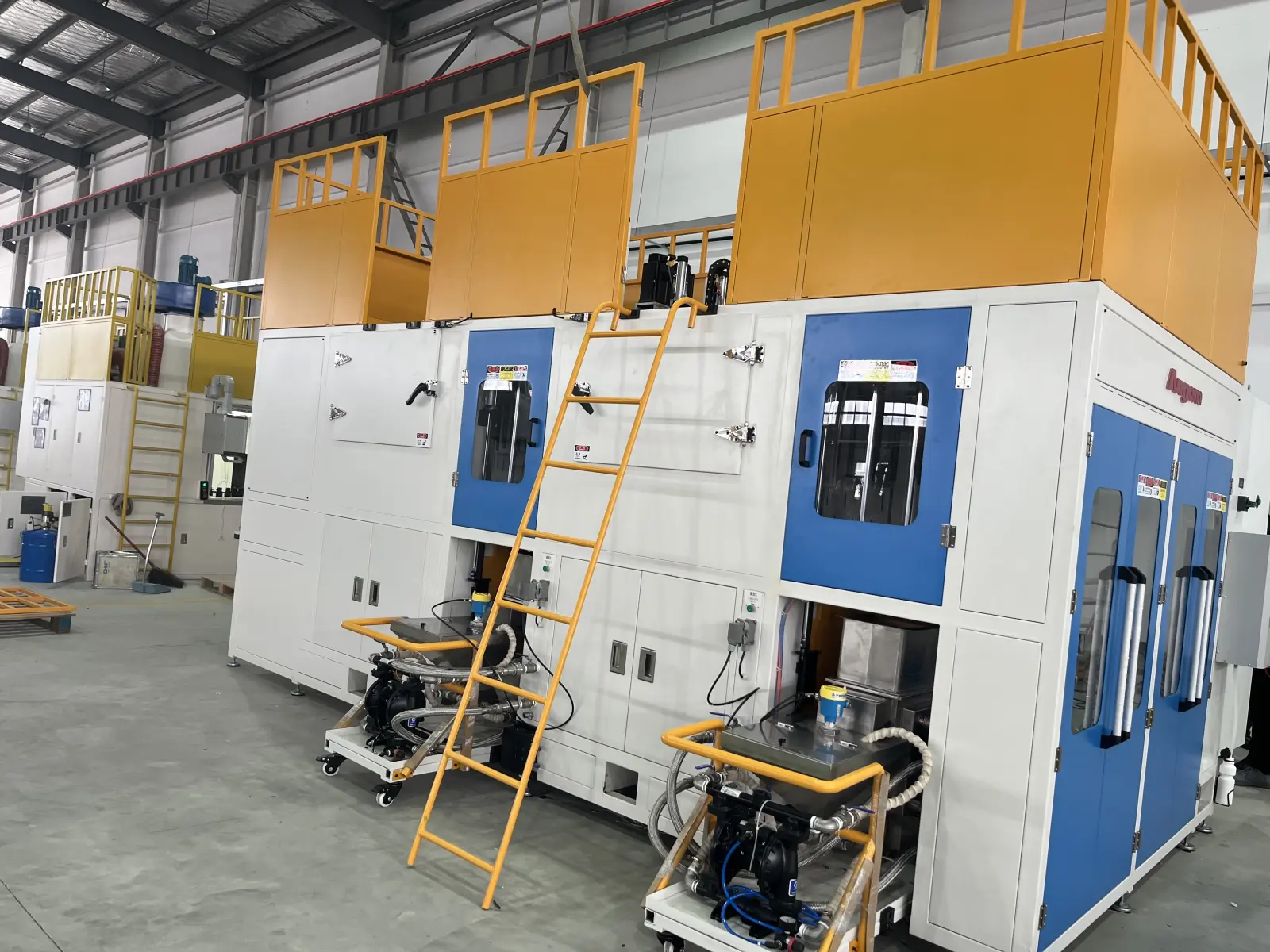

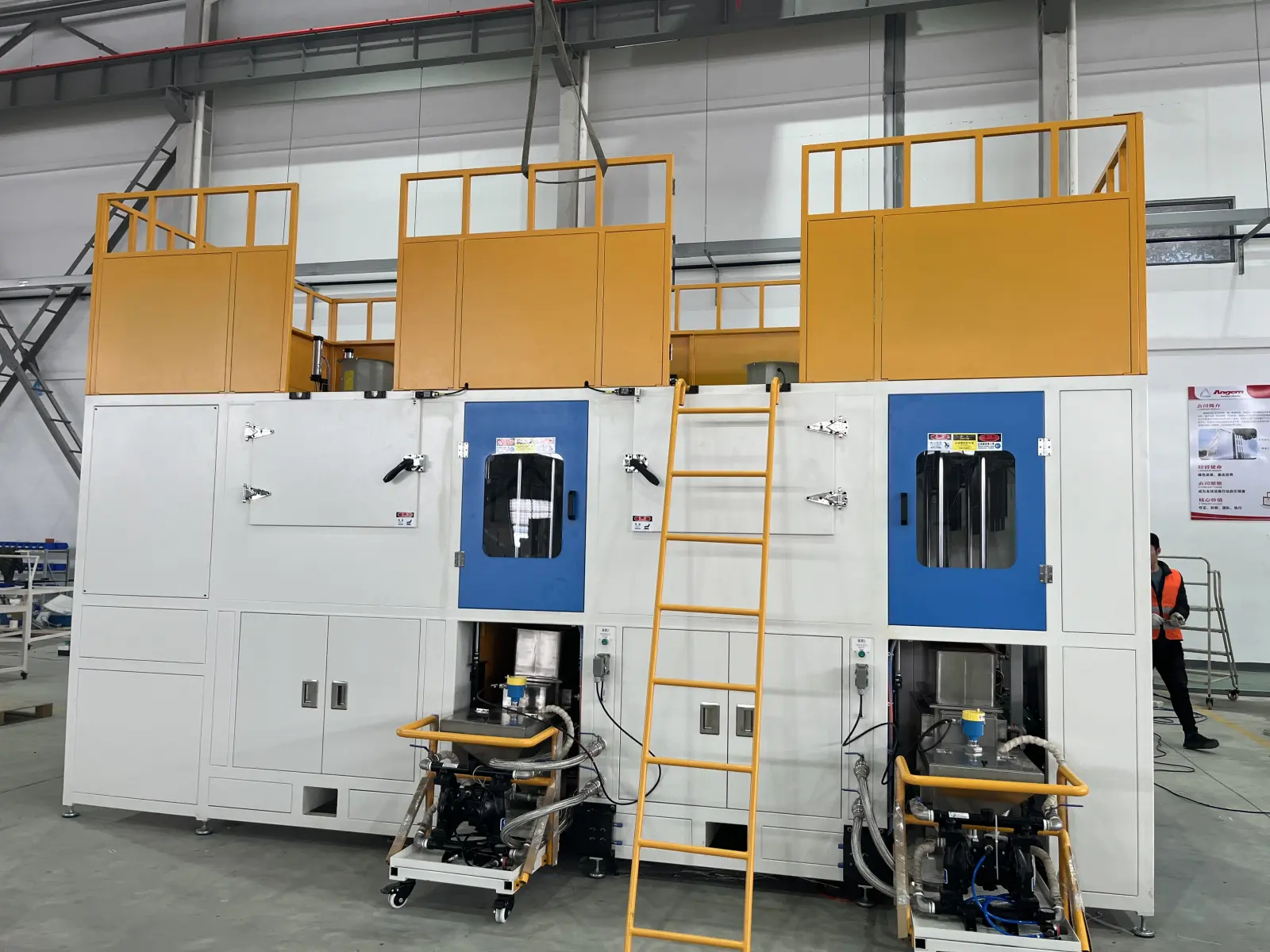

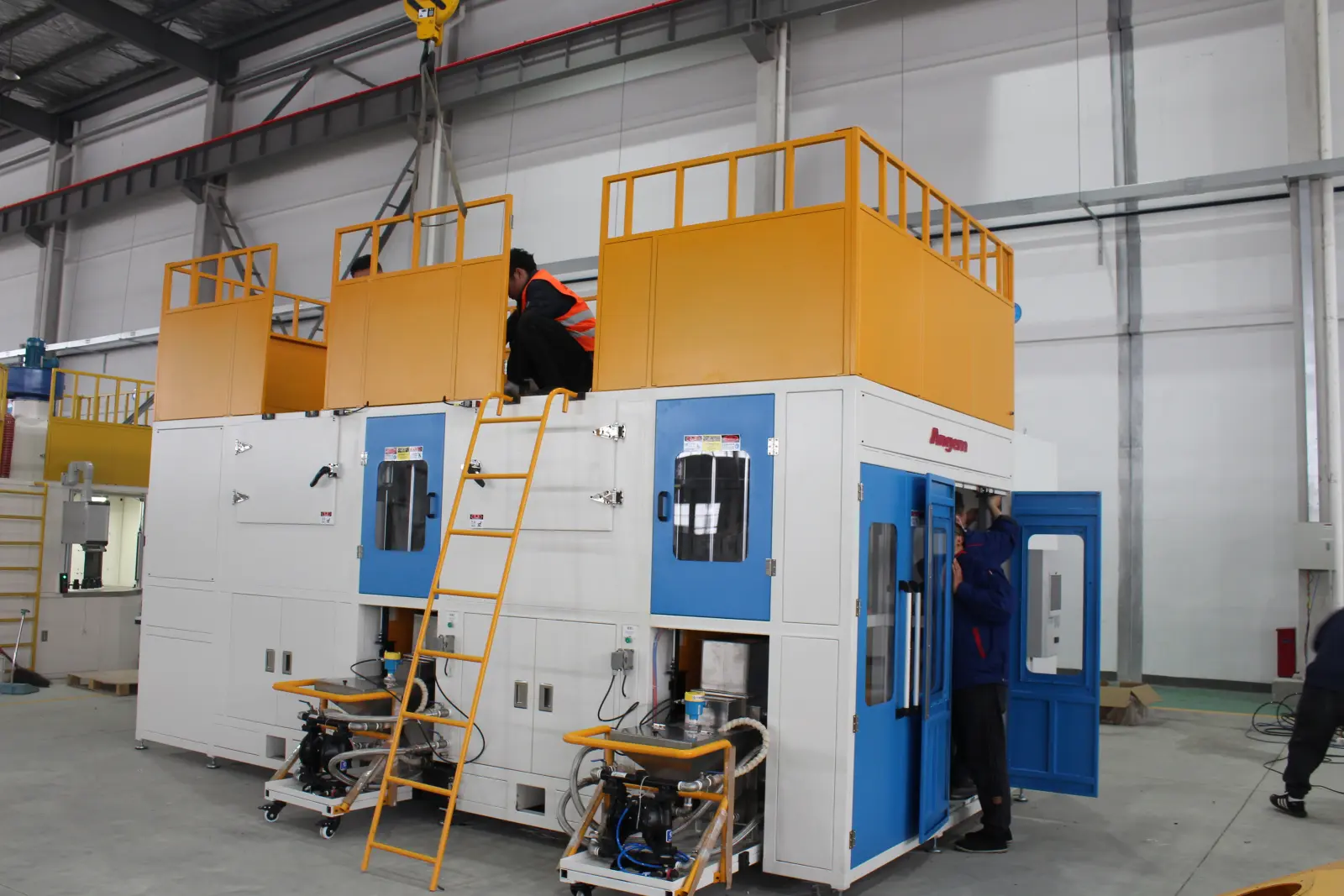

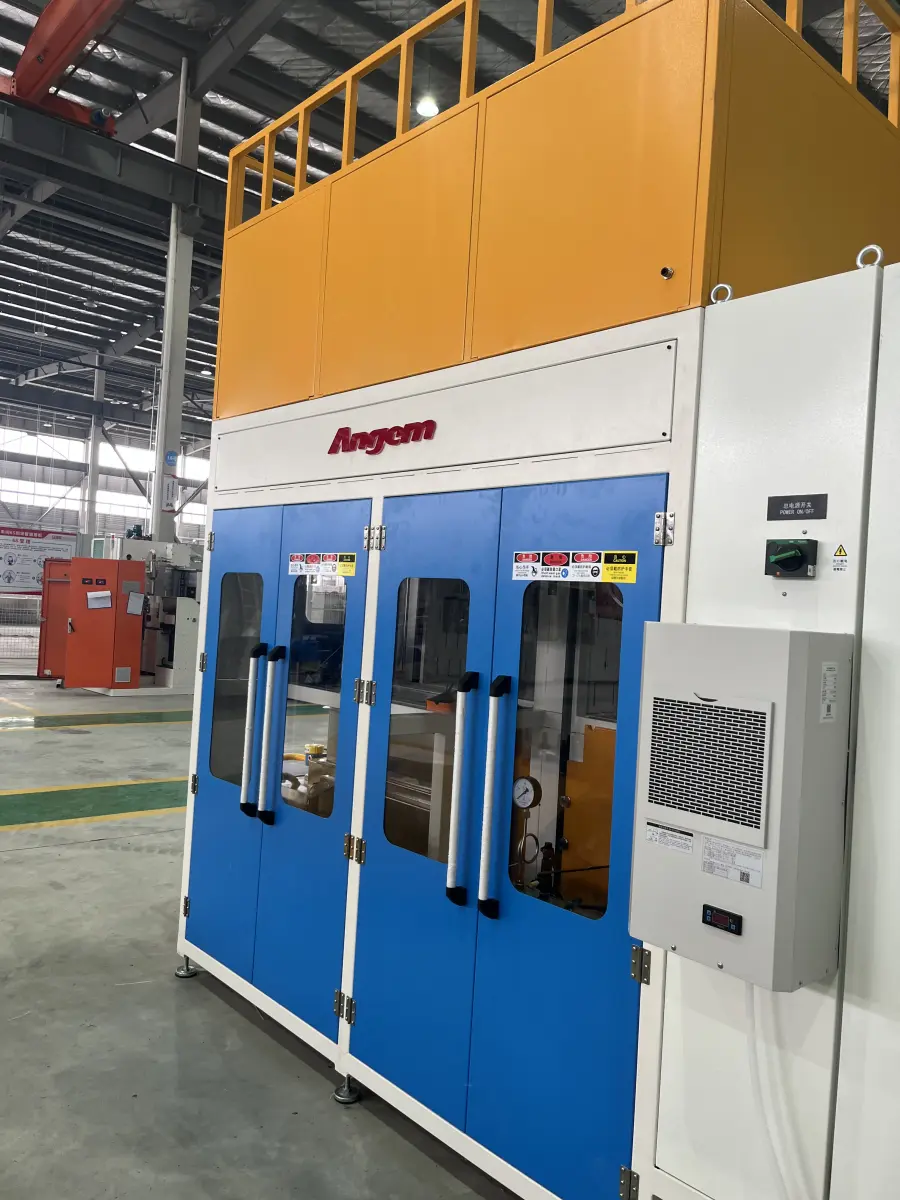

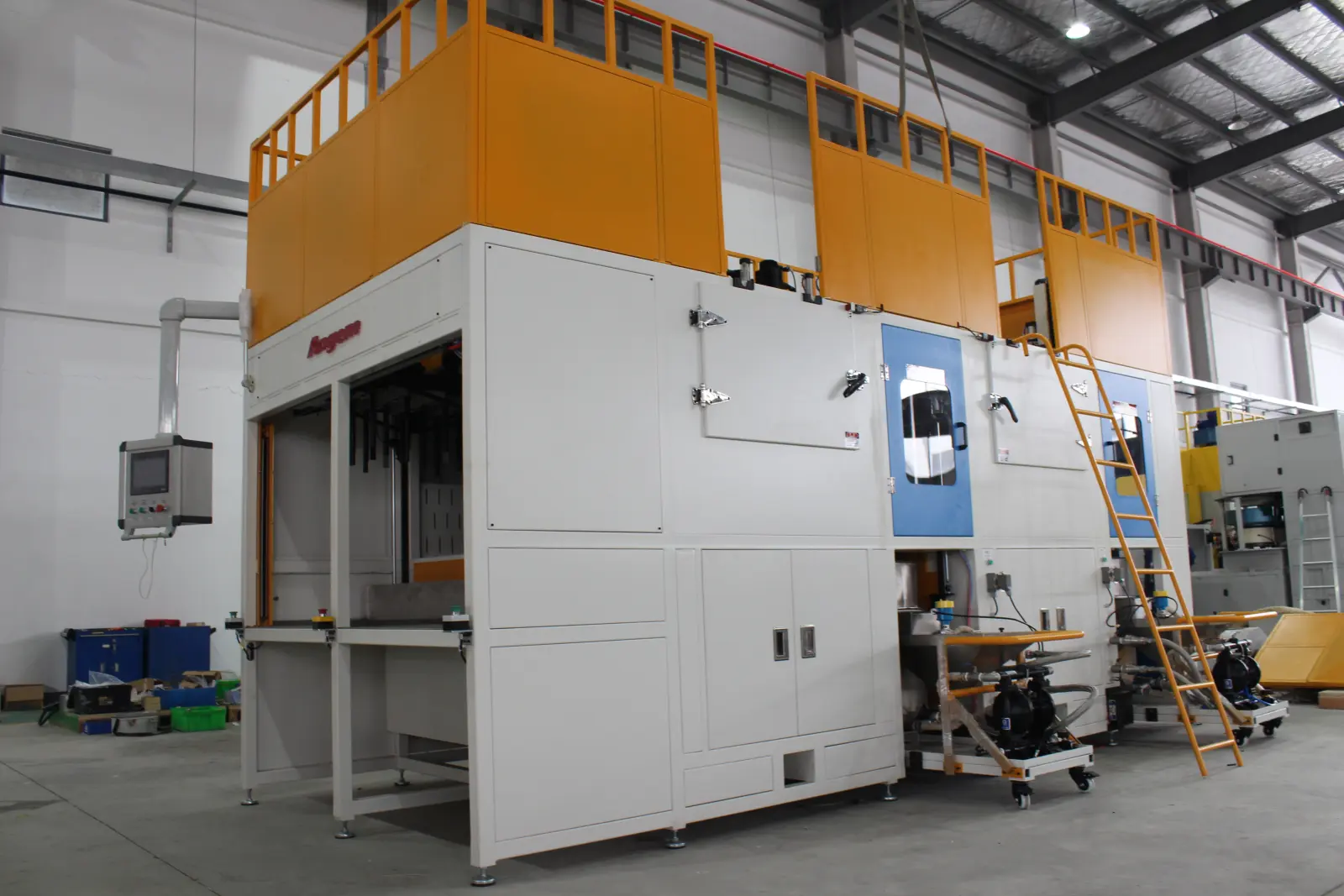

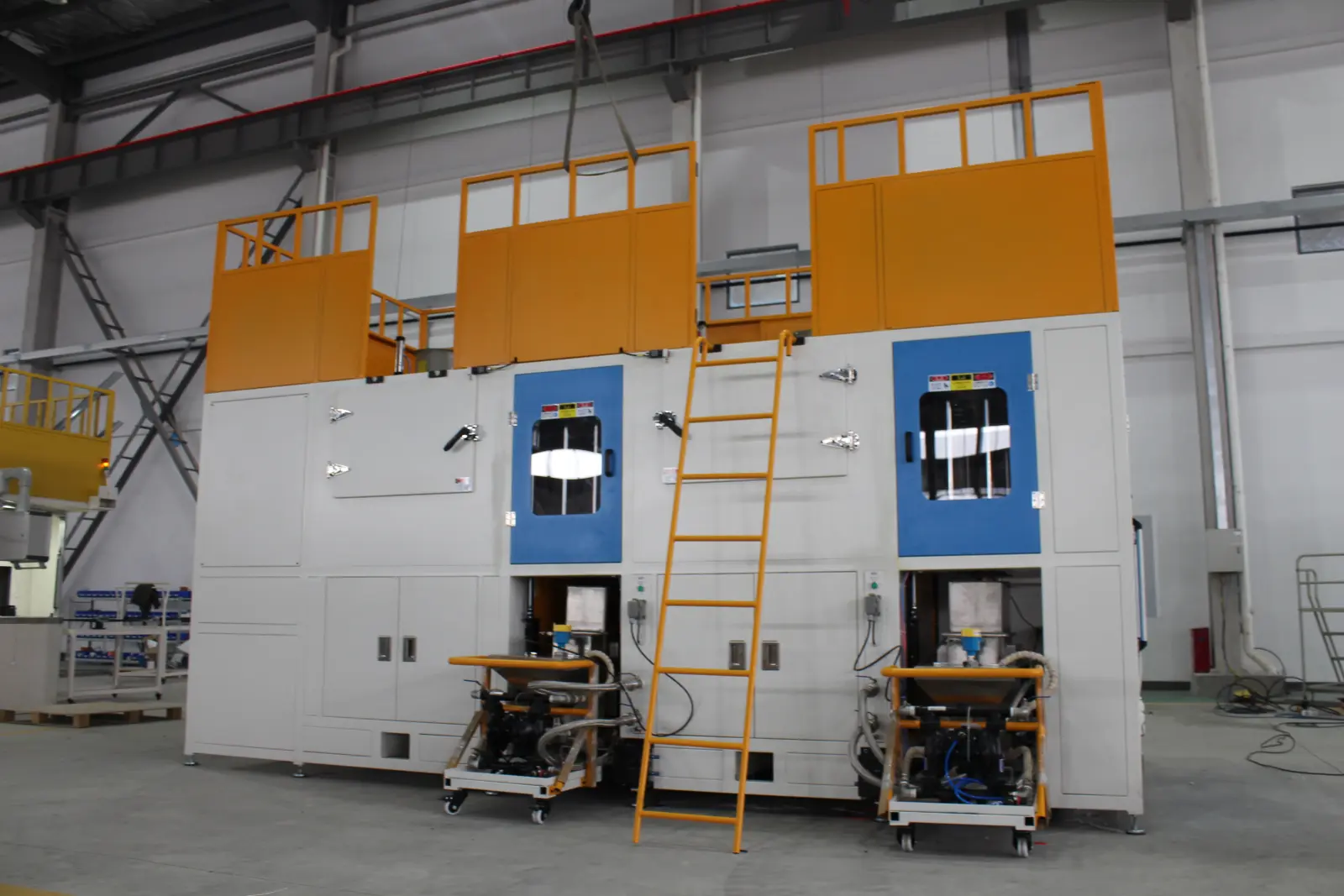

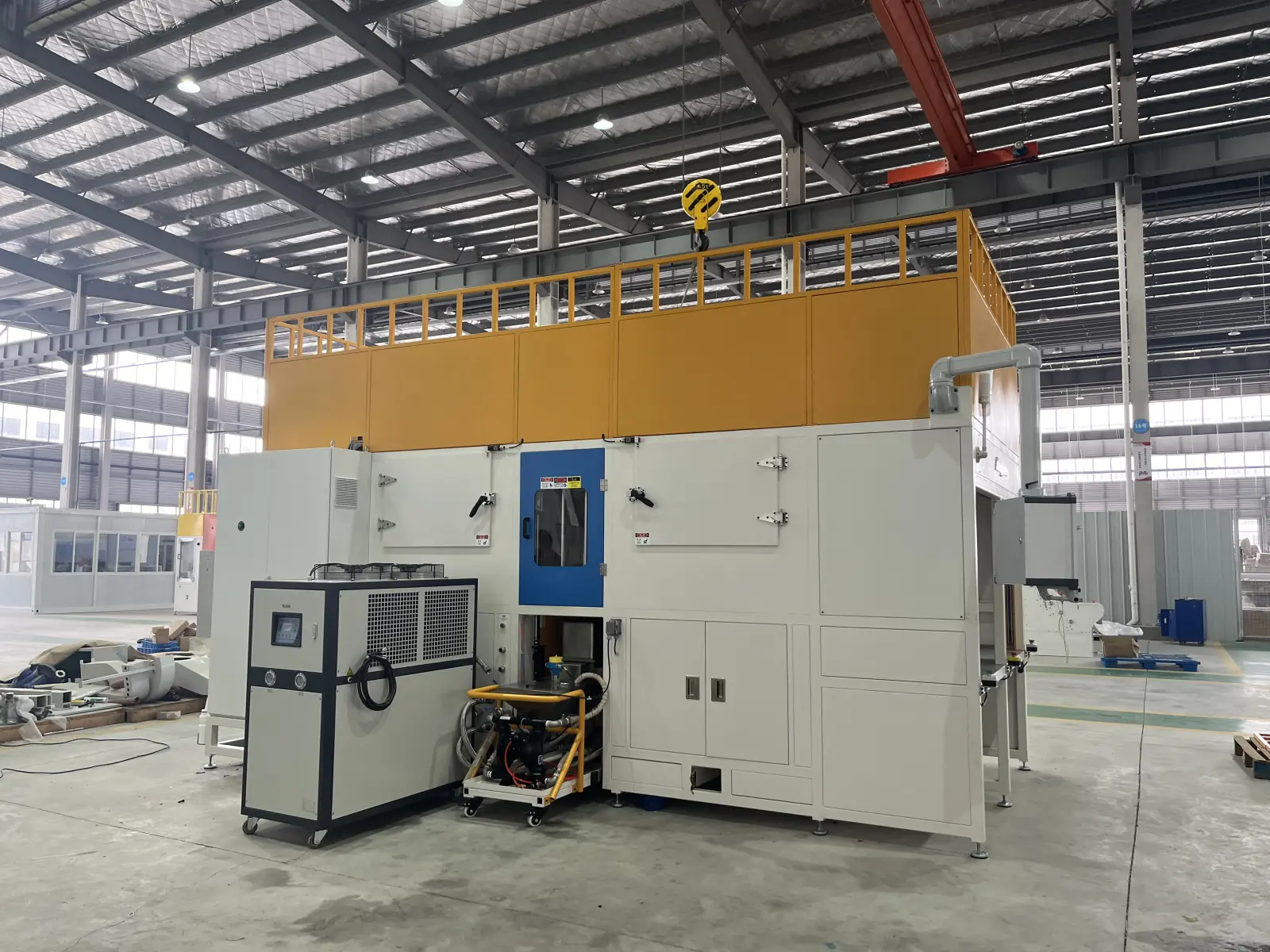

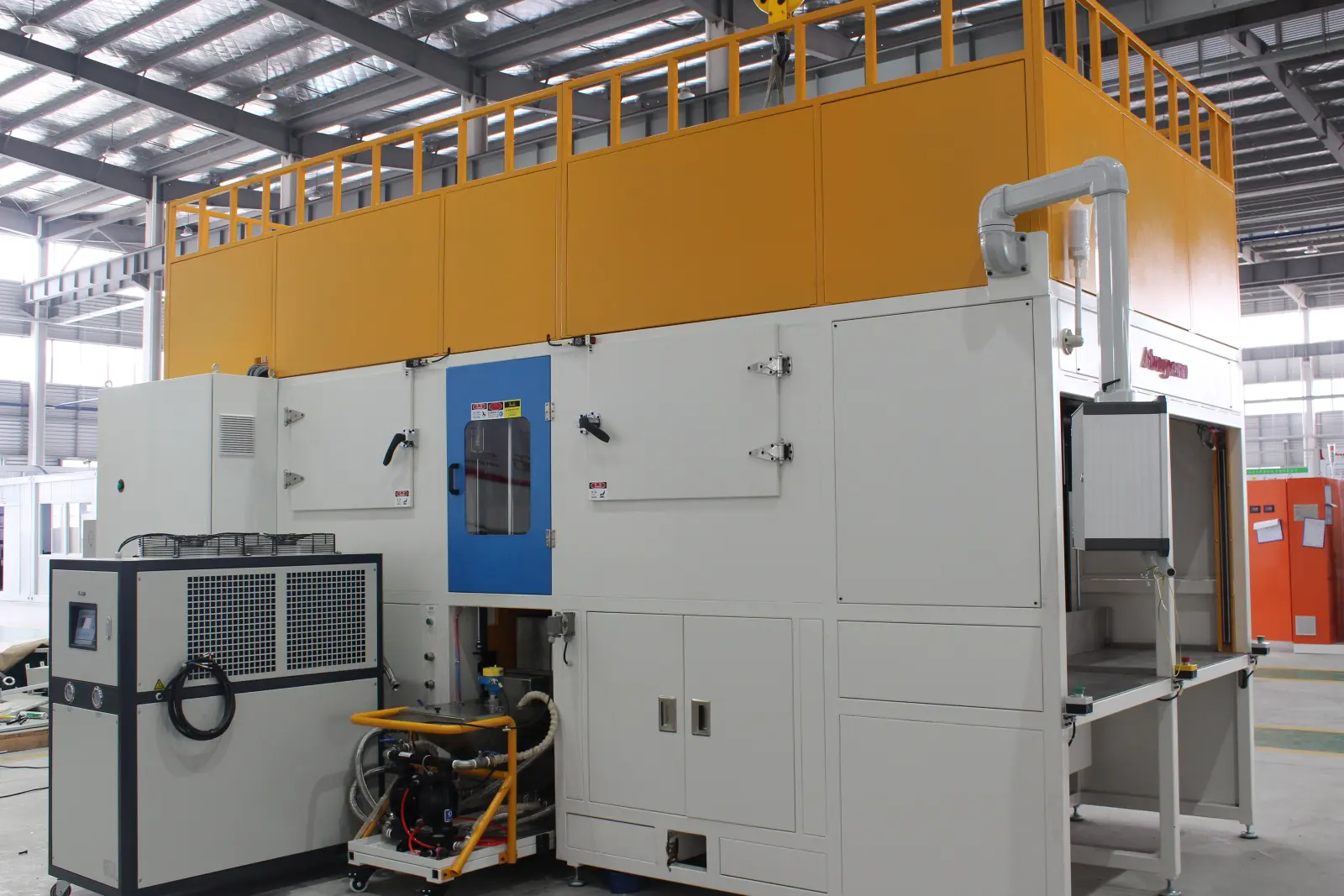

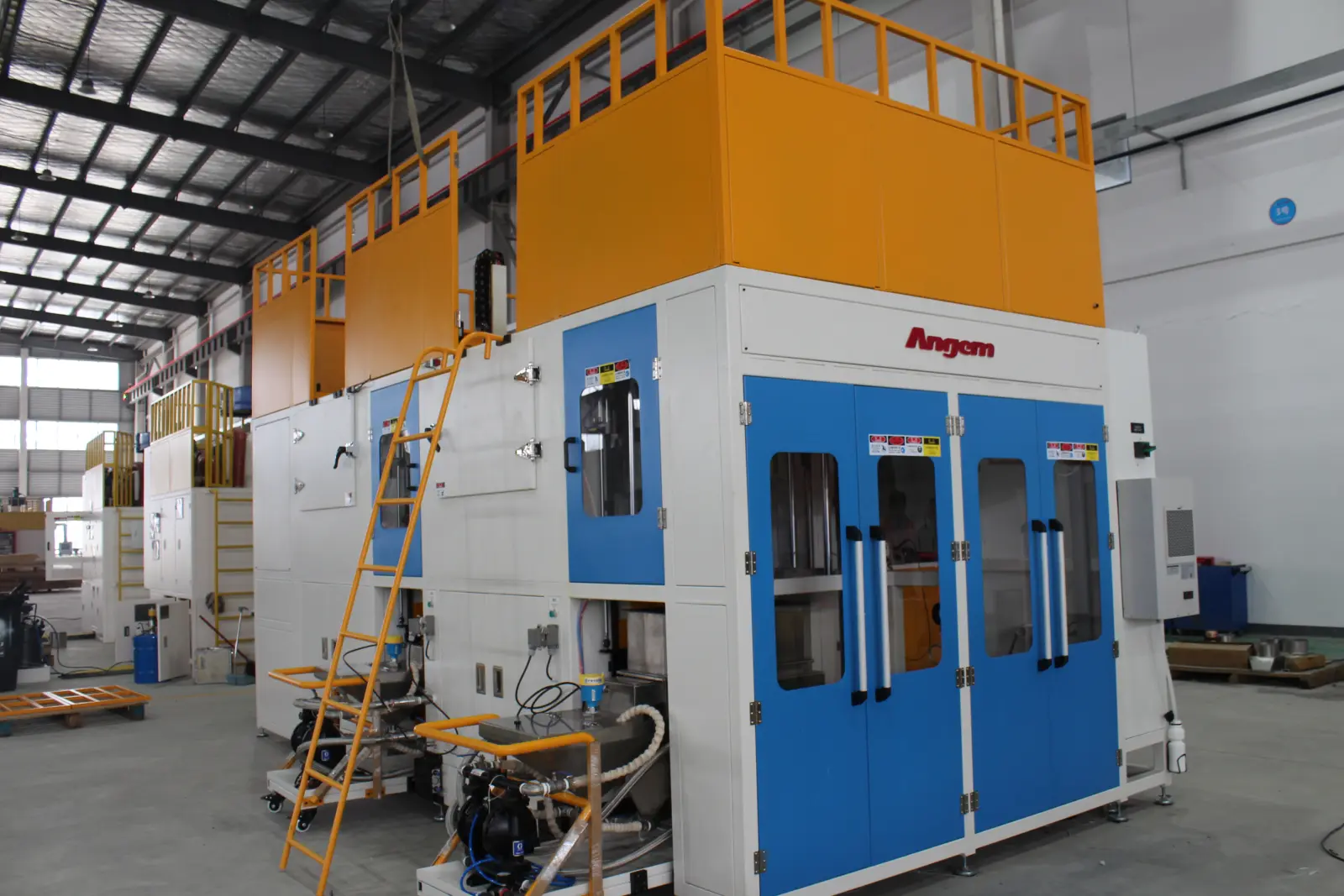

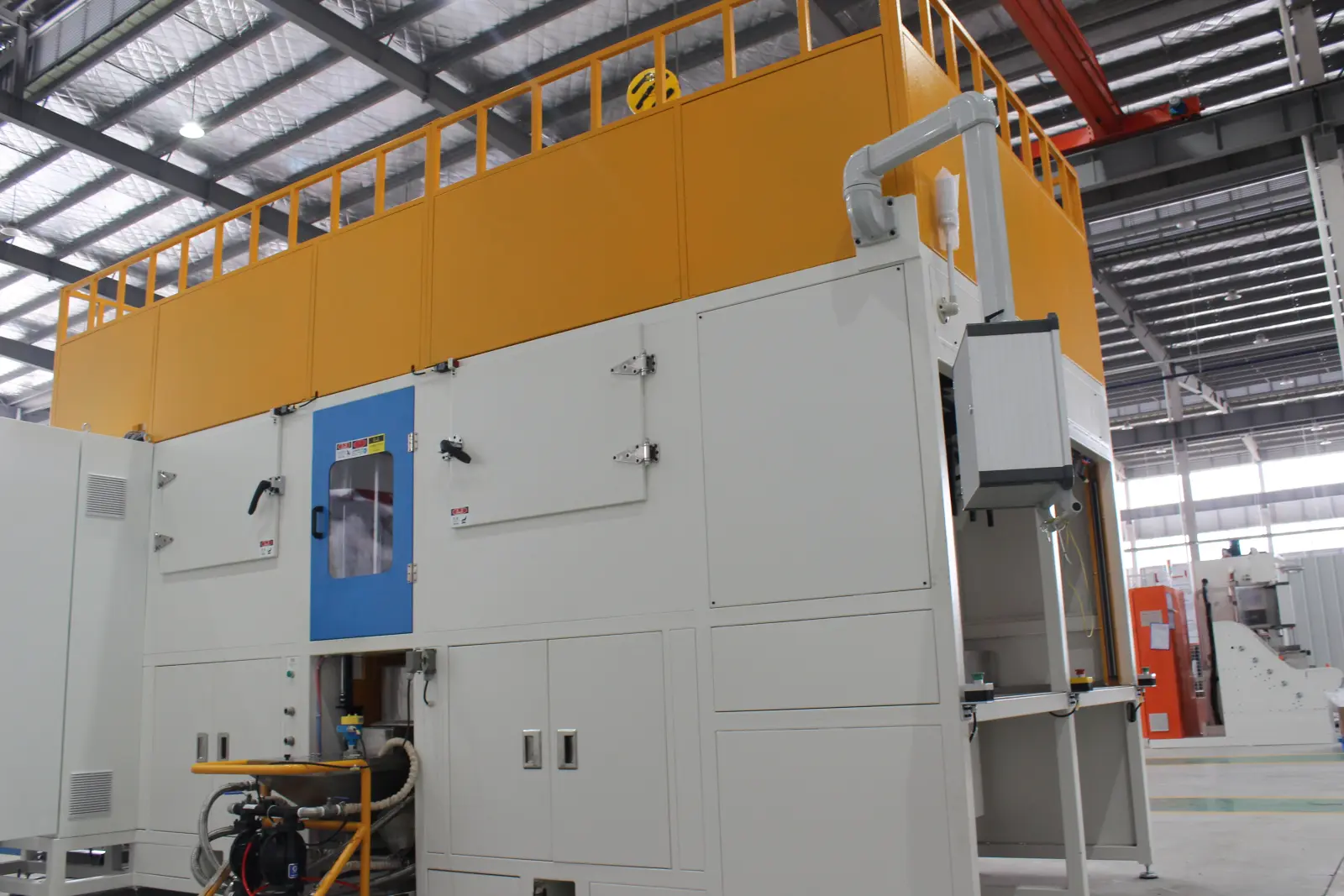

Automatic Glue Dipping Machine JG150-D3M | ANGEM

The Automatic Glue Dipping Machine JG150-D3M is designed and manufactured by Angem for the automated dipping and coating of small plastic components. The machine adopts a fully enclosed dipping process to ensure stable coating quality, high adhesive utilization, and environmentally friendly operation.

With an adhesive utilization rate of over 90%, the system significantly reduces material waste while improving production efficiency. It integrates adhesive supply, preheating, dipping, drying, drip removal, exhaust treatment, and PLC automatic control into a single production line.

The JG150-D3M is an ideal solution for manufacturers seeking consistent coating quality, labor savings, and high-volume production.

DESCRIPTION

Process Flow

Preheating → Primer Dipping → Primer Drying → Topcoat Dipping → Topcoat Drying → Topcoat Dipping → Topcoat Drying → Bottom Drip Removal → Unloading

Typical Applications

The JG150-D3M Automatic Glue Dipping Machine is suitable for:

Small plastic components
Plastic inserts
Plastic automotive parts
Electronic plastic components
Consumer product accessories
Other small parts requiring adhesive or coating application

Advantages

Improves coating consistency and product quality
Reduces adhesive consumption and operating costs
Minimizes manual intervention
Increases production capacity
Supports continuous automatic production
Complies with modern environmental protection requirements

PRODUCT PARAMETERS

FEATURES

Fully enclosed dipping process for a clean and safe working environment
Adhesive utilization rate exceeding 90%
Automatic adhesive supply system
Integrated preheating function
Multi-stage dipping process:
- Primer dipping: 1 cycle
- Topcoat dipping: 2 cycles
Multi-stage drying process:
- Primer drying: 1 cycle
- Topcoat drying: 2 cycles
Automatic bottom drip removal system
Exhaust gas extraction and emission system
PLC control with color touchscreen HMI
High automation level with reduced labor requirements
Energy-saving and environmentally friendly design
Stable and repeatable coating quality

APPLICATION FIELD

Designed for full-surface coating of small and medium-sized components, including machinery parts, automotive components, rubber oil seal inserts, and similar workpieces, with a maximum length of 150 mm.
