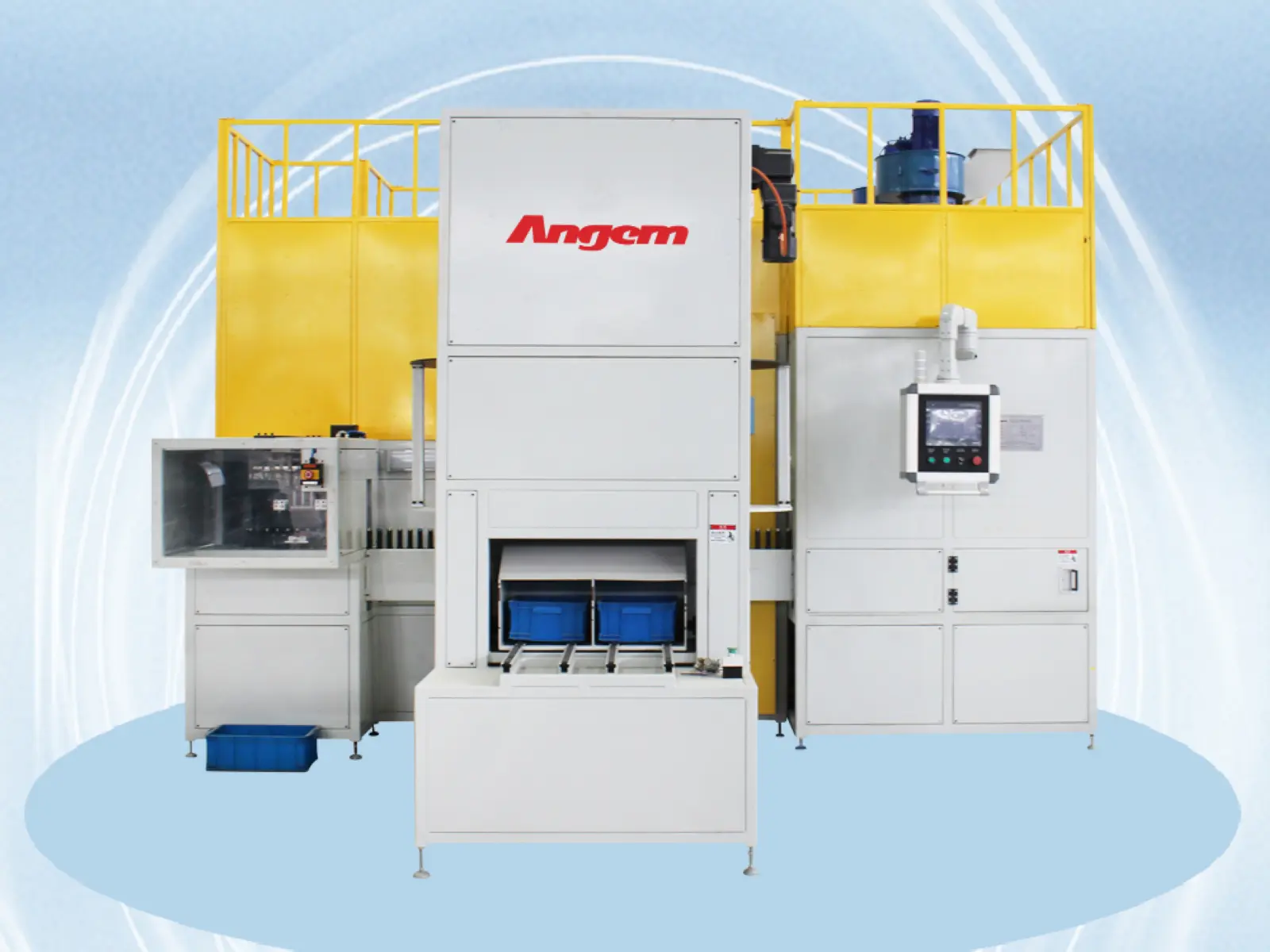

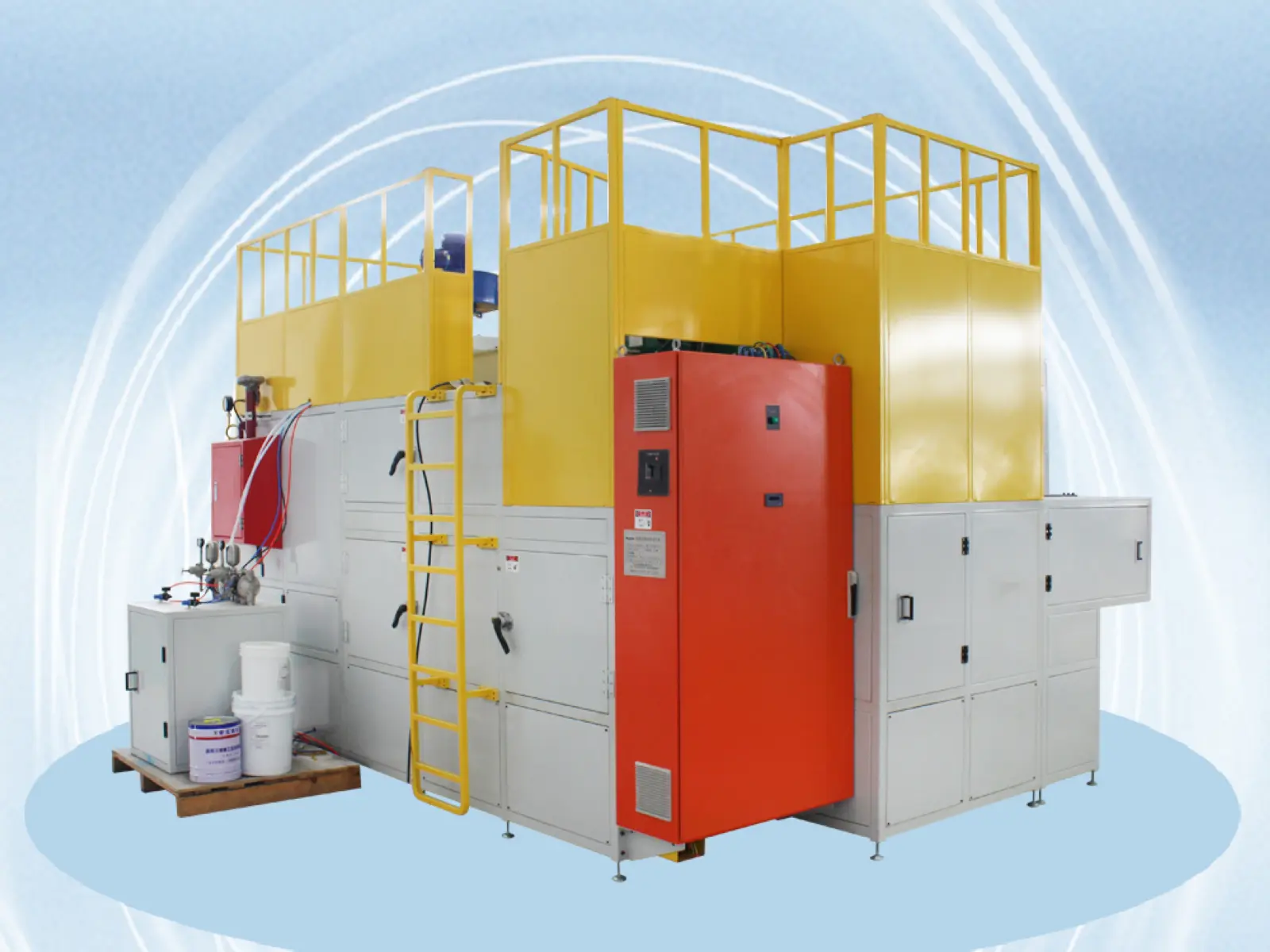

ANGEM Chain-Type Automatic Spraying Machine – PLB528-DB2012MF

Key Advantages:

✦ High Efficiency – Multi-station, multi-gun design maximizes throughput for large-scale production
✦ Multifunctional & Integrated – Complete production workflow handled within a single system
✦ Intelligent Automation – Minimizes manual involvement from loading through to unloading
✦ Eco-Friendly – Exhaust filtration and optimized material usage support green manufacturing practices
✦ Precise Positioning – Accurate workpiece positioning ensures consistent and repeatable spray quality
✦ Strong Adaptability – Handles both partial and full-surface spraying for diverse component types
✦ Simple Operation – User-friendly touchscreen interface suitable for operators at all levels

The PLB528-DB2012MF is the ideal high-capacity chain spraying solution for manufacturers in the rubber and hardware sectors who demand multi-station automation, intelligent process control, and consistently superior coating quality at scale.

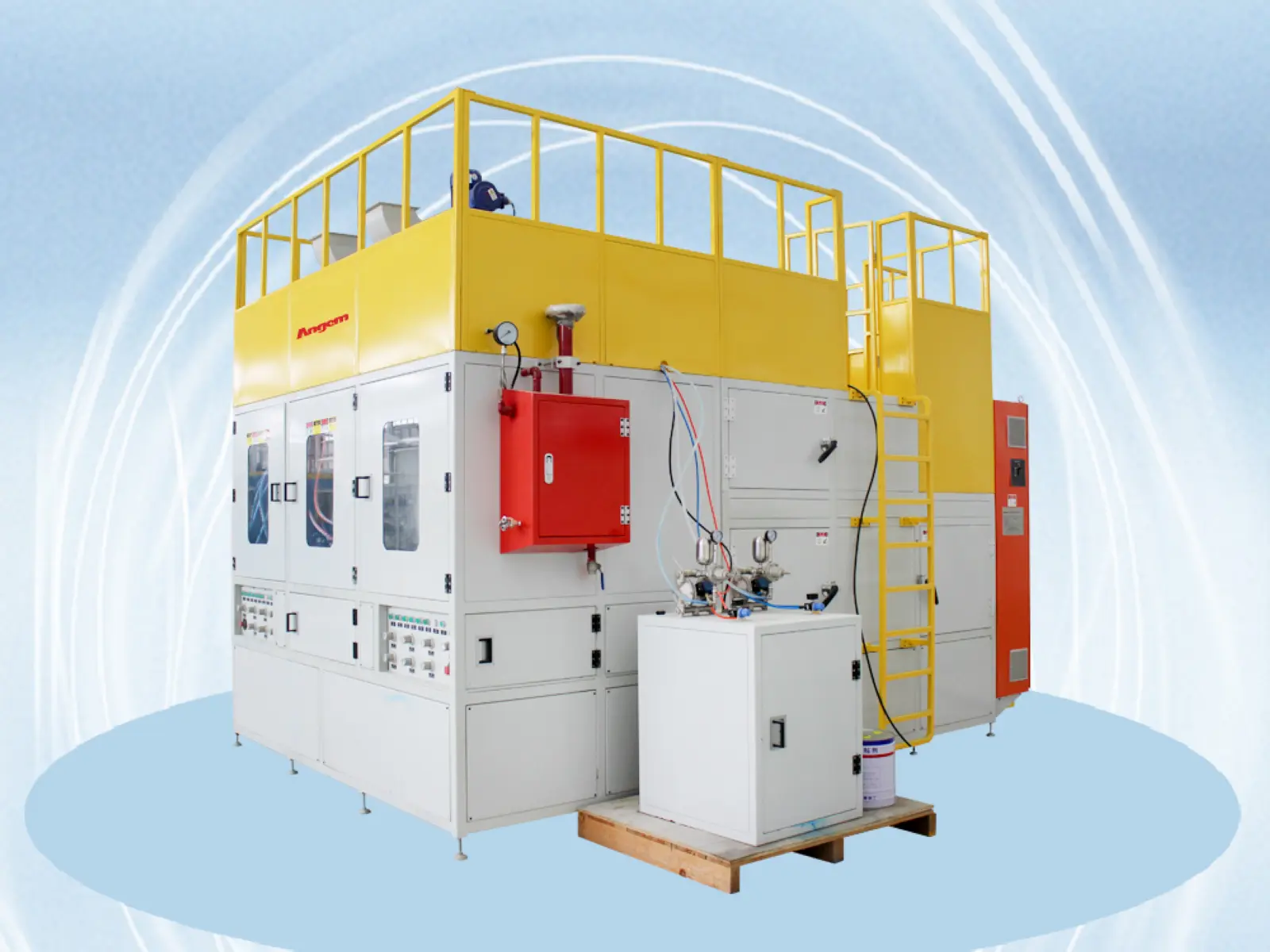

DESCRIPTION

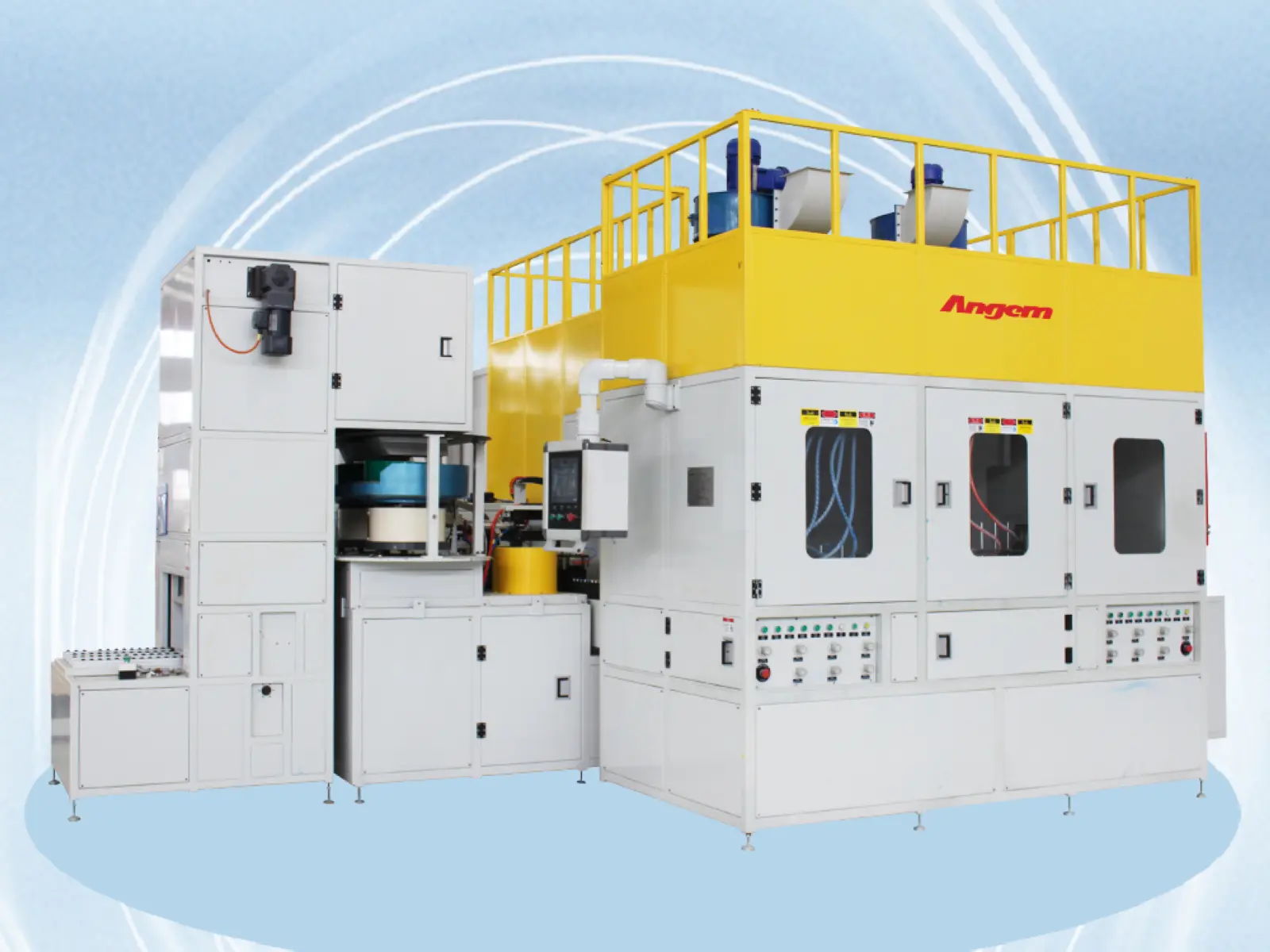

The PLB528-DB2012MF is a proprietary high-tech chain-type automatic spraying machine developed by ANGEM, featuring full independent intellectual property rights. Designed for both partial and full-surface spraying of paints and adhesives, it is widely used across the rubber and hardware industries.

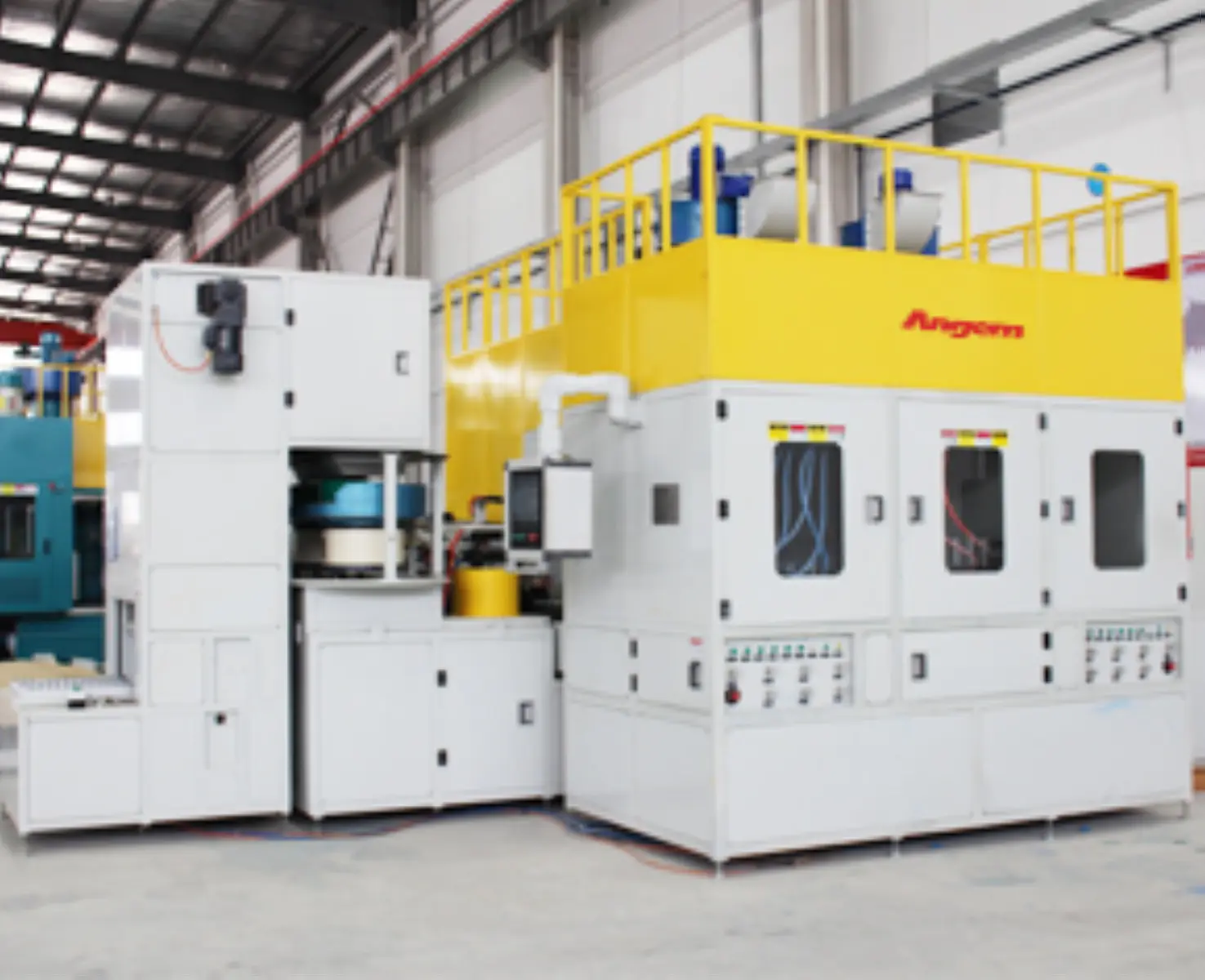

With multiple workstations and multiple spray guns, the PLB528-DB2012MF is purpose-built for high-volume production demands — delivering consistent, precise coating results whether for localized treatment or complete surface coverage on a wide variety of components.

PRODUCT PARAMETERS

Item	Specification
Production Cycle Time	2–6 s (Automatically Adjustable)
Spray Guns	12 Units
Machine Weight	5,500 kg
Drying Temperature	Ambient to 120°C (Automatically Adjustable)
Preheating Temperature	Ambient to 120°C (Automatically Adjustable)
Overall Dimensions	5927 × 3512 × 3700 mm (L × W × H)
Workpiece Rotation Speed	0–500 rpm (Adjustable)

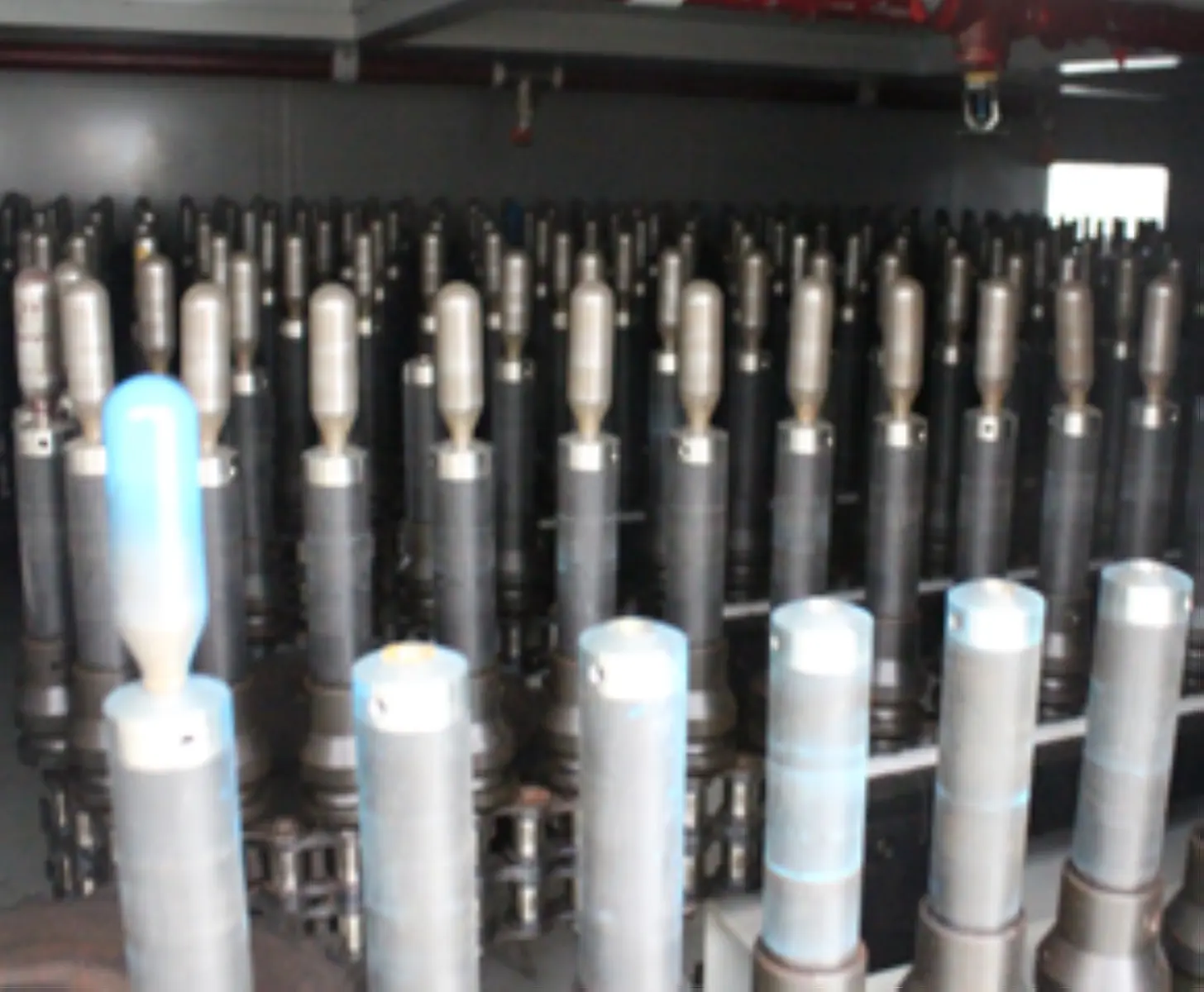

Number of Fixtures/Stations	540
Maximum Workpiece Size	≤ 200 mm
Maximum Workpiece Diameter	≤ 30 mm
Maximum Workpiece Weight	≤ 3 kg
Compressed Air Pressure	0.6 MPa
Power Supply	380V ±10%, 50Hz
Heating Method	Electric Heating
Installed Power	Approx. 30 kW

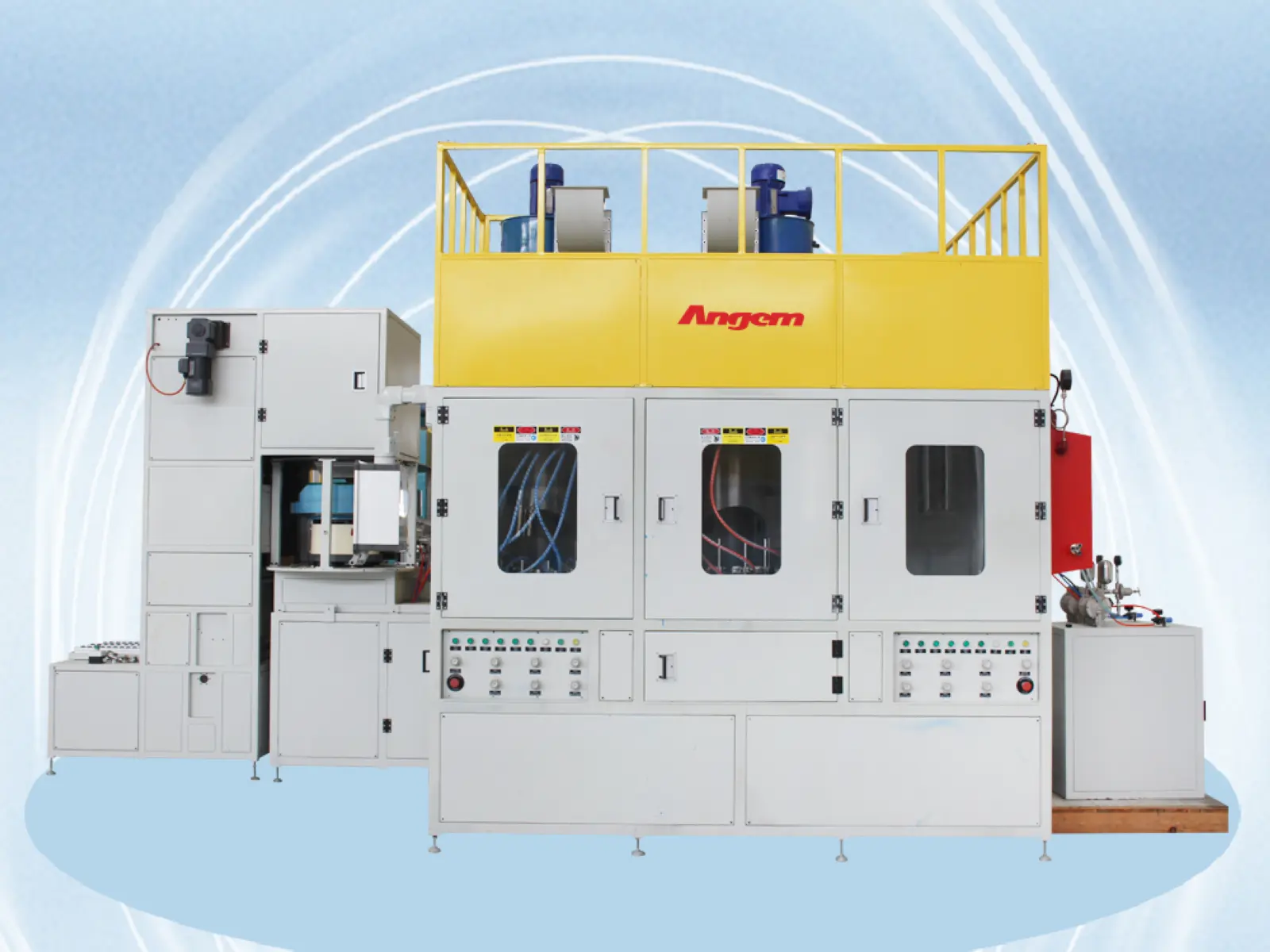

FEATURES

Automated Production Functions:

The PLB528-DB2012MF provides a fully integrated, end-to-end automated production process:

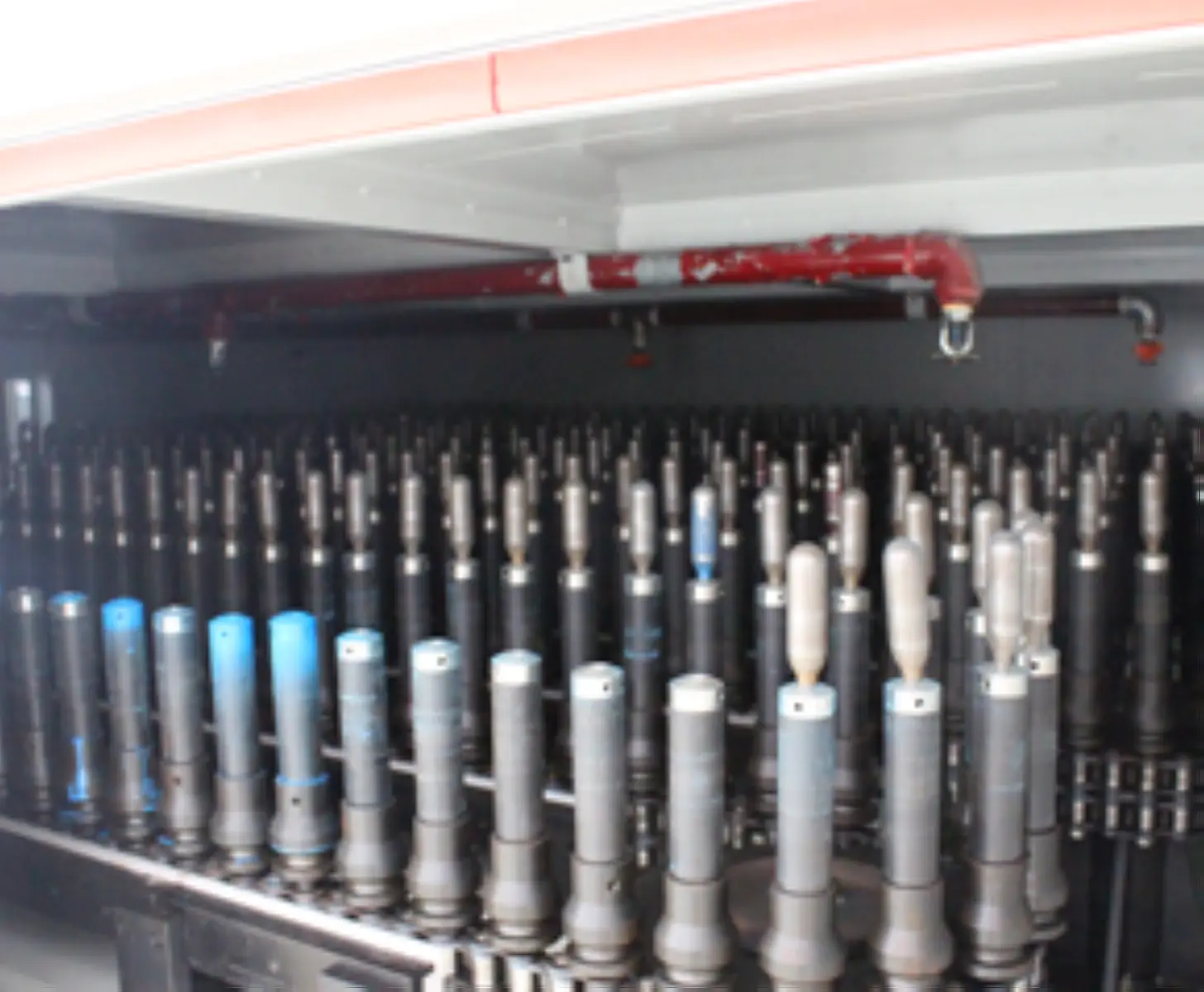

- Automatic Product Conveying – Smooth and continuous transport of workpieces across all production stages.
- Automatic Loading – Intelligent automated feeding ensures a steady and uninterrupted supply of parts into the production cycle.
- Automatic Adhesive Supply – Continuous adhesive feeding maintains consistent material availability without manual intervention.

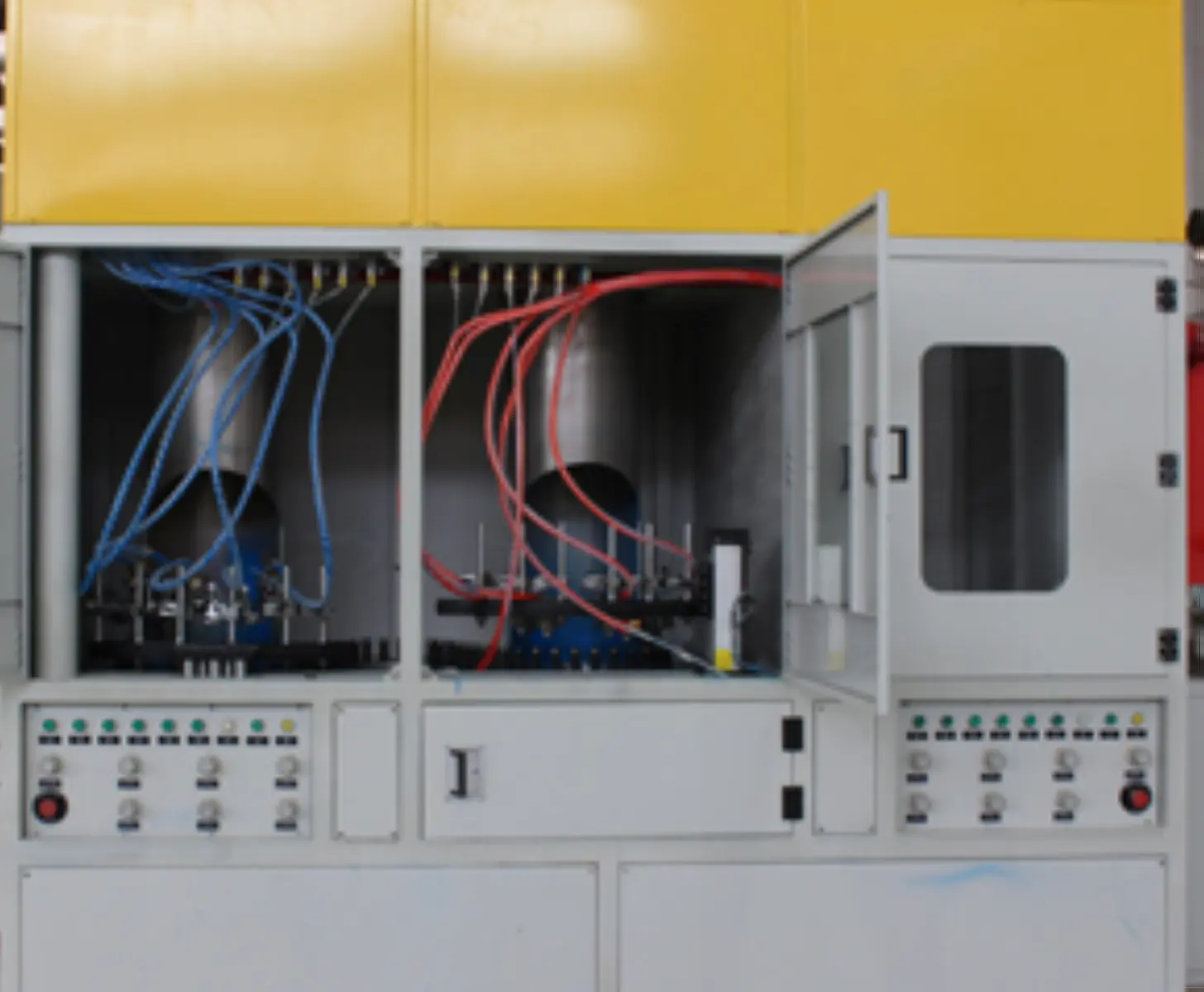

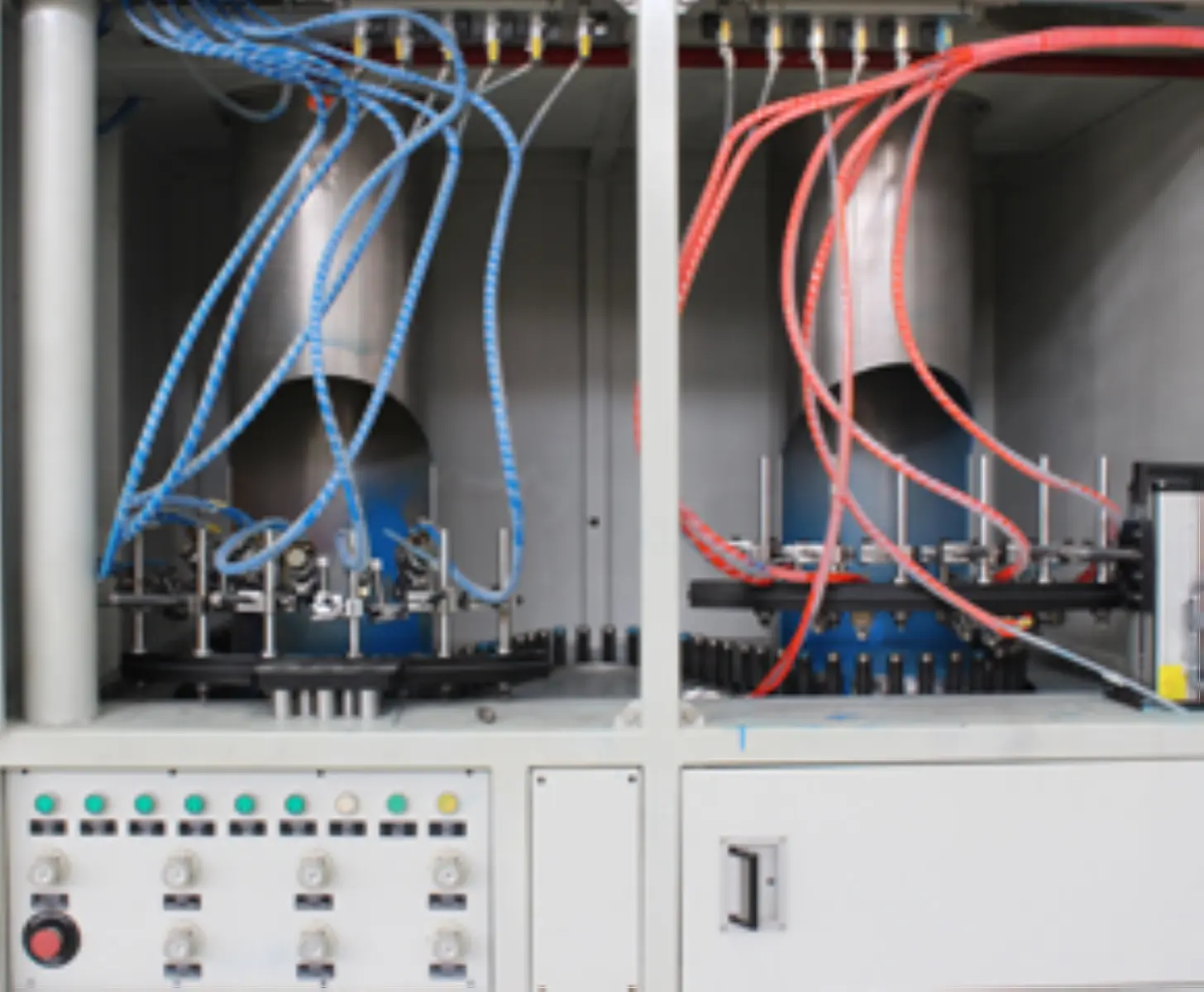

- Automatic Spraying – Multi-gun precision spray system ensures uniform and complete coating coverage on every workpiece.
- Automatic Drying – Integrated drying system cures coatings inline for seamless production flow.
- Automatic Weighing – Built-in weighing function verifies coating application accuracy on each part.
- Color Mark Detection – Optical detection system identifies and verifies color marks for reliable quality control.
- Rotation Detection – Monitors workpiece self-rotation to ensure full and even surface coverage.
- Spray Gun & Line Auto-Cleaning – Automated cleaning of spray guns and fluid lines reduces downtime and maintains optimal spray performance.
- Exhaust Gas Filtration – Integrated waste gas treatment system ensures safe and environmentally compliant operation.

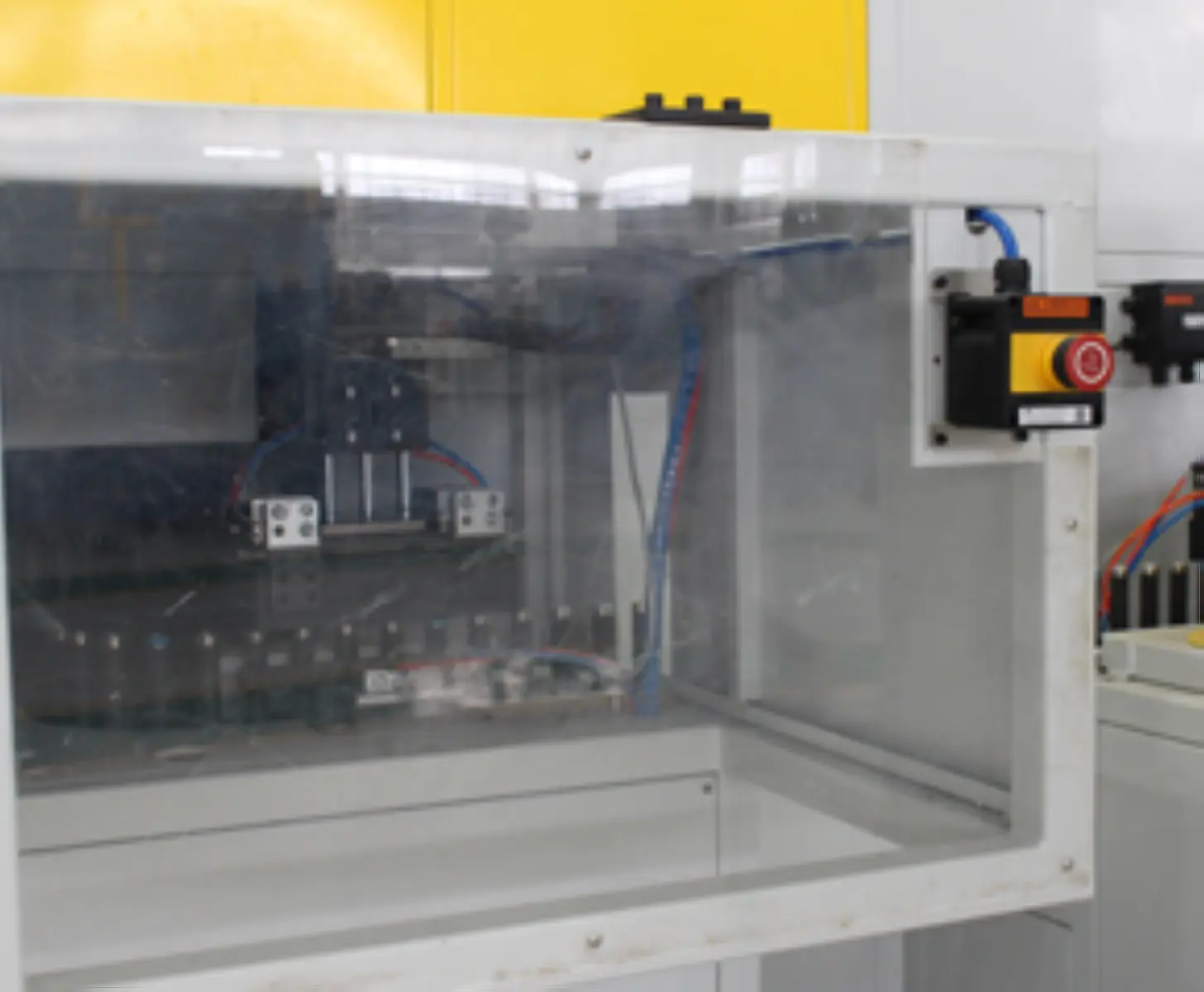

- Explosion-Proof Design – Built to meet safety standards for working environments involving flammable coatings and adhesives.

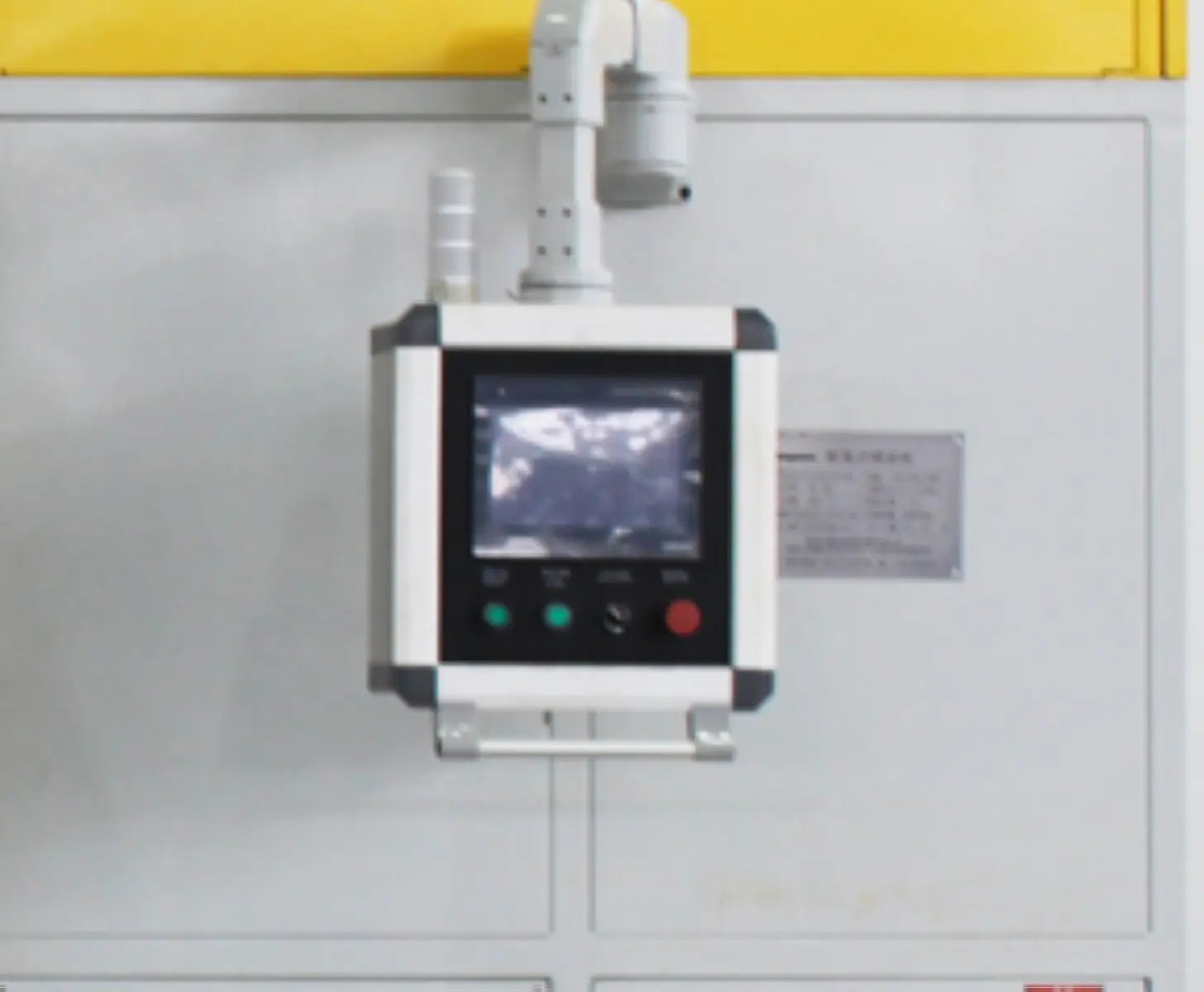

- Touchscreen Operation – Intuitive HMI touchscreen for easy control, real-time monitoring, and process management.
- Saveable Process Parameters – Multiple process parameter sets can be stored and recalled at any time, enabling fast and flexible production changeovers.

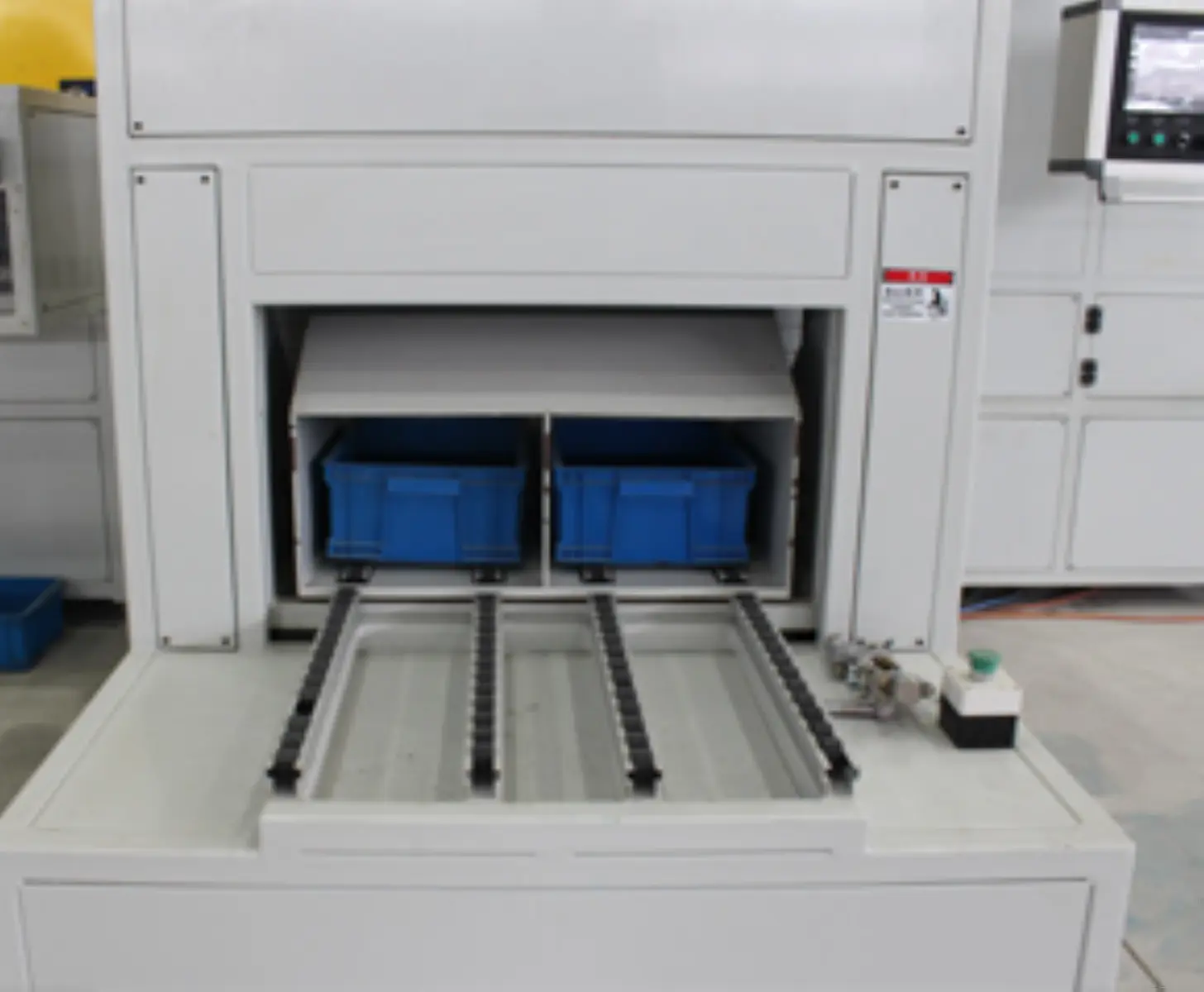

- Automatic Unloading – Automated discharge of finished parts at the end of the production cycle.
