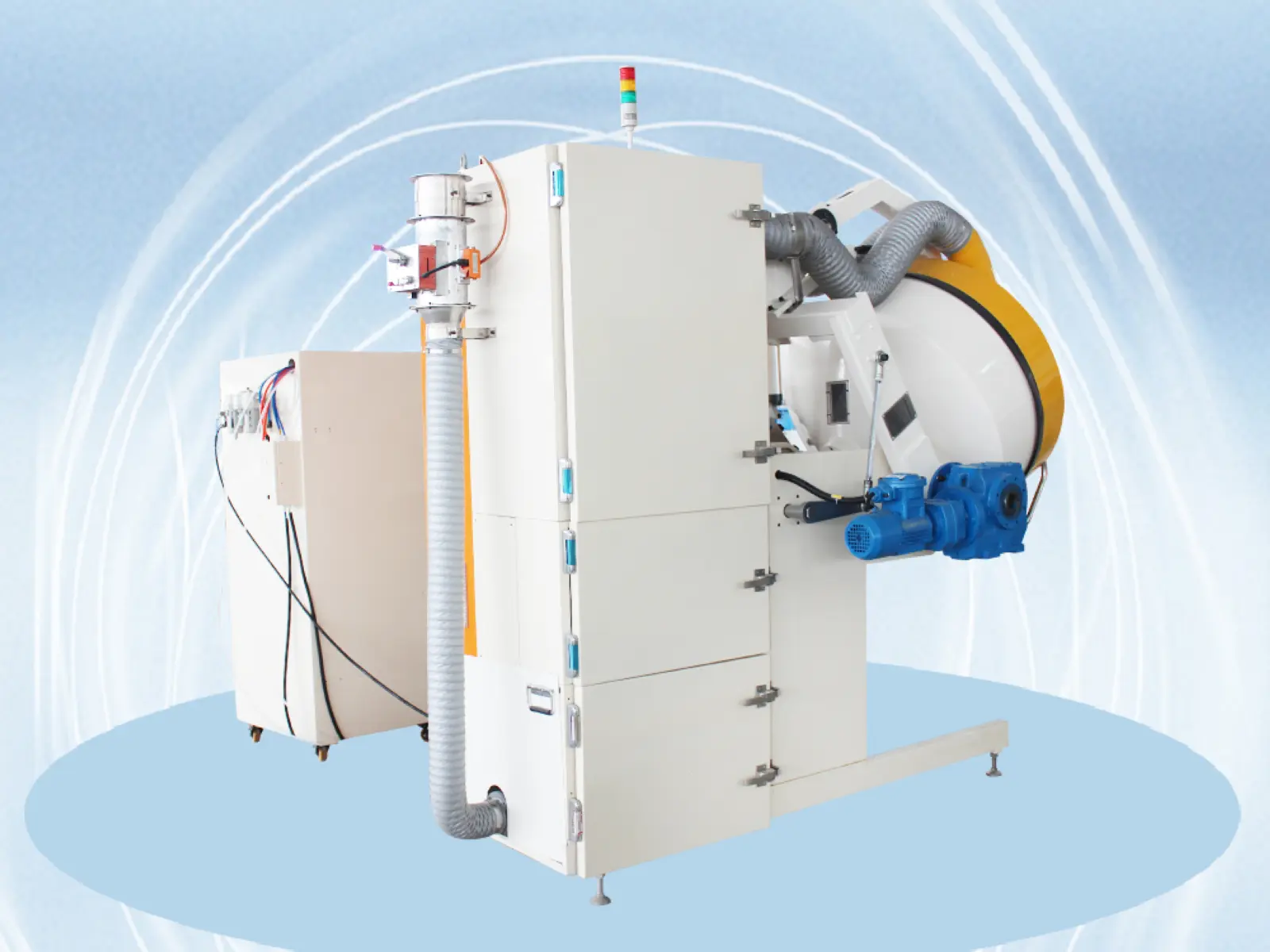

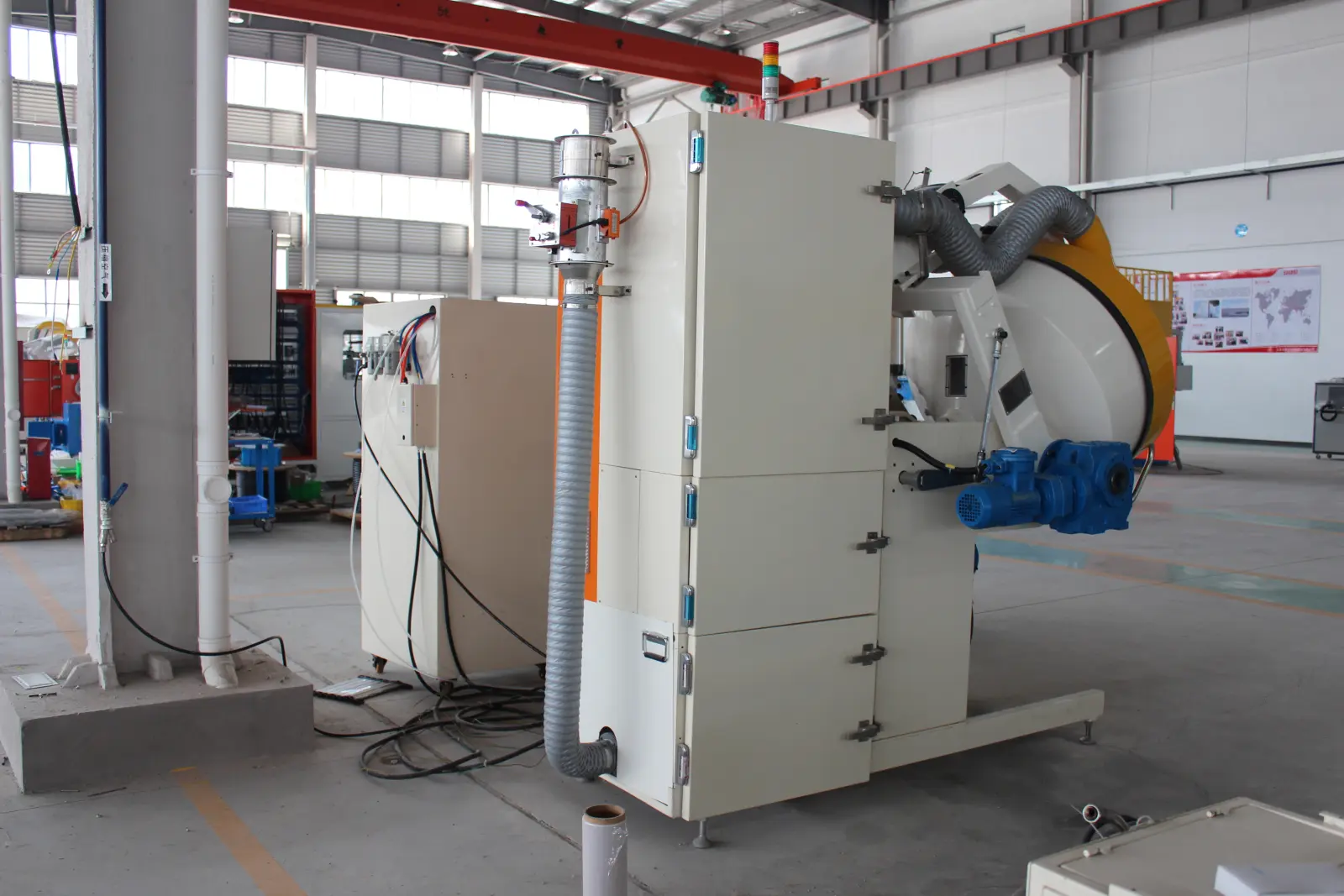

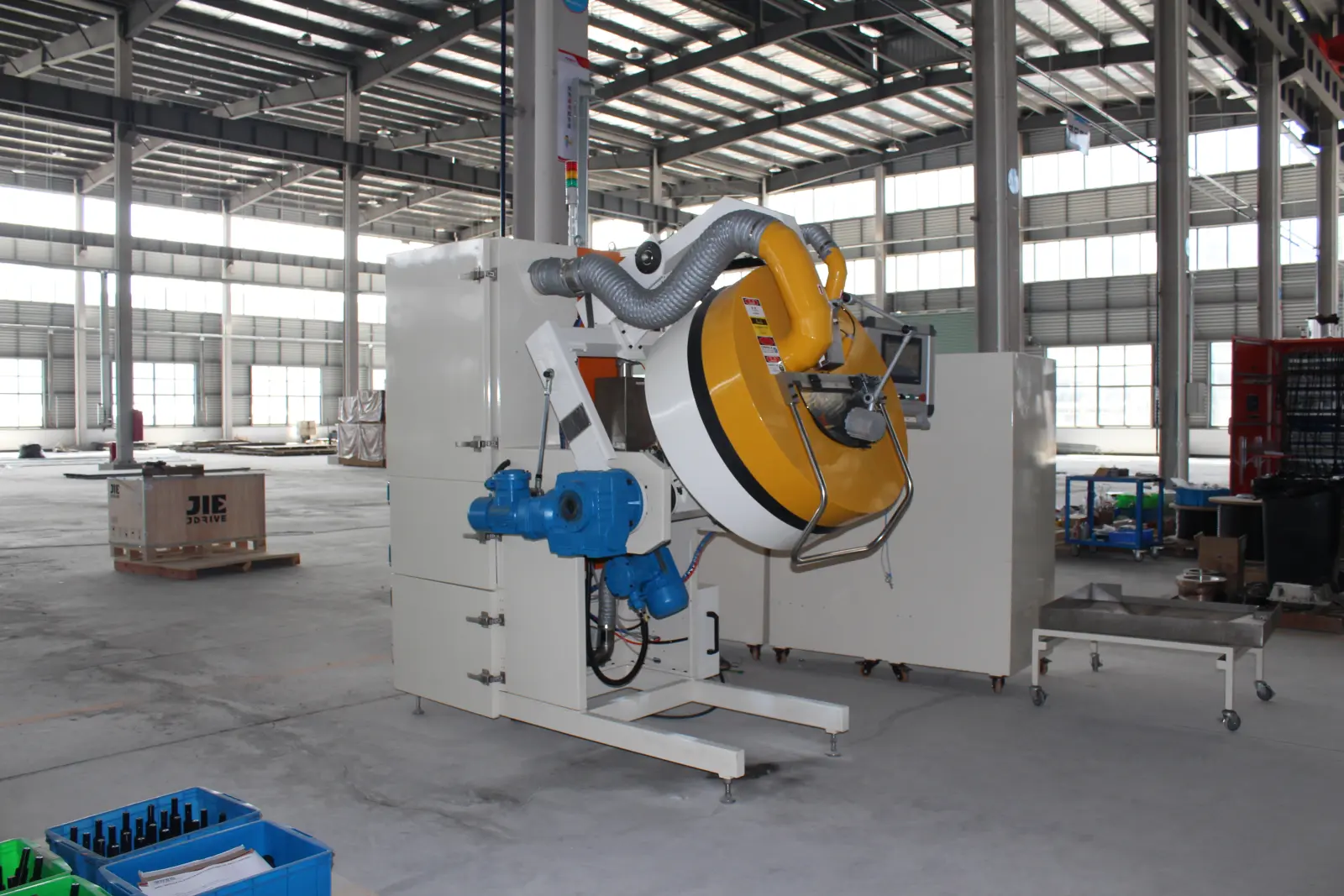

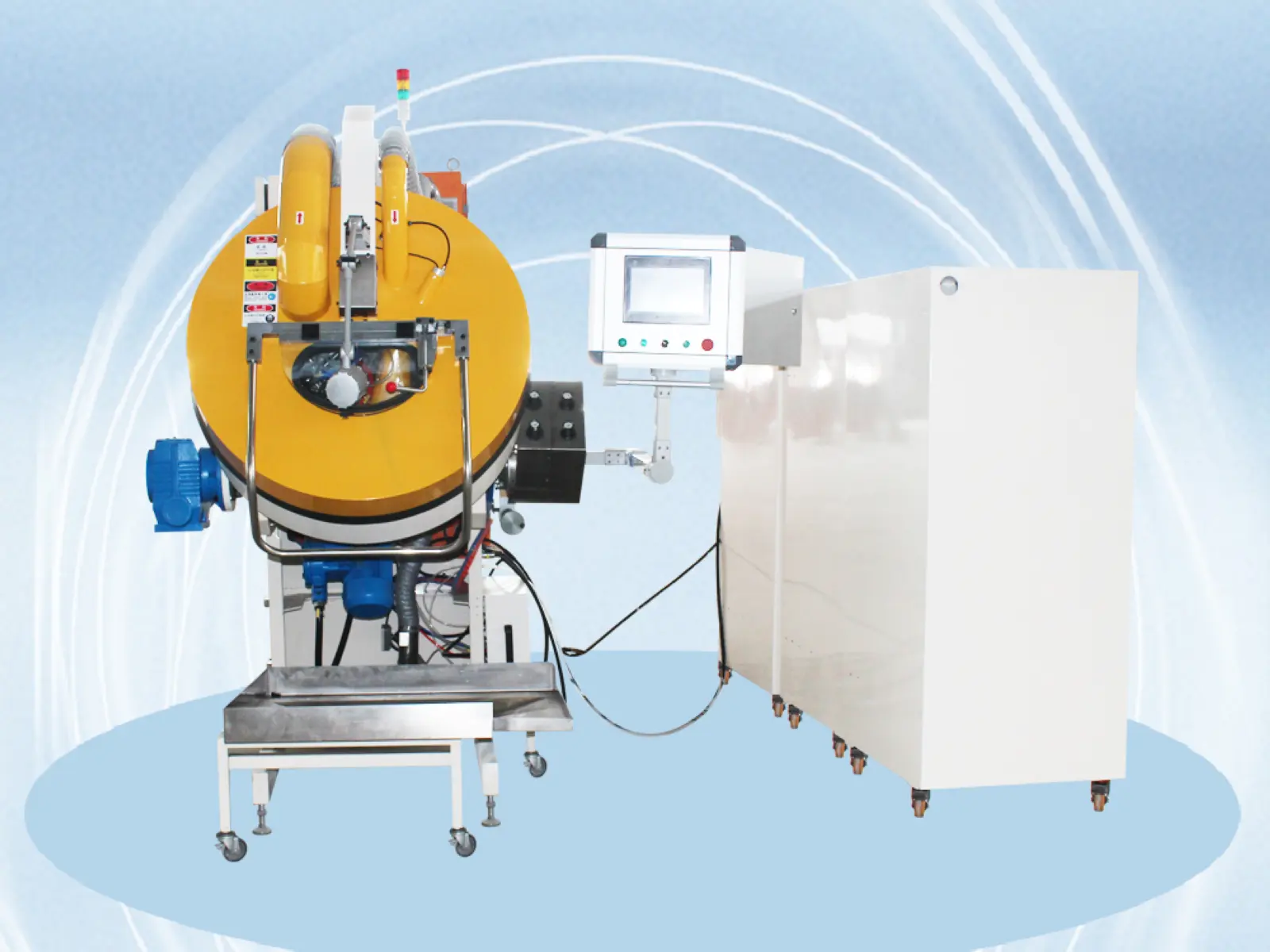

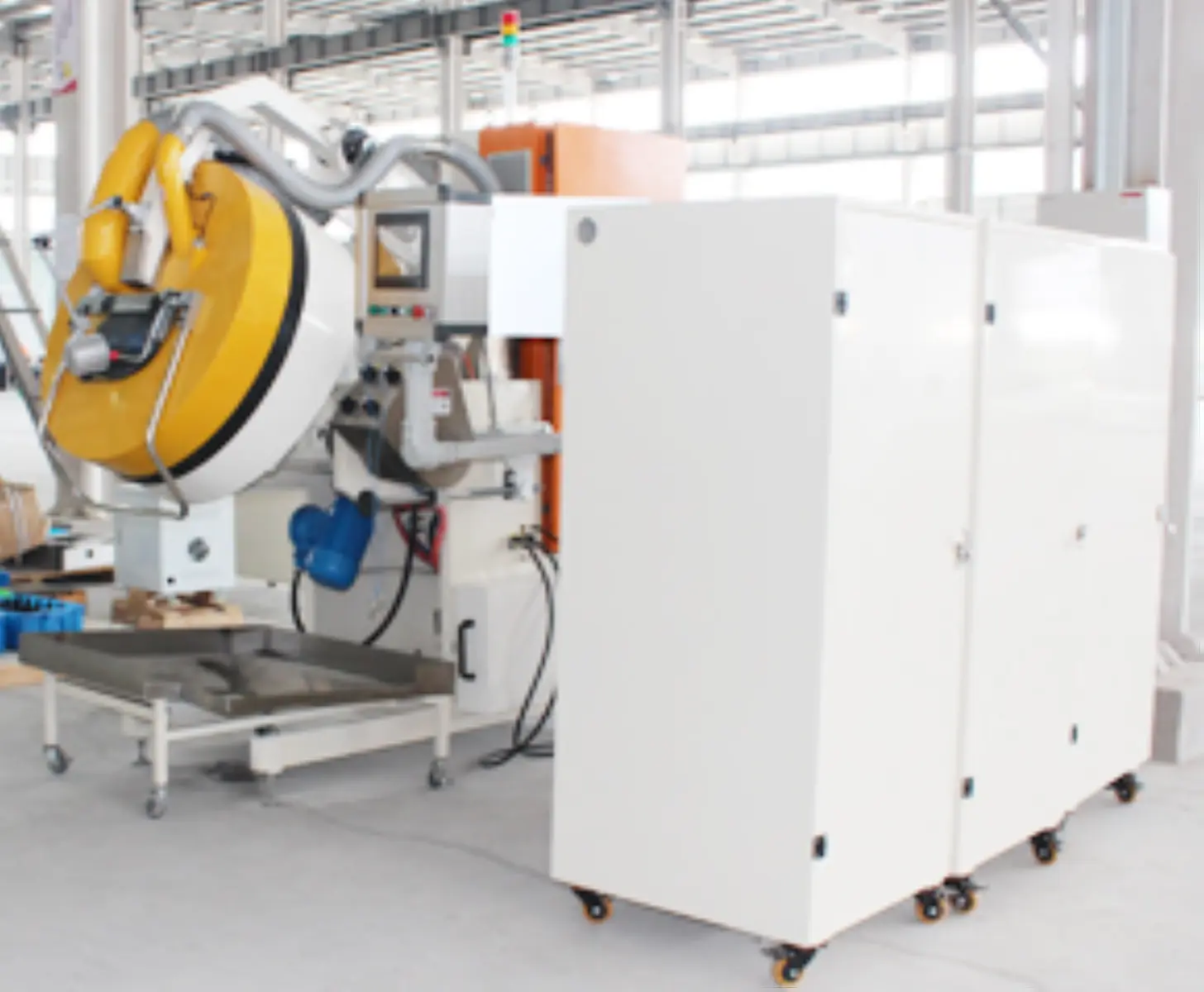

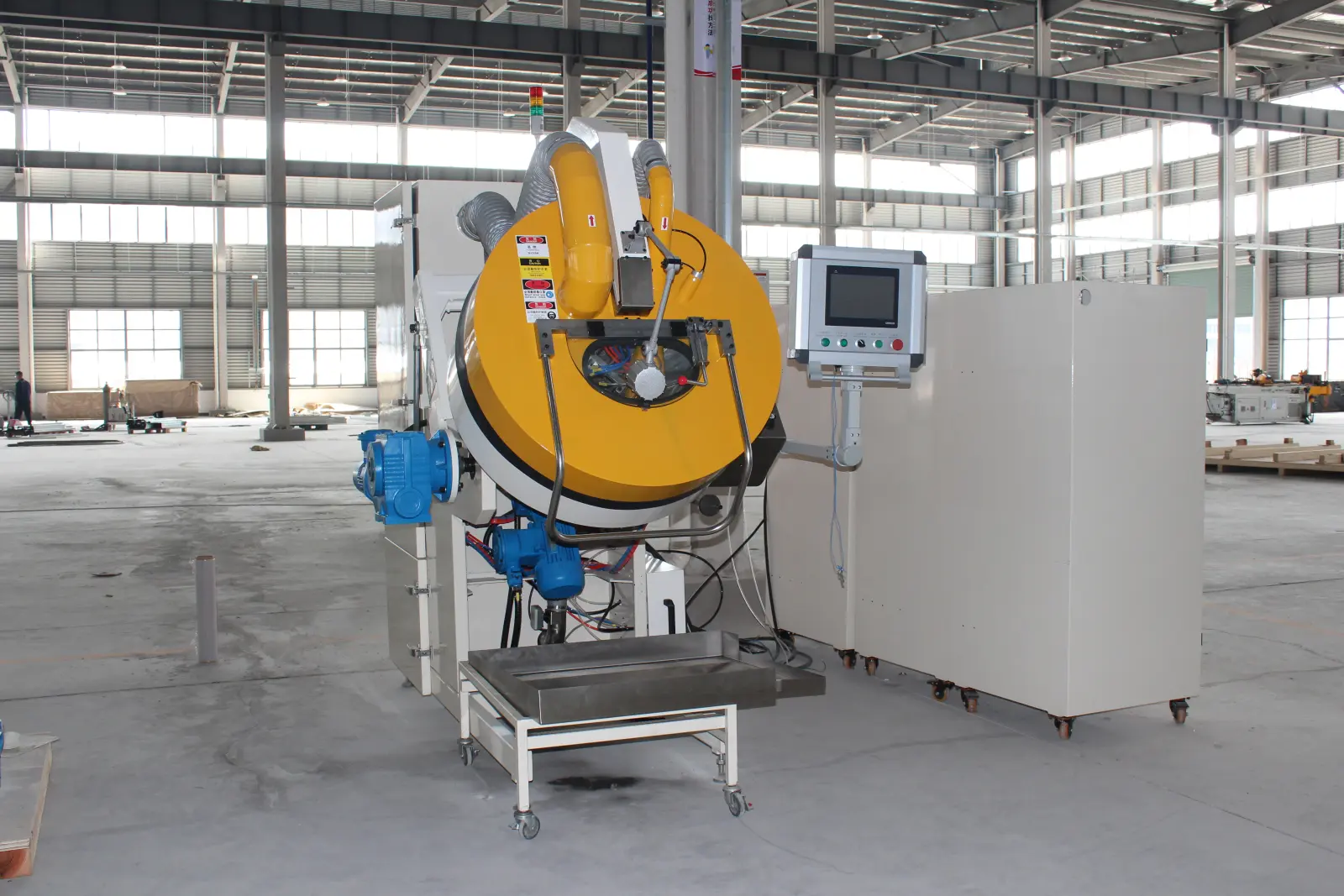

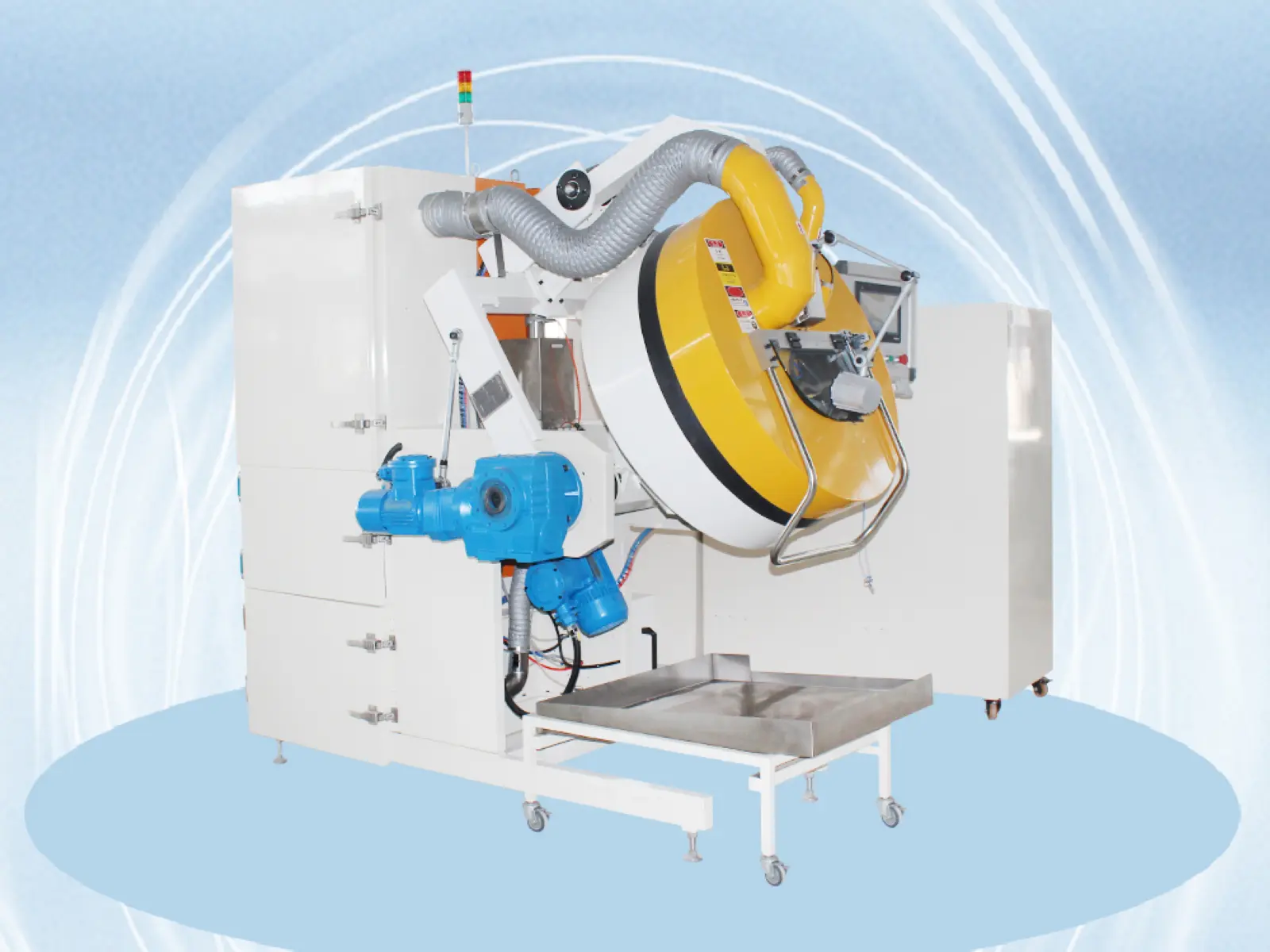

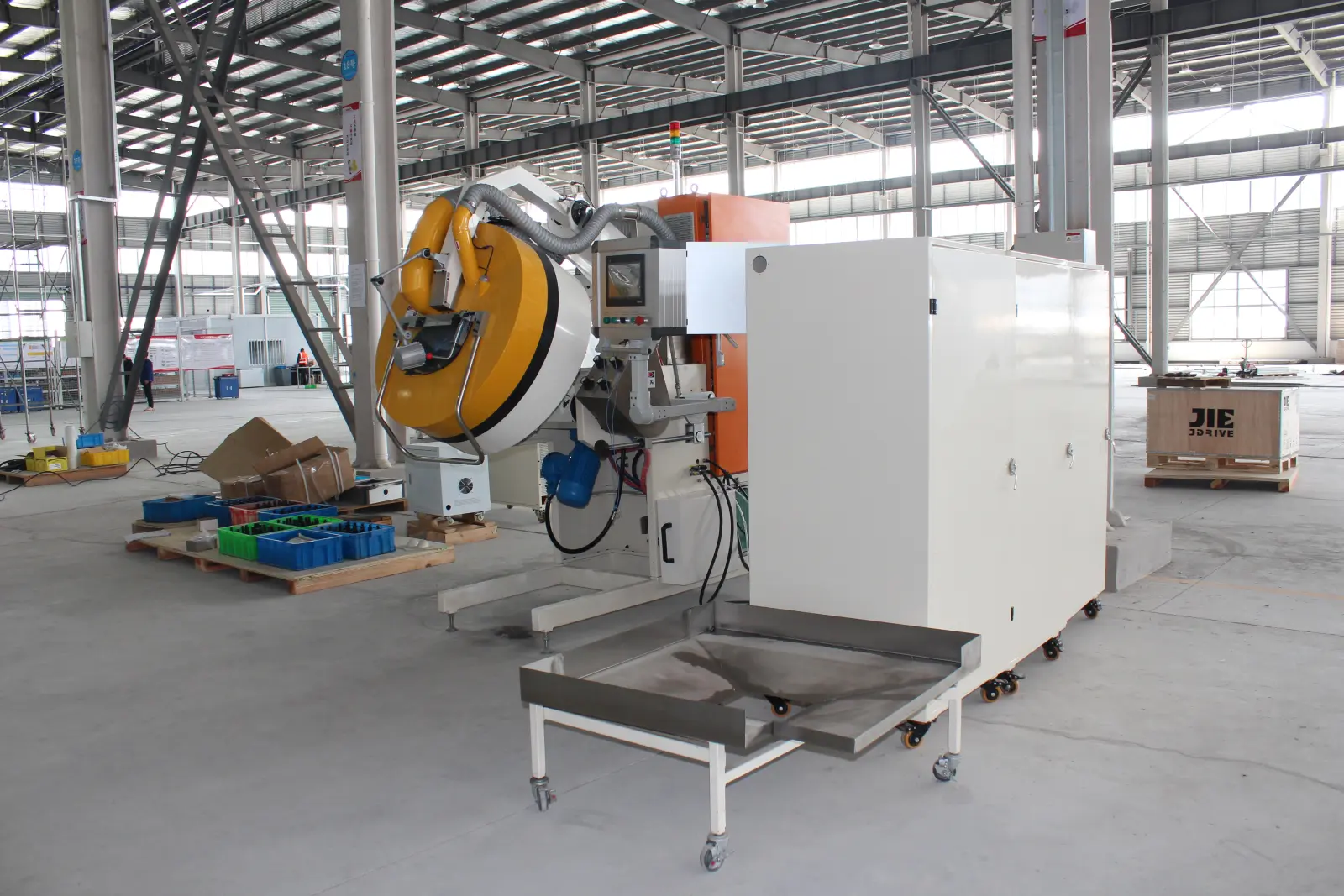

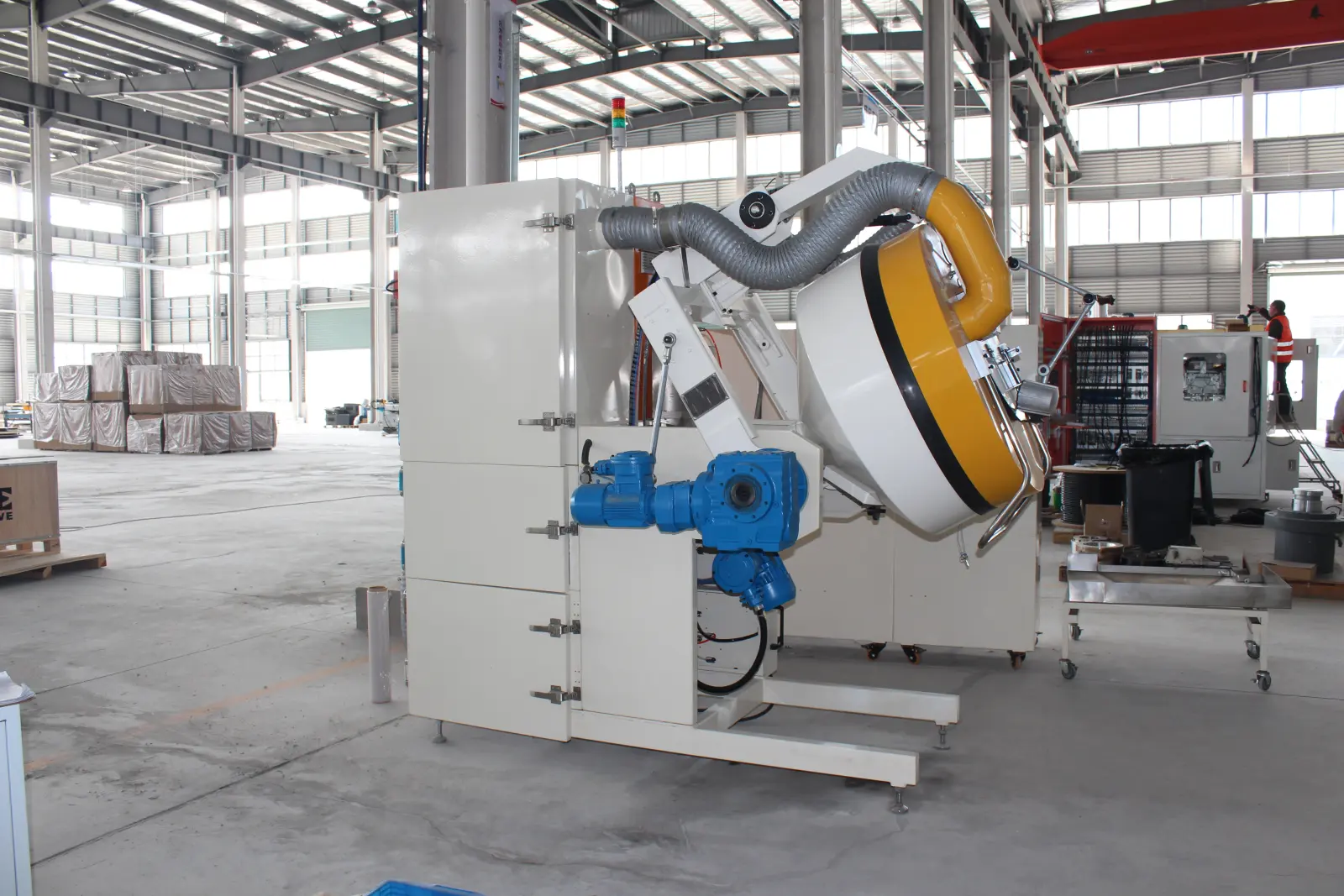

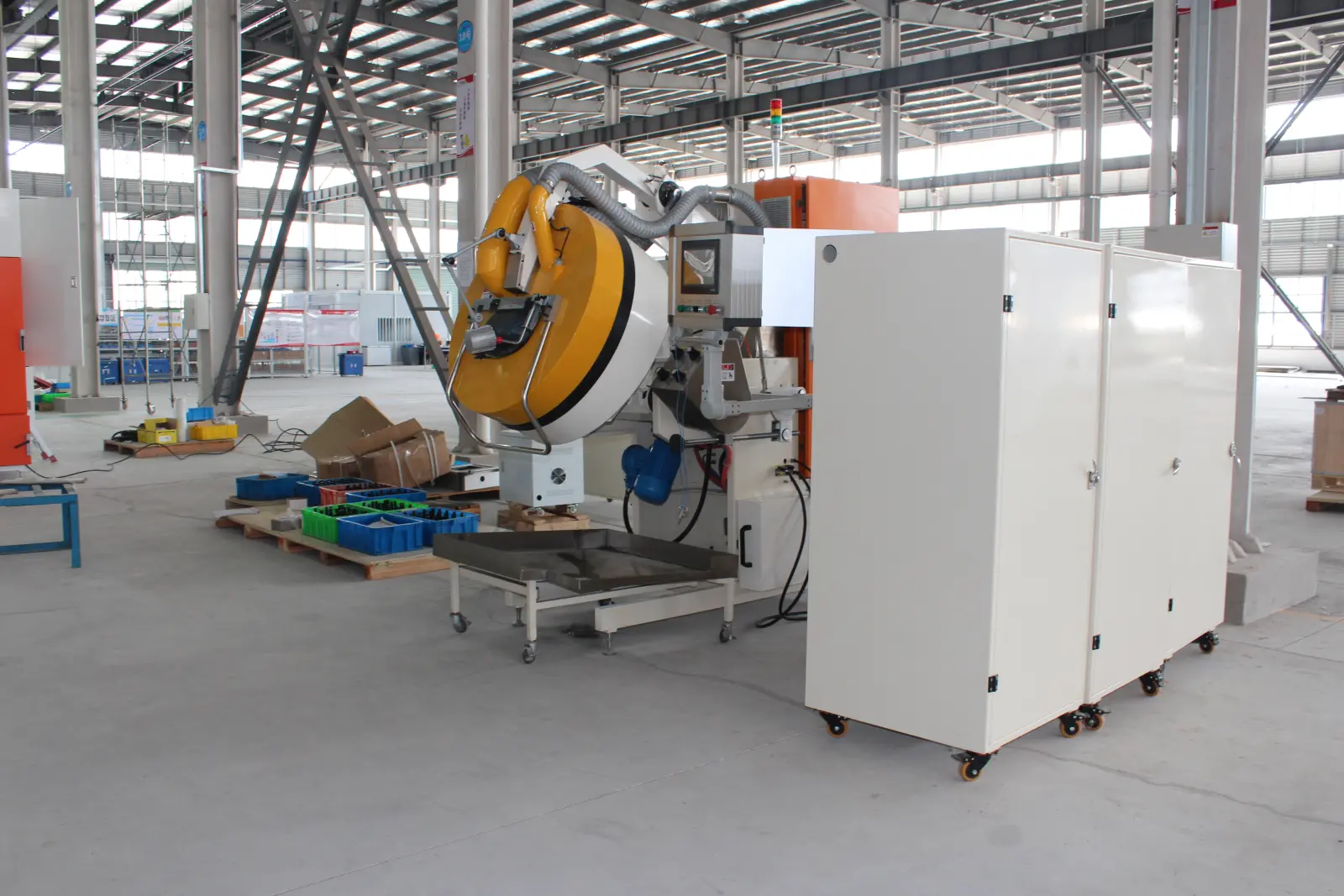

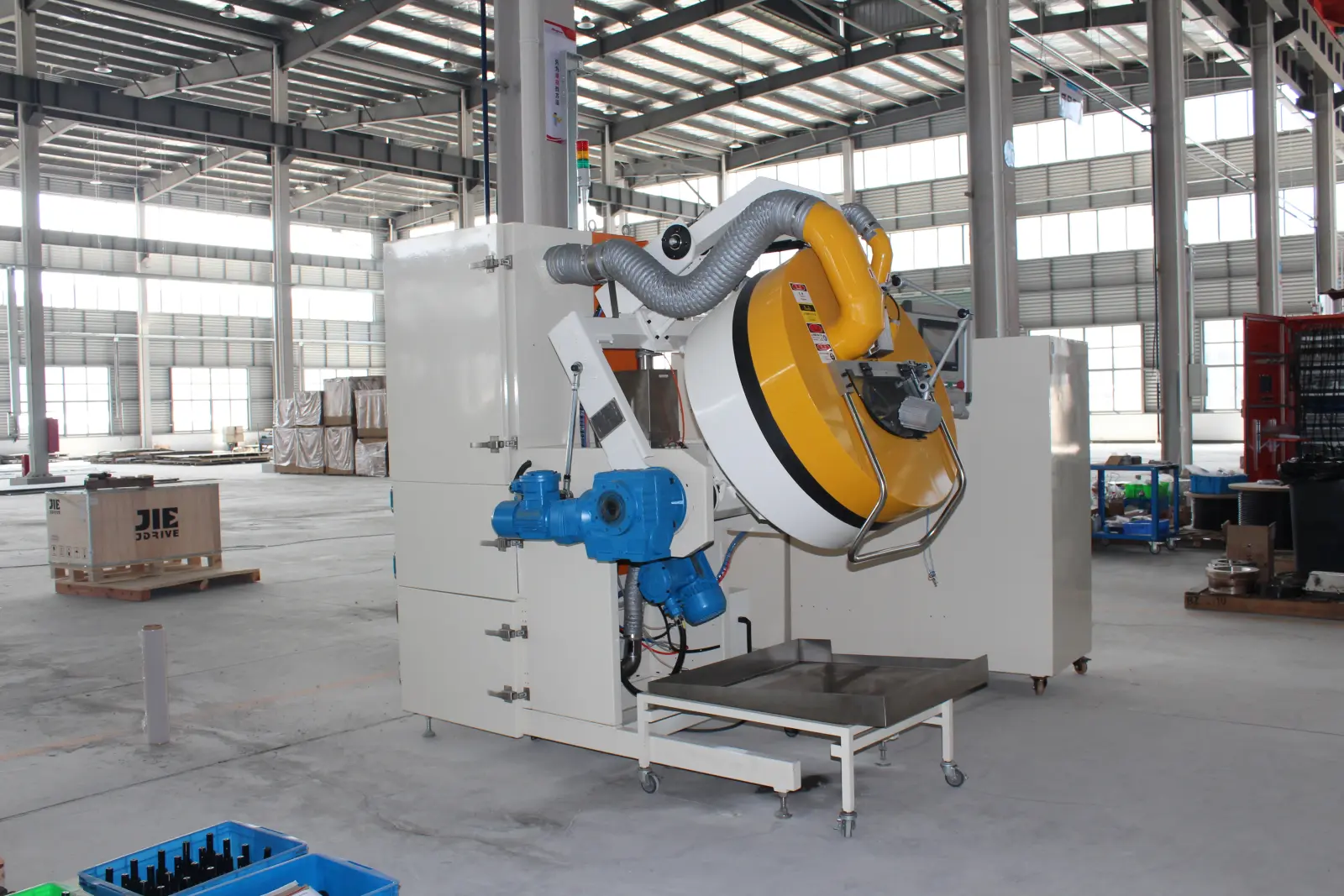

The PR90-DYS12M is a fully automatic tumble spraying machine independently developed and designed by ANGEM, with full proprietary intellectual property rights. Purpose-built for full-surface spraying of small parts, it specializes in the application of adhesives and paints, and has an extensive track record of successful deployments across the rubber and hardware industries.

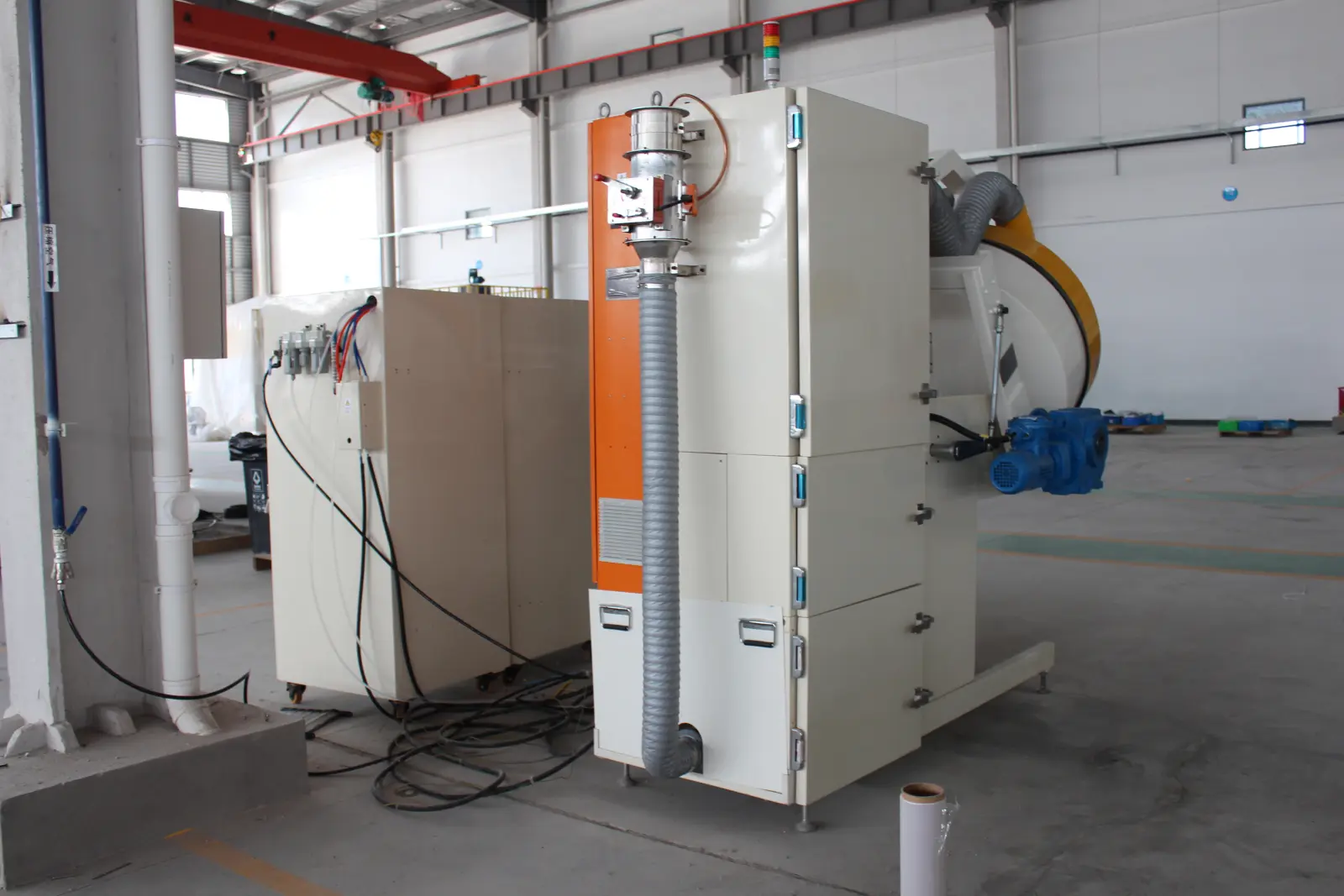

Featuring a fully enclosed spraying chamber and an integrated exhaust filtration system, the PR90-DYS12M ensures a clean, safe, and environmentally compliant workshop environment — free from fumes and contamination.

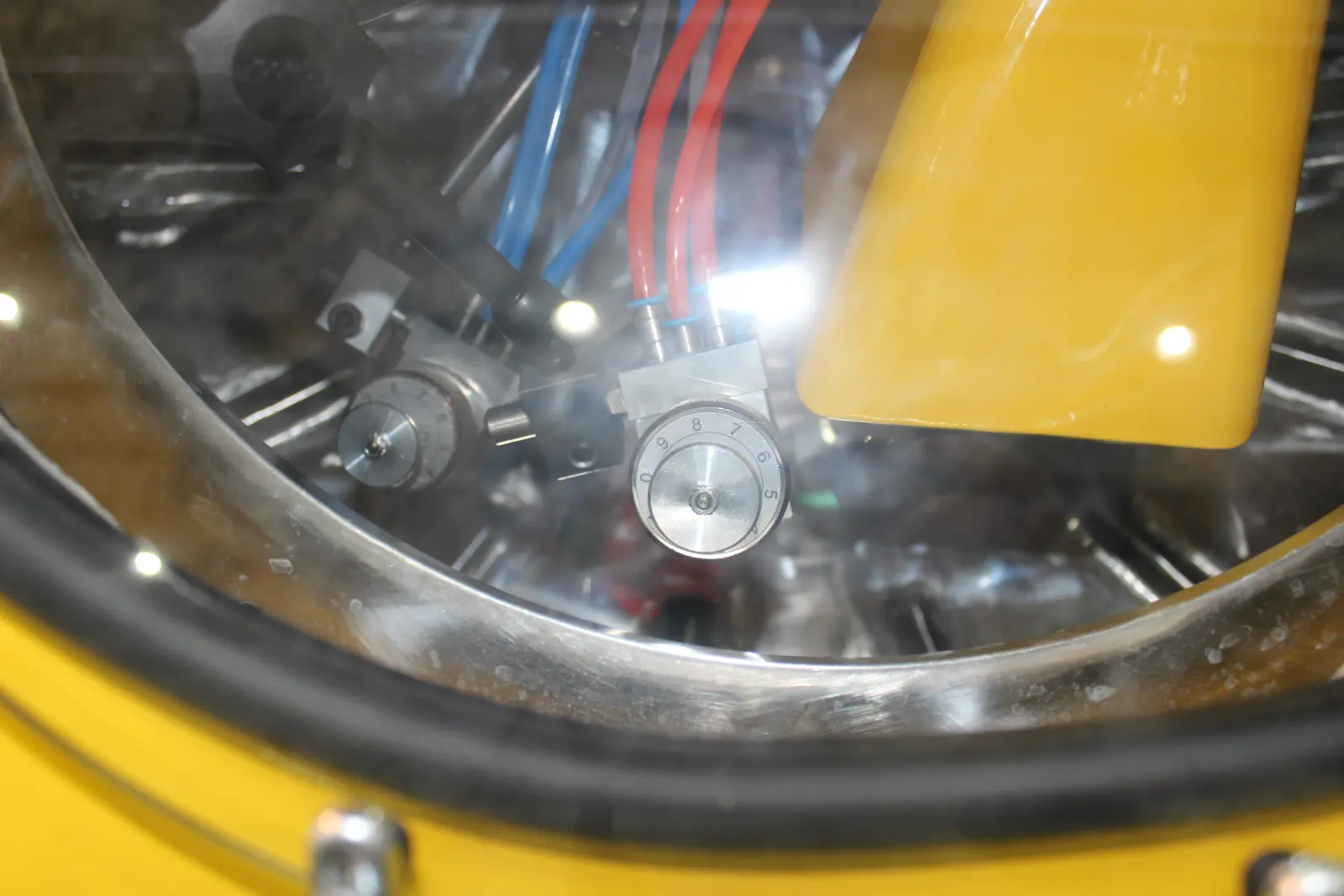

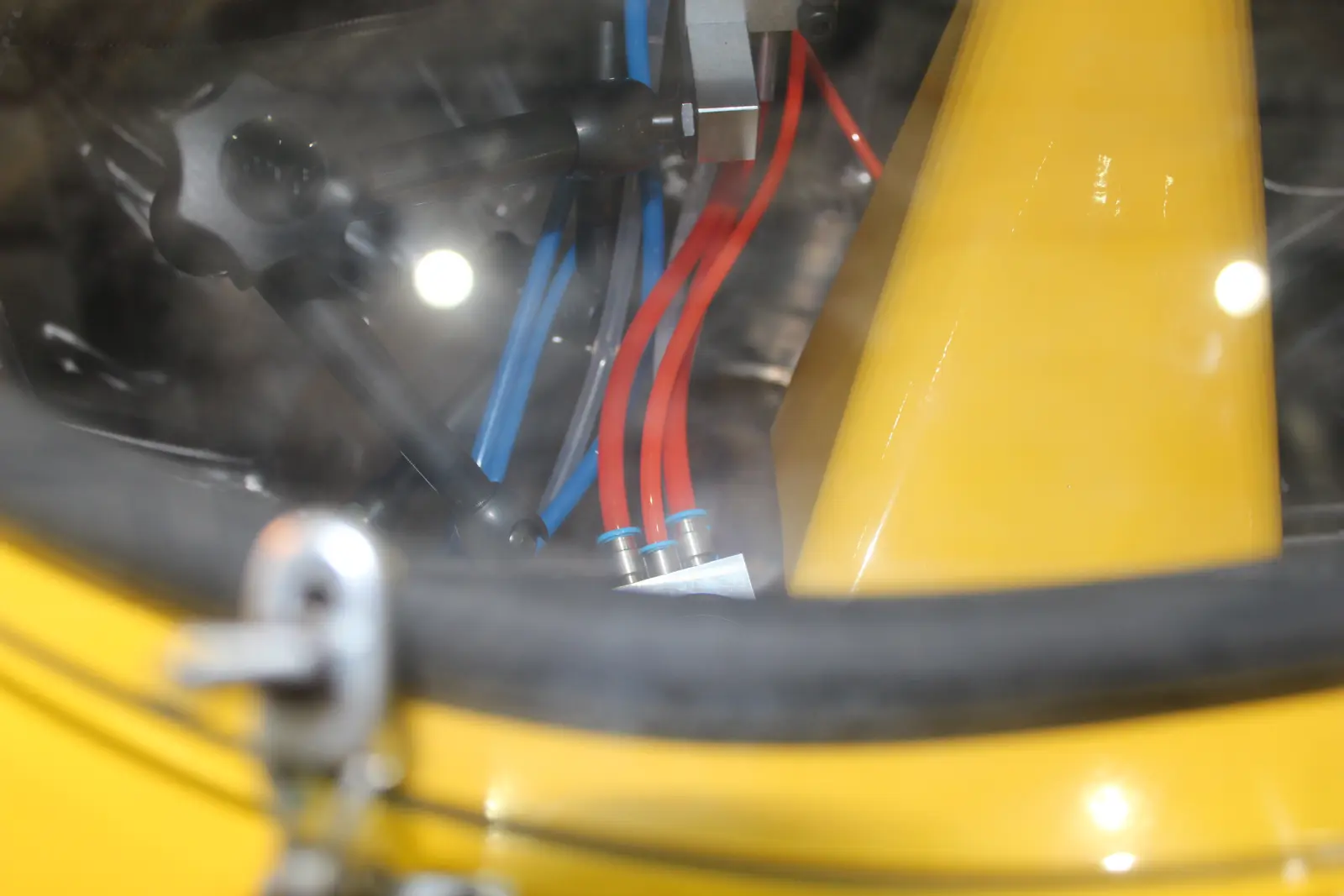

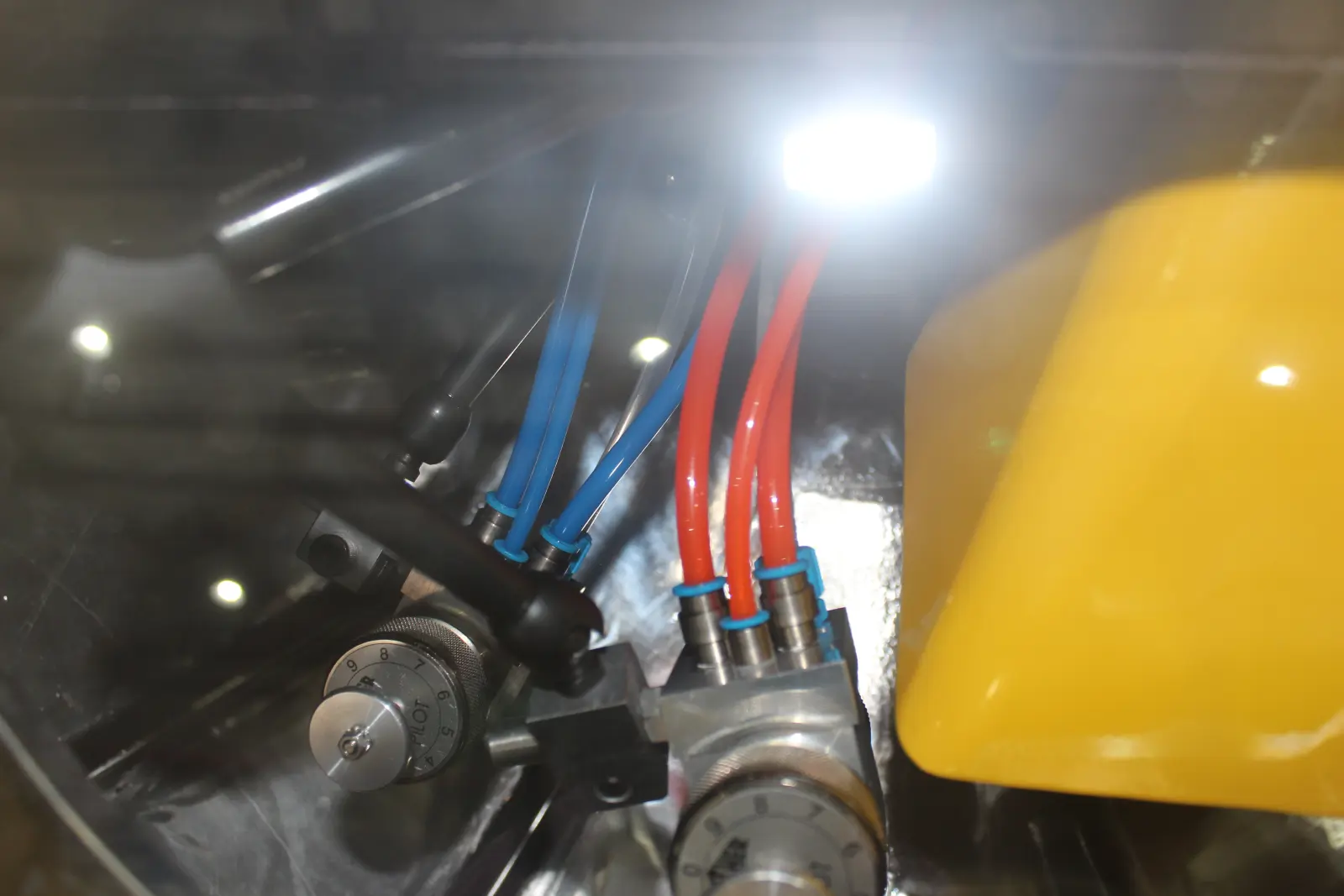

Automatic Spraying – Consistent full-surface tumble spraying for uniform adhesive and paint coverage on all small parts.
Automatic Drying – Integrated drying system cures coatings inline without interrupting production flow.
Automatic Adhesive Supply & Weighing – Continuous adhesive feeding paired with a built-in weighing system ensures accurate material dosing and consumption monitoring.
Automatic Cleaning – Self-cleaning function maintains spray system performance and minimizes maintenance downtime.

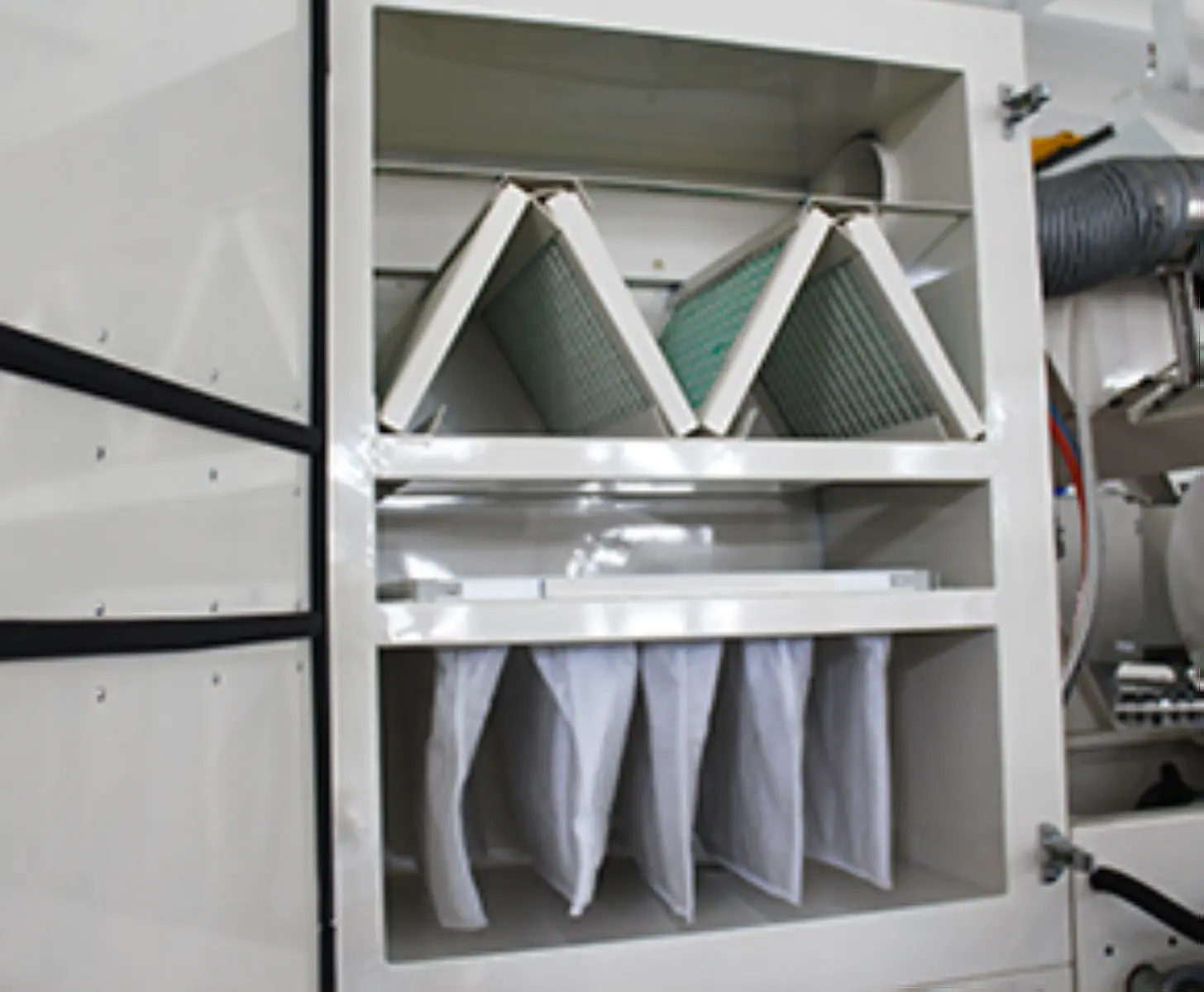

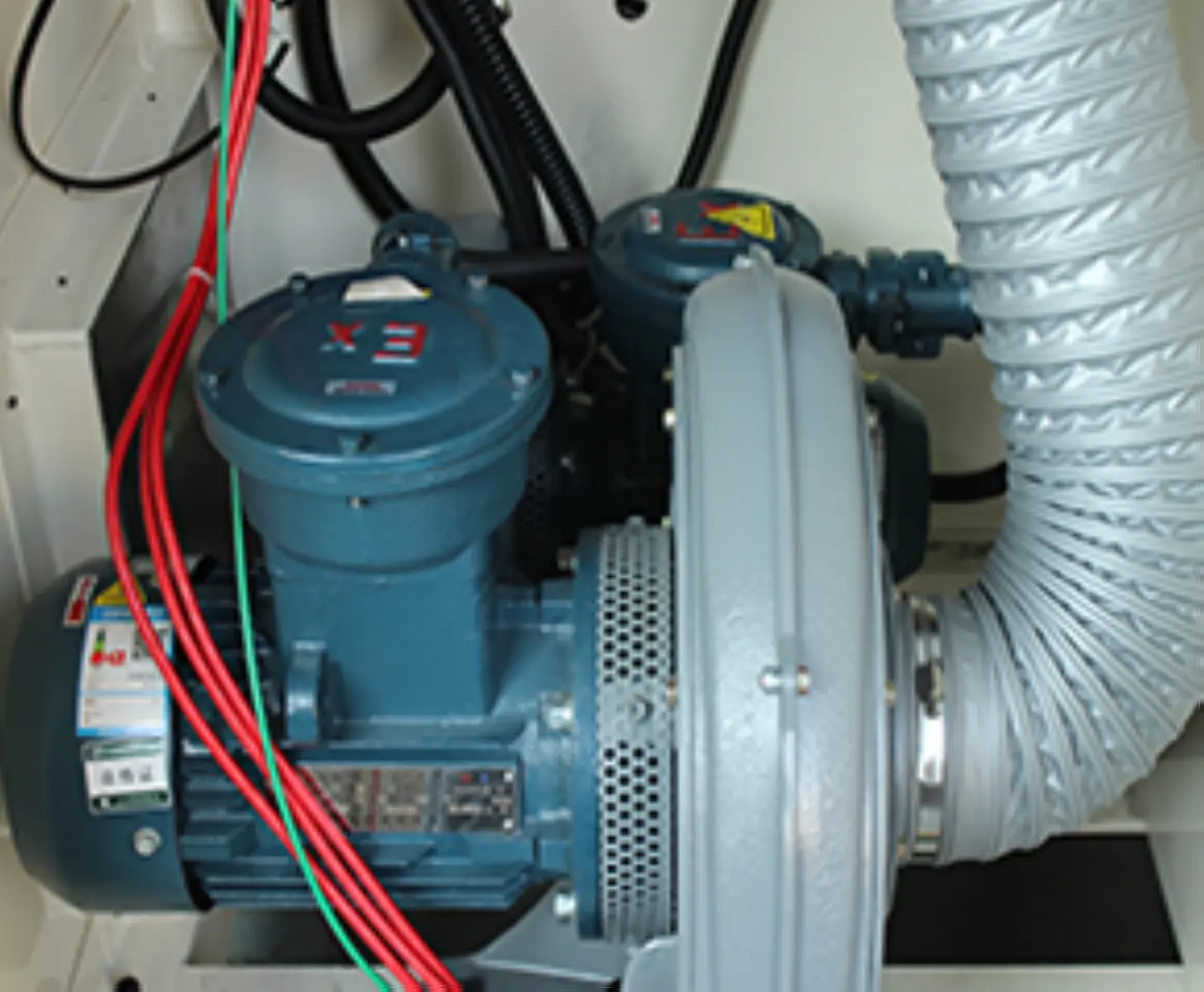

Exhaust Gas Treatment – Fully enclosed spraying mode combined with an advanced filtration system keeps the workshop environment clean and pollution-free.
Intelligent Alarm System:
The PR90-DYS12M is equipped with a comprehensive multi-point alarm system to ensure safe and stable operation at all times:
🔔 Low Temperature Alert
🔔 Low Air Pressure Alert
🔔 Component Failure Alert
🔔 System Fault Alert
🔔 Adhesive Level Below Threshold Alert
🔔 Filtration System Blockage Alert
Design Highlights:

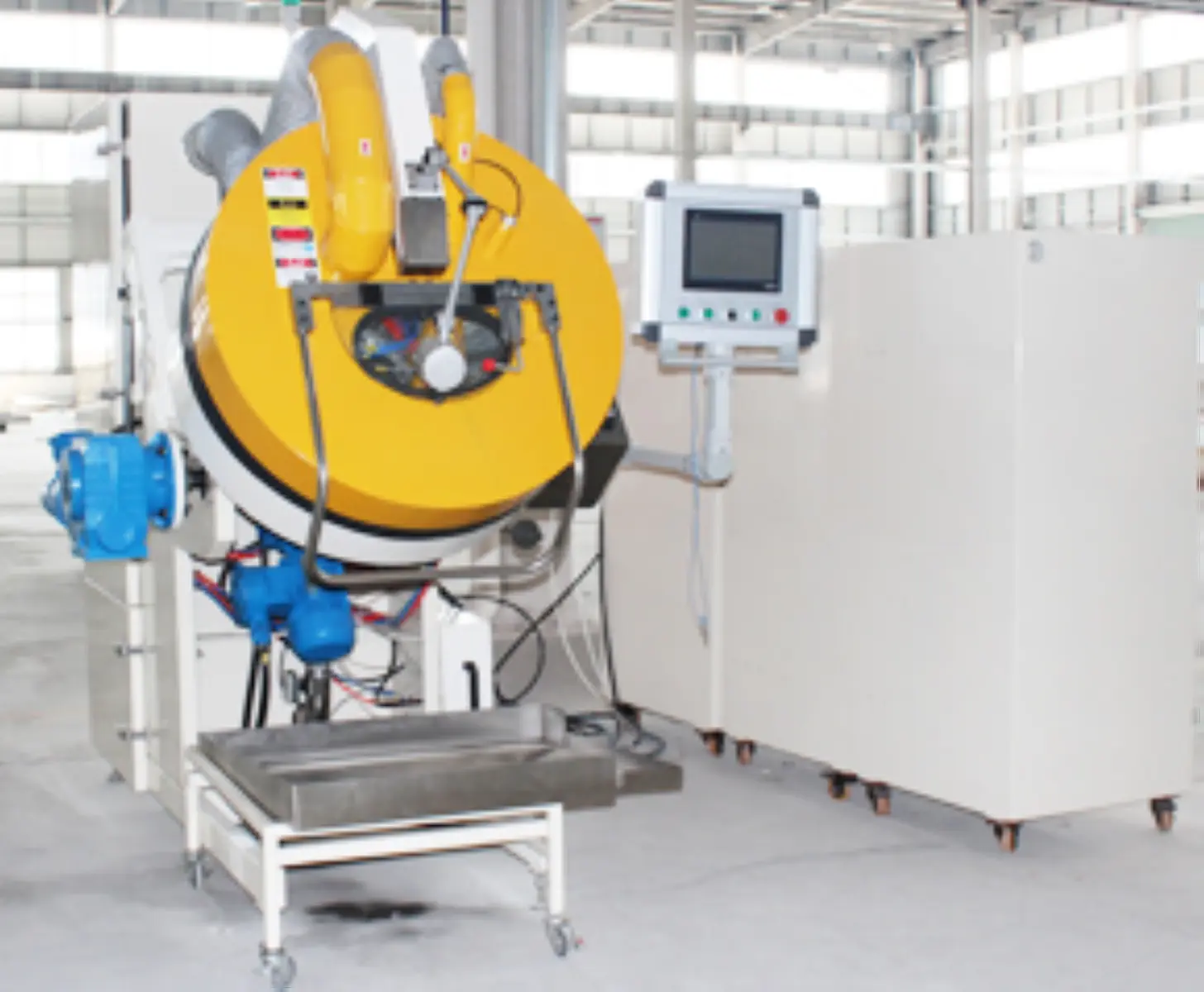

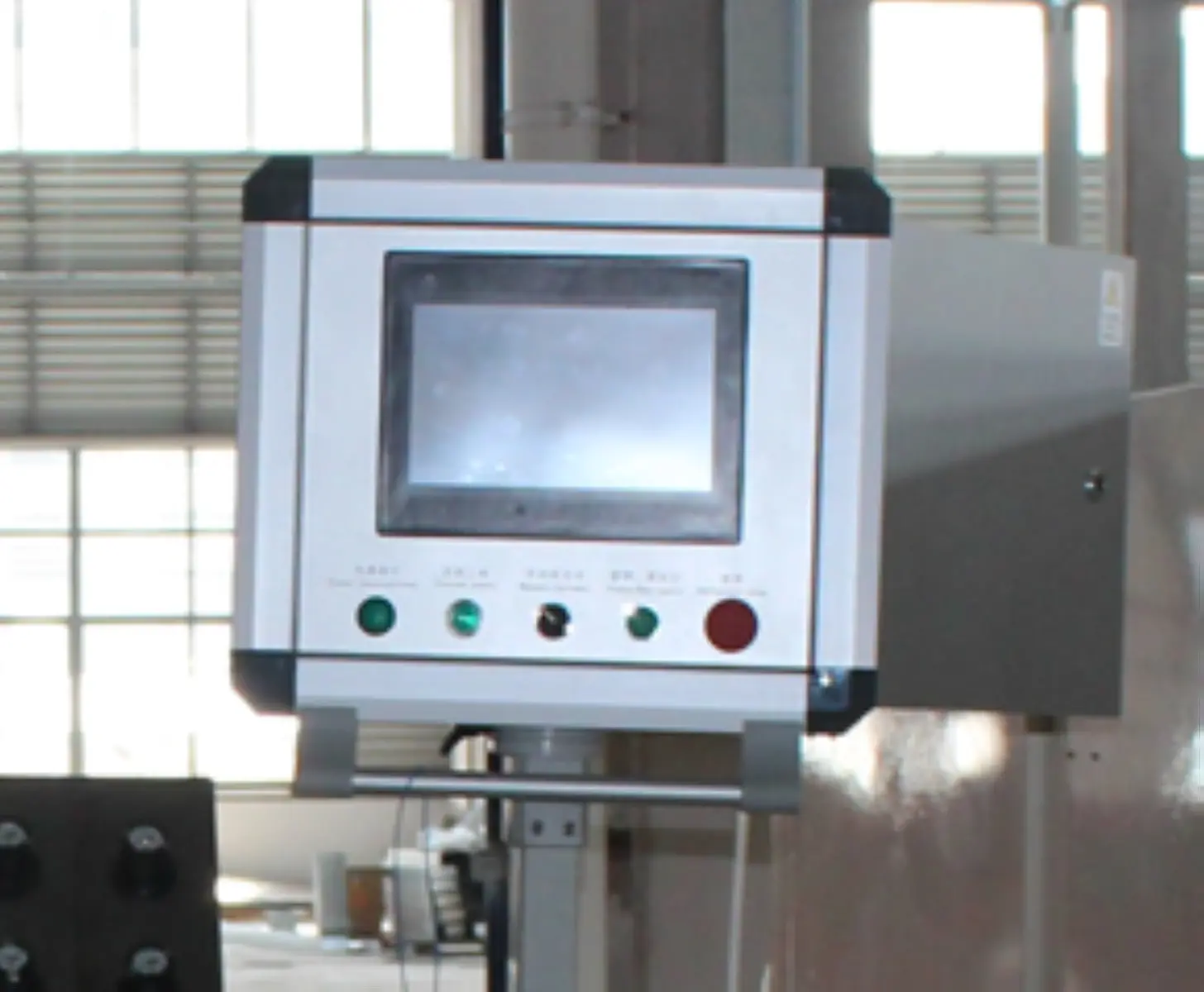

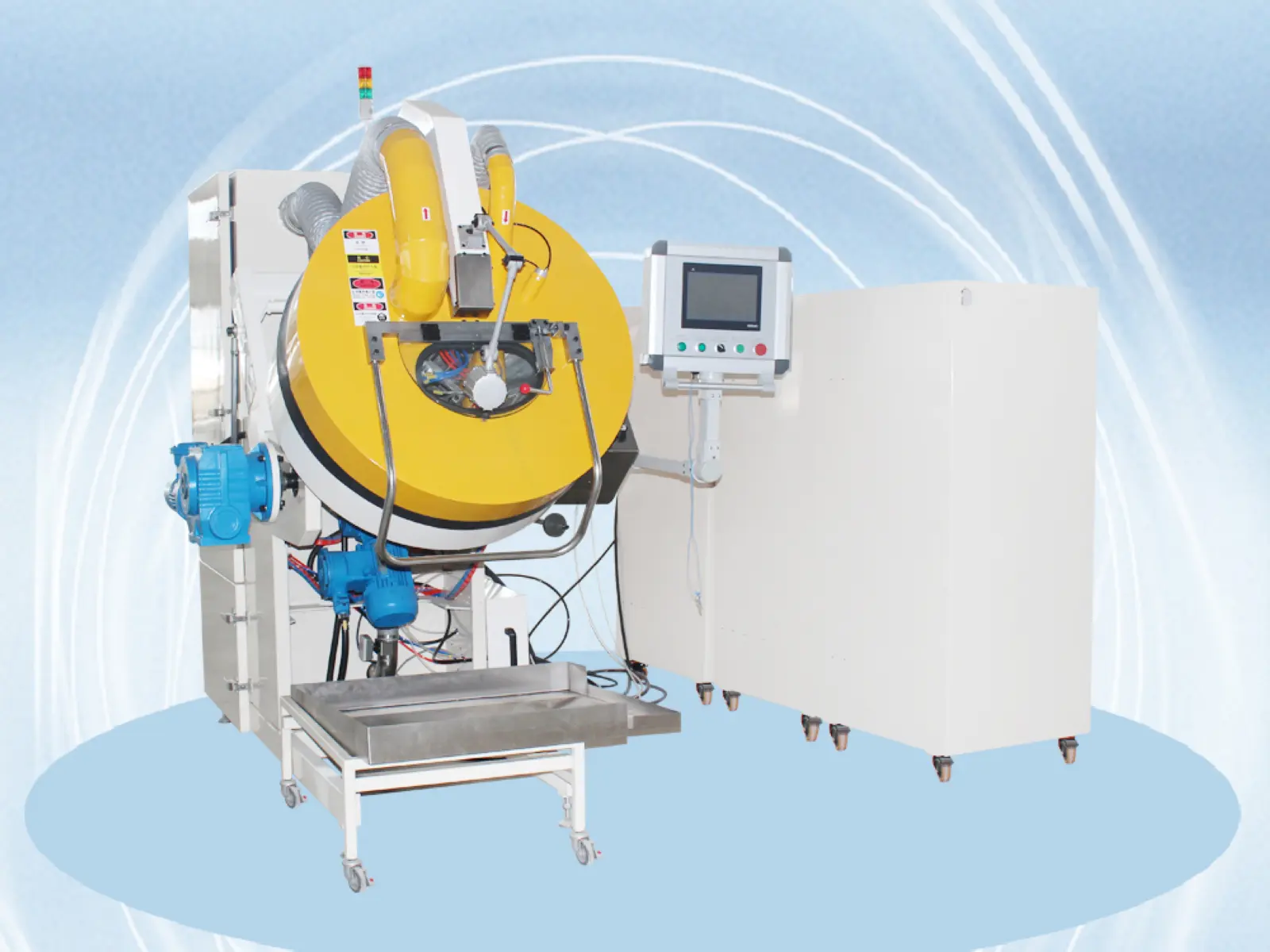

One-Touch Start – Touchscreen control system with one-button startup makes operation straightforward and accessible for all skill levels.

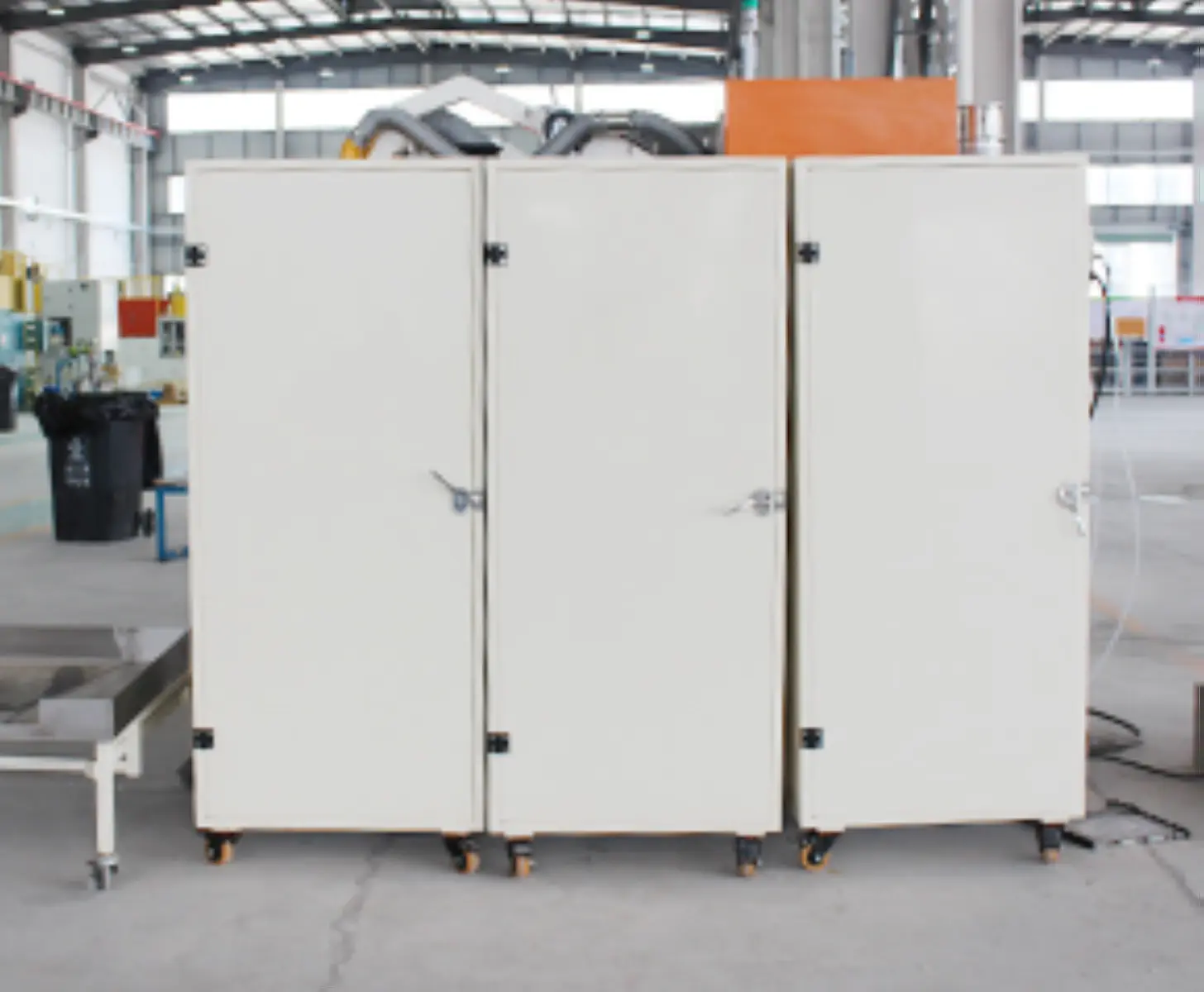

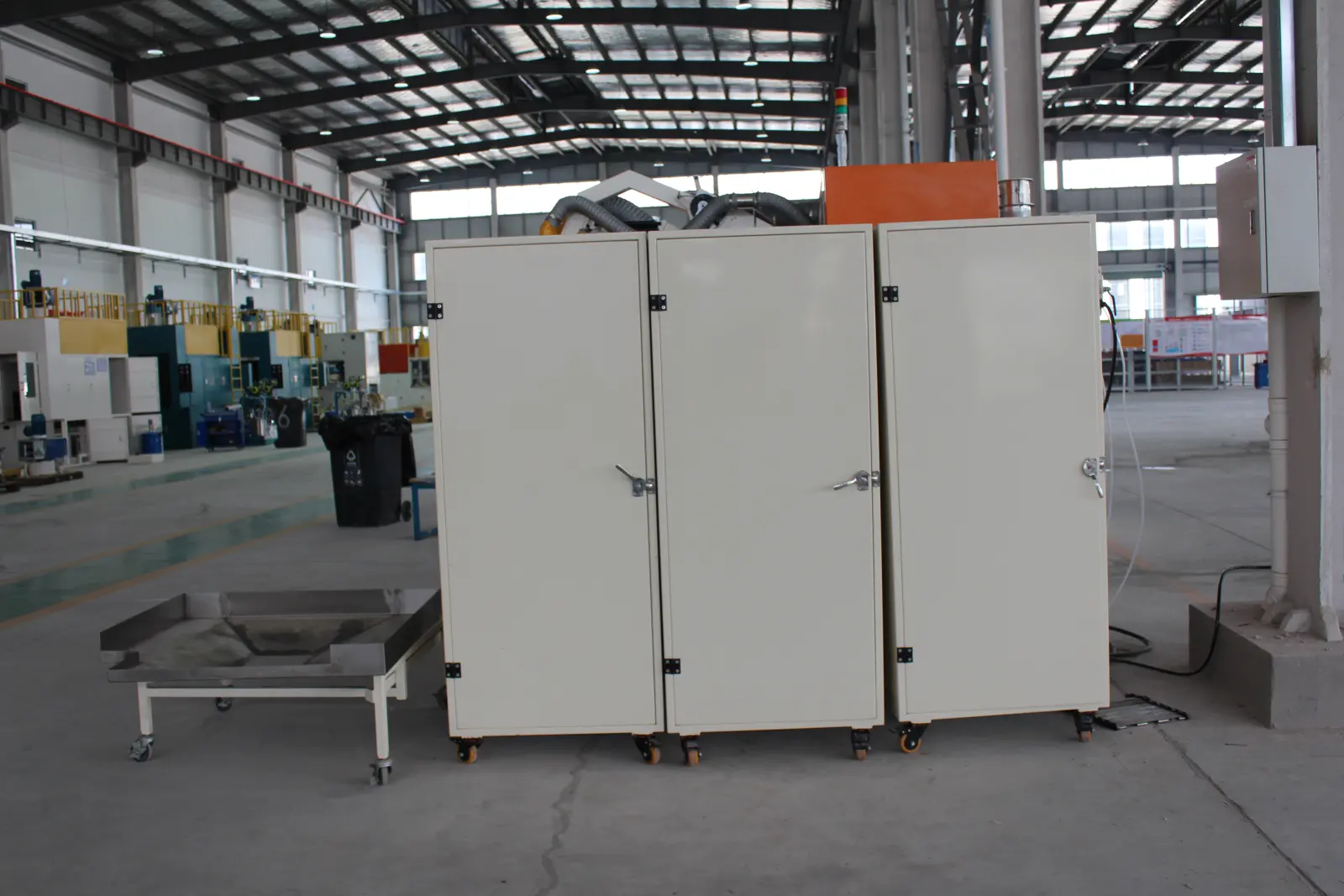

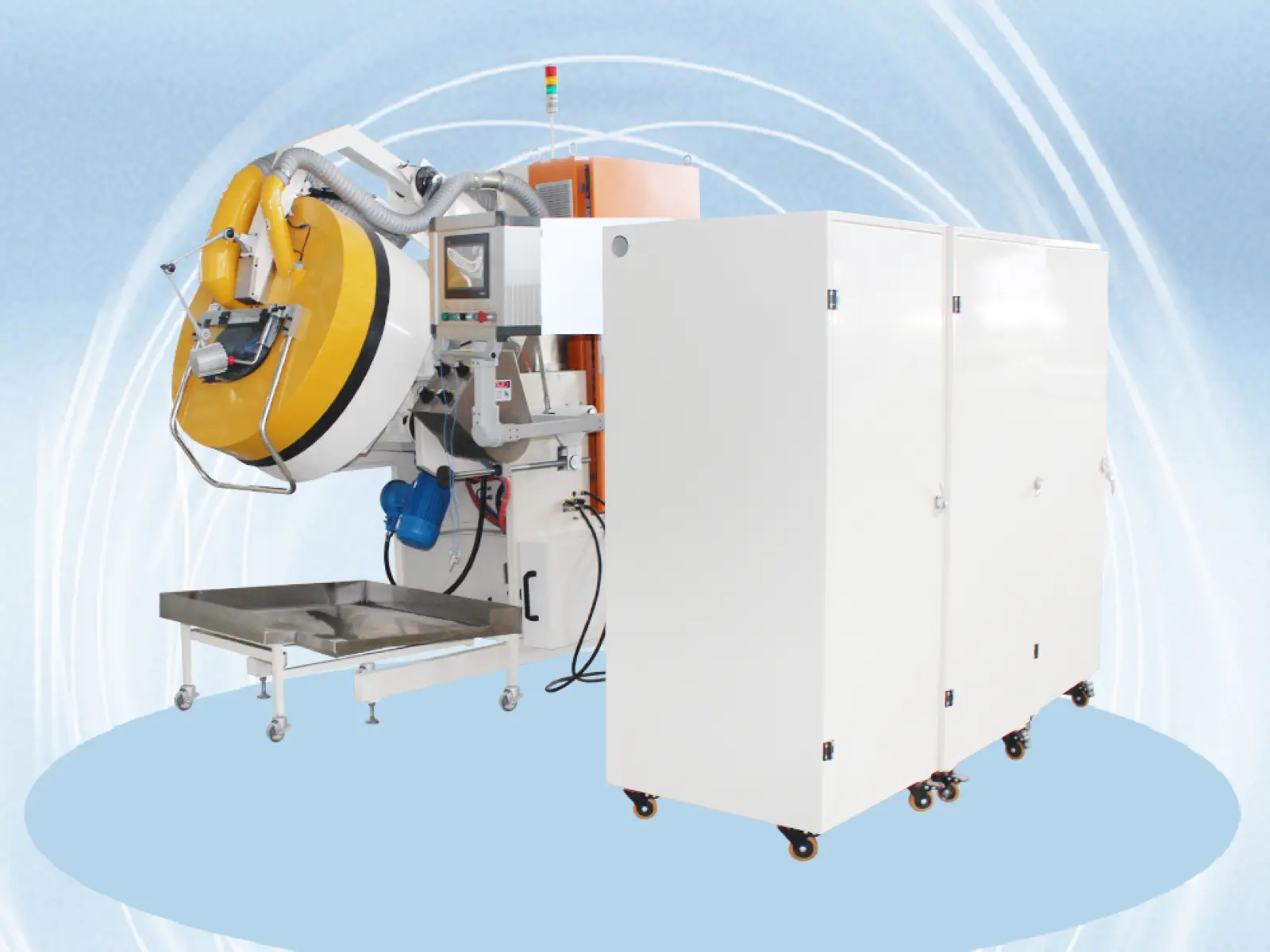

Cabinet-Style Adhesive Supply Unit – The automatic adhesive supply and weighing system adopts a sleek cabinet structure with clearly defined functional zones — more compact and visually refined than traditional designs.
Mobile Casters – Equipped with heavy-duty rolling casters for easy repositioning and flexible workshop layout.

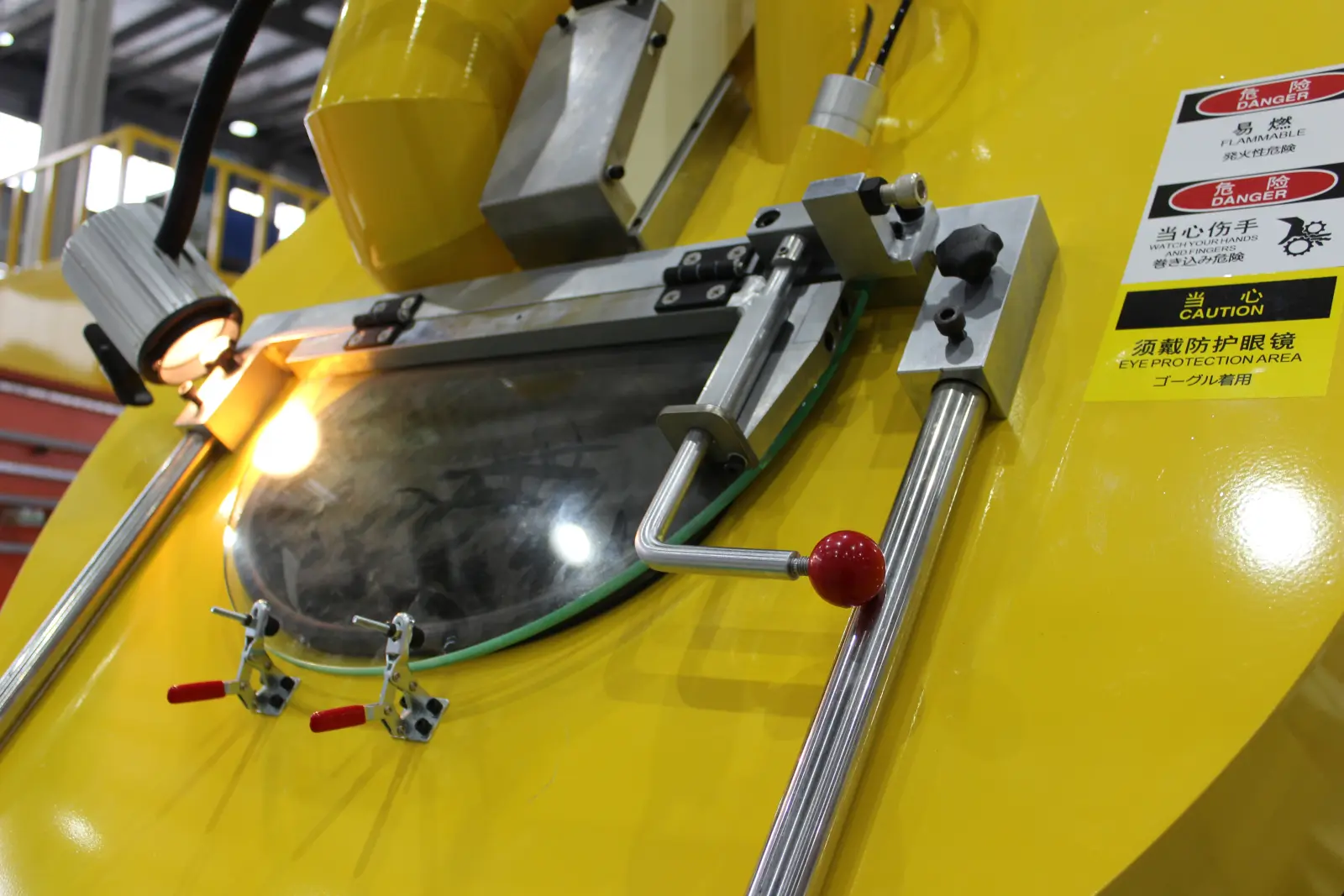

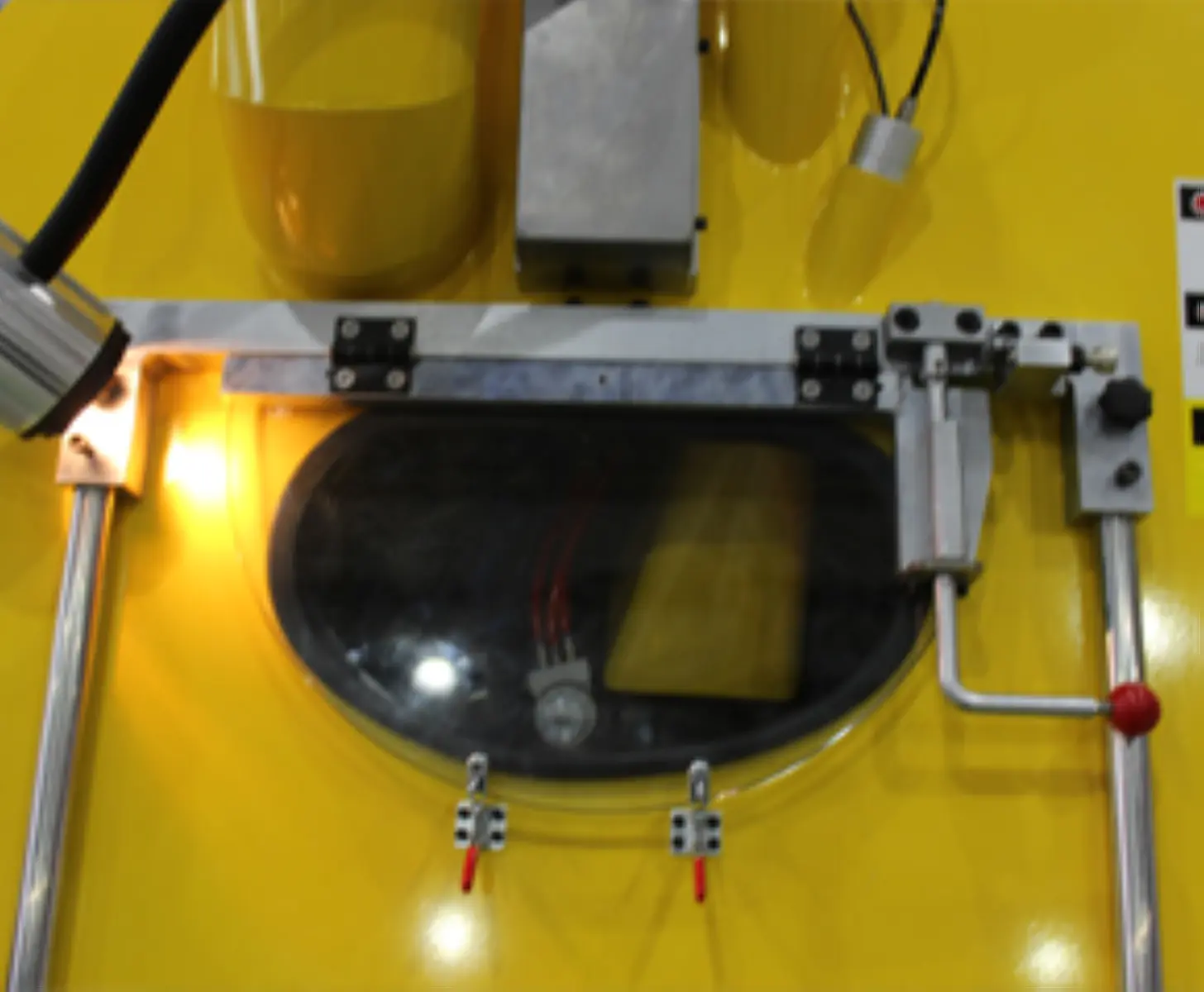

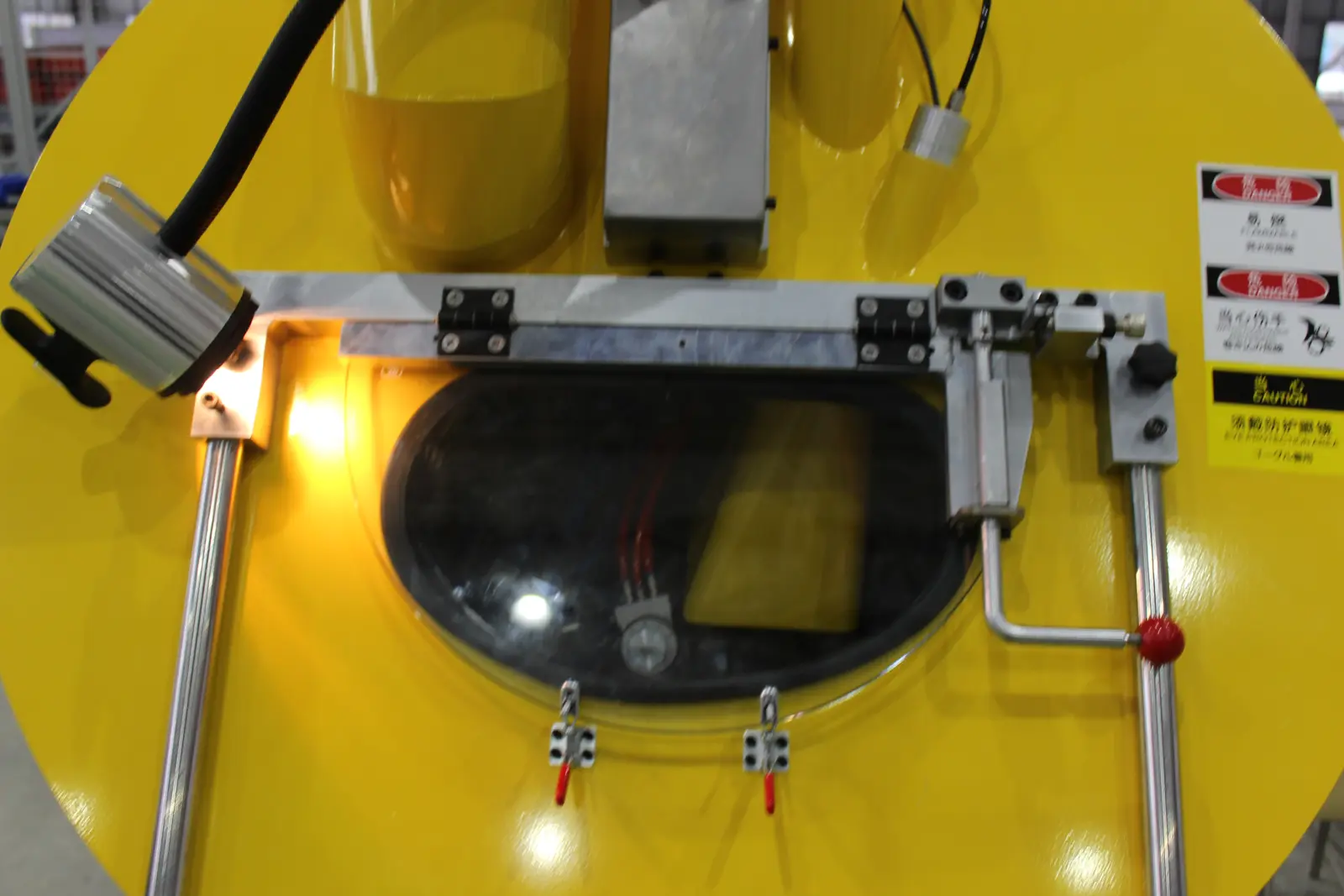

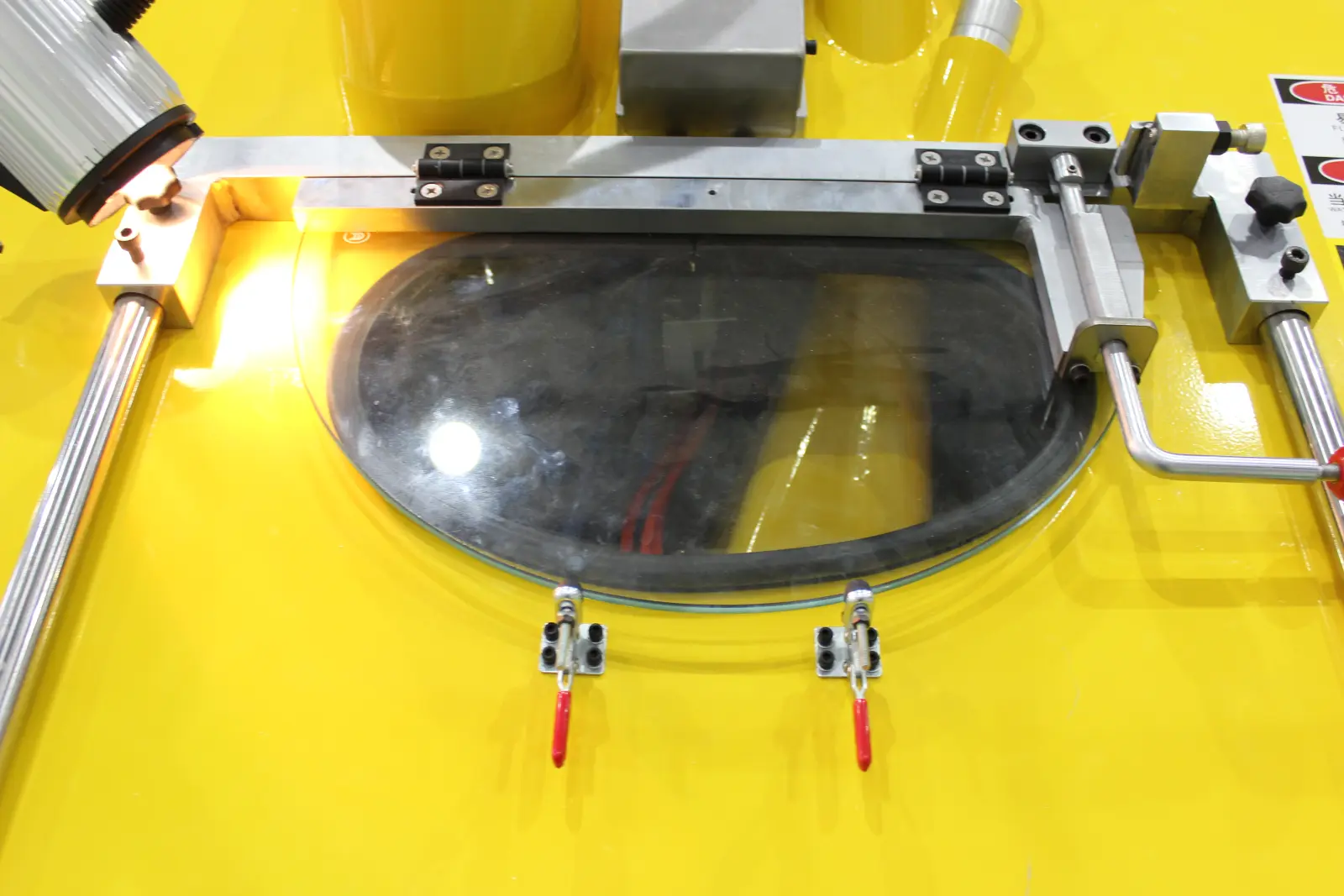

Fully Enclosed Design – Sealed spraying chamber prevents fume leakage, protecting operators and maintaining a clean production environment.
PRODUCT PARAMETERS
Product Attribute
Technical Specification
Production Cycle
10–40 min/batch, adjustable
Maximum Workpiece Load
50 kg
Processing Capacity
20–40 L
Number of Spray Guns
2
Drying Temperature
Ambient temperature to 120°C, adjustable with automatic control
Preheating Temperature
Ambient temperature to 120°C, adjustable with automatic control
Drum Rotation Speed
10–30 rpm
Drum Liner Diameter
Φ900 mm
Air Supply Pressure
0.6 MPa
Heating Method
Electric heating
Heating Power
10 kW total
Total Motor Power
Approx. 5 kW
Power Supply
380 V ±10%, 50 Hz
Overall Dimensions
L2600 × W1800 × H2500 mm
FEATURES
Key Advantages:
✦ Versatile Application – Suitable for a wide variety of small parts across rubber, hardware, and related industries
✦ Eco-Friendly & Clean – Enclosed design and exhaust filtration ensure zero workshop pollution
✦ Intelligent Monitoring – Multi-point alarm system proactively detects and flags operational issues
✦ Simple & Intuitive Operation – One-touch start with touchscreen HMI, easy for any operator to learn
✦ Compact & Mobile – Cabinet-style design with casters for convenient placement and movement
✦ High Reliability – Proven performance across extensive real-world applications in the rubber and hardware sectors
The PR90-DYS12M is the smart, self-contained tumble spraying solution for manufacturers who need reliable full-surface coating of small parts with minimal operator involvement and maximum environmental compliance.
APPLICATION FIELD
1. Decorative Coating
Used to apply decorative finishes to small components such as pen barrels, binder clips, wooden toys, hearing aid components, zipper sliders, buttons, fishing hooks, springs and bottle caps. The process helps achieve uniform color and consistent surface appearance.
2. Corrosion-Resistant Coating
Designed for the application of protective coatings to nuts, screws, bolts, small nails, fasteners and other small hardware components. The coating helps improve corrosion resistance and extend product service life.
3. Low-Friction and Lubrication Coating
Suitable for applying water-based lubricant coatings and PTFE low-friction coatings to O-rings and other sealing components. The coating helps reduce friction, improve sliding performance and support smoother assembly and operation.
4. Adhesive Coating
Used to apply bonding adhesives to metal-cased oil seals, metal inserts for automotive shock absorber bushings, brake seals, engine seals and other rubber-to-metal components. It supports consistent adhesive coverage before molding and vulcanization.
5. Electrical Insulation Coating
Suitable for applying electrical insulation coatings to soft magnetic cores, hard magnetic cores, toroidal cores, battery caps and other magnetic or electrical components. The coating helps provide electrical isolation and surface protection.
